Features:

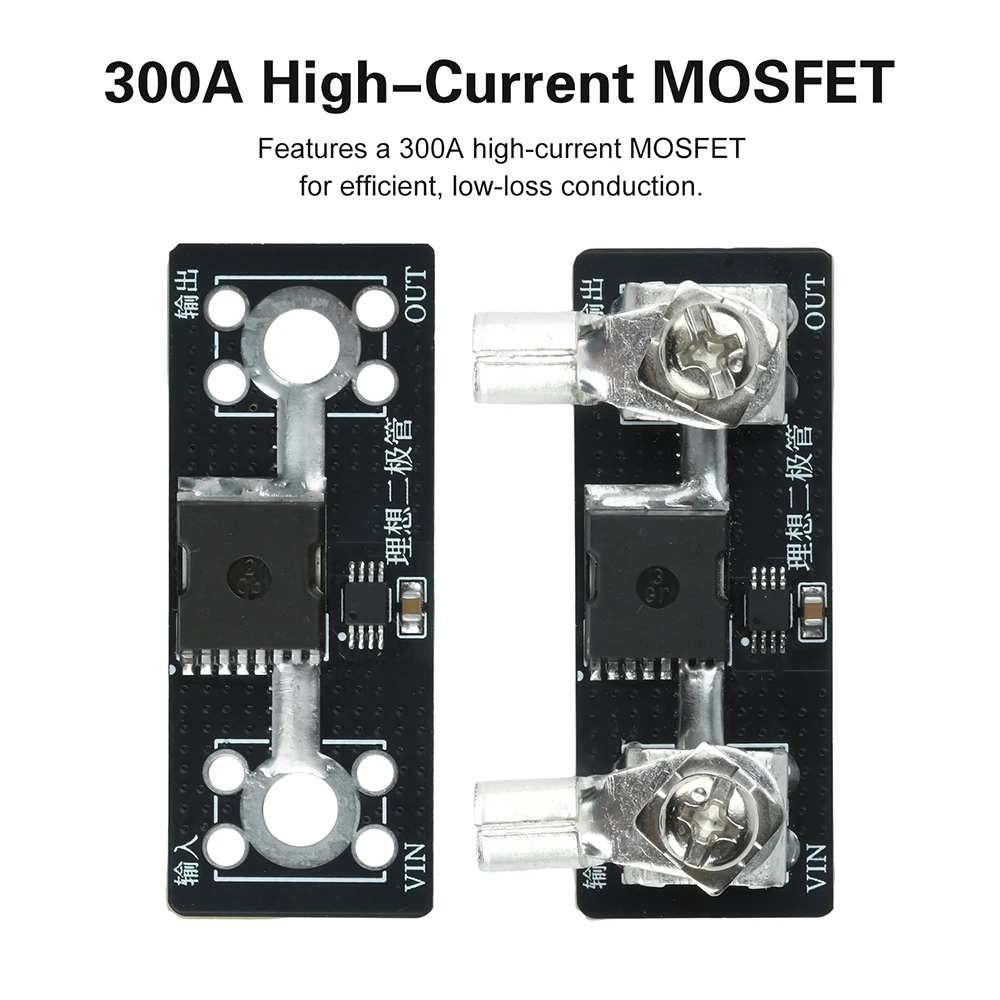

1. Utilizes 300A high-current MOSFETs for efficient, low-loss conduction

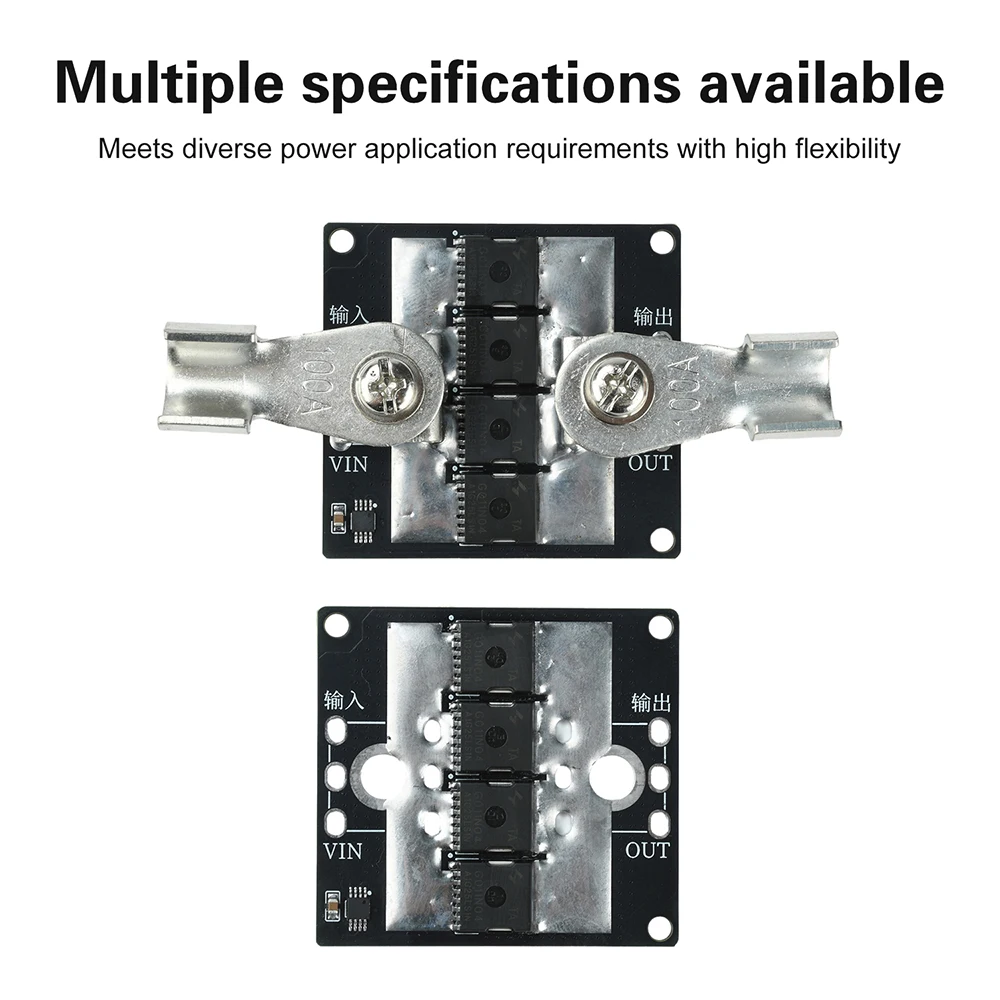

2. Multiple specifications available to meet diverse power application needs with high flexibility

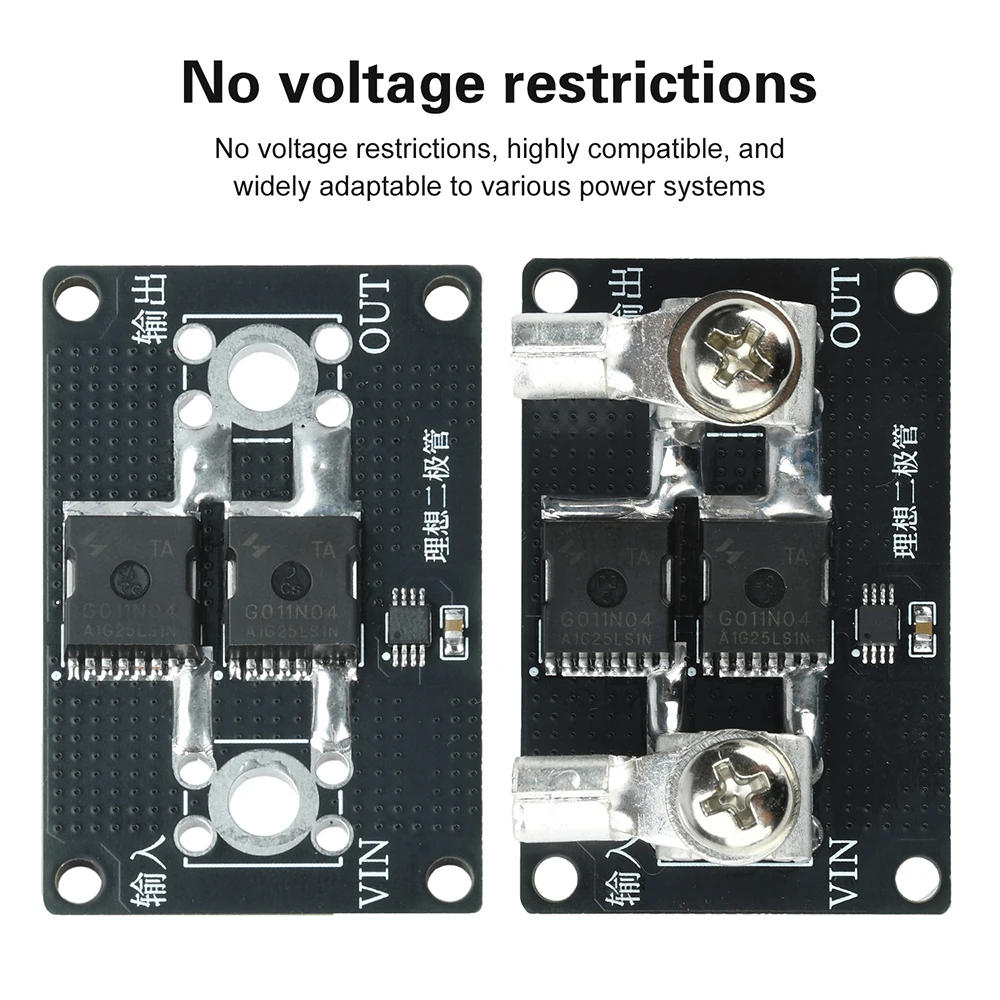

3. No voltage restrictions, strong compatibility, widely adaptable to various power systems

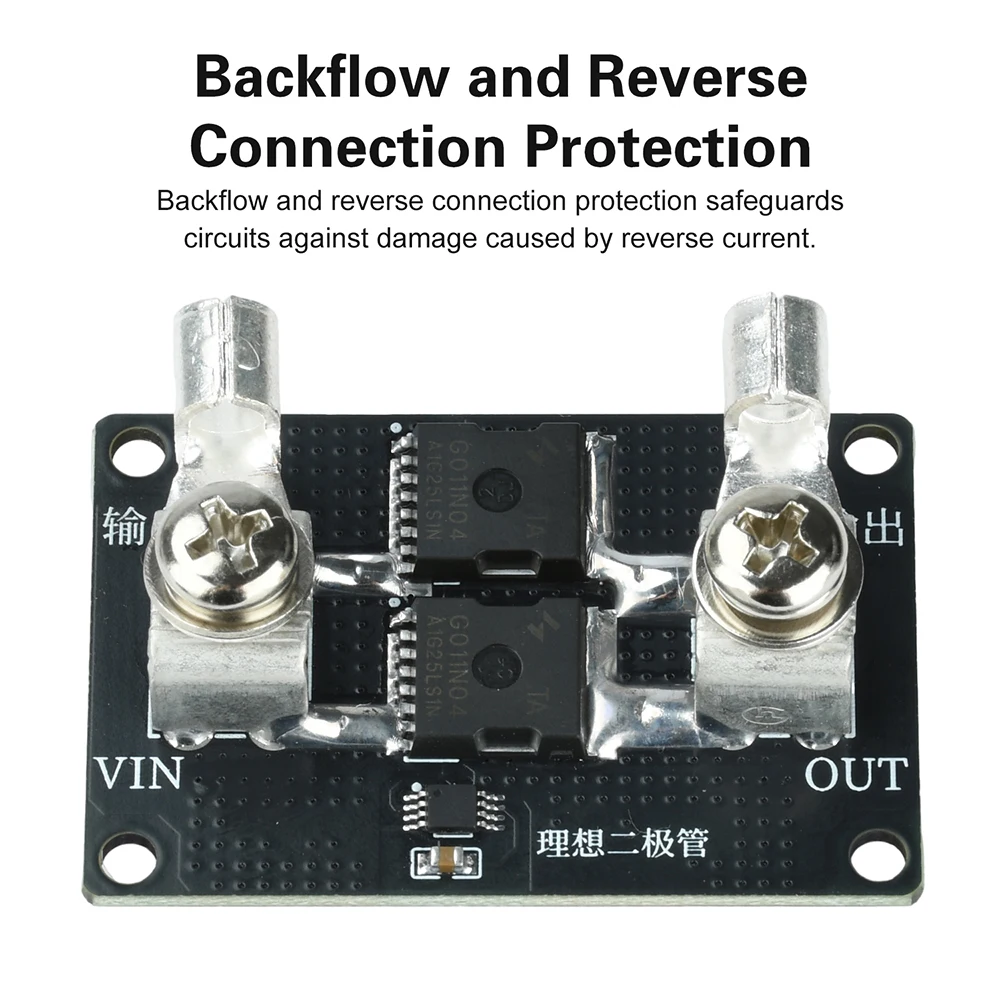

4. Reverse current protection prevents damage from reverse current flow

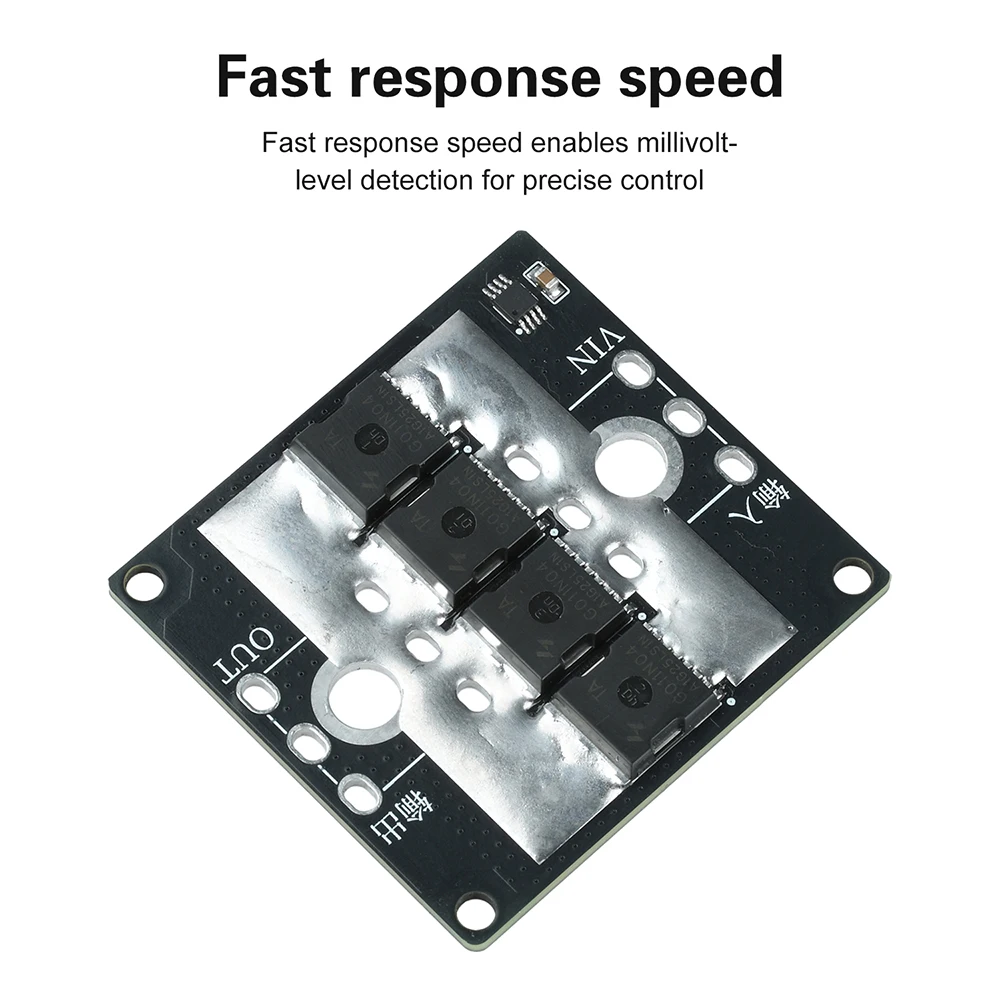

5. Fast response speed with millivolt-level detection for precise control

6. Modular design with optional terminals for easy installation and adaptability

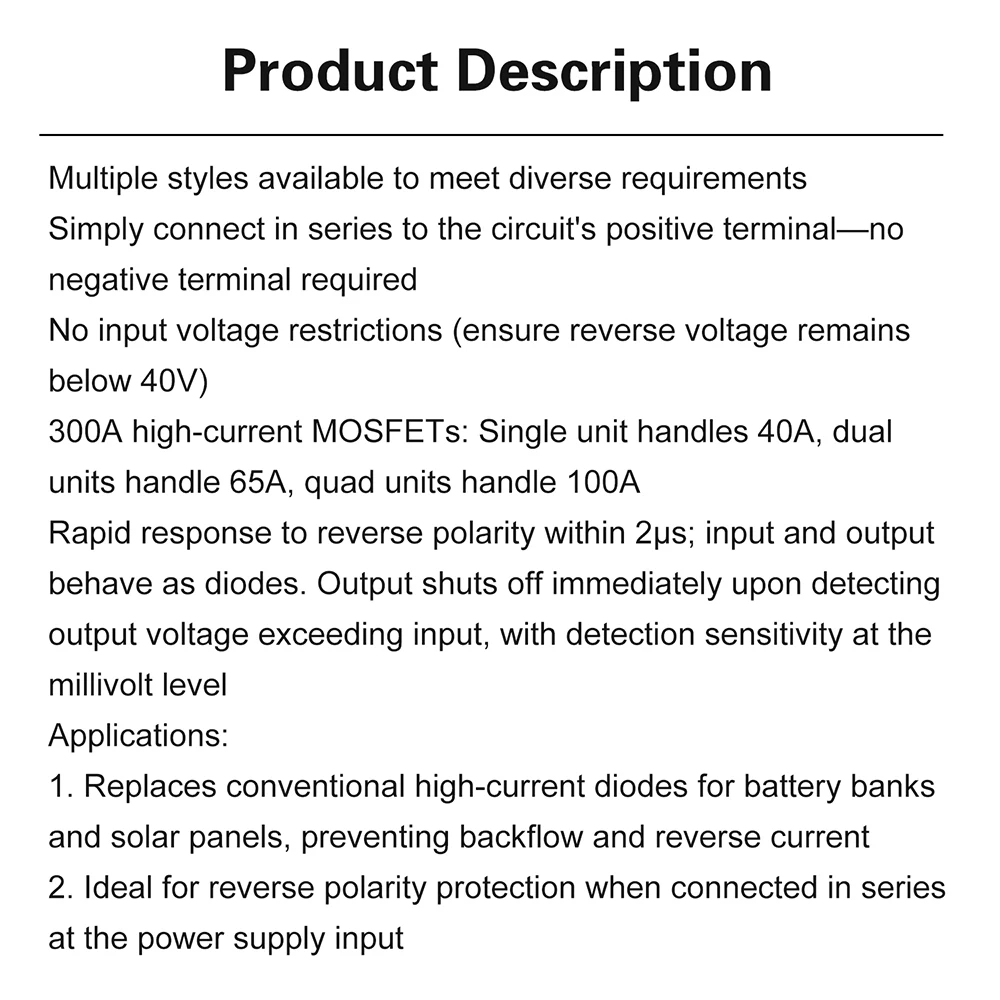

Product Description:

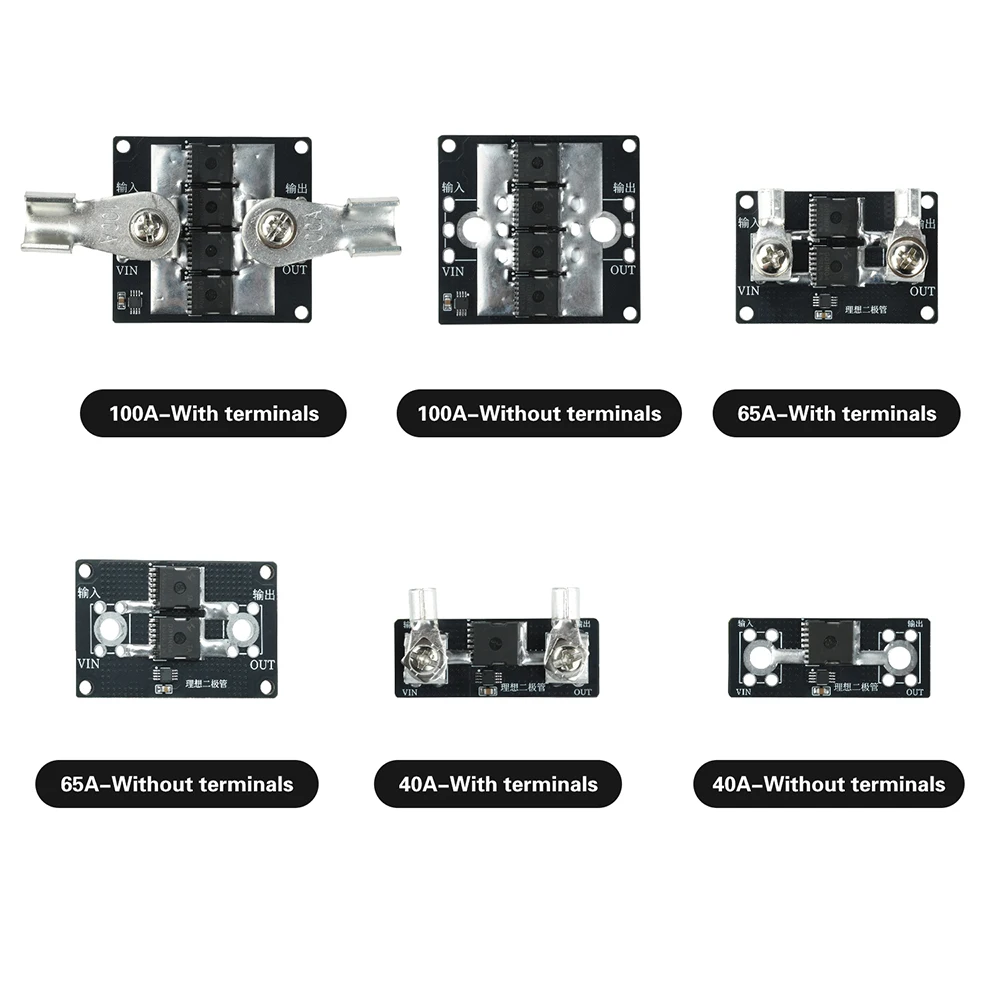

Multiple models available to meet diverse requirements

Simply connect in series to the circuit's positive terminal—no negative connection needed

No input voltage restriction (ensures reverse voltage below 40V)

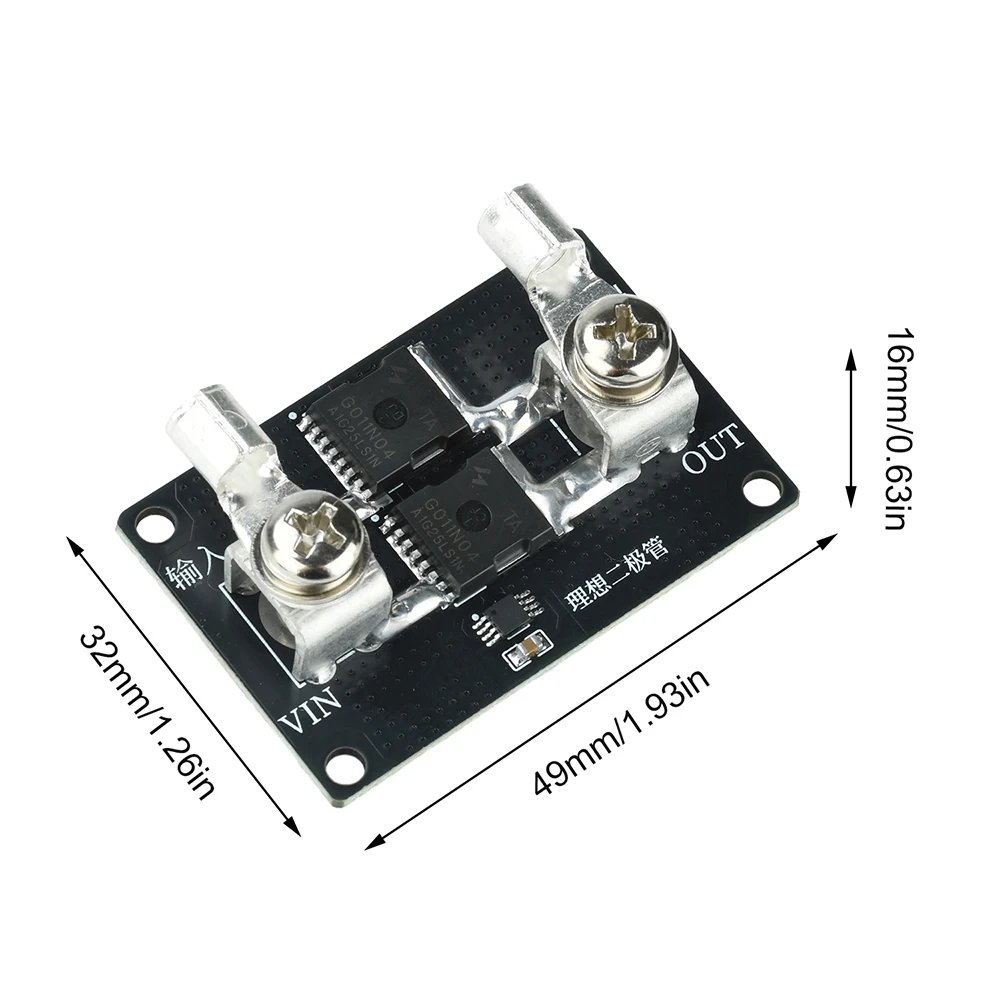

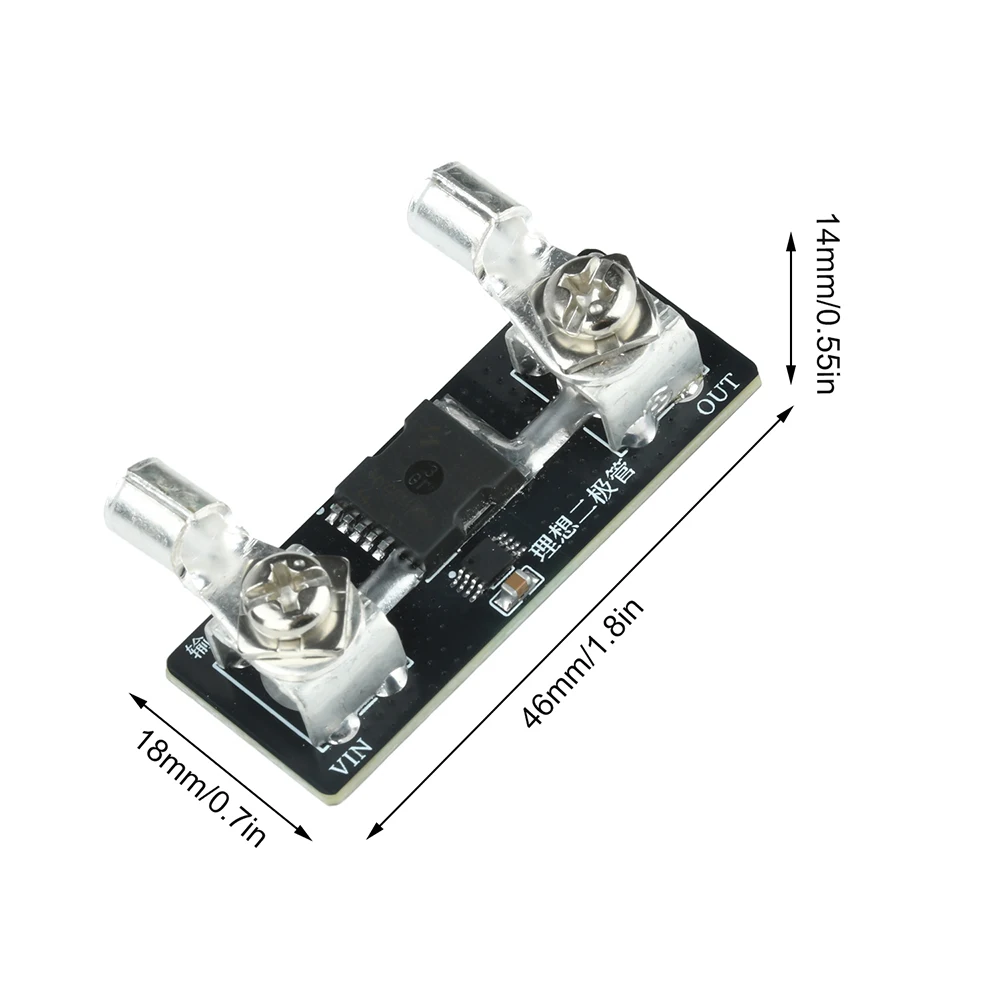

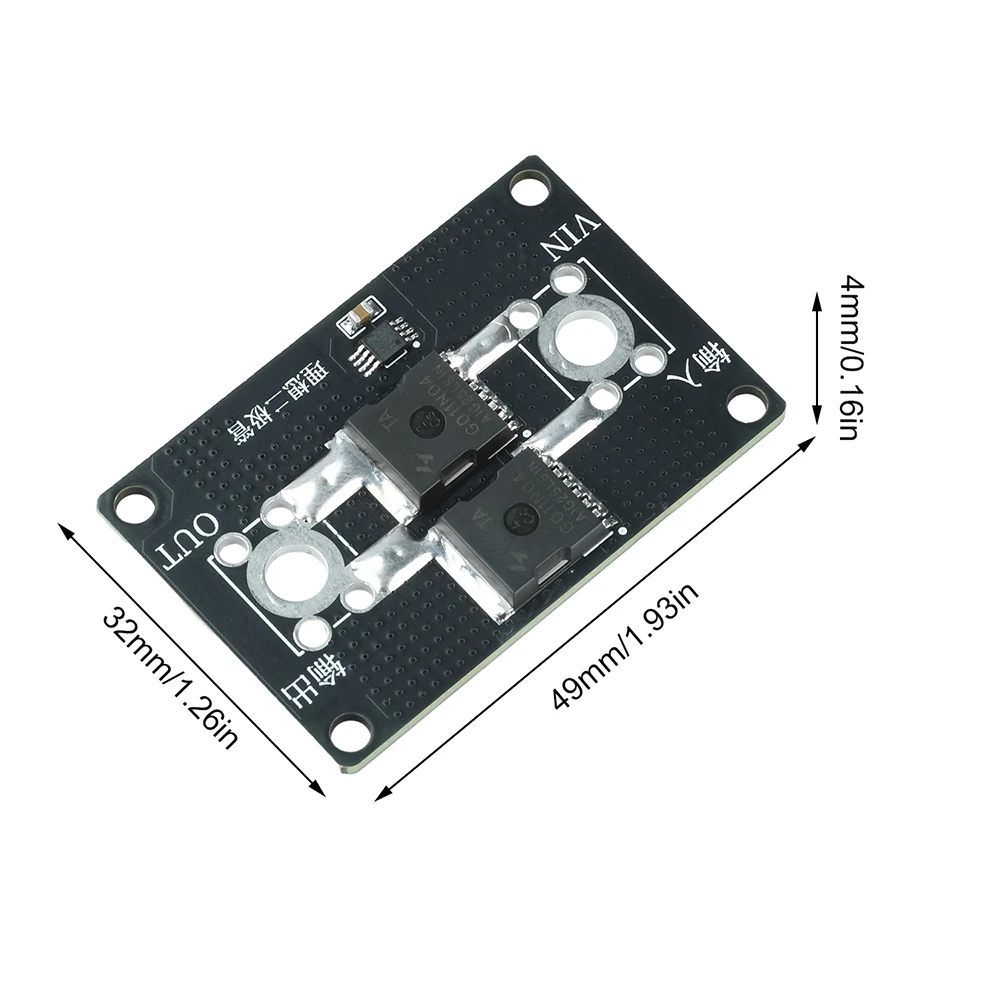

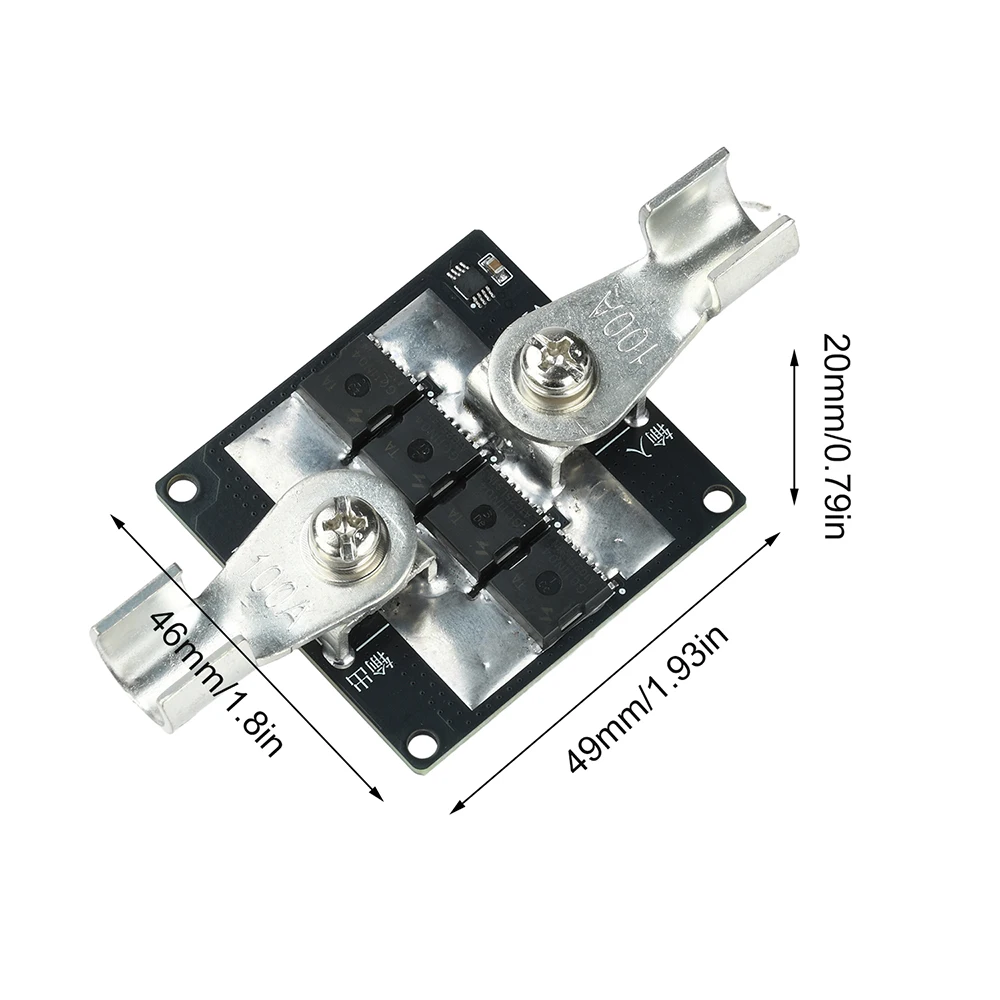

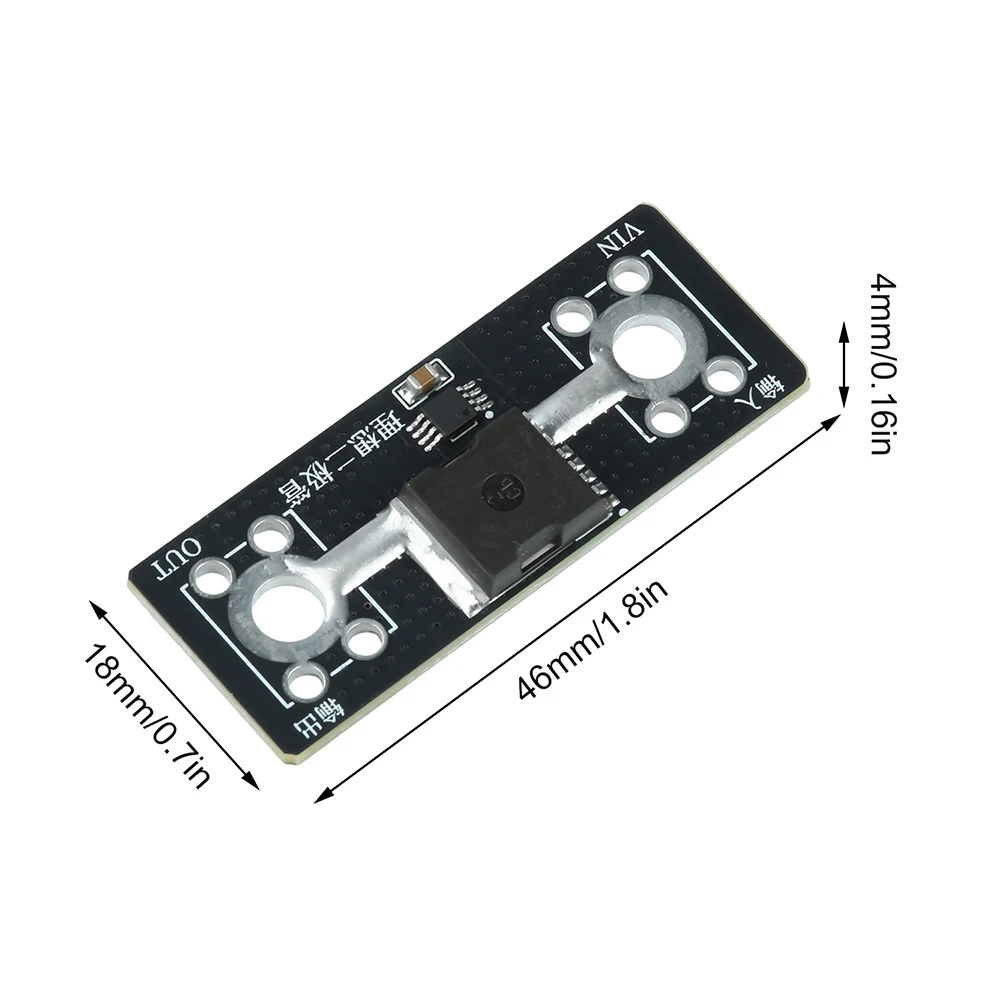

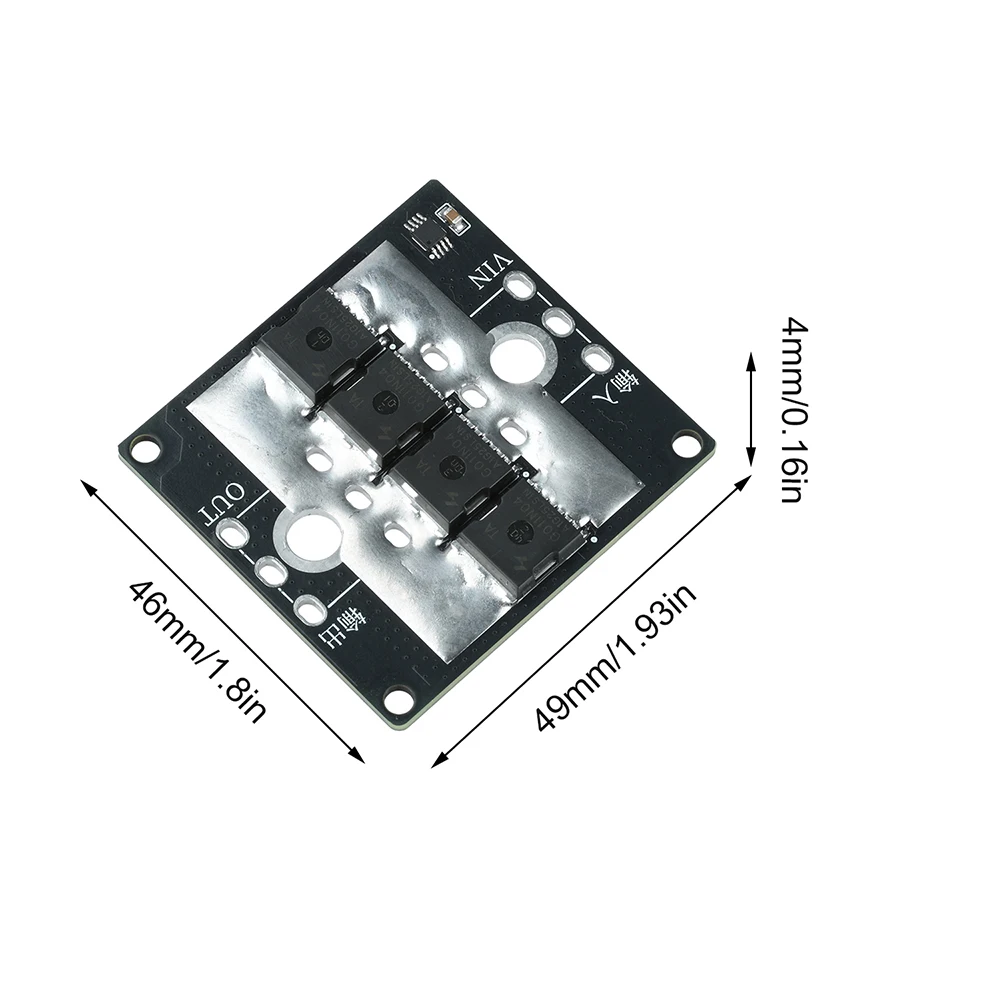

300A high-current MOSFET: Single unit handles 40A, dual units 65A, quad units 100A

Rapid response to reverse polarity within 2μs; input/output behaves like a diode. Output shuts off immediately upon detecting output voltage exceeding input, with detection accuracy at the millivolt level

Applications:

1. Replaces conventional high-current diodes in batteries and solar panels for backflow/reverse current protection

2. Ideal for reverse connection protection when connected in series at power supply input

Precautions:

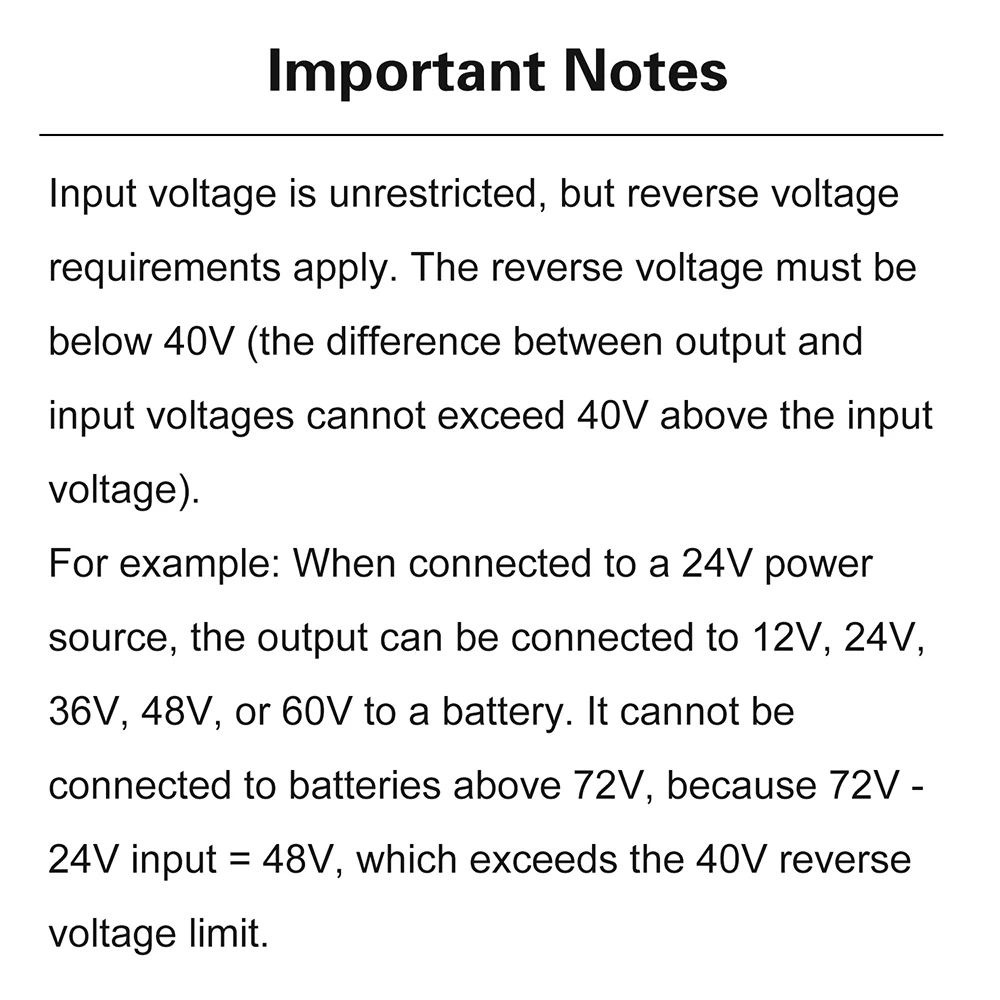

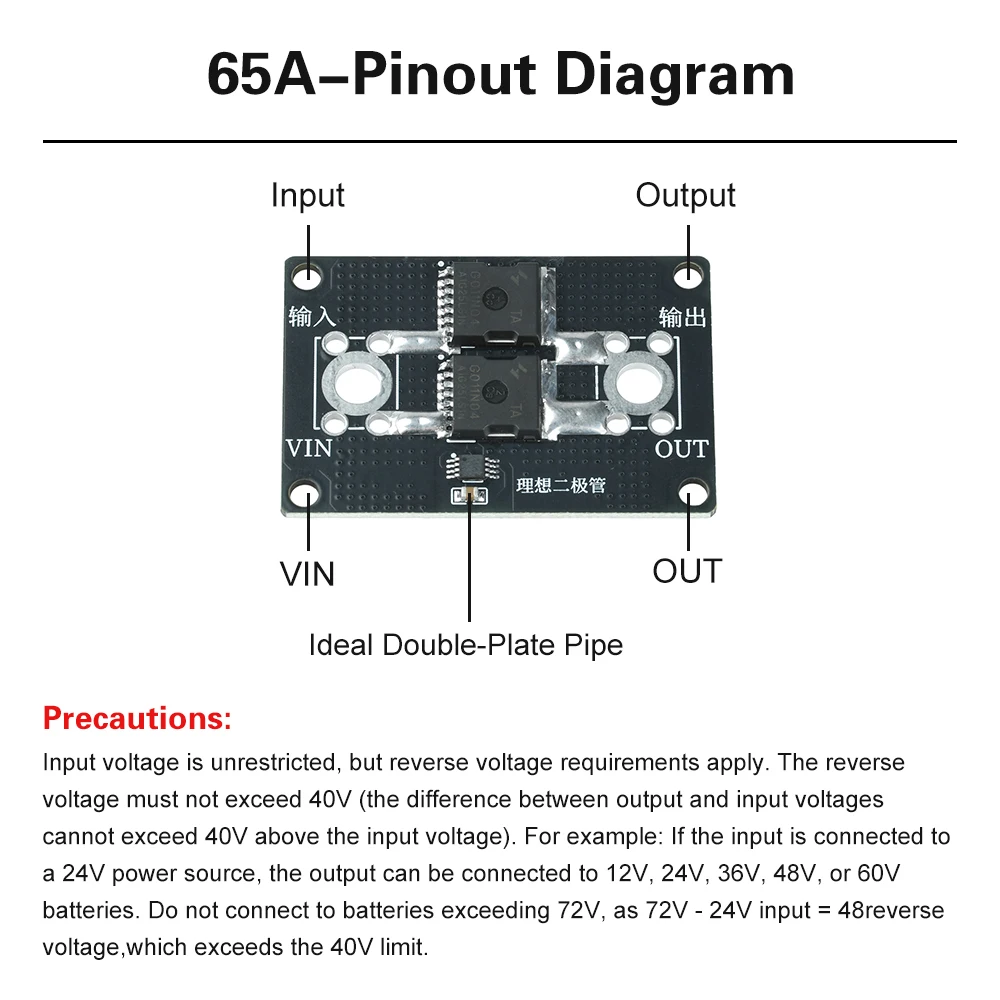

Input voltage is unrestricted, but reverse voltage has limitations. The reverse voltage must be below 40V (the difference between output and input voltages cannot exceed 40V above the input voltage). For example:

- Input connected to 24V power supply: Output can connect to 12V, 24V, 36V, 48V, or 60V to a battery. Do not connect to batteries above 72V, as 72V - 24V input = 48V, exceeding the 40V reverse voltage limit.

Product List:

Module*1 (Model of your choice)
