New 1500W Fiber Laser Cleaning Machine Rust Remover

Features

  1. Double-swing handheld cleaning head: The welding head adopts dual motors to drive the X and Y axis vibration lens, supports 10 graphic cleaning modes, and can be switched at will for process applications. The swing mode has various functions and is suitable for different scenes. The cleaning marks are smaller than the single swing mode.
  2. Precision structured cleaning gun with light outlet blowing system to avoid damage to lenses from flying ash and reduce replacement.It can effectively prevent the optical part from being contaminated by dust. At the same time, the protective lens adopts a drawer-type structure, which is easy to clean and replace.
  3. Intelligent temperature control alarm: The machine will perform real-time temperature control monitoring when working. The welding gun adopts double-layer lens protection, and the temperature will exceed 50?, which will alarm in time to prevent the lens from being damaged or even the gun head from being damaged, reducing the overall loss.
  4. Undervoltage alarm: It has the function of real-time monitoring of the protective gas pressure to avoid the exhaustion of the protective gas, resulting in poor welding effect, material waste, and even damage to the entire system.
  5. Low Failure Rate: Our 4 IN 1 Laser cleaning machine is designed for stable performance, with multiple intelligent monitoring systems, so you don't have to worry about the failure rate, and we will provide you with continuous after-sales service.

Configuration

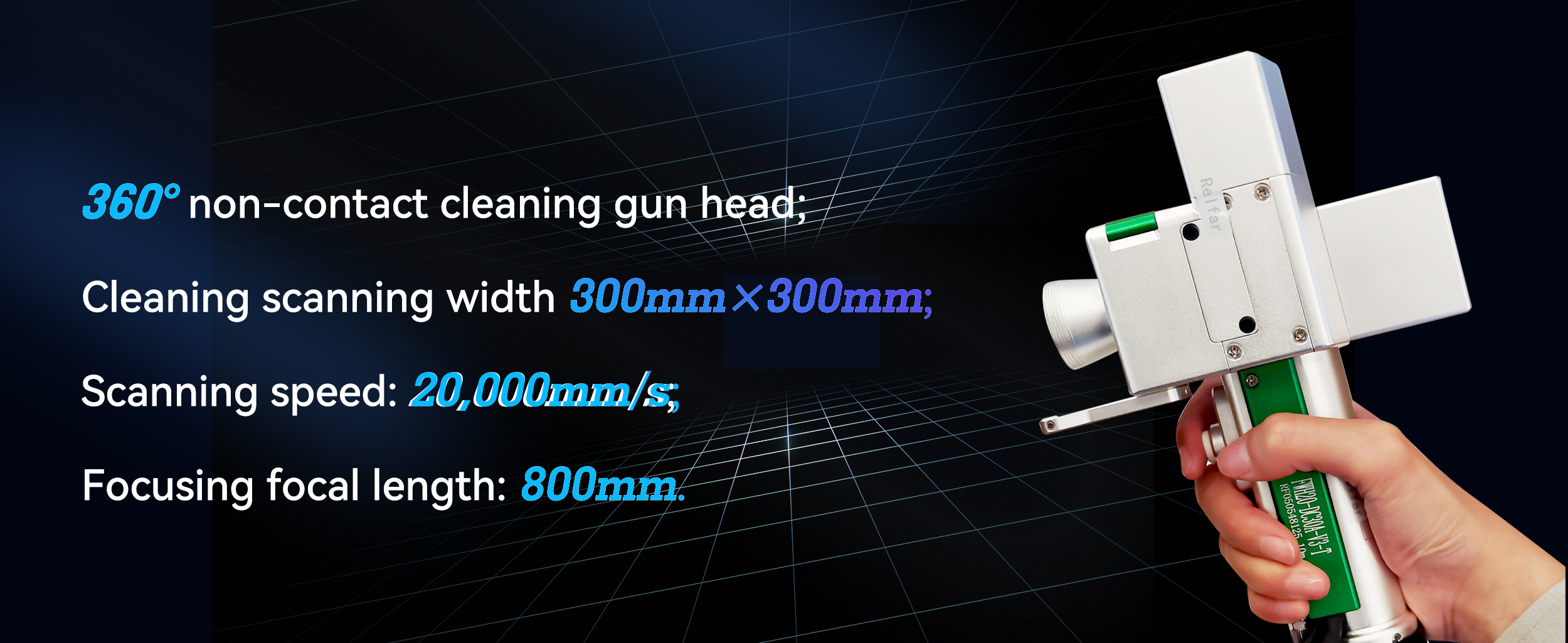

  • Handheld Laser Cleaning Gun
10 Kinds swing type & 300mm*300mm scan width

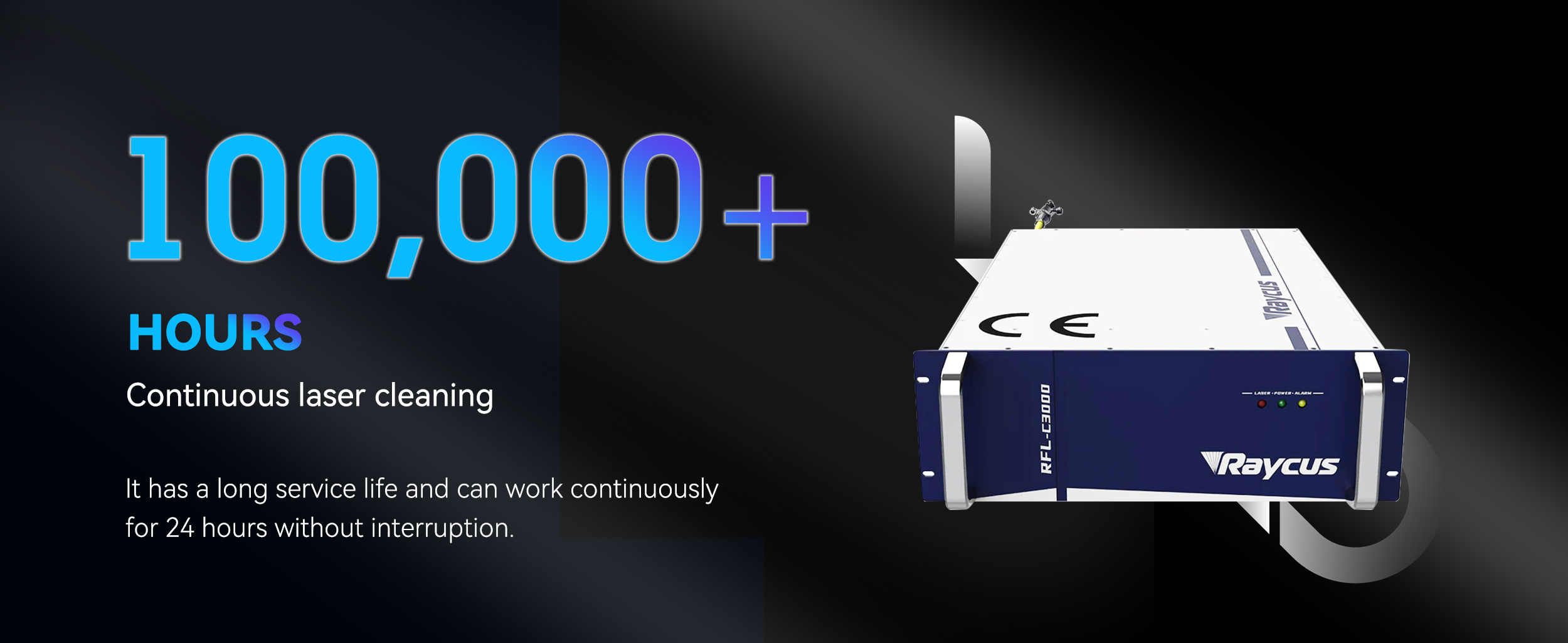

  • Raycus Laser Source
Better and more stable beam quality & Maintenance-free & Service life is more than 100,000 hours.

  • S&A Industrial Chiller
With stronger cooling capacity, it can work continuously for 24 hours.

  • Smart Control Panel
Full touch screen operation interface & Support Multi Language & Fault intelligent system diagnosis

Parameters

  • Laser Output Power: 1500w
  • Scan range: 300*300mm
  • Scanning speed: 20000mm/s
  • Cooling System: Water cooling
  • Water tank capacity: 10L
  • Wavalength: 1080±10nm
  • Laser Type: Continuous/Modulation
  • Max Modulation Frequency: 20KHz
  • Voltage: 220V±10%, AC 60HZ, Single Phase.
  • Guide Beam: Red
  • Power Adjustment: 10%-100%
  • Cleaning Head Gun: 1.6 lb
  • Cable length:33 feet (around 10m)

Shippment

  • Local trucking in the US, delivery in 5-7 days
