Why choose the ANCEL FD700?
Both FD500 and FD700 are specially designed for Ford vehicles, but FD700 is a professionally upgraded version of FD500. In addition to hardware upgrades, the FD700 can do more high-level reset functions than the FD500. Compared with the OBD2 mode of FD500, FD700 adds an EVAP system test.

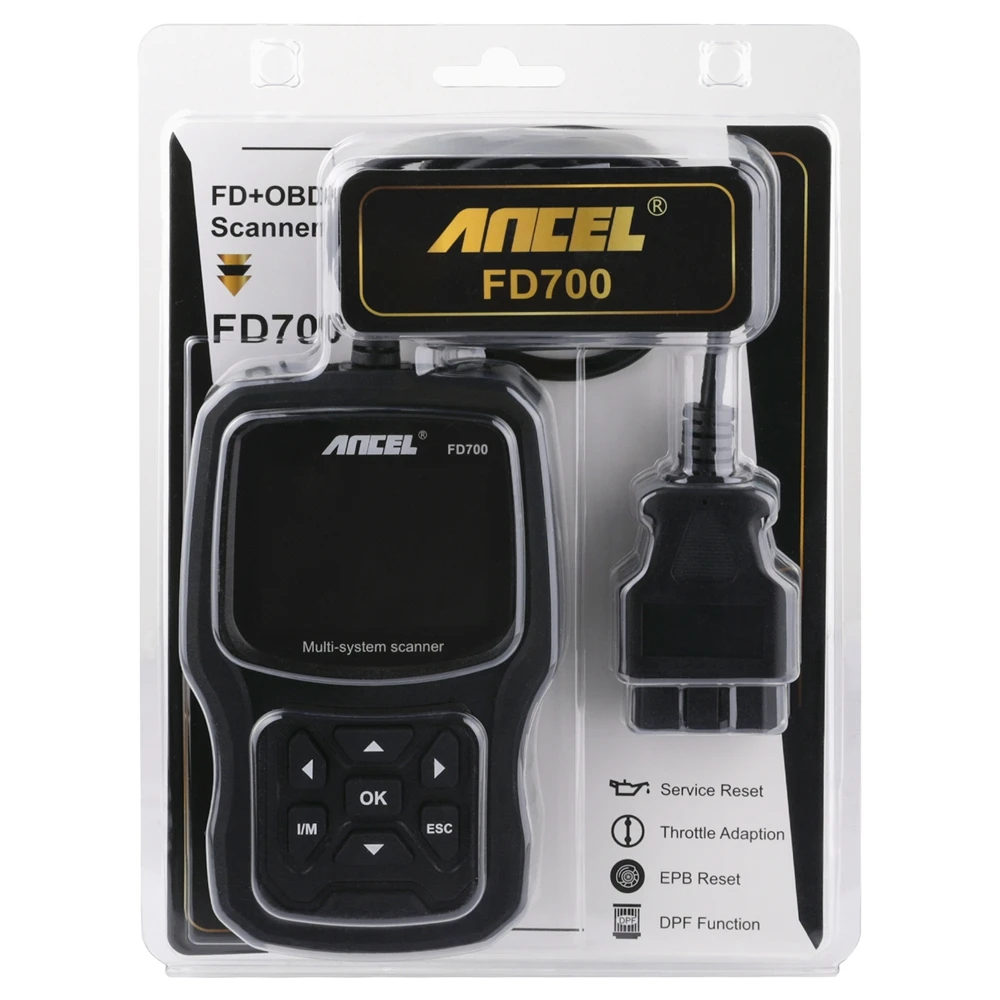

ANCEL FD700 All System OBD2 Scanner for Ford Lincoln Mercury Vehicles Automotive Code Reader Diagnostic Scan Tool with SRS SAS Calibration Oil TPMS IQA EPB BMS DPF Regen EGR Reset
ANCEL FD700 ford obd2 scanner is a specific version design for Ford Group and an upgraded version of the FD500, supports the vehicles of Ford, Lincoln, and Mercury after 1996 with 16PIN interface, including F150, Transit, VAN. Furthermore, the ANCEL scanner tool FD700 not only contains the special functions of the FD500, but also more other special functions, include ABS Service Bleed, Reset TCM KAM, SAS calibration, DPF Reset, TPMS reset, IQA, Oil light service reset, Clear crash data memory, Fuel Injector Correction Factors, DPF Parameter Reset, Transmission Tables Reset, Clear EGR Adaptive Tables, Fuel Injection Pump Learn, Diesel Particulate Filter Static Regeneration, and more.

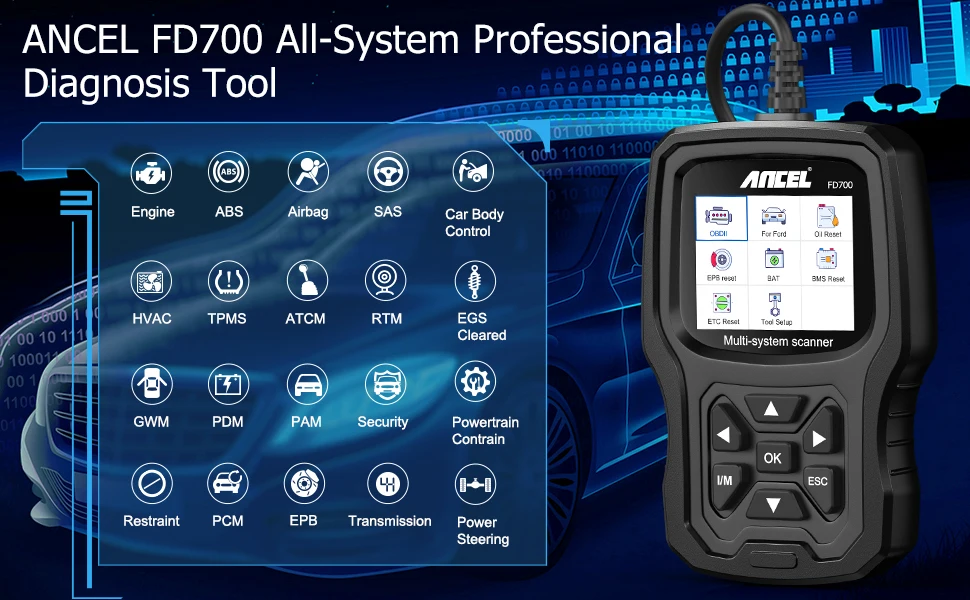

All-System Diagnostic Scanner for Ford Lincoln Mercury
✔️ Engine System: The engine determines the power, economy, stability of the car. The FD700 OBD2 scanner can support 6 modes of OBDII functions & check battery voltage. Easily identify vehicle problems and turn off the engine lights. Help you pass the smog test and keep your car in the best condition.
✔️TPMS Reset: When there is a problem with your car's tire pressure, or you have inflated the tire to the correct PSI, or the TPMS warning light turns on for no reason. At this time, you must reset the TPMS so the light turns off.
✔️ SRS: The FD700 can read and erase the SRS(Airbag) system error code, turns off the airbag warning light. To prevent the dreadful danger caused by the airbag not working properly after a collision.
✔️SAS: SAS Calibration permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor. The FD700 helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
✔️Battery System Diagnosis: Evaluate the battery charge state, monitor the closed-circuit current, battery management system reset, detect real-time data from 12V batteries, and display BATTERY DATA with fluctuations ranging from 8V to 18V.
✔️EPB: FD700 scanner can read and clear EPB trouble codes and is capable of retrieving fault codes information from the ECU.
✔️ABS: It helps maneuverability while hard braking. ABS essentially prevents the wheels to lock up and skid when brakes are slammed.
✔️Transmission: Auto Transmission is a set of transmissions used to coordinate the engine speed and the actual speed of the wheel, which is used to give full play to the best performance of the engine. FD700 OBD2 scanner can read/clear codes and read data stream from AT.
✔️Oil System: Oil reset, check the oil at regular intervals, and have the car serviced regularly. After draining the oil out of the engine, the FD700 scan tool can help you to reset the Oil service lamps.
Muti-Special Functions for Ford/Lincoln/Mercury with OBD2 Functions For All Cars Make After 1996
✔️Oil Service Reset
When you want to reset your oil service after you change the oil or simply want to reset your vehicle inspection warning light(please make sure your vehicle is in good condition), this is the device you need. It allows you to reset the oil lamps on the instrument cluster.
✔️DPF Regeneration
The DPF is a filter that removes particulates and soot/carbon from the exhaust gases.
Diesel Particulate Filter Regeneration means clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance.
FD700 can also support other DPF special functions, such as DPF Parameter Reset, DPF Manual Regeneration, DPF Reset, DPF Regeneration Suspension, Diesel Particulate Filter Static Regeneration.
✔️EPB Reset
Electronic Brake Pad Reset: If your parking brake fails, you need to fix the problem by Retracts calipers for brake pad replacement and move back calipers after servicing to the original position. The FD700 scan tool can help you reset the brake pad after replacing brake pads or servicing calipers.
Note: Vehicles without electronic handbrakes cannot operate this function.
✔️ TPMS Reset for Ford Group Vehicles Diagnosis
If the TPMS (Tire Pressure Monitoring System) light is illuminated, it means your tires could be underinflated, which can lead to undue tire wear and possible tire failure. FD700 car code reader can read and clear TPMS error codes and turn off the TPMS warning light after you replace the tire. (Note: Not every Ford vehicle supports this function. Subject to practice. A pre-purchase inquiry is suggested.)
✔️ Battery Registration for Ford Group Vehicles Diagnosis
Disregarding the need to register and code for a new battery may result in improper charging. FD700 can help you register a new battery once you replace it, re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information, and prevent the related control module from detecting false information.
Note: 1. Not all vehicles need to do a battery reset after changing batteries.
2.If the parameters of the new battery are inconsistent with the old battery or the parameters are too different, registration may fail.
✔️Injector Coding(IQA): Carry out this procedure to enter the new IQA Codes whenever a fuel injects is replaced or to make a correction to the existing codes currently stored in the PCM. The adjustment codes increase injector efficiency on the engine and improve emissions;
✔️ Throttle Position Sensor (TPS) reset: The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronic fuel-injected car, a throttle position sensor and airflow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair;
✔️BMS Reset:
This procedure resets the battery monitoring system. Once you replace the battery in the vehicle, you need to perform this step;
6 OBDII functions:
Read Fault Codes, Erase Fault Codes, Read Datastream, Retrieves VIN Information, I/M Readiness, EVAP Testing;
Lifetime Free Update
The professional OBDII scanner comes with full Land Rover diagnostic software with free access for a lifetime. This also means that you are one click away from online updates. You can always get the latest JLR vehicle diagnostic software and functions without paying additional subscription fees. So you will not only save a lot of money on repair shops traps, but also time on towing to a workshop.
Specifications
● Voltage:12 Volts
● OBDII Protocol:J1850 VPM, J1850PWM, ISO9141, KWP 2000 and CAN
● Support Languages:English, French, Norwegian, Danish, Spanish, German, Finnish, Portuguese, Swedish, Russian
Q: I have a Ford car. Will the FD700 support DPF Reset/TPMS Reset/BMS Reset/SRS diagnosis and other special functions?
A: Each car model has different system configurations, the specific reset functions may vary. Not every Ford vehicle supports all functions. We suggest that you make pre-sales inquiries, please tell us the specific car model, production year, and which functions you want to do, we will answer your questions.
Q: What if I receive the product and cannot use it in my vehicle?
A: Hi, as long as the product is not damaged, we support unconditional returns. If you are not sure whether the FD700 is compatible with your vehicle before purchasing it, please via "Buyer-Seller Messages" tell us your car model and the year of manufacture. Even if it’s not compatible, we can recommend a suitable device for you. We will reply to your email within 24 hours.
Q: I have a Ford vehicle and a Non-Ford vehicle, can I purchase this for both of them?
A: Yes, you can. FD700 can diagnose engine system for 16 pins Non-Ford vehicle sold in the US after 1996. Meanwhile, it can do more systems and special functions on your Ford vehicle.
