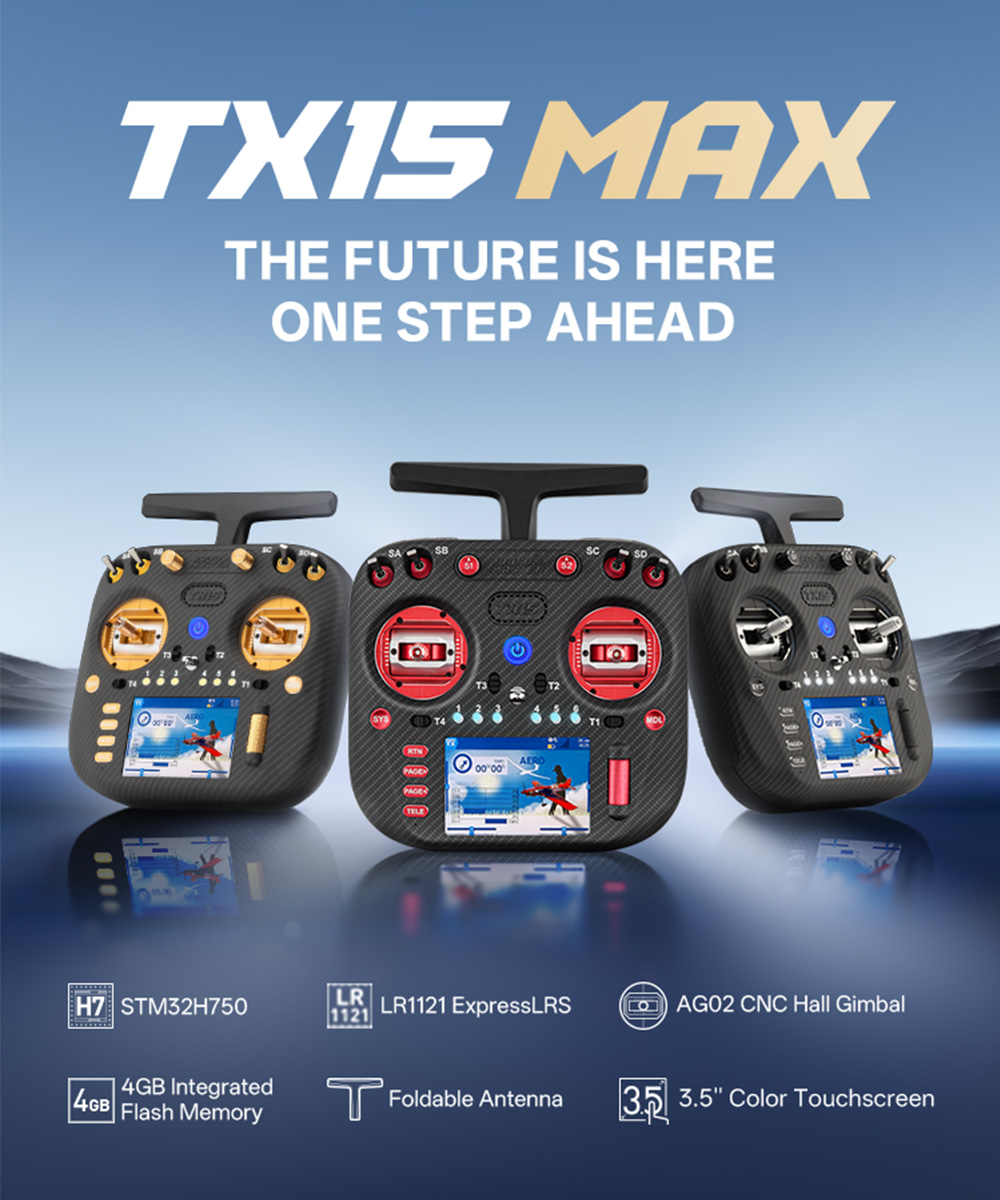

RadioMaster TX15 MAX Radio Controller 16CH Transmitter 3.5inch IPS ELRS 2.4G 6.6–8.4V AG02 480×320 Resolution STM32 H7 Chip Built-in Fan Support ExpressLRS
Features:
1. High performance main control chip: using STM32 H7 chip, providing powerful computing power and ensuring smooth operation.

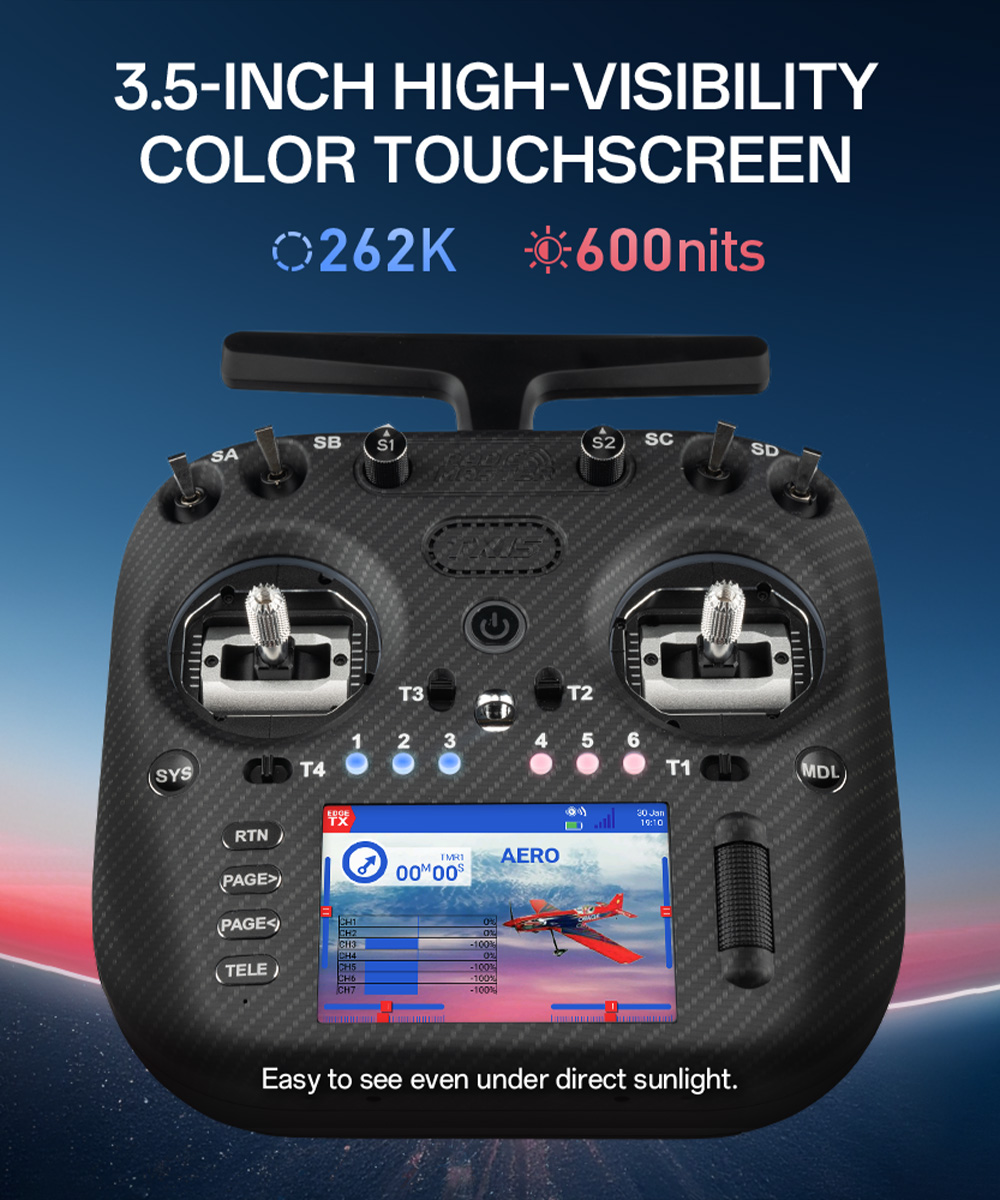

2. 3.5-inch screen: 3.5-inch IPS touch screen with a resolution of 480 × 320, vivid colors, and clear details.

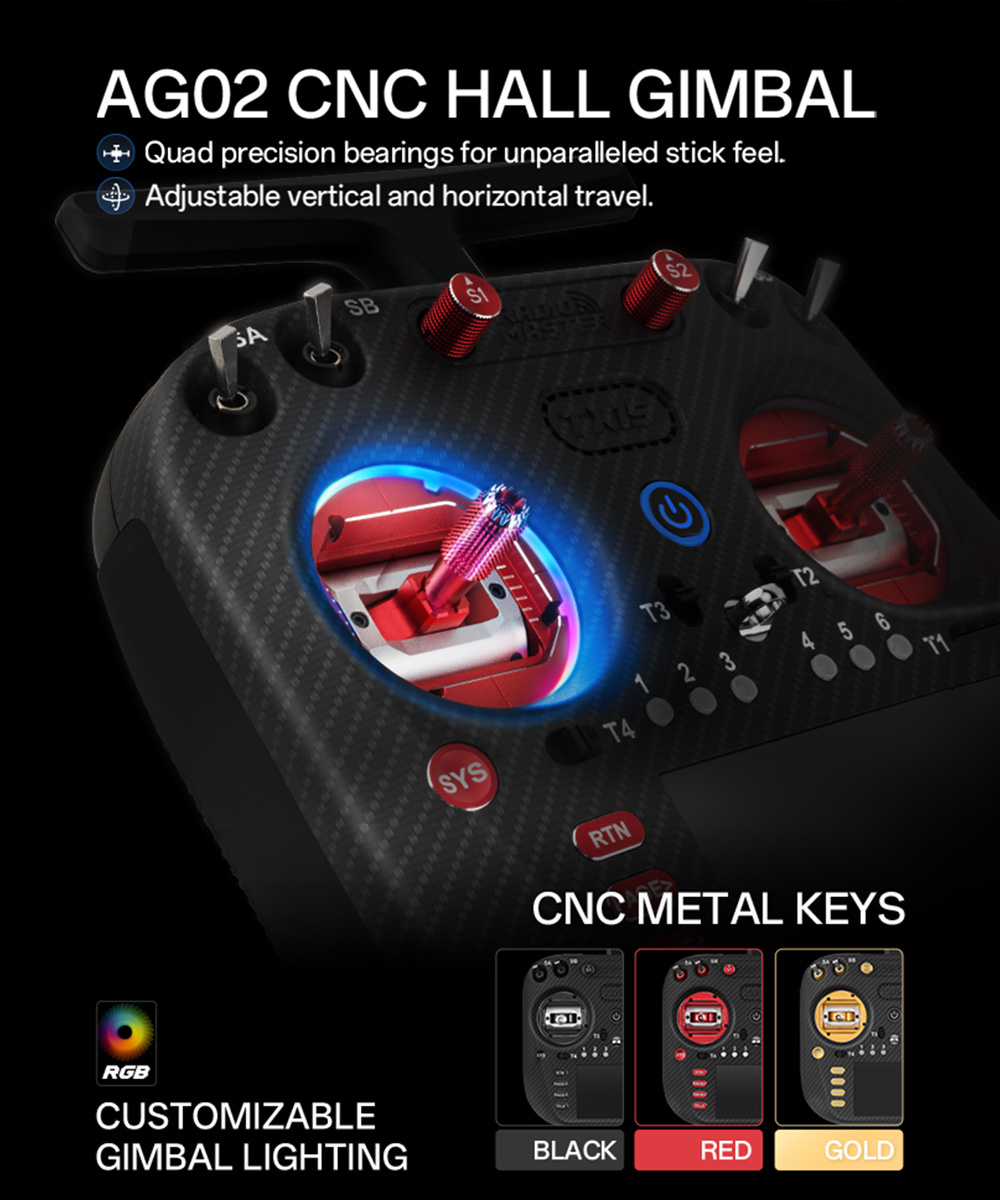

3. High precision joystick: Equipped with high-end AG02 CNC metal Hall joystick, it supports adjustable longitudinal and transverse travel in both directions, making operation smoother
and more precise.

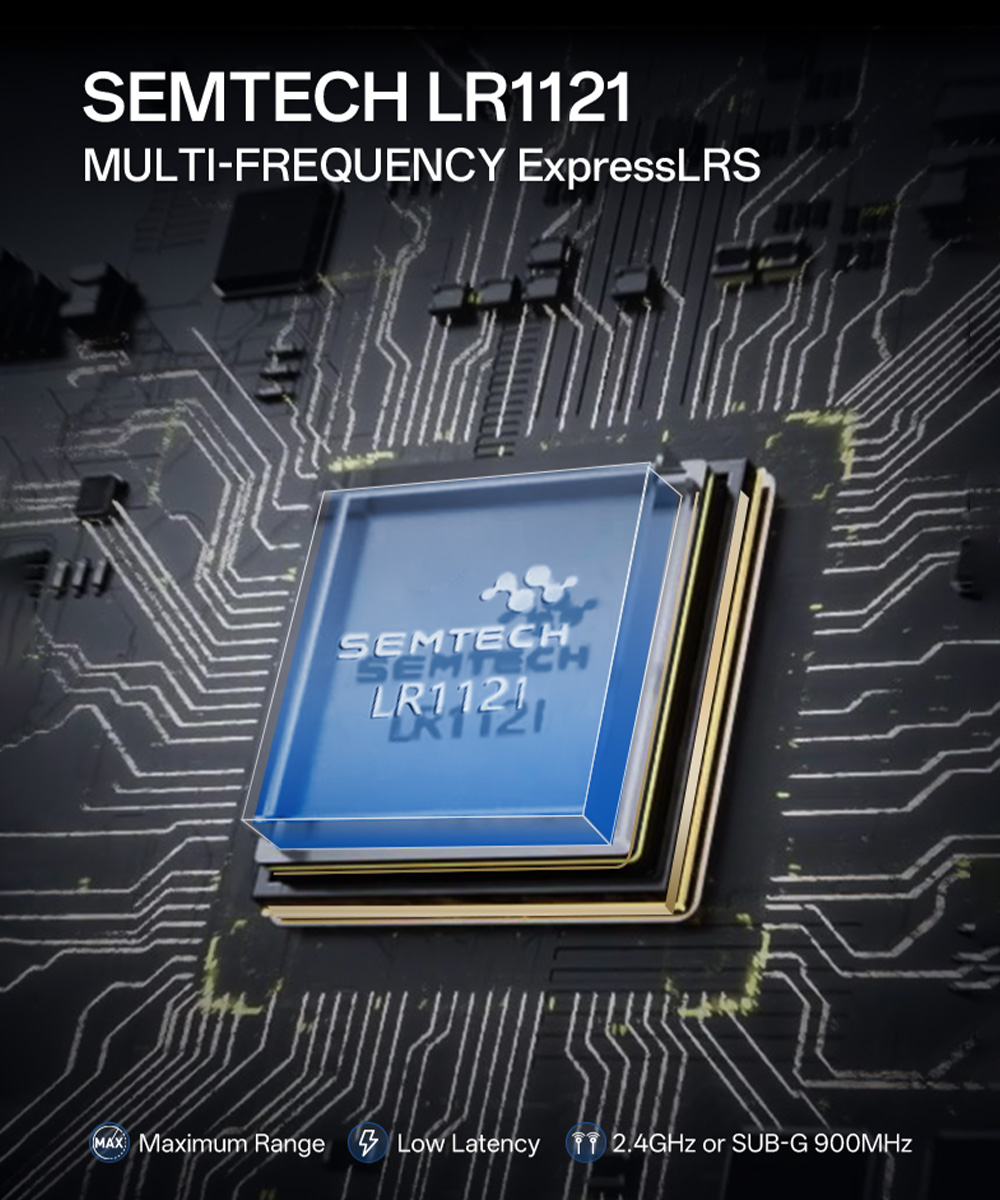

4. Built in ELRS module: Integrated 2.4GHz/900MHz ELRS, stable connection, supports long-distance low latency control.
4. Built in ELRS module: Integrated 2.4GHz/900MHz ELRS, stable connection, supports long-distance low latency control.
5. Intelligent battery management circuit: improves battery efficiency and lifespan, and extends flight time.
6. Standard programmable RGB light ring: supports LUA script control of light effects, creating a personalized appearance style.

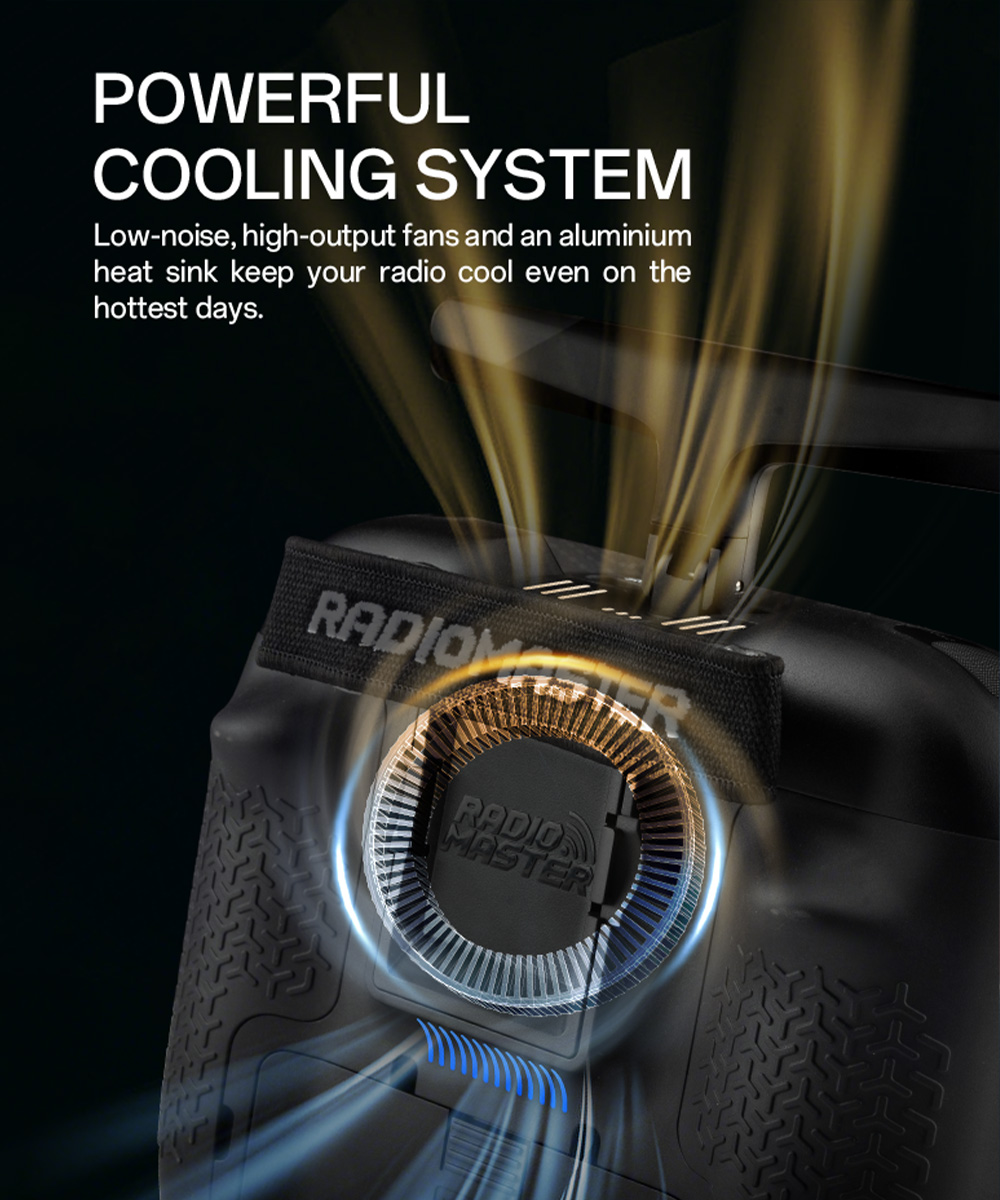

7. Efficient cooling system: Low noise, high output fan and aluminum alloy heat sink make the remote control capable of working for a long time in the hottest environment.

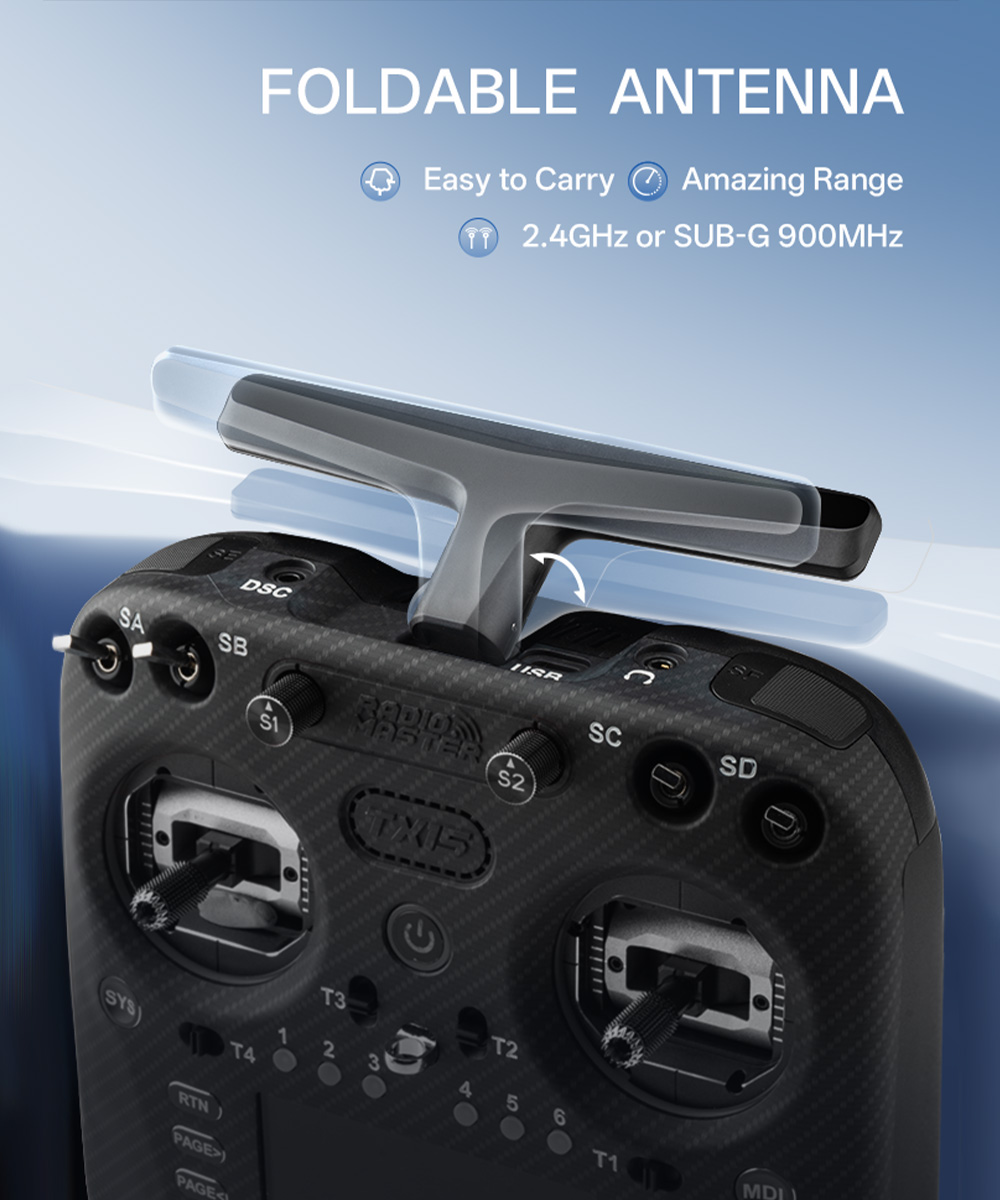

8. Foldable antenna: Compact design, easy to store, does not affect signal strength and stability.

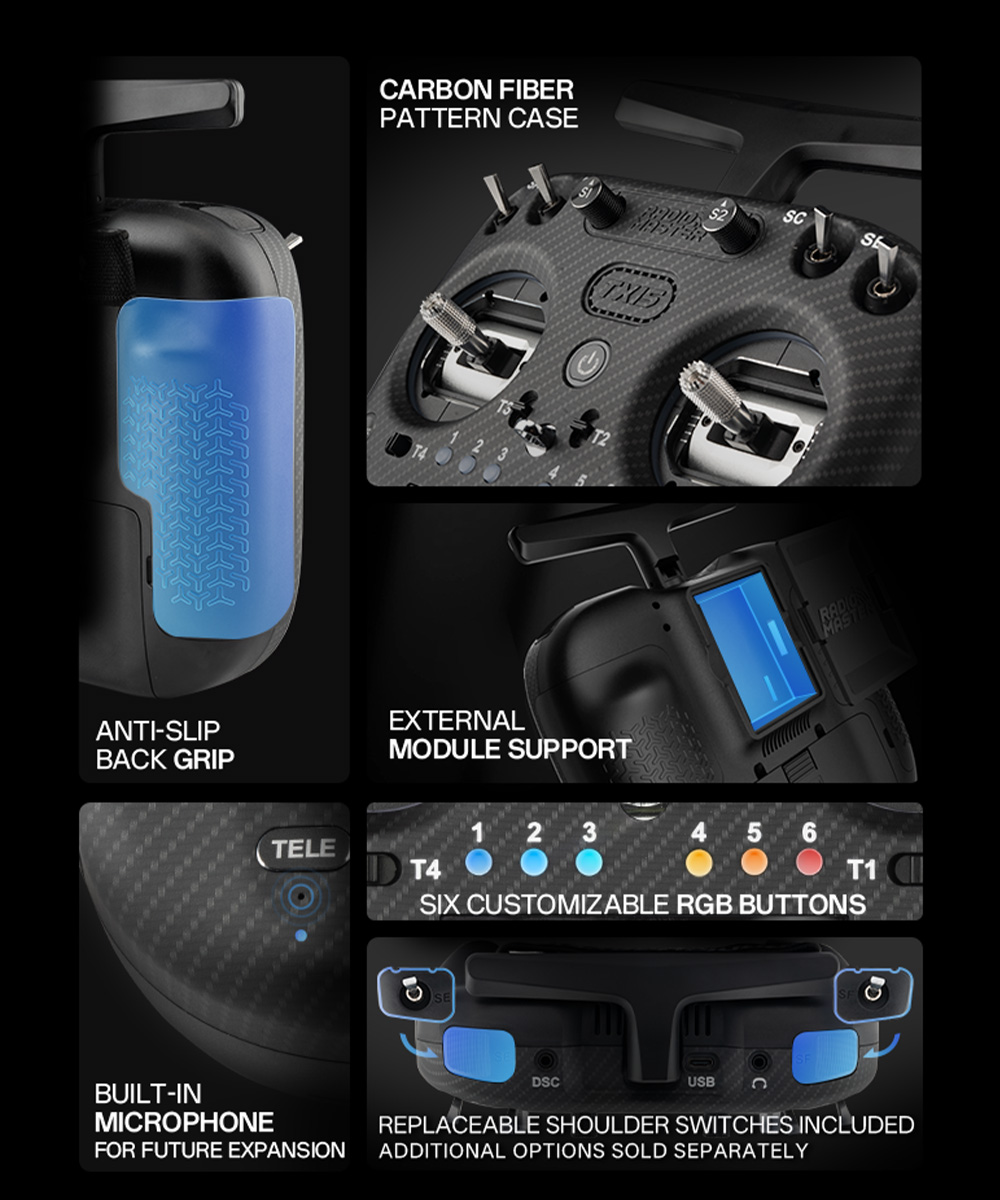

9. Built in microphone: reserved for future feature expansion.
10. Firmware and model storage: onboard 4GB Nand Flash+external TF card dual fuse.
11. Adjustable shoulder toggle switch: preferred by model airplane players, it can also be freely replaced with a button switch.
Description:
NEW TX15 Max radio controller features a 16 channel, built-in ELRS module and comes standard with a high-end AG02 CNC metal Hall rocker,It supports adjustable longitudinal and
transverse travel, providing excellent anti-interference protection while maintaining low power consumption and high reliability receiver sensitivity.

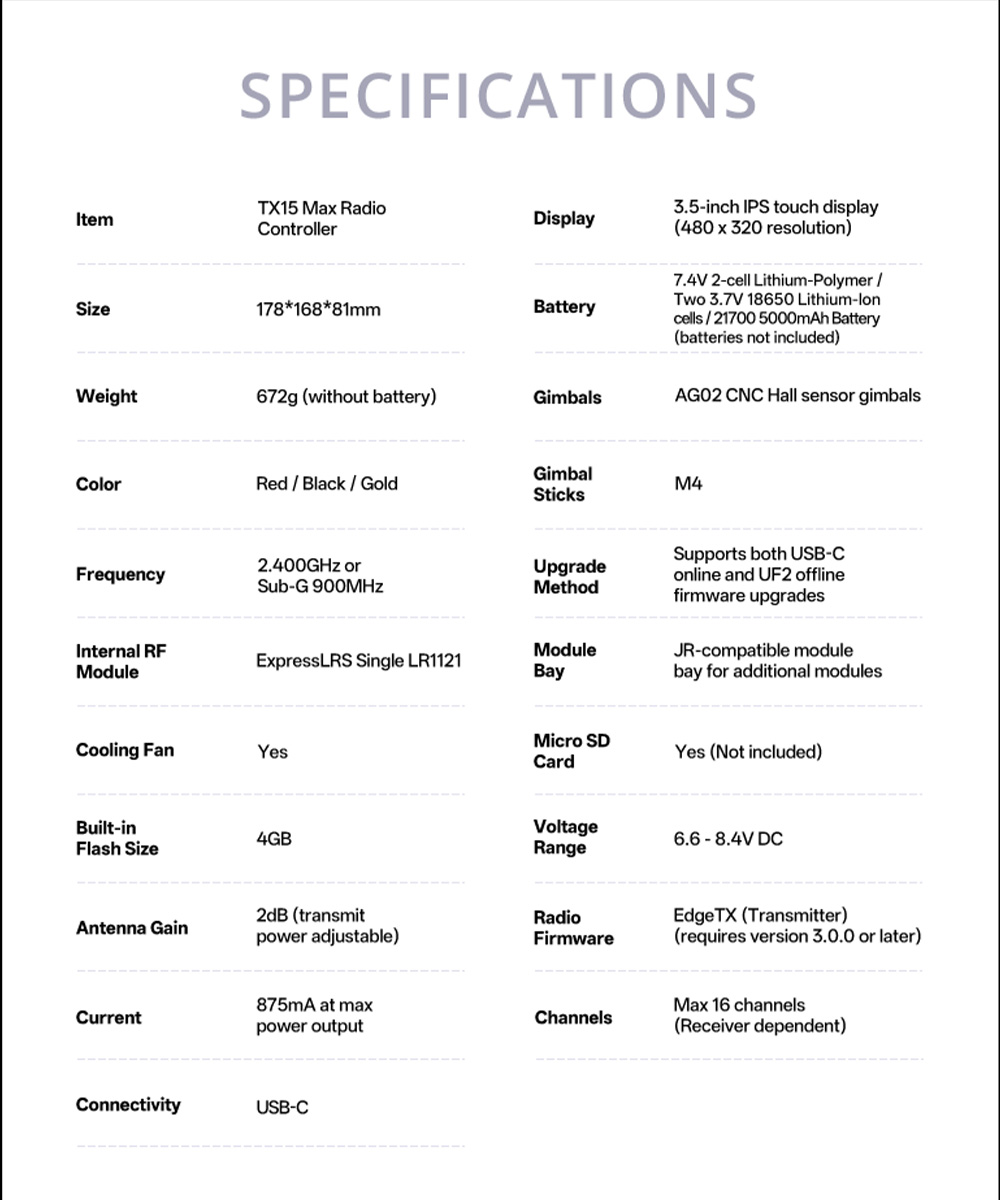

Specifications:
Operating frequency: 2.400GHz
Built in RF module: ELRS 2.4GHz
Support protocol: ExpressLRS
Cooling fan: built-in
Transmitting module: Built in ELRS module
Built in flash memory capacity: 4GB
External TF card slot (TF card needs to be purchased separately): FAT32 format up to 32GB,
When the TF card is inserted, the remote control storage will automatically switch from
Onboard flash memory to the TF card
Antenna gain: 2dB (adjustable transmission power)
Current: 875mA at maximum output power
Operating voltage range: 6.6-8.4V DC
Remote control firmware: EdgeTX (requires version 3.0.0 or higher)
Launch module firmware: ExpressLRS 3.5.5 (without prior notice if updated by the ELRS
organization)
Number of channels: up to 16 channels (depending on the receiver)
Display screen: 3.5-inch IPS touch screen (480 × 320 resolution)

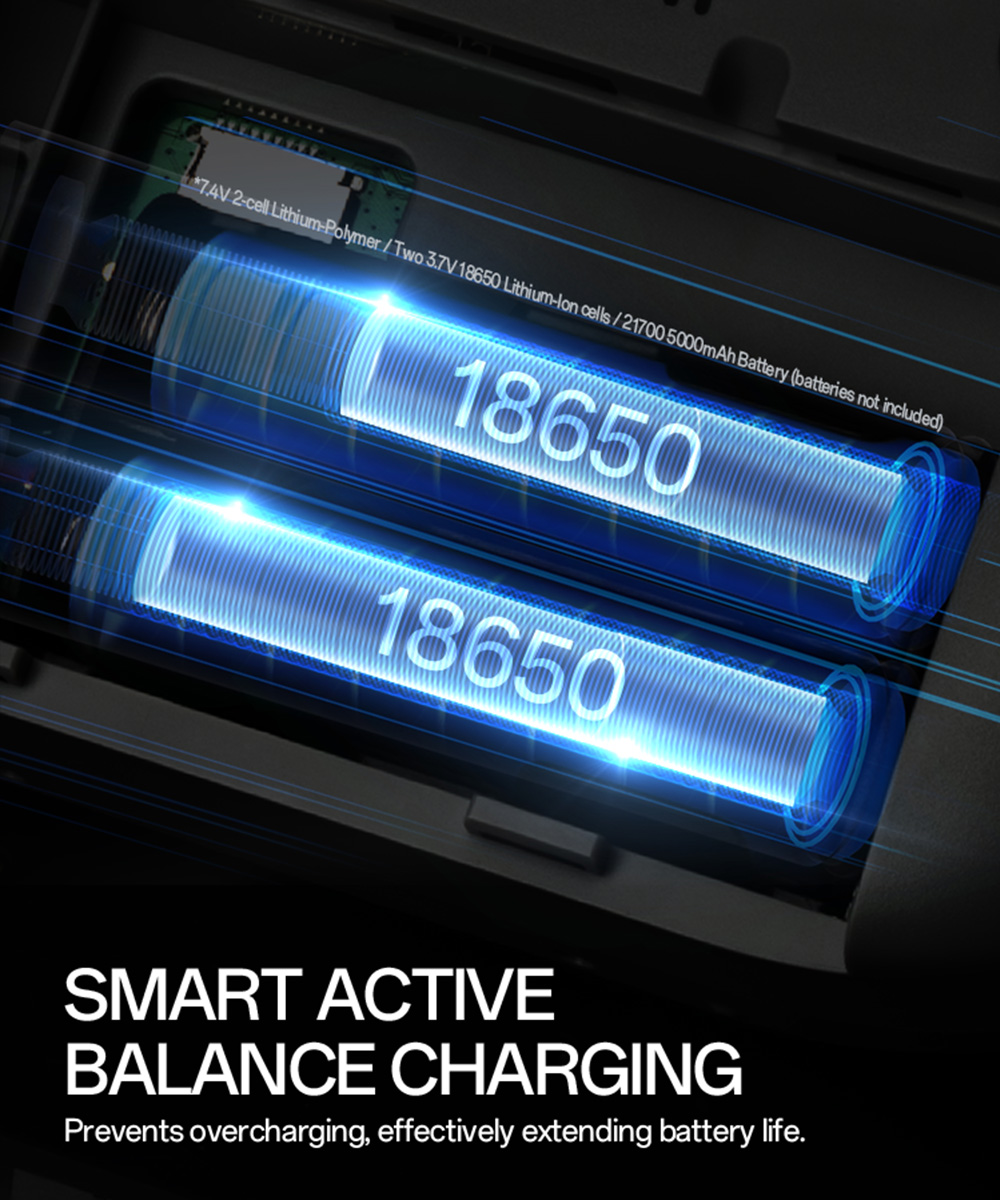

Battery support: 7.4V 6200mAh lithium polymer battery pack/Two 3.7V 18650 lithium battery
Boxes/7.4V 21700 5000mAh battery (batteries need to be purchased separately)

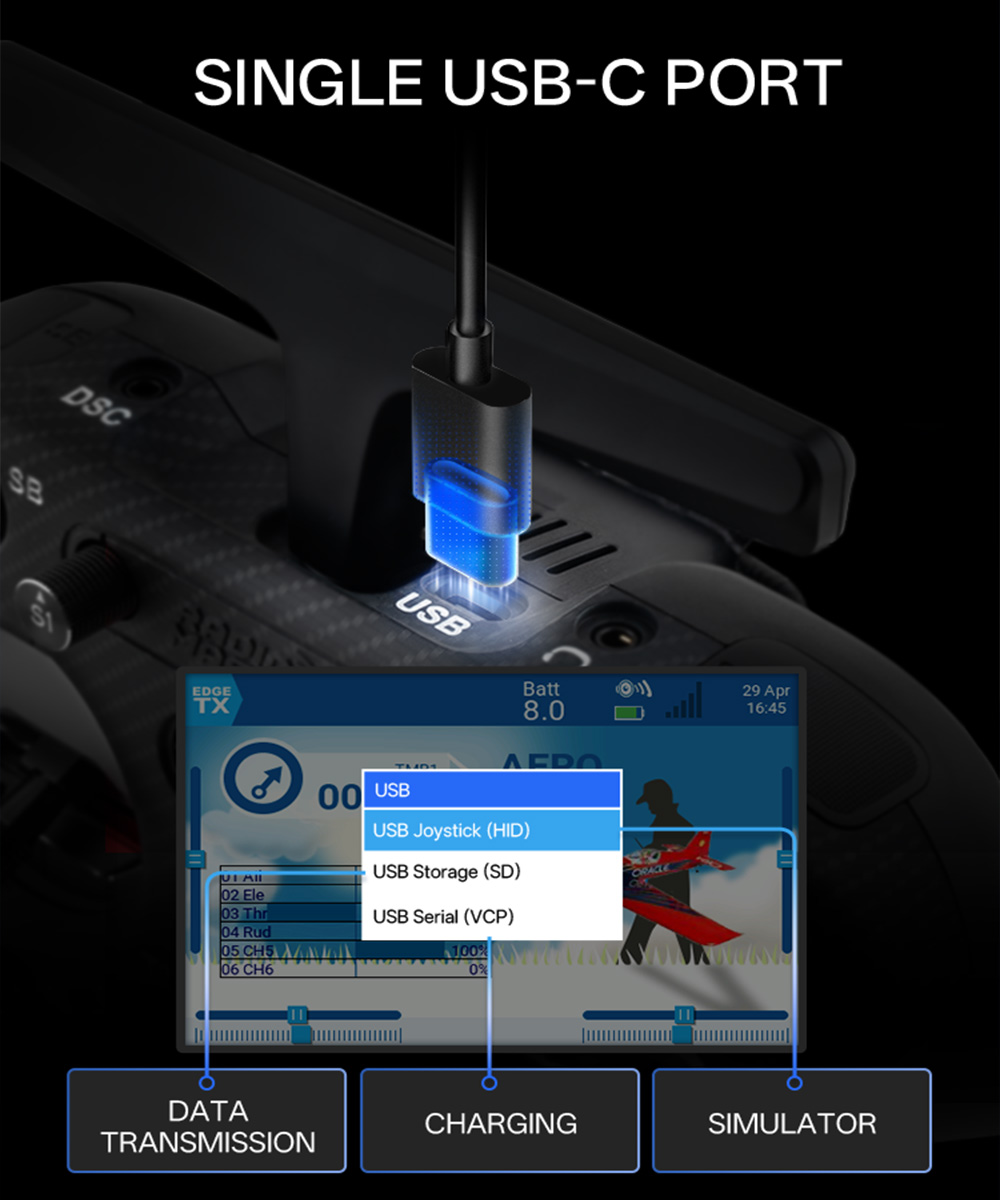

Interface type: USB-C
Joystick type: AG02 CNC Hall sensor joystick
Swappable joystick head thread: M4
Module cabin: compatible with JR module cabin, expandable to other transmission modules
Firmware upgrade method: Supports USB-C online upgrade and UF2 offline upgrade
Package contents:
1 * TX15 MAX remote control
1 * TX15 MAX portable bag
1 * Short handle 2-stage switch assembly (left shoulder)
1 * Short handle rebound switch assembly (right shoulder)
1 * 18650 battery holder
1 * USB-C data cable
1 * Screen protector film
1 * 1.5 hex screwdriver
1 * Hard spring group
2 * Machine meter screws
1 * One set of stickers
1 * User Manual
1 * List card
