NEW PALL Falcon MCD9116UFREJ Point-of-use 0.2 µm Photolithography/Photoresist Filter
Comes with what you see in the pictures. If you don't see it, you probably won't get it.
Specifications are from PALL and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
MOST ITEMS CAN BE SHIPPED INTERNATIONALLY EVEN THOUGH EBAY'S SITE MAY SAY OTHERWISE. PLEASE CONTACT US FOR A SHIPPING QUOTE IF THIS IS THE CASE. ALSO, EBAY TENDS TO QUOTE INTERNATIONAL SHIPPING AT A VERY HIGH COST. PLEASE CONTACT US FOR BETTER RATES. WE ALSO SHIP VIA FEDEX INTERNATIONALLY. NOT UPS!
This filter is new, old stock surplus.

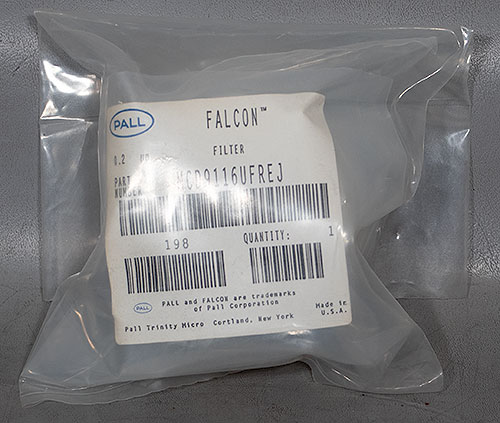

The Information Tag Reads:
Part Number: MCD9116UFREJ
Removal Rating: 0.2µm Part Number Breakdown:
Cartridge Length: 52 mm (2.0")
O-Ring Specification: AS568A-015
Removal Rating: 0.2 µm
O-Ring Material: EPDM

Description:
The Falcon Photoresist filter has been specifically designed to filter point-of-use photoresist. This fulter uses a special patented flow pattern construction and a patented crescent shaped Ultipleat filter configuration to provide optimum performance.

  • Optimized design for low hold-up volume
  • Superior flow characteristics
  • Excellent compatibility
  • Low differential pressure
  • Low extractables
  • Manufactured in a cleanroom environment
  • 100% integrity tested
  • Captured O-ring to ease in change out
  • Designed to fit most older photoresist despense systems

    • Specifications:
    Filter Medium: PTFE
    Support and Drainage: High density polyethylene (HDPE)
    O-Ring: EPDM
    Removal Rating: 0.2 µm
    Filter Area: 0.180 m2 (1.9 ft2)
    Maximum Operating Temperature: 60°C (140°F)
    Maximum Forward/Reverse Differential Pressure: 410 kPa @ 60°C (60 psid @ 140°F)
