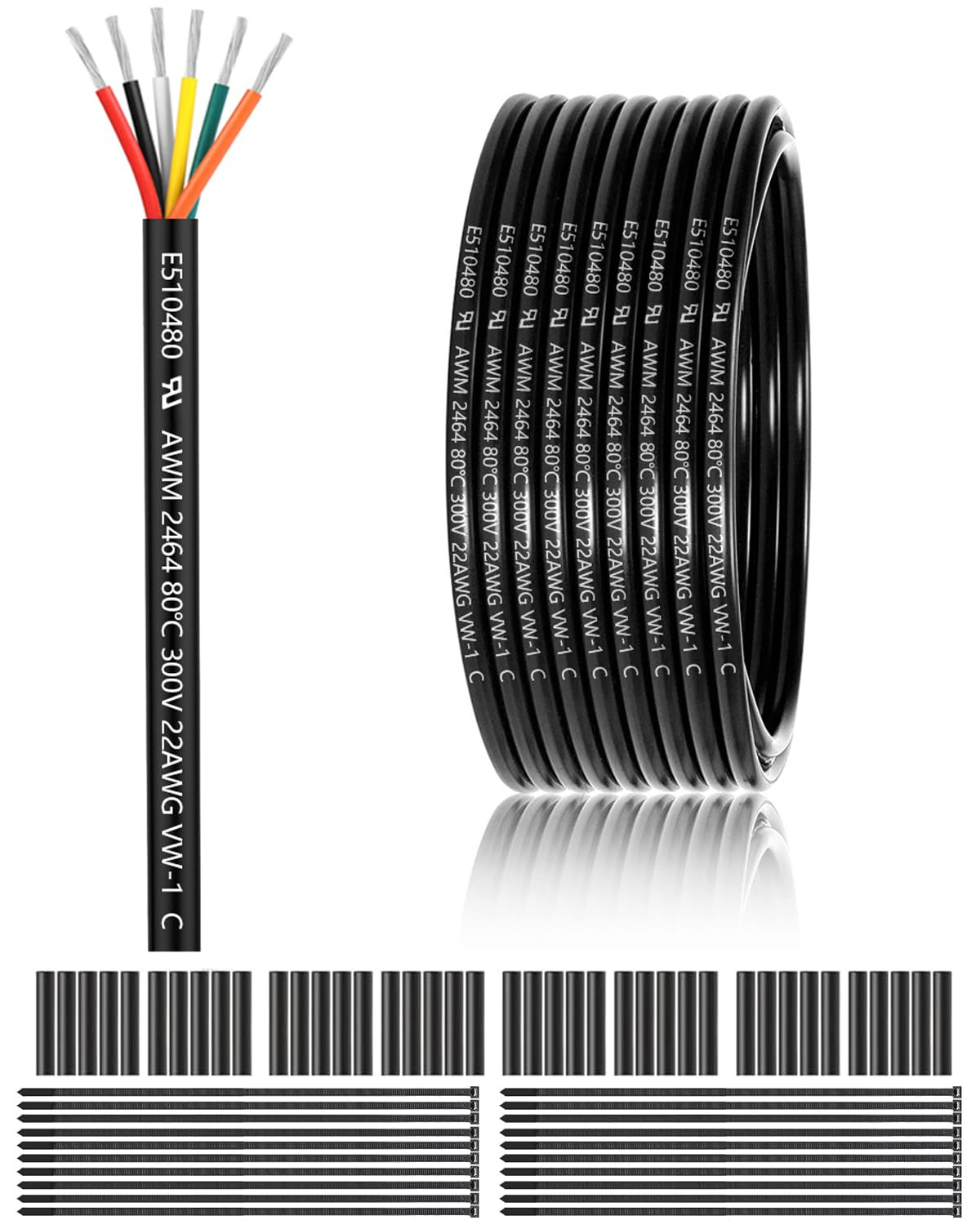

22 Gauge 6 Conductor Electrical Wire 100FT, UL 2464 22 AWG 6 Wire Cable Tinned Copper PVC Stranded 22/6 Core Wire for LED Lighting, Outdoor Low Voltage Extension Cable, Automotive Etc.,
PLEASE DO NOT OPEN A RETURN / ANY CASE OR LEAVE NEGATIVE FEEDBACK WITHOUT ASKING FOR HELP.
WE ARE UNABLE TO SHIP TO PO BOX ADDRESSES.
Description
| Style | 22AWG-6C |
| Number of Cable Strands | 17 |
| No of wires | 6 |
| Color | GRAY |
| Material | PVC |
| Item Weight | 3.84 pounds |
| Voltage | 300 Volts |
| Size | 100FT |
| Package Dimensions | 8.66 x 7.68 x 3.9 inches |
- 【High Conductivity】UL2464 22 gauge 6 conductor wire each cable contains 17 strands of 0.16 mm tinned copper wire. High purity Stranded oxygen-free copper with tin-plated, specification features high conductivity, low resistance, Ultra-Low eccentricity, better corrosion resistance, oxidation resistance and soft can be bent arbitrarily.
- 【Product Specification】Black PVC Jacket, 22/6 wire OD: 6.0±0.25mm. Maximum input voltage: 300V(also can for DC 5V/12V/24V. Maximum current: 4A. Rated working temperature: -40℉ to 176℉. Material: PVC+Tinned Copper. Flame retardantVW-1 & FT1. UL Listed.
- 【Easy to Use】Our 22 awg 6 wire cable easy to strip,cut,solder and can be used as extension cable or low voltage wire to be widely used in led lights, LED splitter connections, electrical and electronic equipment, landscape lighting, transformers, bulbs, lamps, marine wiring, speakers, automobiles, sprinkler, thermostat cable and other. It can be buried directly or exposed to the sun for a long time.
- 【Accessories】In order to improve the customer experience, 22 gauge wire is also equipped with 40 pcs of heat-shrinkable tubes and 20 pcs of cable ties to meet the additional needs of customers during use.
- 【Quality assurance】We are committed to providing high quality products, making our customers satisfied is one of our top priorities, if you have any questions about the use of this electrical wire, please contact us, our team will provide maximum support in 24 hours.
Product description
Advantages of Our 6 Conductor Wire
- 6 Conductor Tinned Copper Wire: 99.99% Oxygen Free Tinned Copper Conductors, 17 strands of 0.16mm tinned copper wire are inside each circuit.
- High Conductivity: High precision Oxygen-free copper, lower resistance and high conductivity.
- Durable Insulated PVC Jacket: The sheath/insulation material is PVC, which protects conductors and is used outdoors and in humid conditions, it can be exposed to the sun for a long time, or they can be buried directly in the ground.
- Flame retardant: Grade up to VW-1 and FT1, no open flame can be self-extinguishing, to ensure the safety of electricity.
- Wire Gauge: UL2464 22 Gauge Wire
- Conductor Number: 6 Conductor Wire
- OD: 6.0±0.25mm
99.99% Oxygen Free Tinned Copper+ PVC Jacket
Our wire conductors are tin-plated pure copper conductors
Being able to bring three benefits directly in use
- better corrosion resistance and oxidation resistance
- Prevents wires from sticking to insulating rubber.
- Makes welding easier.
Heat shrink tube + Cable tie
To meet the needs of all userswe are equipped with 40 pcs Heat ShrinkTubing and 20 pcs Cable tie, which can achieve better waterproof and sealed connections.
High Conductivity
The high-precision oxygen-free copper contained in tinned copper has lower resistance and higher conductivity Compared with bare copper wire.
Temperature resistance range
Electrical wire jacket is made of high quality PVC rubber insulation. Temperature resistance range -40℉ to 176℉, no matter cold winter or hot summer, it does not affect its electrical conductivity to work properly.
Flame retardant
Flame retardant grade up to VW-1 and FT1, which has very good flame retardancy.no open flame can be self-extinguishing, to ensure the safety of electricity.
Wide Applications
Suit For: 22/6 wire widely used for low-voltage cable extension cords are very suitable for LED monochromatic light strips, electronic appliances and equipment, transformers, led lights, led splitter connections, Automotive, Ship, outdoor spot lights etc.
