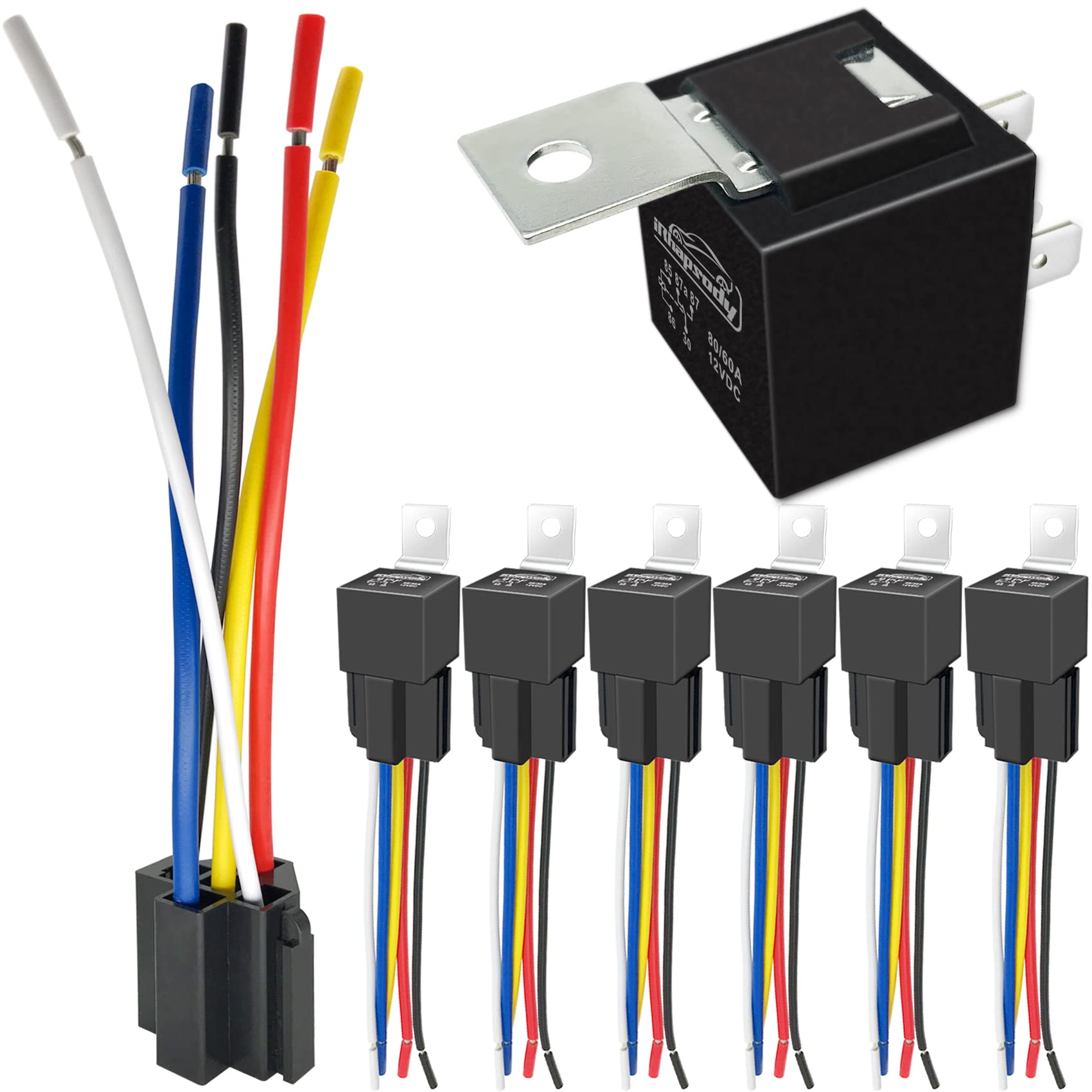

irhapsody 80/60Amp 12V 5-pin Relay Kit, SPDT 12-Volt Automotive 6 relays

Product Details

• Never go beyond its capabilities. Try to stay 10 to 15% below what the rate is for
• Please make sure you made tight connections (especially on the load wires)
• 5-prong universal standard relay, high switching capability
• 30-VDC (red), 85-Ground (black), 86-Trigger (white), 87-Output /O (blue), 87a-Output N/C (yellow)
• 12awg & 16awg tinned copper wiring harness: Electrical conductivity, corrosion resistance, and oxidation resistance are stronger

Nominal Coil Voltage: 12 V DCCoil Power: 1.8 WCoil Resistance: 80Ω¸Must Operate Voltage: 6~8 V DCMust Release Voltage: 0.6~3.6 V DCMaximum Applied Voltage: 15.6 V DCContact Ratings: NO 80A 14V DCContact Resistance: 100mMAX (at6VDC 1A)Max Switching Current: 80AMax Switching Power: 560 WLife Expectancy Electrical: 100,000 Operations (at30 Operations/minute)Life Expectancy Machanical: 10,000,000 OperationsTemperature Range: -30 ~ +80 degrees CelsiusVibration Resistance: 10~55Hz, 1.5mmShock Resistance: Operations Extremes: 10g. Damage Limits: 100gHunidity: 40% ~ 85%Insulation Resistance: 100mΩ¸ Min at500VDCDielectric Strength Between Open Contacts: 500VAC (for one minute/sec)Between Contactw and coil: 750AC (for one minute/sec)Operate Tice: 7msRelease Tice: 5msPackage Content: 6 x 12VDC 80/60A relay kit
