Product Description:
|
All of our items are Brand New |
||
|
Model |
UV-8D |
|
|

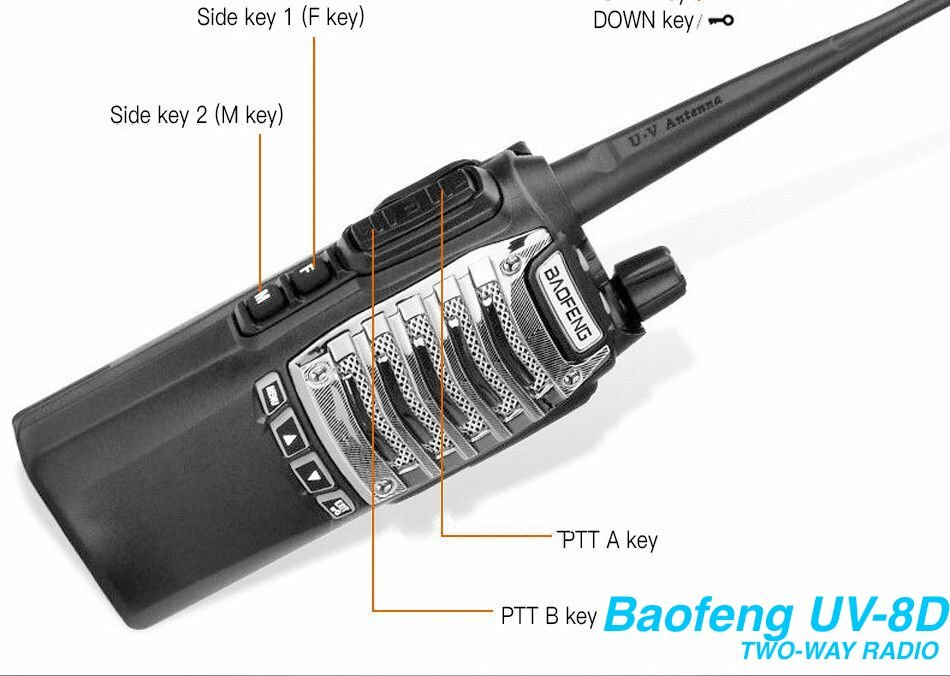

Dual PTT |
Single Band/Single Frequency |
|
|
128 groups channels storage |
UHF: 400-480MHz |
|
|

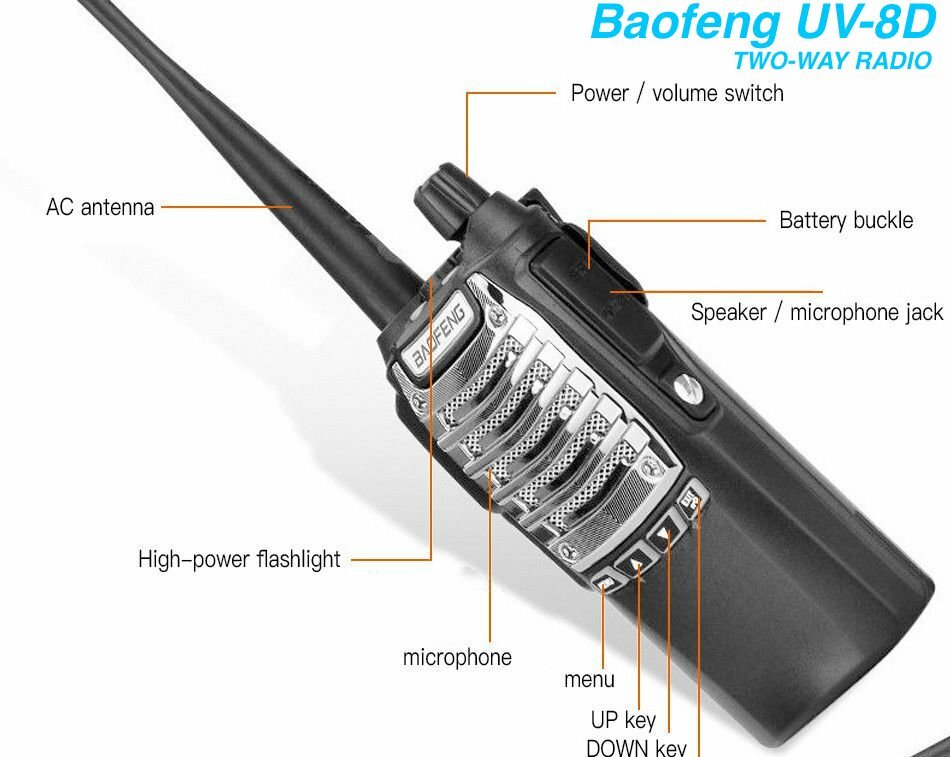

Shortcut menu operation mode |
Emergency Alarm |
|
|
Transmitter time-out timer(TOT) |
VOX (0~9 grades) |
|
|
PTT & ANI ID |
FM radio (65-108MHz) |
|
|
Voice COMP |
CTCSS/ DCS |
|
|
Call Tone 1750Hz |
Repeater working confirmation |
|
|
TX power selectable(8W/1W) |
Busy channel lockout |
|
|
LED Flashlight |
DTMF Code |
|
|
Wide/Narrow Band |
Yes |
25kHz/12.5kHz |
|
Frequency step |
Yes |
12.5/25KHz |
|
Scanning function |
Yes |
|
|
Monitor function |
Yes |
|
|
Keypad lock function |
Yes |
|
|
Flashlight |
Yes |
|
|
Wire clone function |
Yes |
|
|
Low battery alarm |
Yes |
|
|
Power saving function |
Yes |
|
|
Chinese and English voice prompt |
Yes |
|
|
PC software programmable |
Yes |
|
|
Basic Descriptions |
||
|
Rated Voltage |
7.4V DC |
|
|
Output power |
8W/1W |
|
|

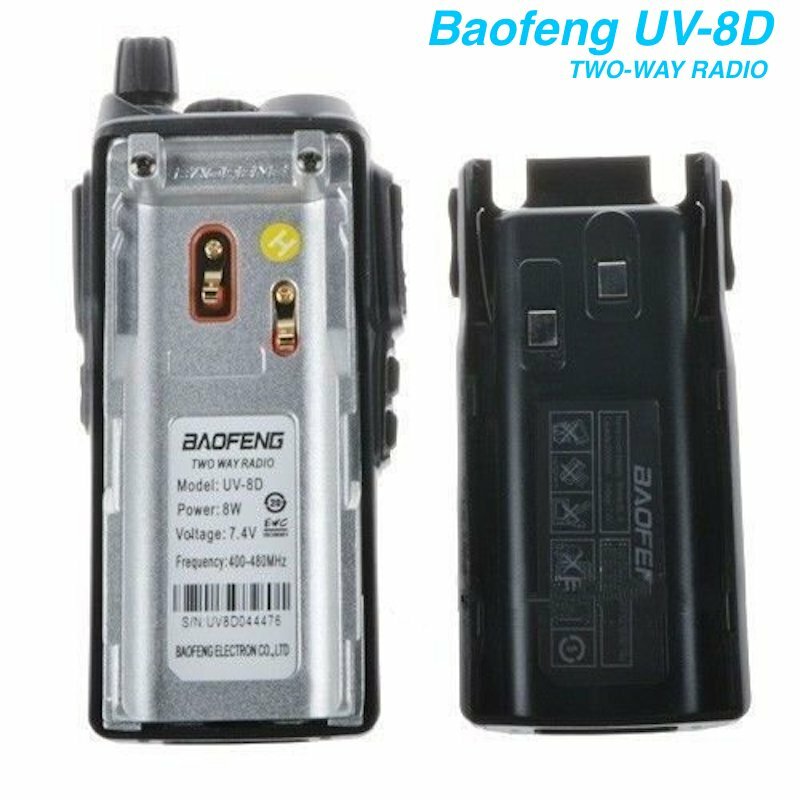

Battery type |
Li-ion battery |
|
|
Battery capacity |
2800mAh |
|
|
Earpiece / MIC type |
2 Pin for KENWOOD Type |
|
|

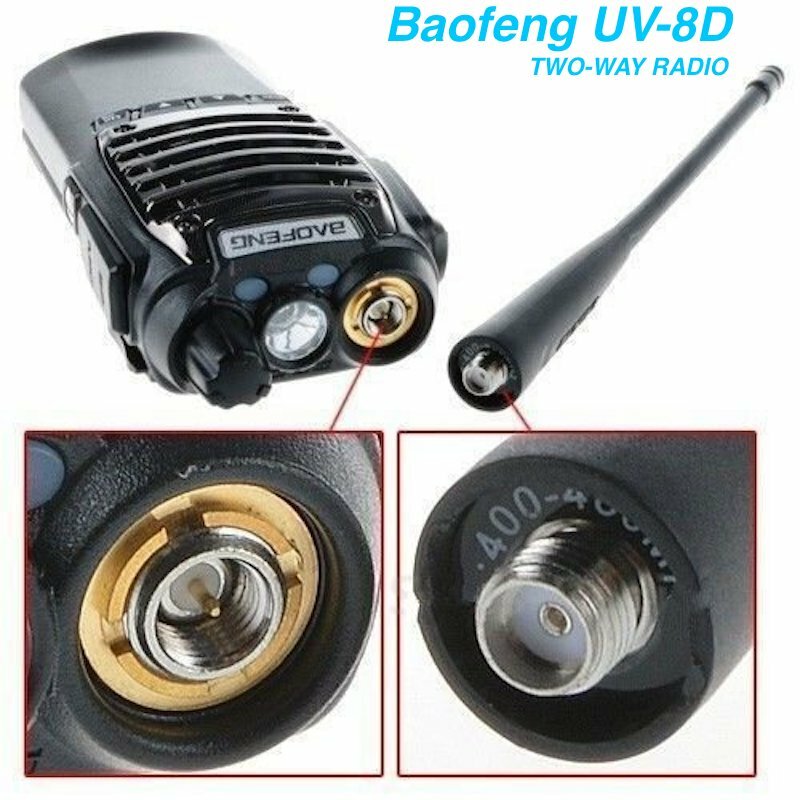

Antenna |
SMA-Female |
|
|
Working temperature |
-20~+50 Degrees Celsius |
|
|
Antenna Impedance |
50 ohm |
|
|
Weight |
230g |
|
|
Dimension ( LXWXH ) |
60 X 38 X 120 mm (Not Antenna ) |
|
|
Specification |
||
|
Frequency stability |
± 2.5ppm |
|
|
Modulation |
F3E |
|
|
Max frequency deviation |
<= 5kHz(Wide)/<= 2.5kHz(Narrow) |
|
|
Emission current |
<=1.5A |
|
|
CTCSS / DCS |
0.7 ± 0.1kHz(Wide)/0.4 ± 0.1kHz(Narrow) |
|
|
Spurious Radiation |
<=7.5µW |
|
|
Intermediation Distortion |
<10% |
|
|
Intermediation sensitivity |
8-12mv |
|
|
Adjacent channel selectivity |
<= 65dB(Wide)/<= 60dB(Narrow) |
|
|
Modulation character |
6 dB per fold frequency patch |
|
|
Sensitivity |
-122dbm (12dB SINAD) |
|
|
Audio Power |
1W |
|
|
Audio Distortion |
<= 10% |
|
|
Blocking |
>= 85dB |
|
|
Spurious rejection |
>=65dB |
|

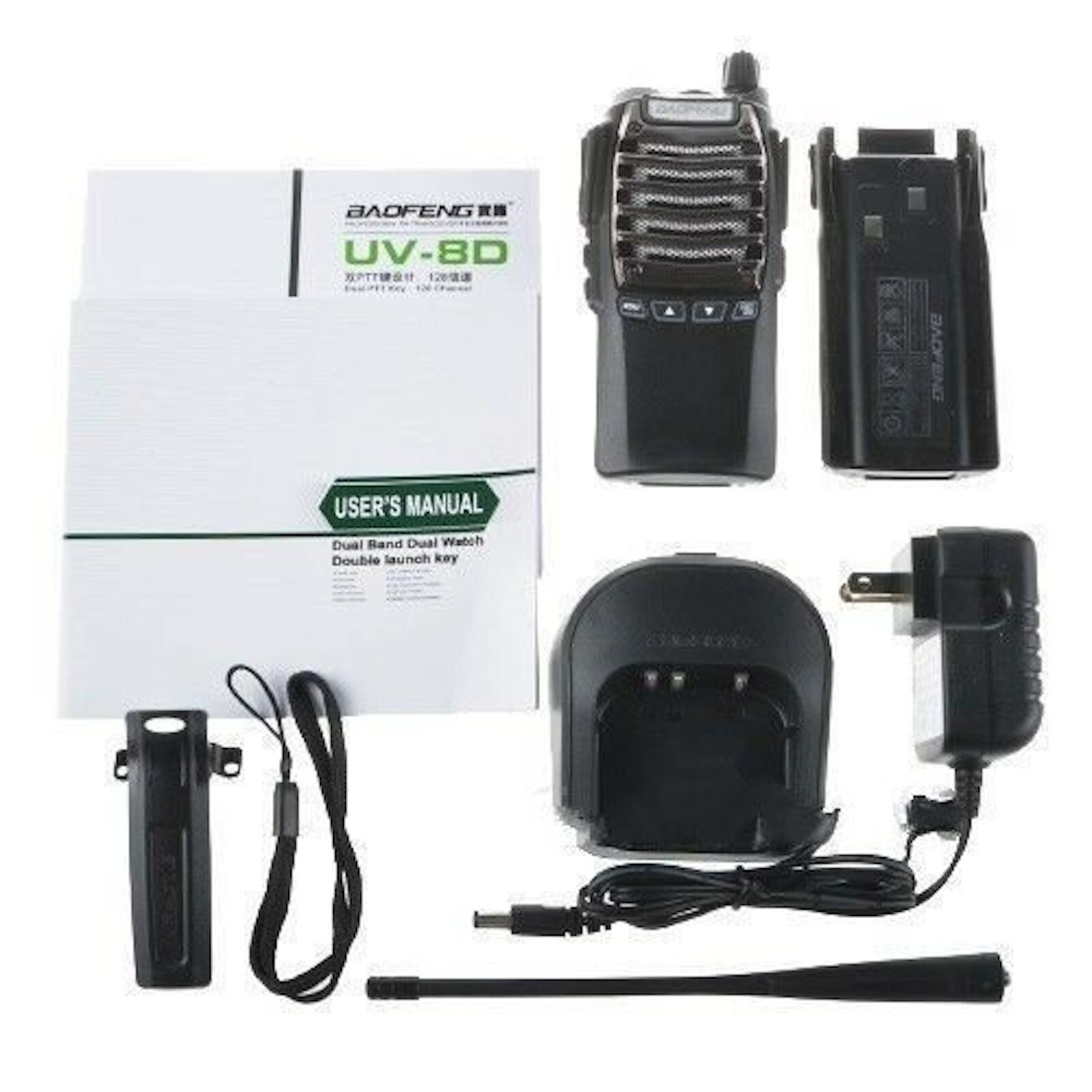

Package included:
-1 x Baofeng UV-8D 400-480MHz Walkie Talkie FM Ham Two-Way Radios.
-1 x Antenna.
-1 x 2800mAh Li-ion Battery pack.
-1 x LI-ion charger ( 100V ~ 240V US/EU/UK/AU plug ) .
-1 x Belt clip.
-1 x The sling.
-1 x User's manual.
-1 x Programming Cable
