Application:

for all 1.6 Mk1 MX-5 models 1989-1998

for all 1.8 Mk2 models 1998-2005

for all 2.5 MX-5 models 1998-2005

OE/Part number:

Timing Belt: 0B59712205, 0K20312205, B59712205, B597122059A, B6S712205A, B6S712205B, B6S712205C, B6S712205C9A, B6S712205D, B6S712205D9U, BS6712205D9U, E9JY6268A, F3CZ6268A, F9JY6268A, MB6S712205C

Water Pump: 0K24A15010, 8ABB15010, 8ABB15010A, 8ABB15010B, B6BF15010F, B6BF15101F

Timing Idler: 0K93812730, 248102X700, B66012730A, B66012730B, B66012730C, OK93712730

Timing Belt Tensioner: 244102X701, B63012711A, B63012711C, B63012711E, B66012700A, B66012700C, B66012700D, B66012700E, B66012700F, E9JY6K254A, F1CZ6K254A, OK93712700, OK93712700A

Specification:

Condition: 100% Brand New
Type: Timing Belt Kit
Fitment Type: Direct Replacement
Placement on Vehicle: Front
Manufacturer Warranty: 1Year

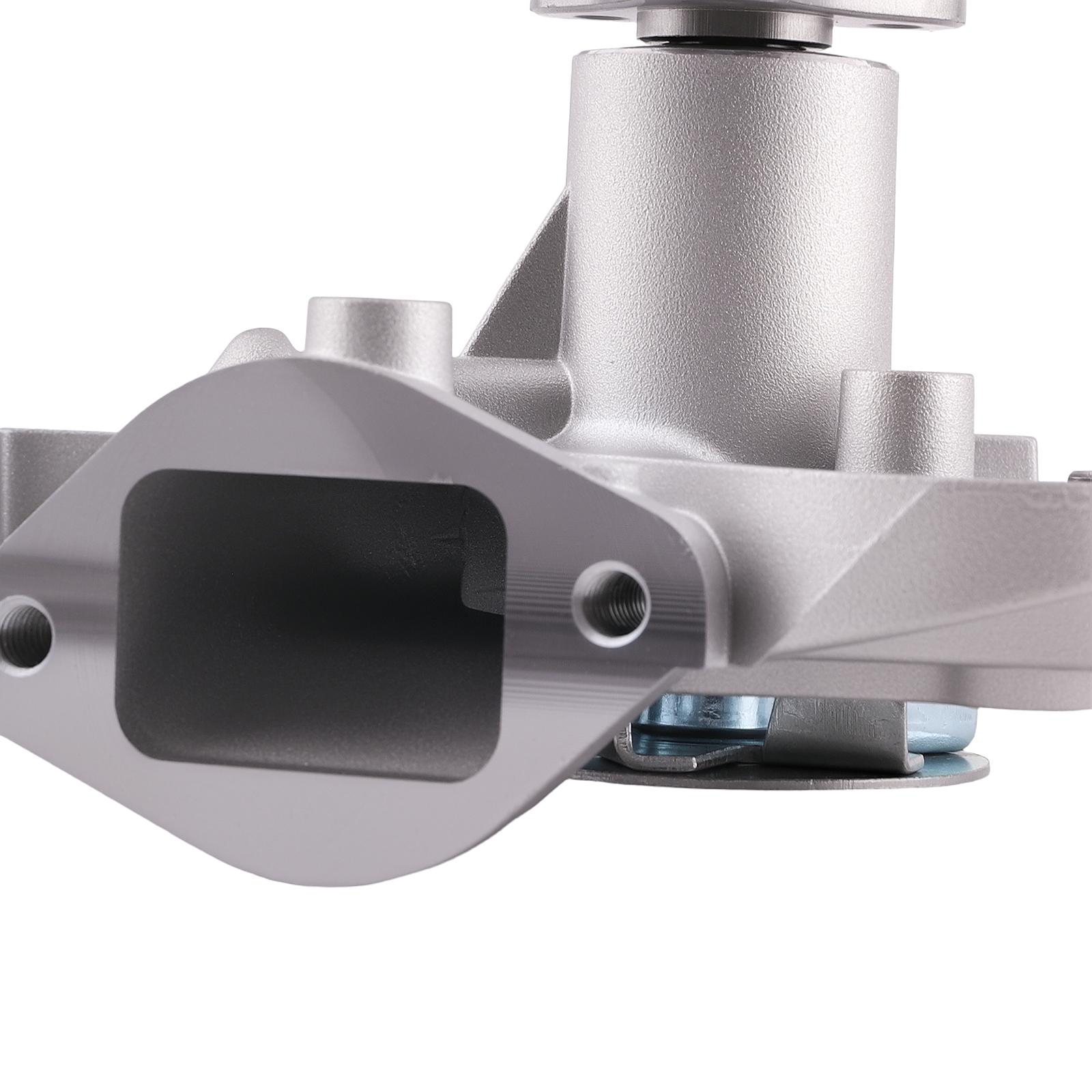

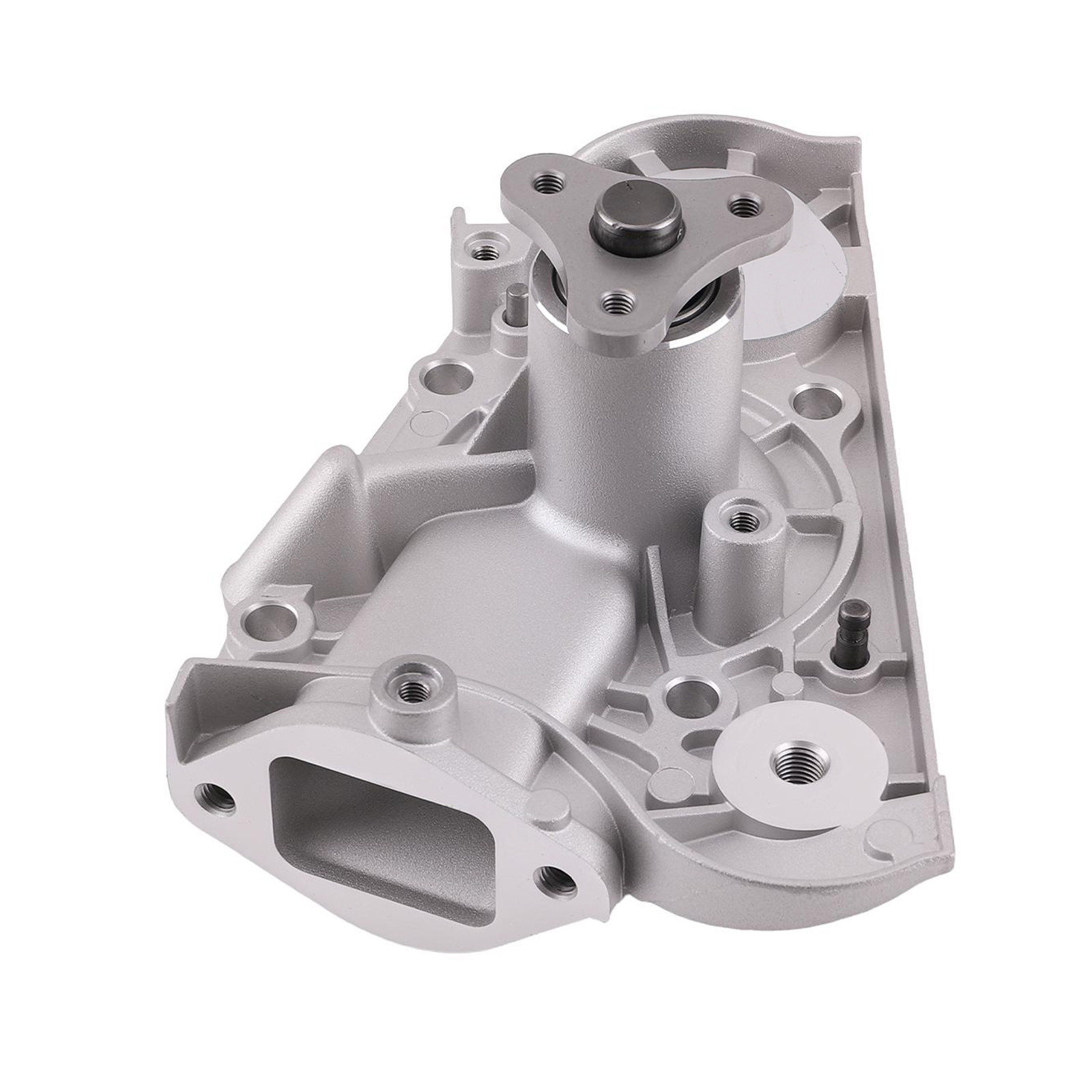

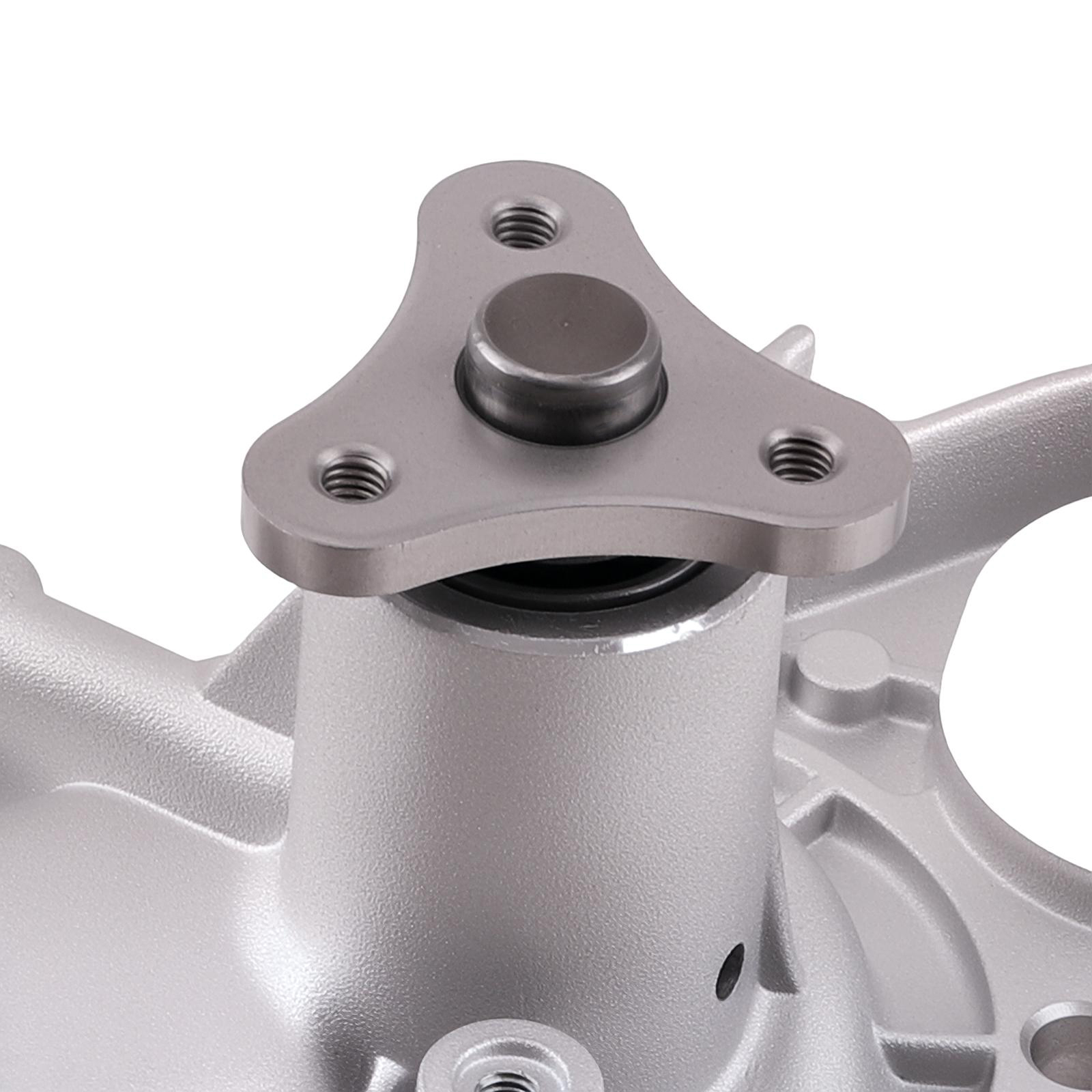

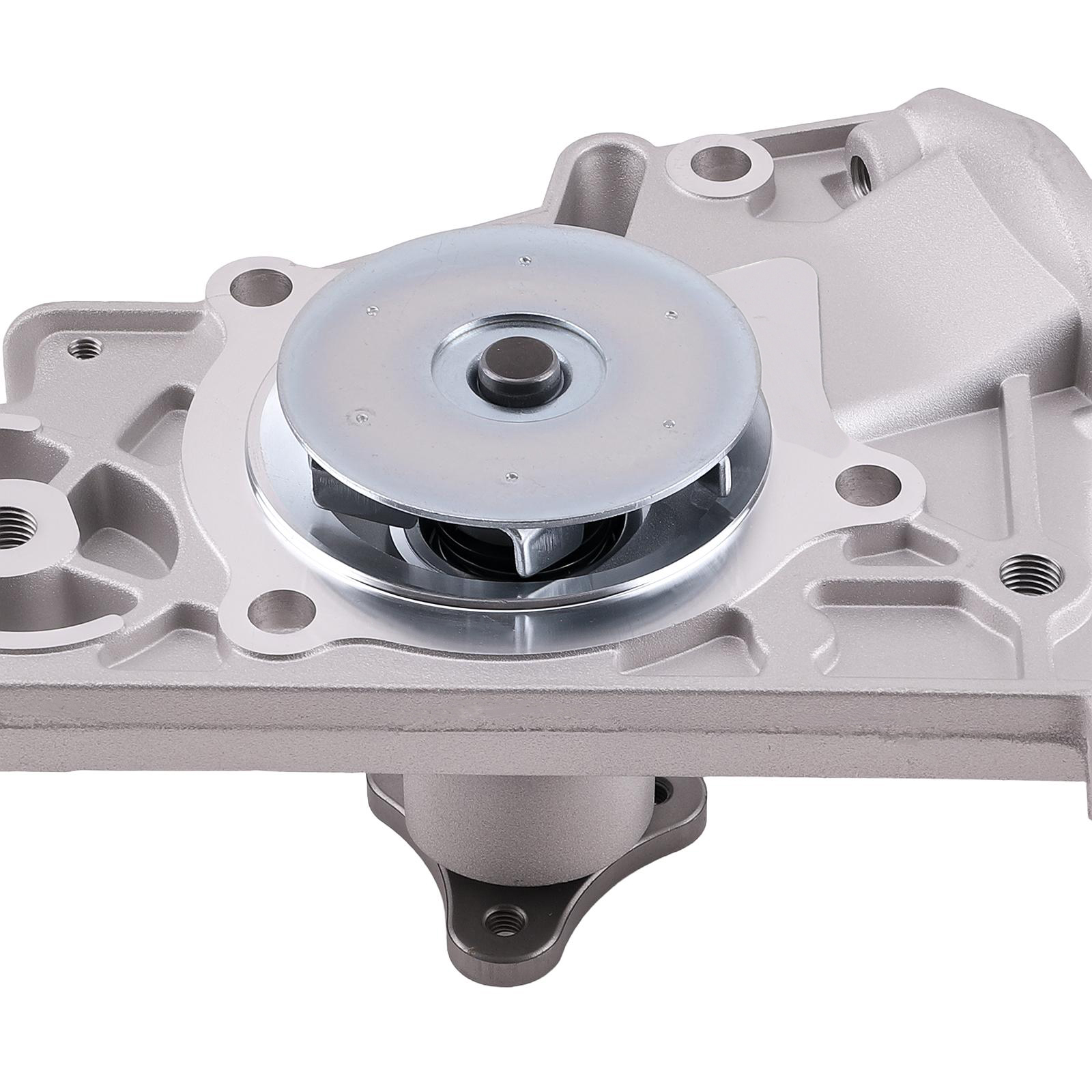

Water Pump
Housing Material: Aluminum
Hub Height: 3.3 IN
Hub Pilot Diameter: 1.24 IN
Impeller Material: Metal
Impeller Rotation: Standard
Includes Back Housing: No
Pulley Included: No

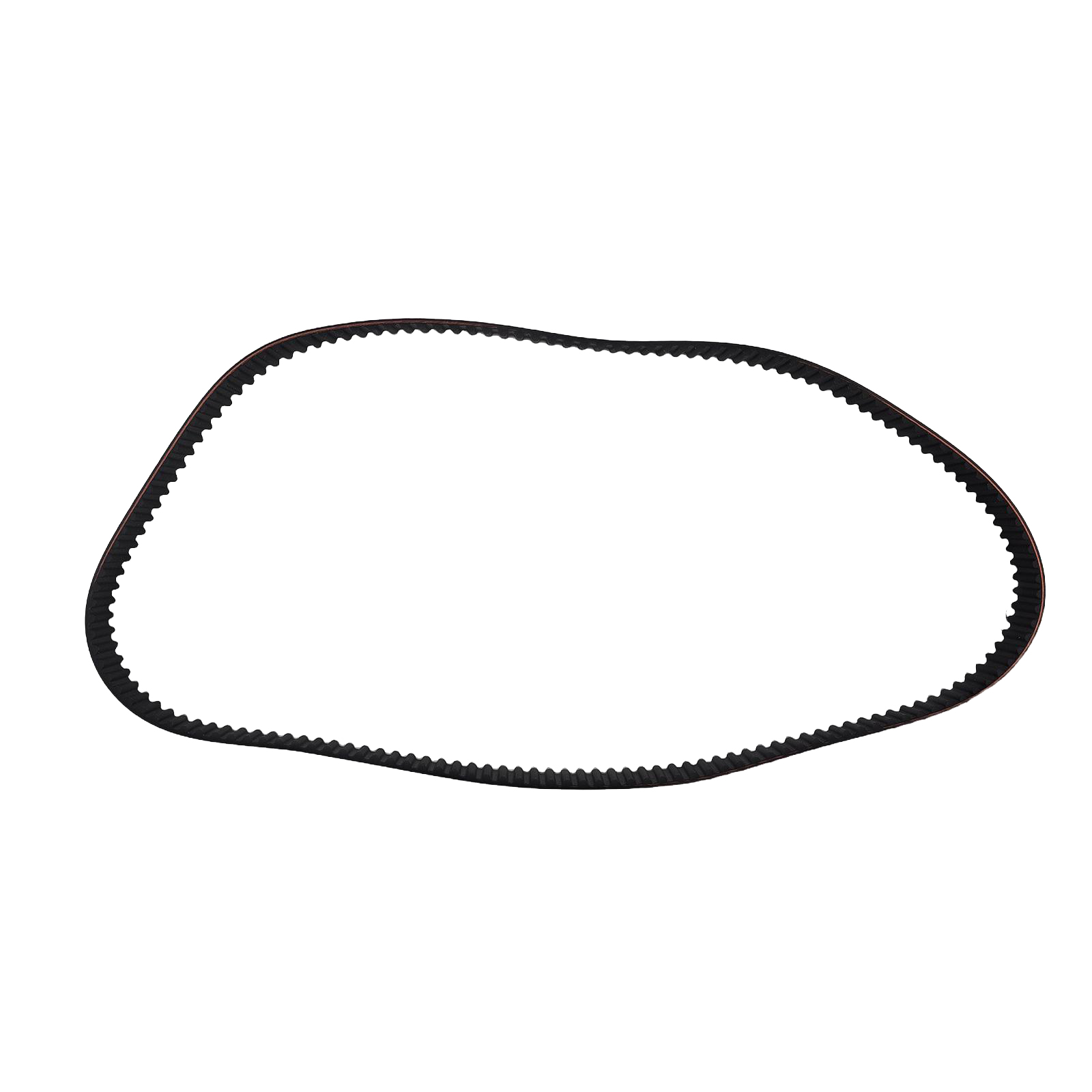

Timing Belt
Cog Quantity: 145
Color: Black
Cord Material: Fiberglass
Pitch (IN): .315
Pitch (mm):8
Pitch Length (IN): 45.669
Pitch Length (mm): 1160
Profile Type: Modified Curvilinear (III)
Top Width (IN): .846
Top Width (mm): 22
Type Automotive: Timing Belt

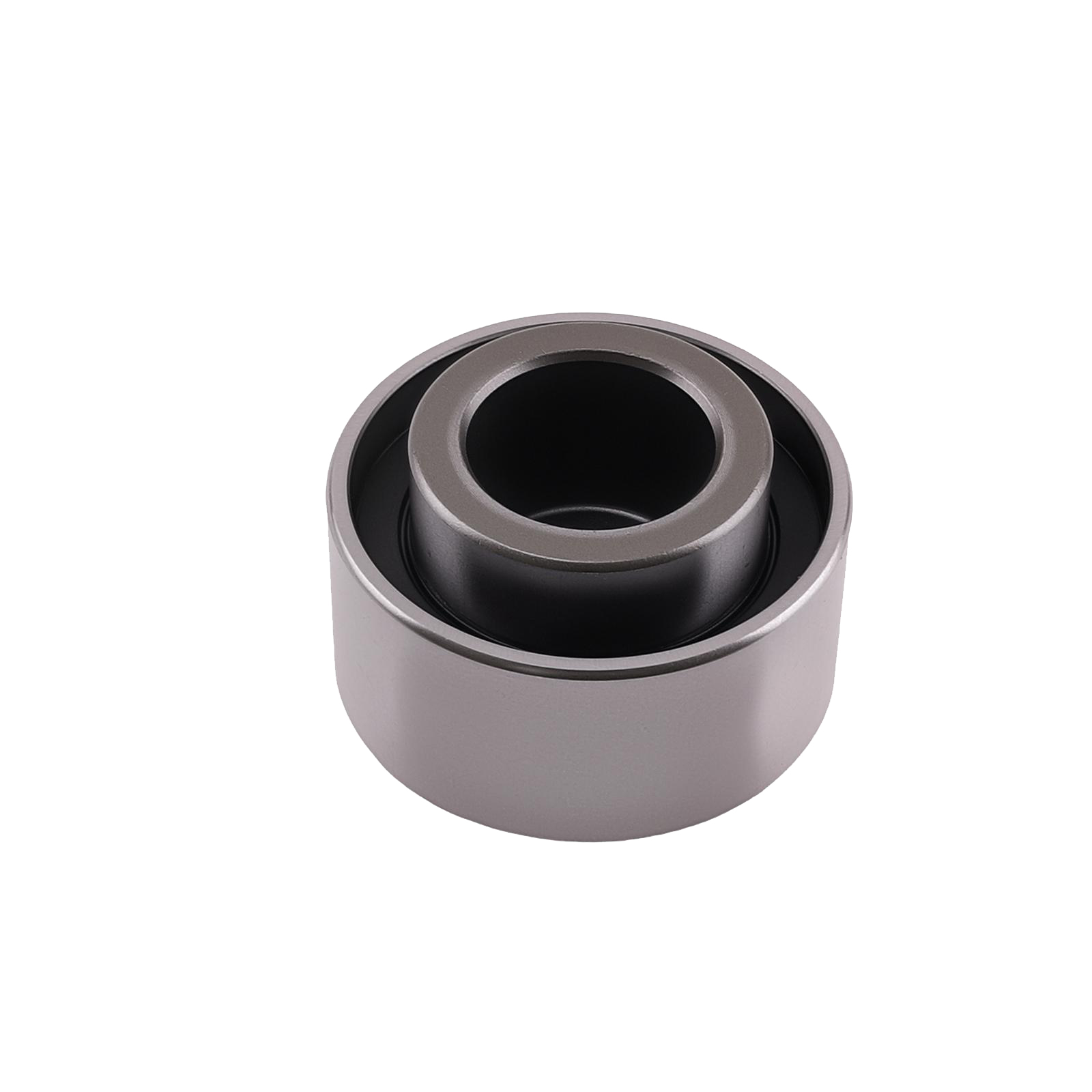

Pulley
Contact Surface: Smooth/Backside
Flanged End: No
Inside Diameter (mm): 10.5
Material: Steel
Outside Diameter (mm)； 52
Width (mm)： 25

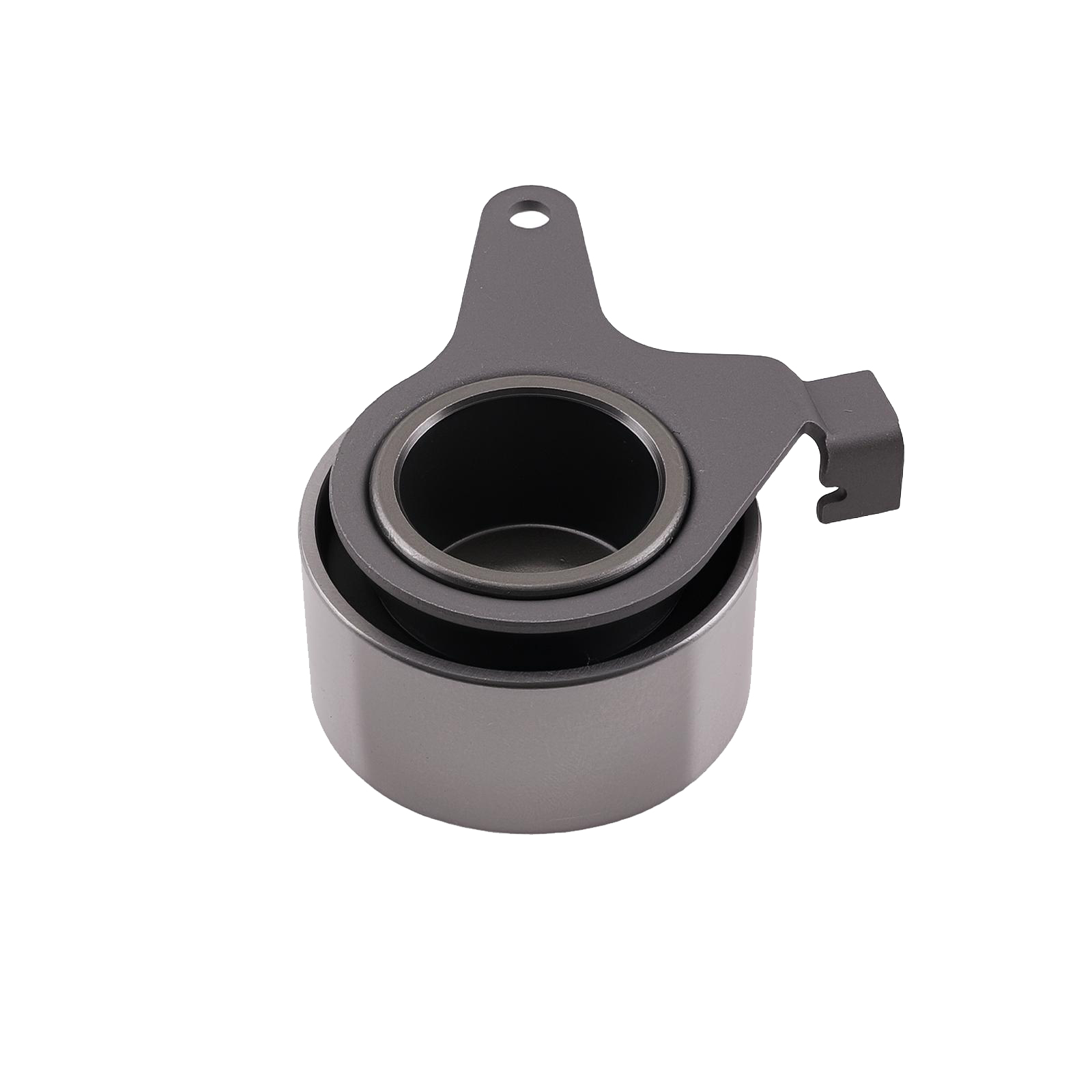

Tensioner
Activation Type: Mechanical
Contact Surface Material: Steel
Inside Diameter: 1.870 IN.
Inside Diameter: 47.53 mm
Material: Steel
Mounting Bracket Included: Yes
Outside Diameter: 2.050 IN.
Outside Diameter: 52.05 mm
Pulley 1 Flanged: No
Pulley 1 Mount Hole Quantity: 1
Pulley Quantity: 1
Tensioner Type: Pulley
Width: 0.983 IN.
Width: 25.00 mm

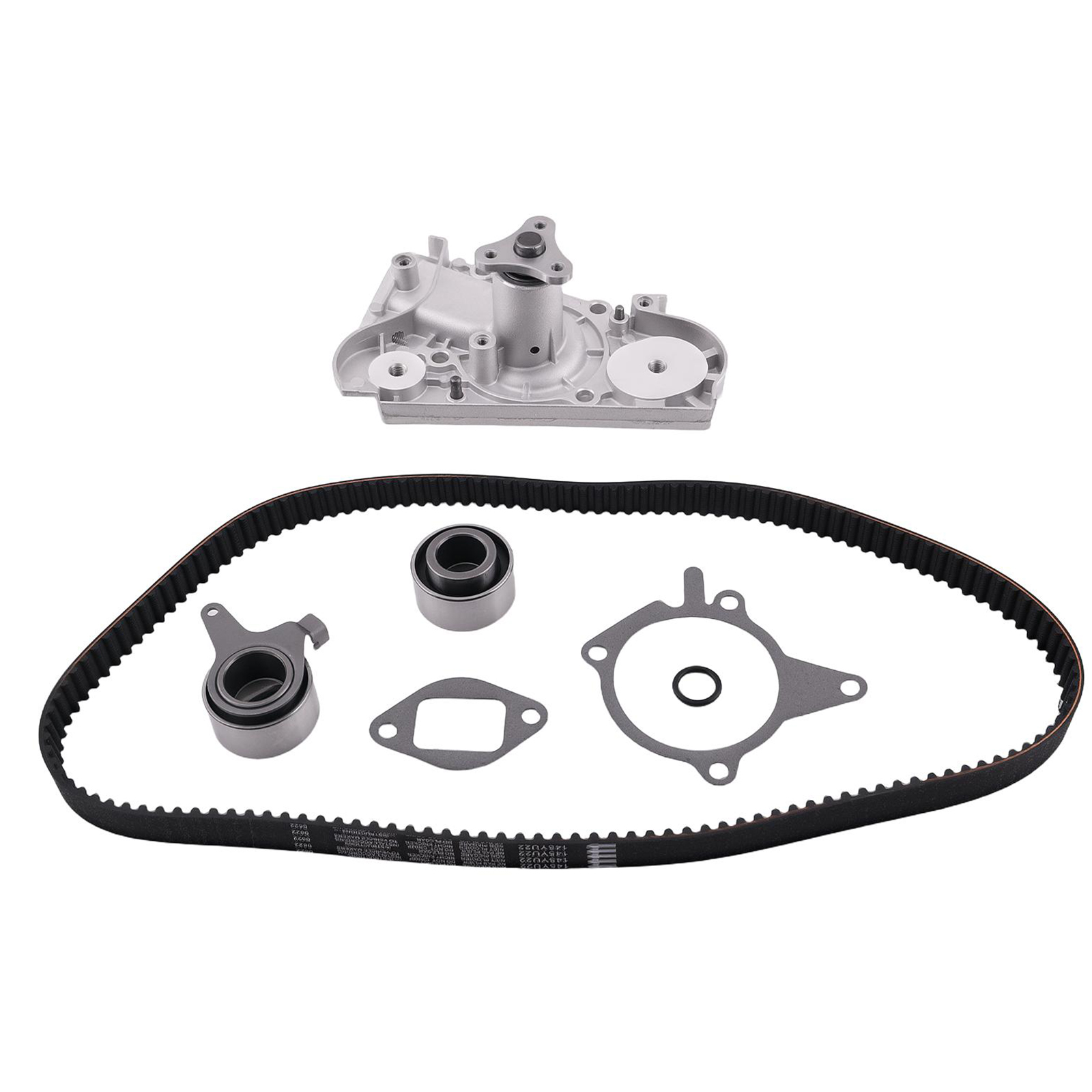

Package included:

1 x Timing Belt

1 x Timing Belt Tensioner

1 x Timing Belt Idler

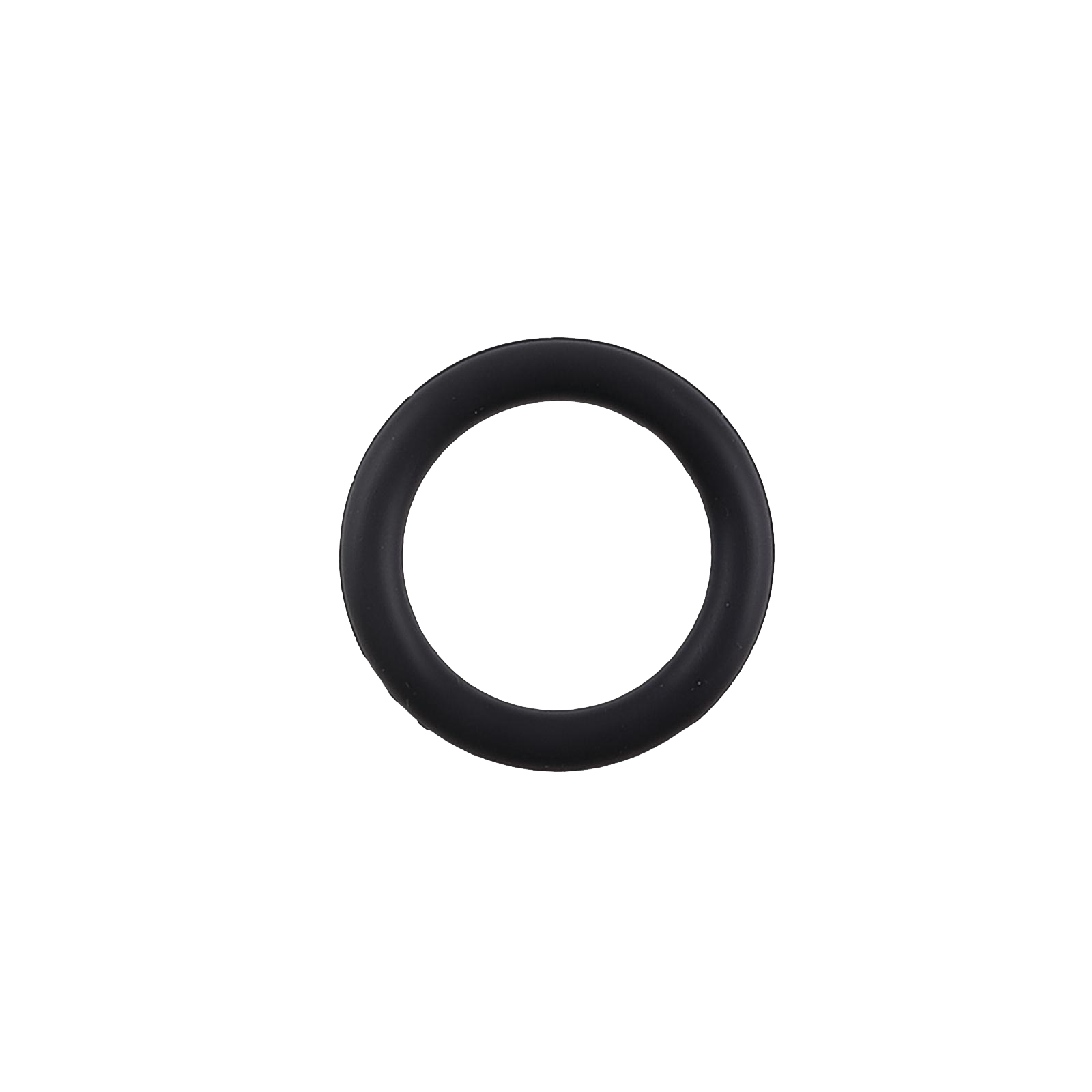

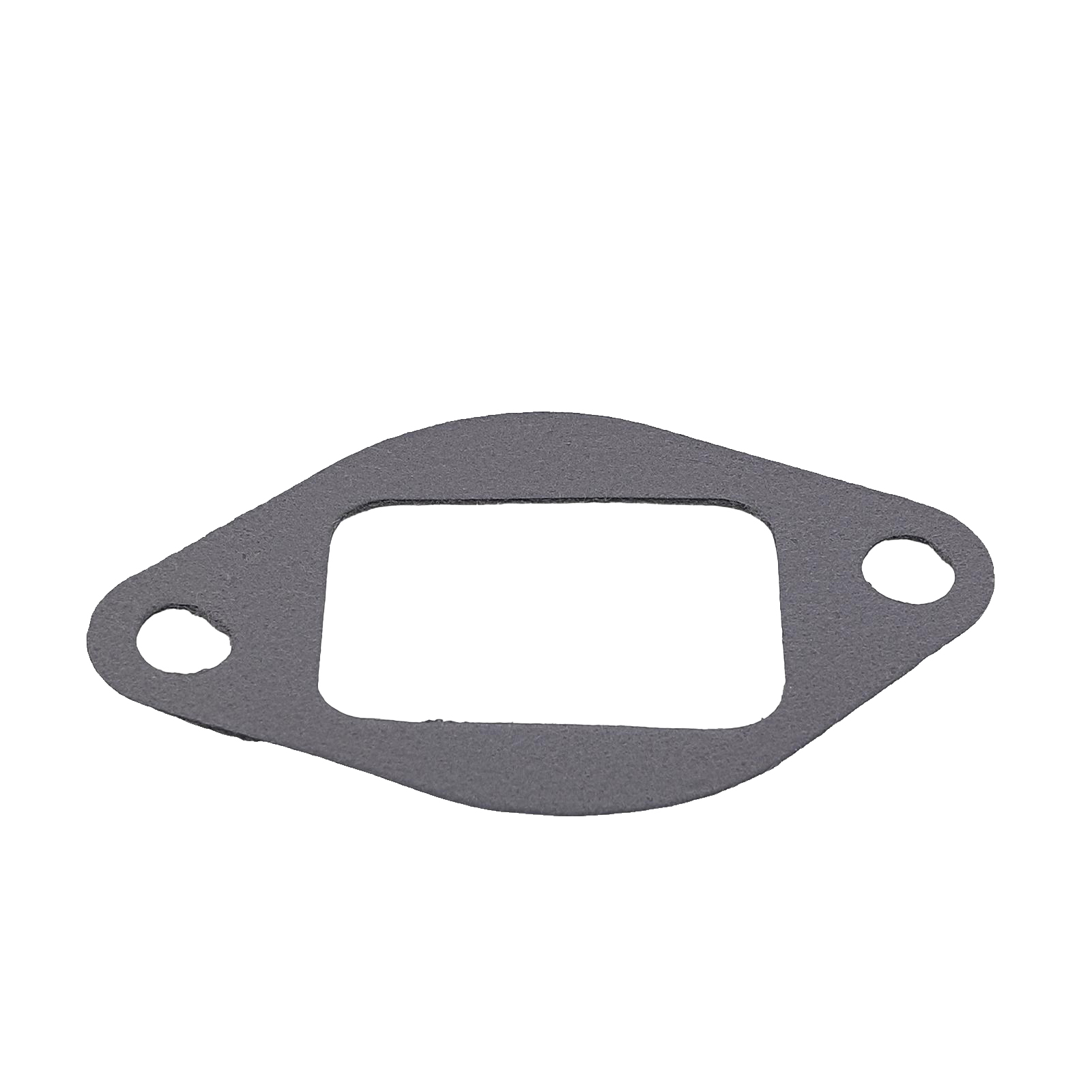

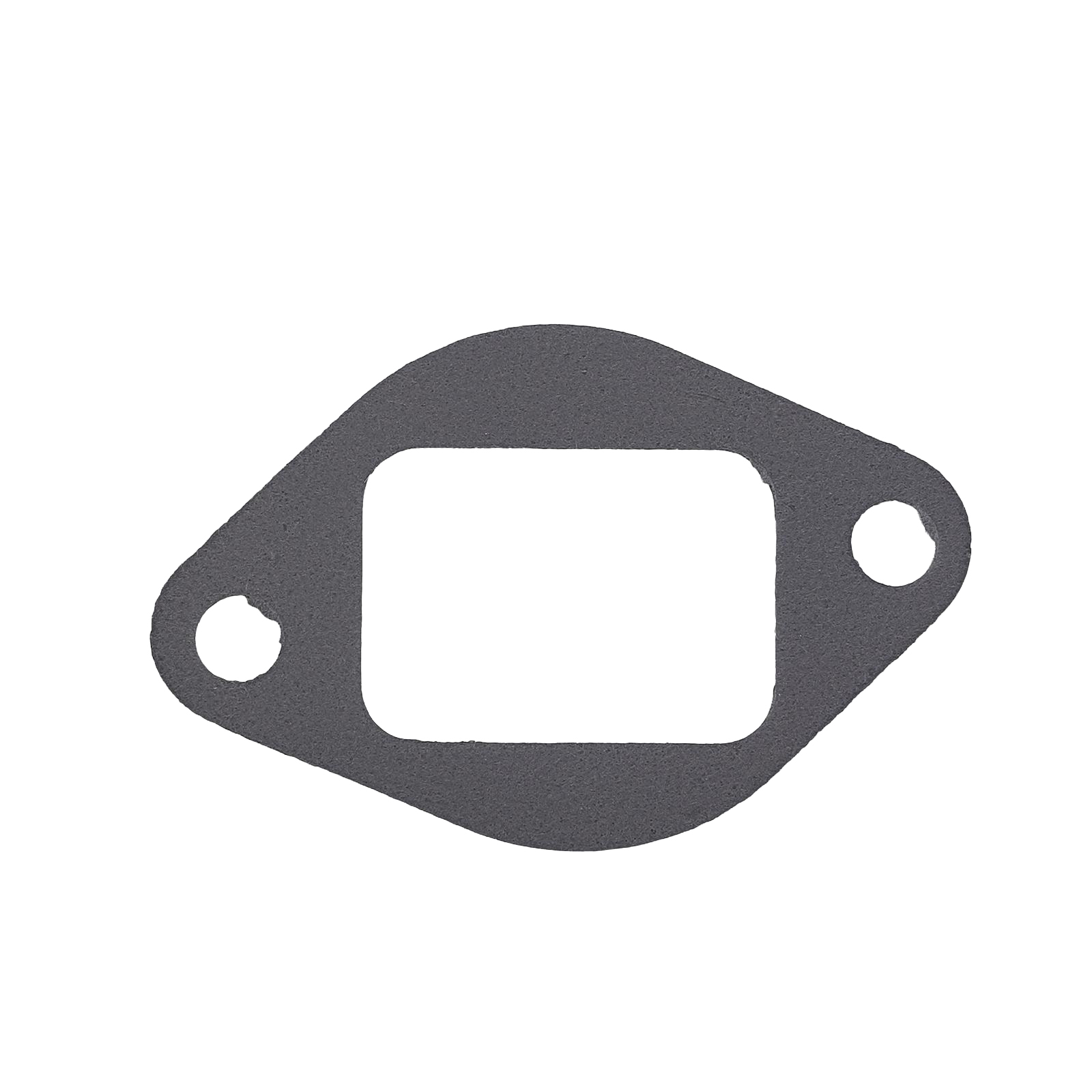

1 x Water Pump (Includes Gaskets)

Feature:

1.100% NEW.

Every product has quality inspection before leaving the factory.

2.High Quality

Components and materials ensure a longer service life.

3.Direct for

Less expensive, easier to install.

Note:

1.Professional installation is highly recommended.

2.Please make sure it will for your machine before purchasing it.

3.Please check pictures for more details.
