Part Number:

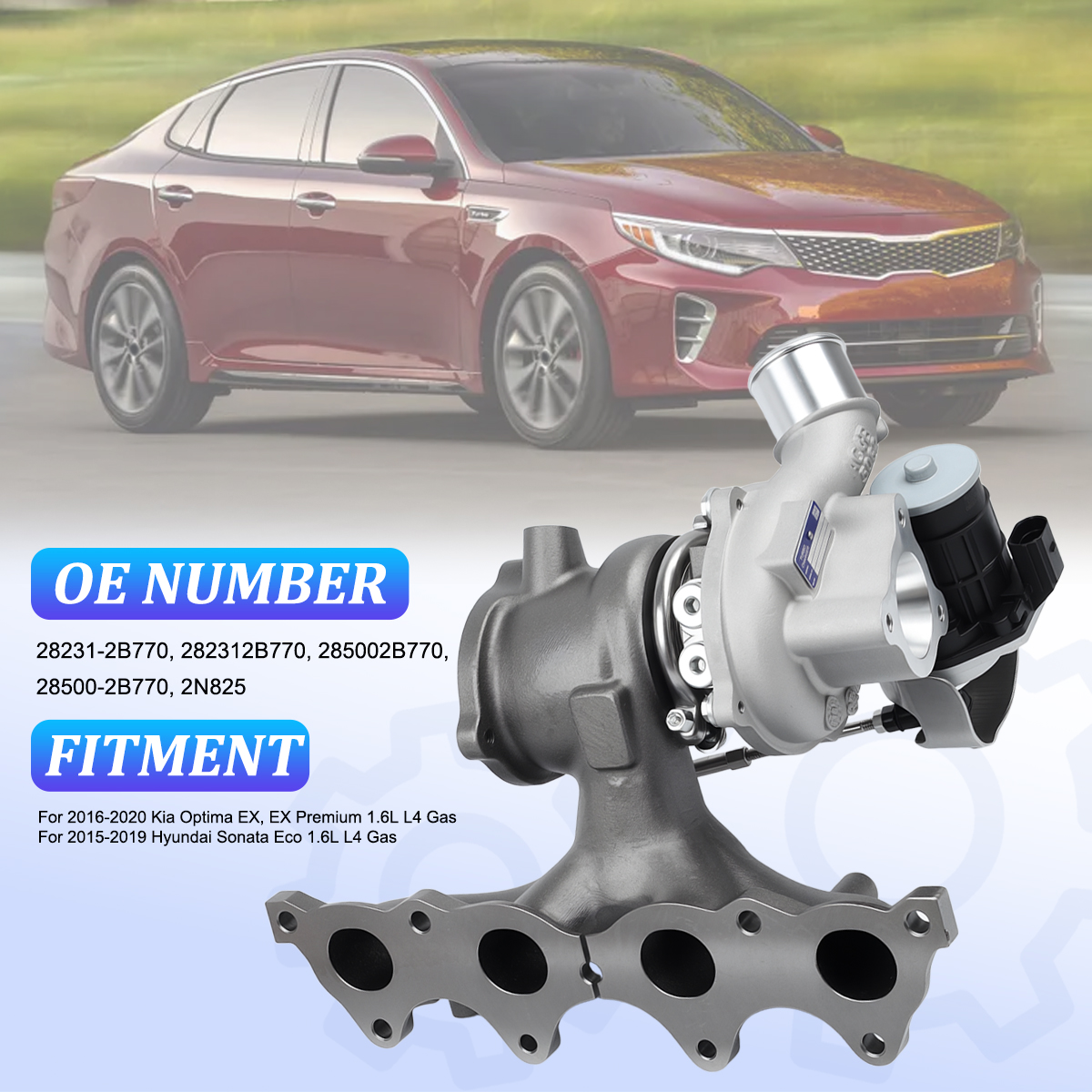

28231-2B770, 282312B770, 285002B770, 28500-2B770, 2N825

Fitment:

For 2016-2020 Kia Optima EX, EX Premium 1.6L L4 Gas

For 2015-2019 Hyundai Sonata Eco 1.6L L4 Gas

Package Contents:

1 x SET Turbocharger W/Gasket Kits (as shown in the picture)

Features:

1.Good Quality: High quality for long-lasting durability, engineered from high-quality materials to improve the reliability and durability.

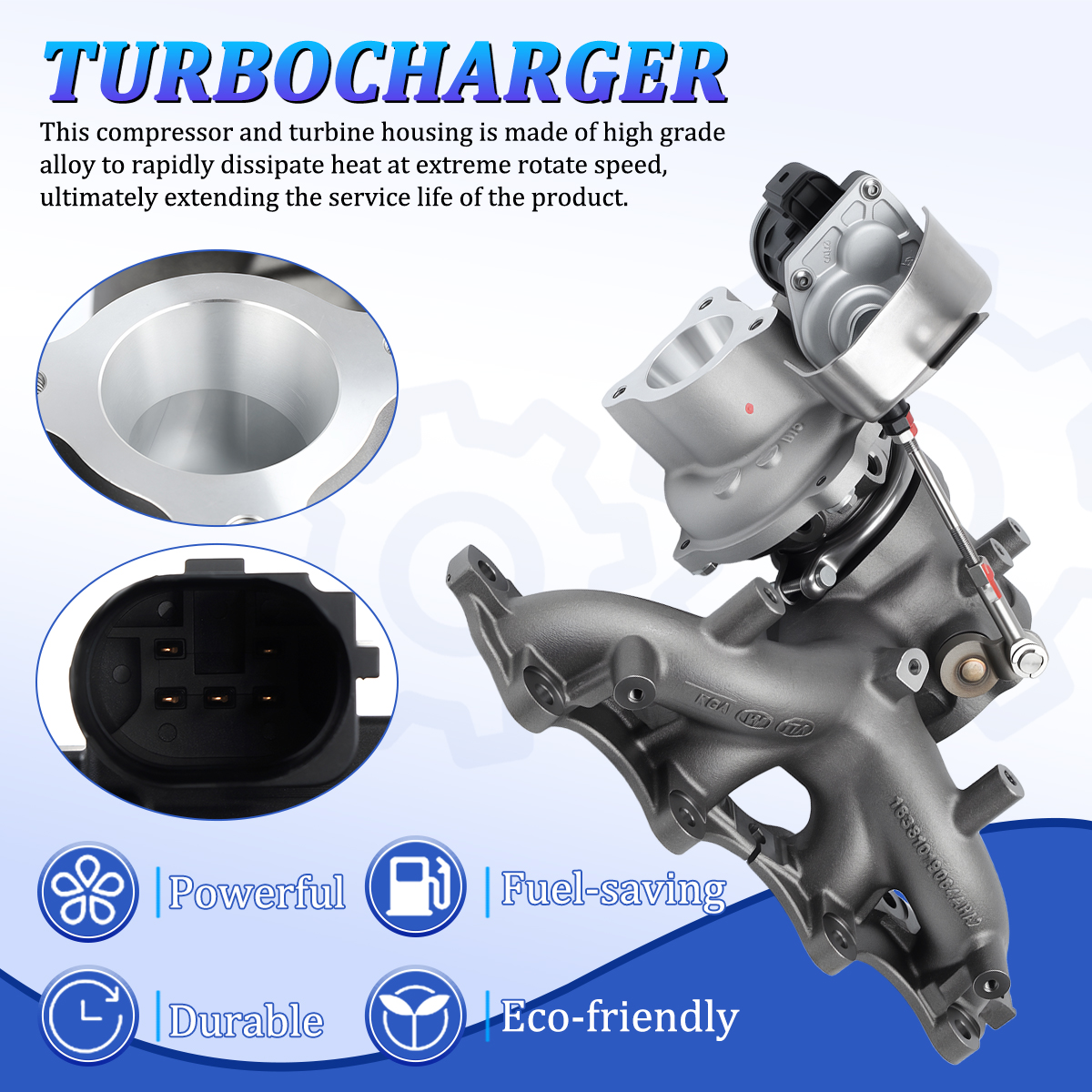

2.This compressor and turbine housing is made of high grade alloy to rapidly dissipate heat at extreme rotate speed, ultimately extending the service life of the product.

3.Each part is crafted with hard-wearing strength and durability to ensure your 28231-2B770 Turbocharger can withstand the rigors of the road.

4.We have professional knowledge, quality products, fast shipping, and unparalleled customer service.

5.Warranty:1 year.

Common symptoms of a Bad turbocharger:

1. Loud Siren Noise;

2. Poor Acceleration;

3. Excessive Exhaust Smoke;

4. Increased Oil Consumption;

5. Engine Management Light.

Specifications:

Turbo Model:K03

Wastegate Actuator Included: Yes

Gasket or Seal Included: Yes

Fitment: Direct Replacement

Attention:

1. Please confirm your original turbo PART NUMBER before Purchasing

2. Professional installation is highly recommended

3. Before  installation, please check the oil supply sufficient, clearnliness the air filter and gasoline , Make sure the oil inlet and return lines are smooth and the gasoline air tightness.

Step 1 : Before Replacing A Turbo

1.1

It is important to conduct a thorough diagnostic check of the engine system to determine if the “fault” is actually the turbocharger.

1.2

If the engine diagnostic check does not uncover any obvious cause, make sure that an extensive trouble shooting analysis is completed.

Step 2 : Turbo Installation

2.1

Check the part number to ensure that it is the right one for the engine. If in doubt, check with us.

2.2

It is important that during the whole installation process, you prevent dirt or debris from entering any part of the turbo.

2.3

Ensure that correct gaskets are used.

Important Note: Do not use liquid gasket or sealants, particularly for the oil inlet or outlet since excessive material may enter the turbo, reducing or stopping oil flow.

2.4

It is recommended that you use new air, oil and fuel filters and clean engine oil to the engine or vehicle maker’s specification.

2.5

Before installing the turbo, ensure that all air hoses connected to the turbo are totally clean and show no sign of any damage.

2.6

The air filter and its housing must be completely clean and free from any debris.

2.7

Clean the engine breather system and ensure that it functions properly.

2.8

Remove any old gasket material from the exhaust manifold and pipe.

The surfaces of the flange must be clean and have no damage.

2.9

Position the turbo onto manifold or engine block using the correct new gasket or O ring, and then reconnect the exhaust pipe.

Tighten all nuts and bolts.

2.10

Next, install oil drain line to the turbocharger.

we recommend fitting a new oil inlet pipe when installing the new turbo.

2.11

Pour new engine oil into the oil inlet hole of the turbocharger.

2.12

Next, fit the new oil feed line.

2.13

Install inlet and outlet air hoses to turbocharger compressor housing.

Make sure that the connections are airtight and hose clamps are correctly tightened.

2.14

Crank the engine for 10 - 15 seconds without starting the engine.

If possible, disable the fuelling/ignition or use compressiontest mode to allow this.

This helps to prime the oil feed to the turbocharger by filling the oil pressure lines, oil filter and turbo with oil before start-up.

Important note: as soon as the engine starts, the turbo willrun at high speed and a lack of lubrication in these vital first few seconds can destroy a brand new turbo.

2.15

Then start the engine, and let it idle for 3 to 4 minutes to allow for proper inspection of oil, gas and airleakage.

2.16

Stop the engine and re-check engine oil level.

Oil level should be between the minimum and maximum mark on the dipstick.

It is important to make surethat oil level is not above the point where turbo oil drain pipe connects to the engine or this may lead to oil leakage from the turbo into the inlet and exhaust systems.

Note:

Please Carefully Check Whether the OE Number And Picture are What You Need Before Buying. If You are Not Sure Whether It Fits, Please Write to us. If There are Any Problems, Communication by Letter Will be More Effective.

No Instruction Included, professional installation is highly recommended.

Provide your VIN at checkout and we'll verify this part fits your specific vehicle before shipping.
