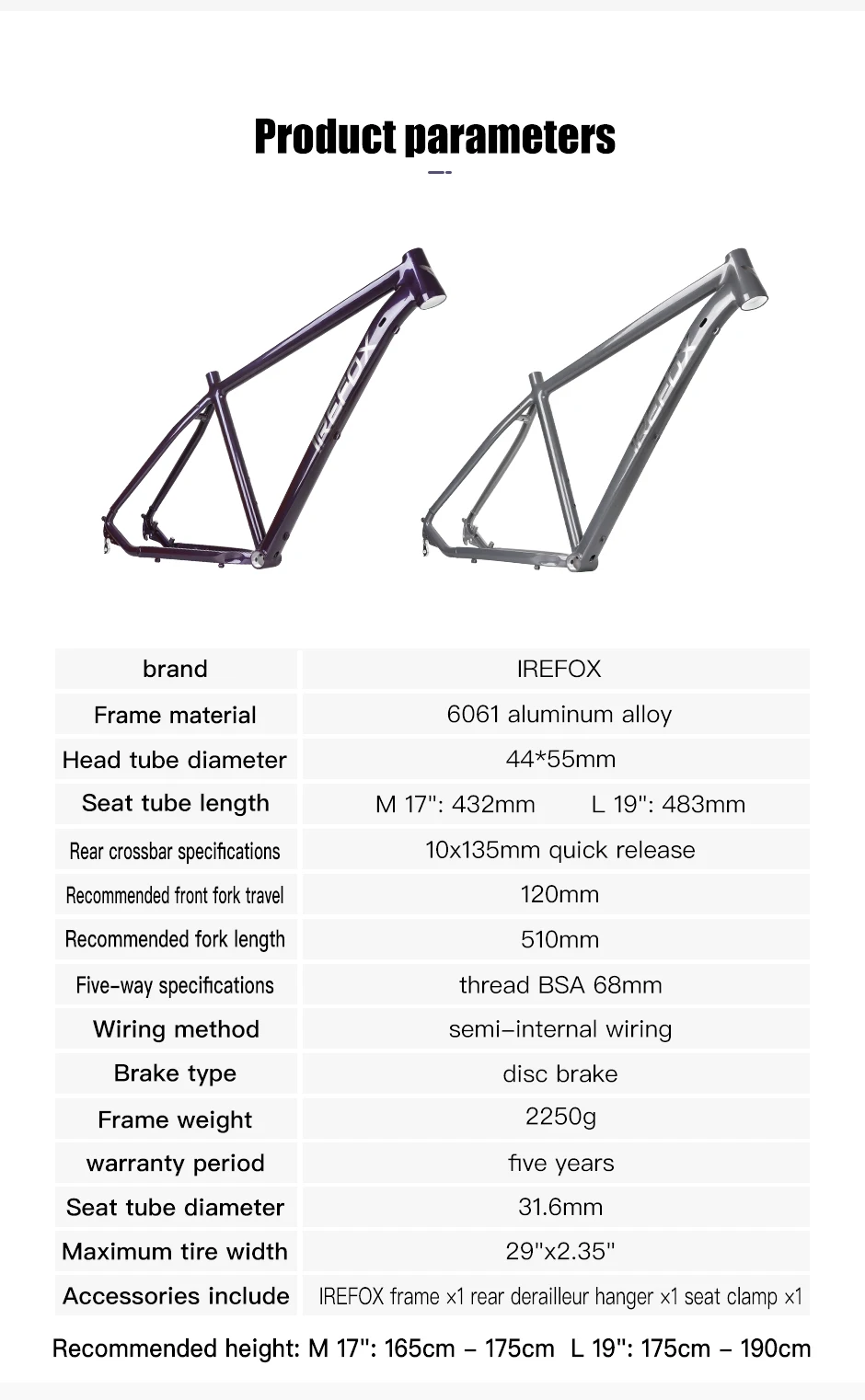

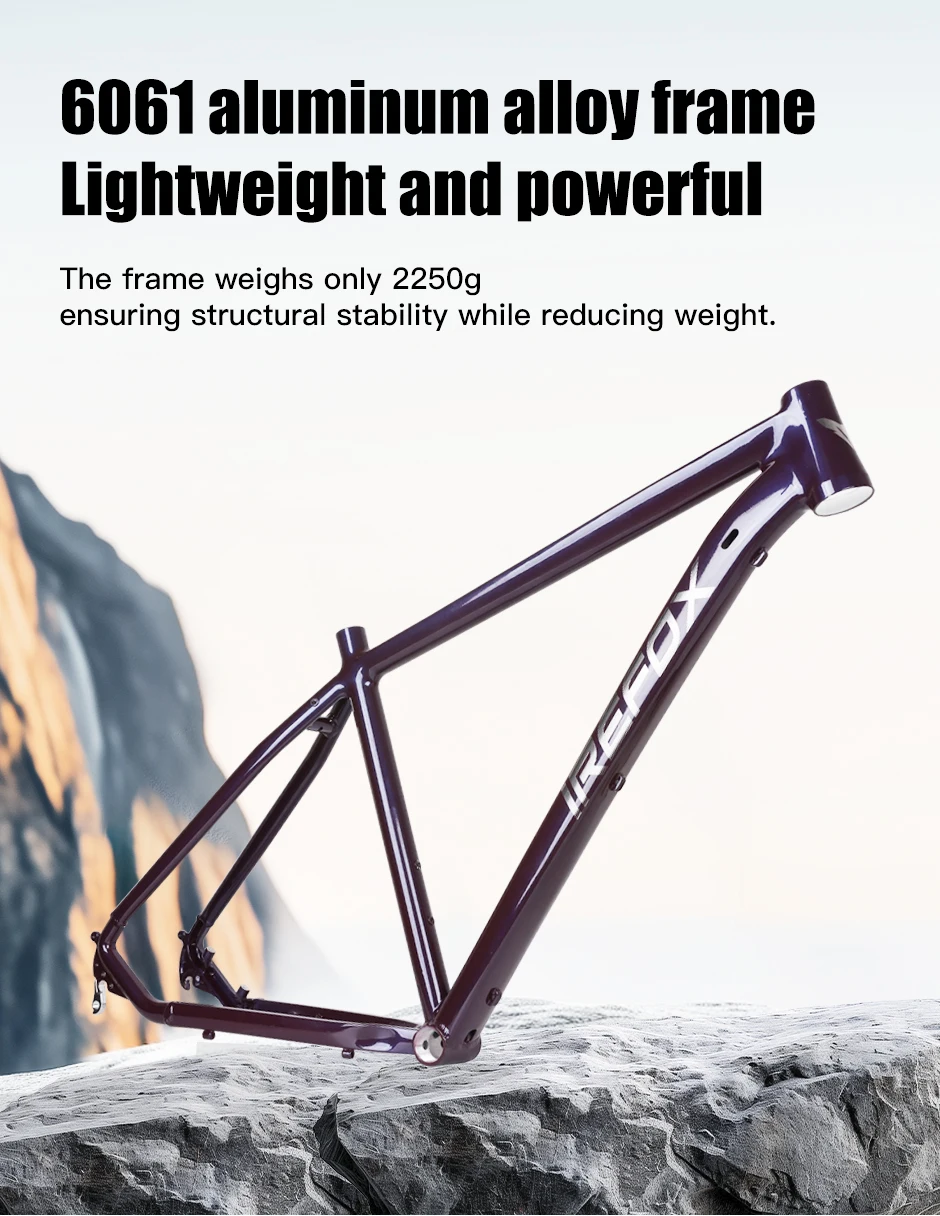

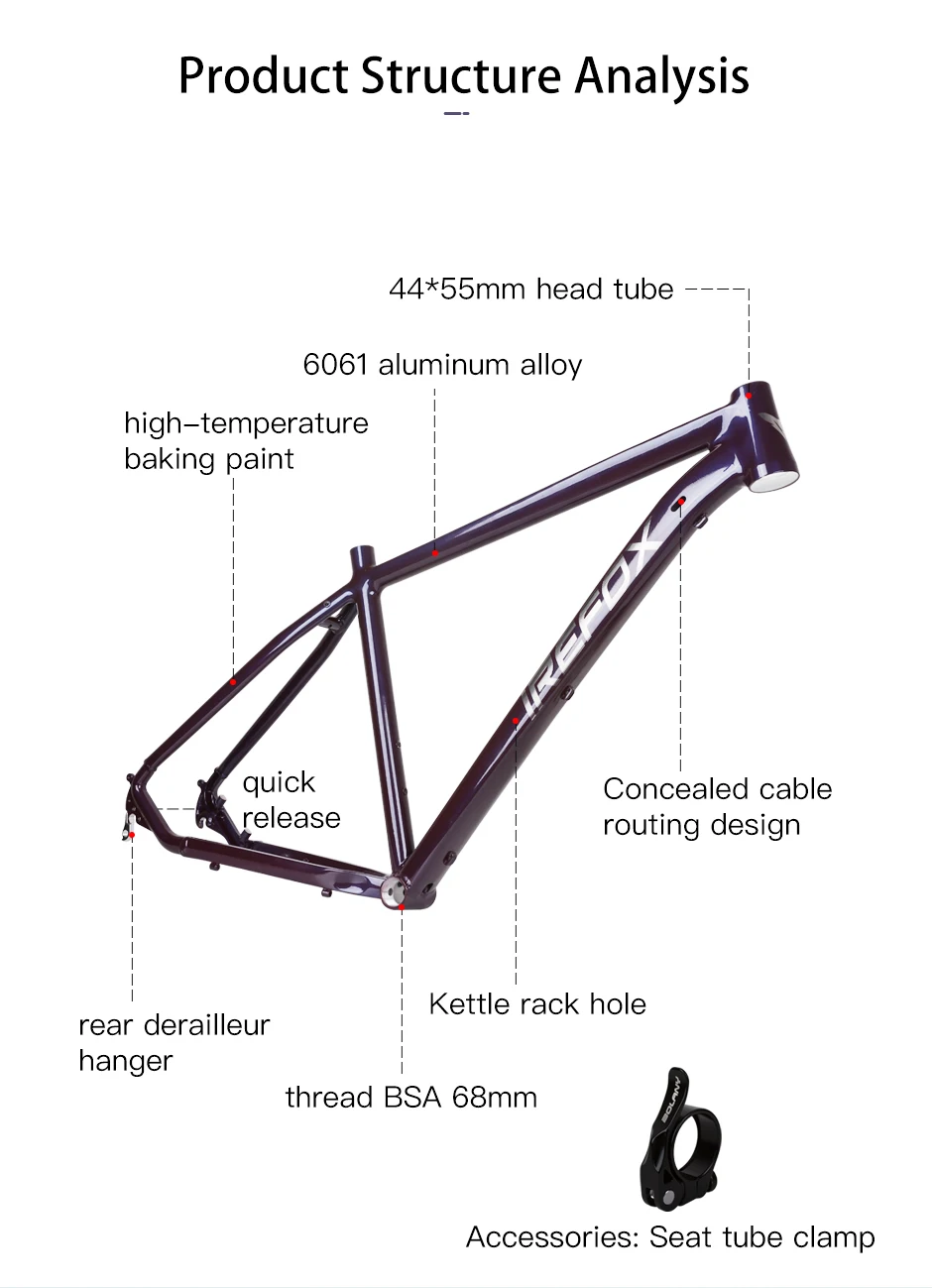

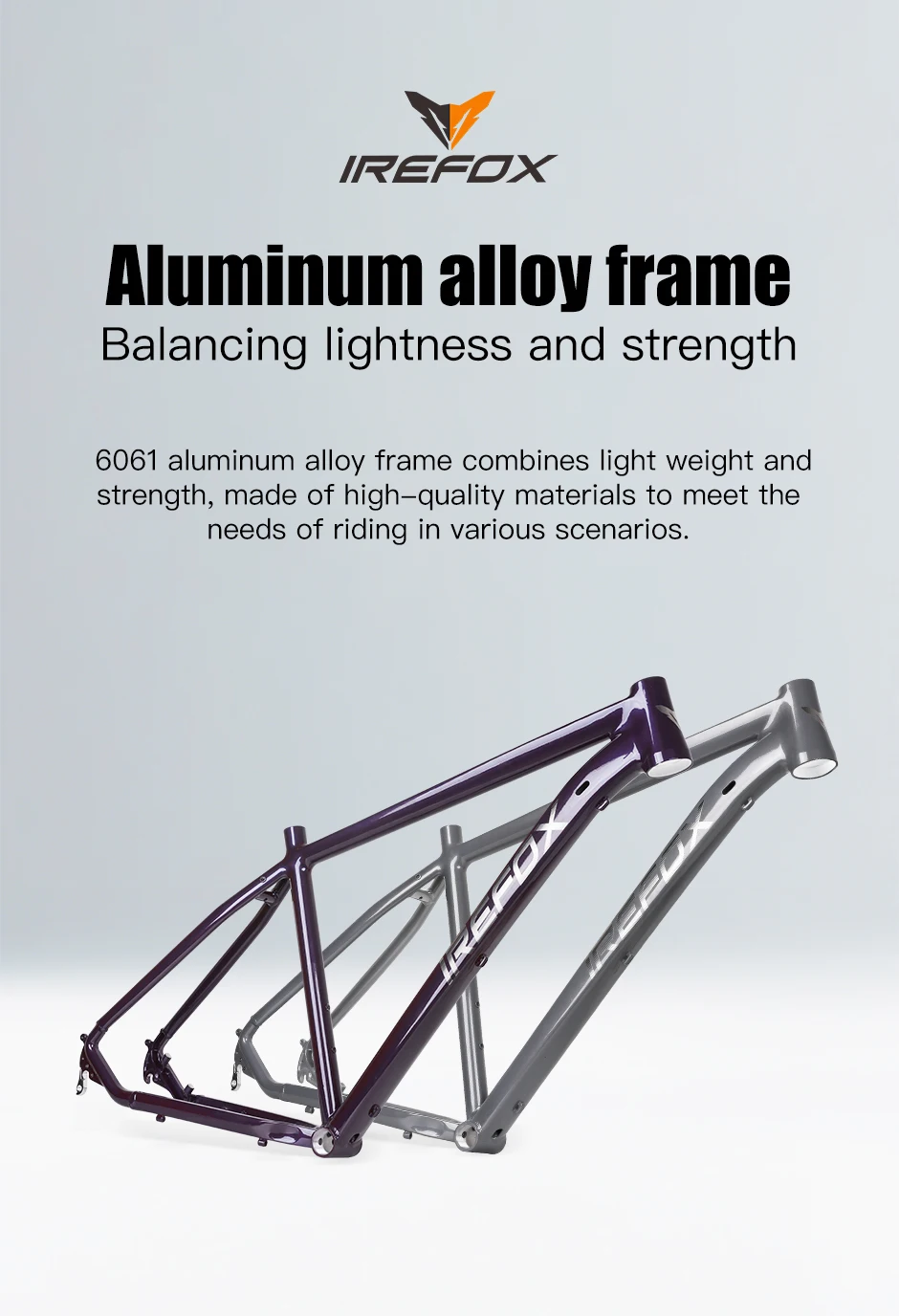

Frame Material: 6061 Aluminum Alloy

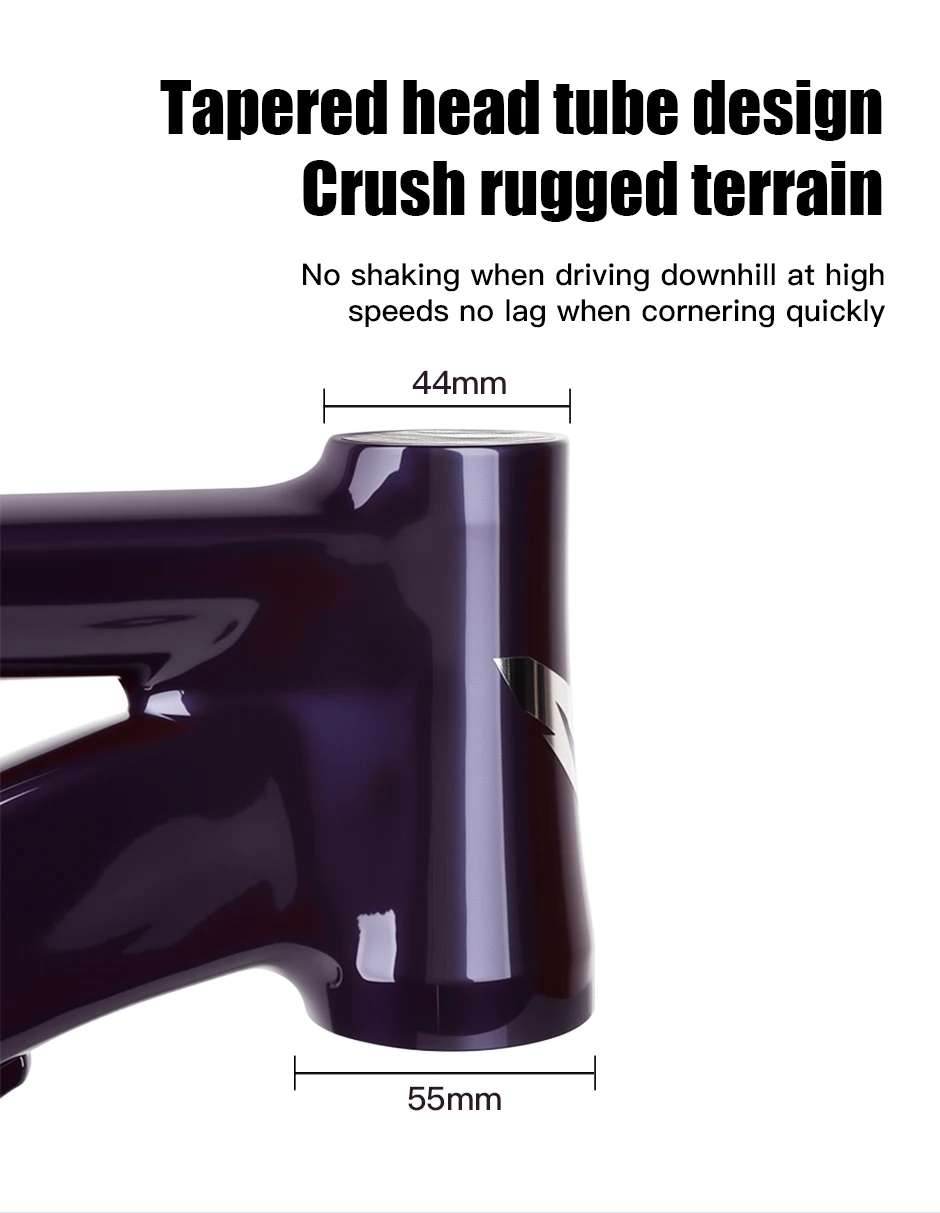

Head Tube Diameter: 44 * 55mm
Seat Tube Length: M 17": 432mm / L 19": 483mm

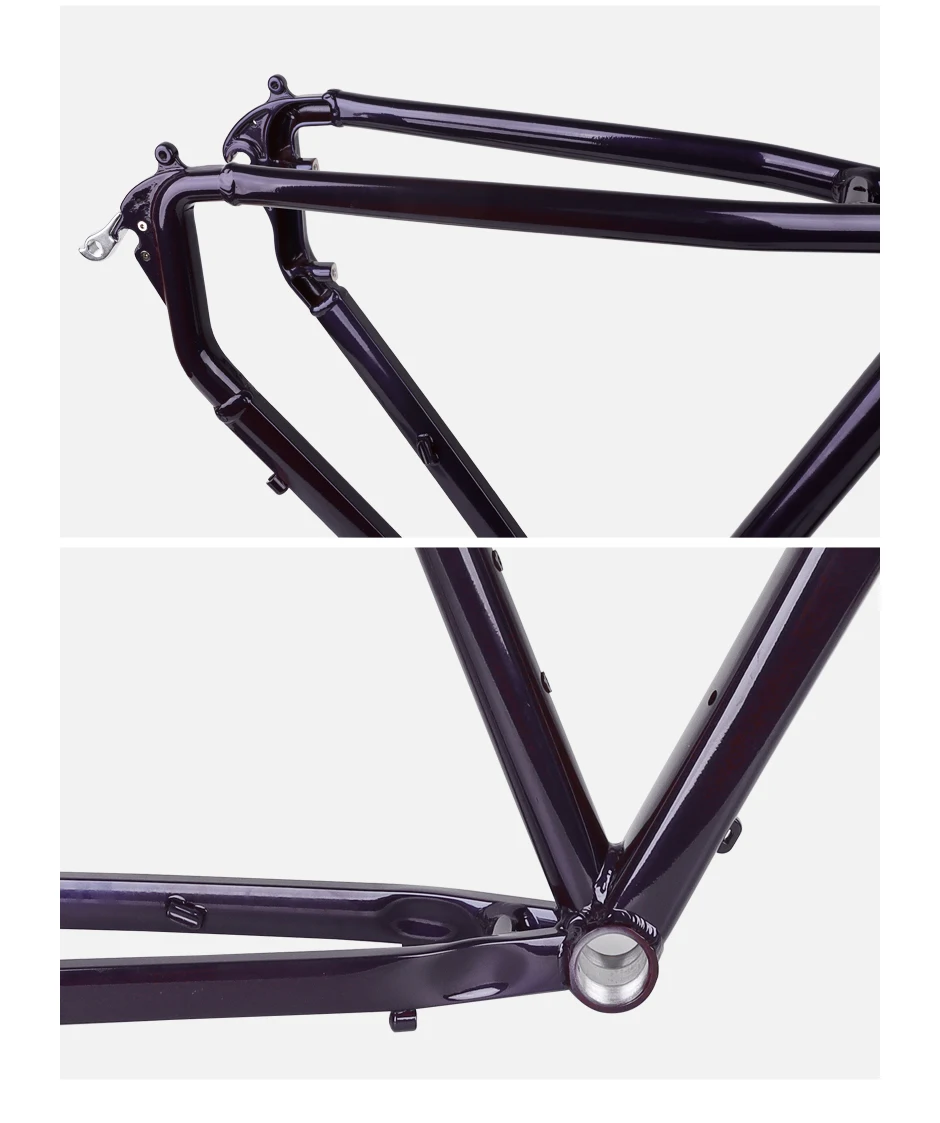

Rear Dropout Specification: 10x135mm Quick Release

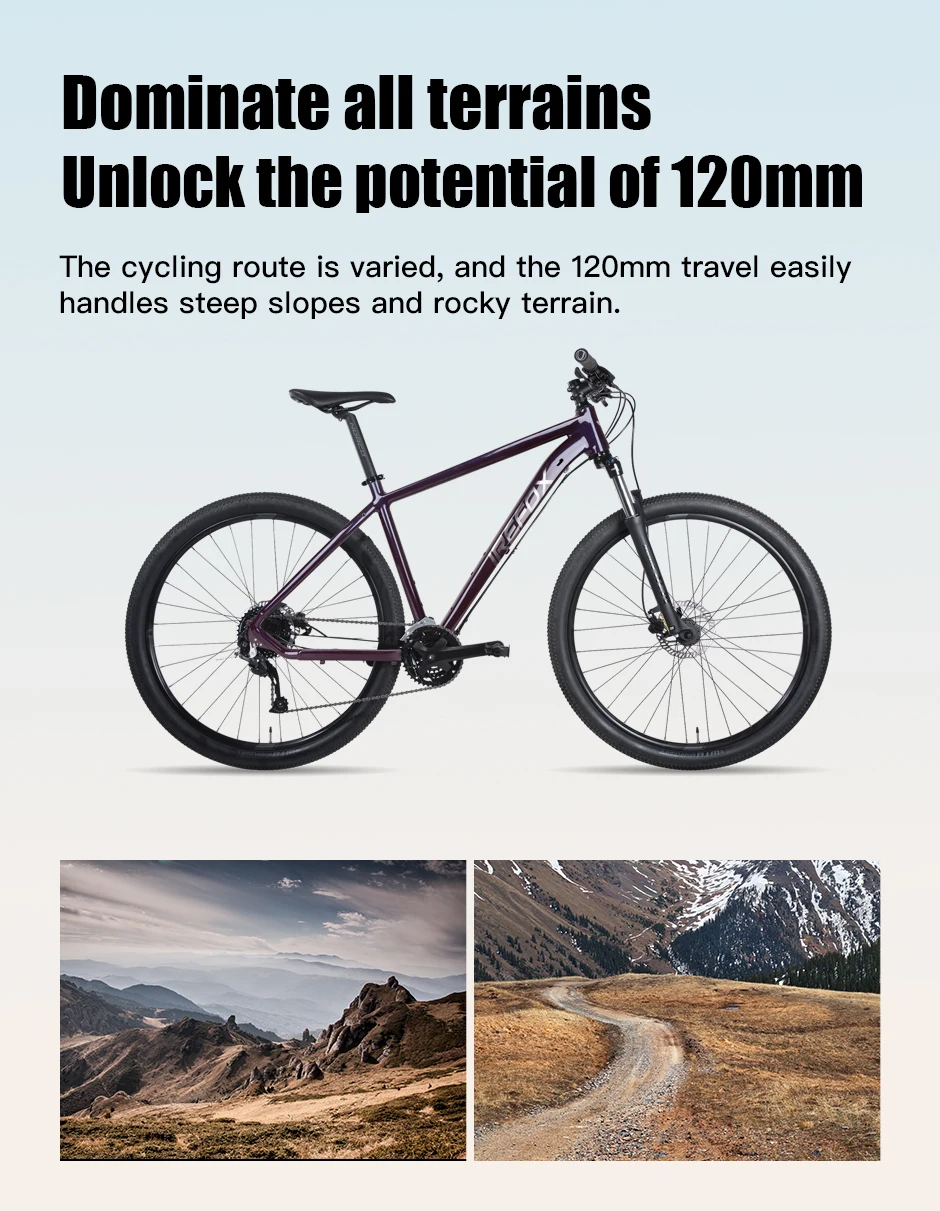

Recommended Fork Travel: 120mm
Recommended Fork Length: 510mm

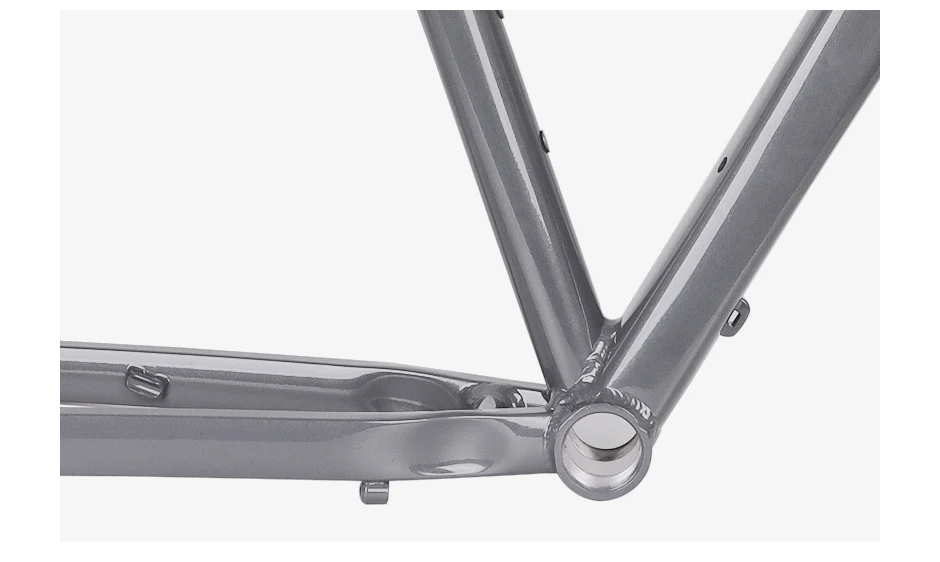

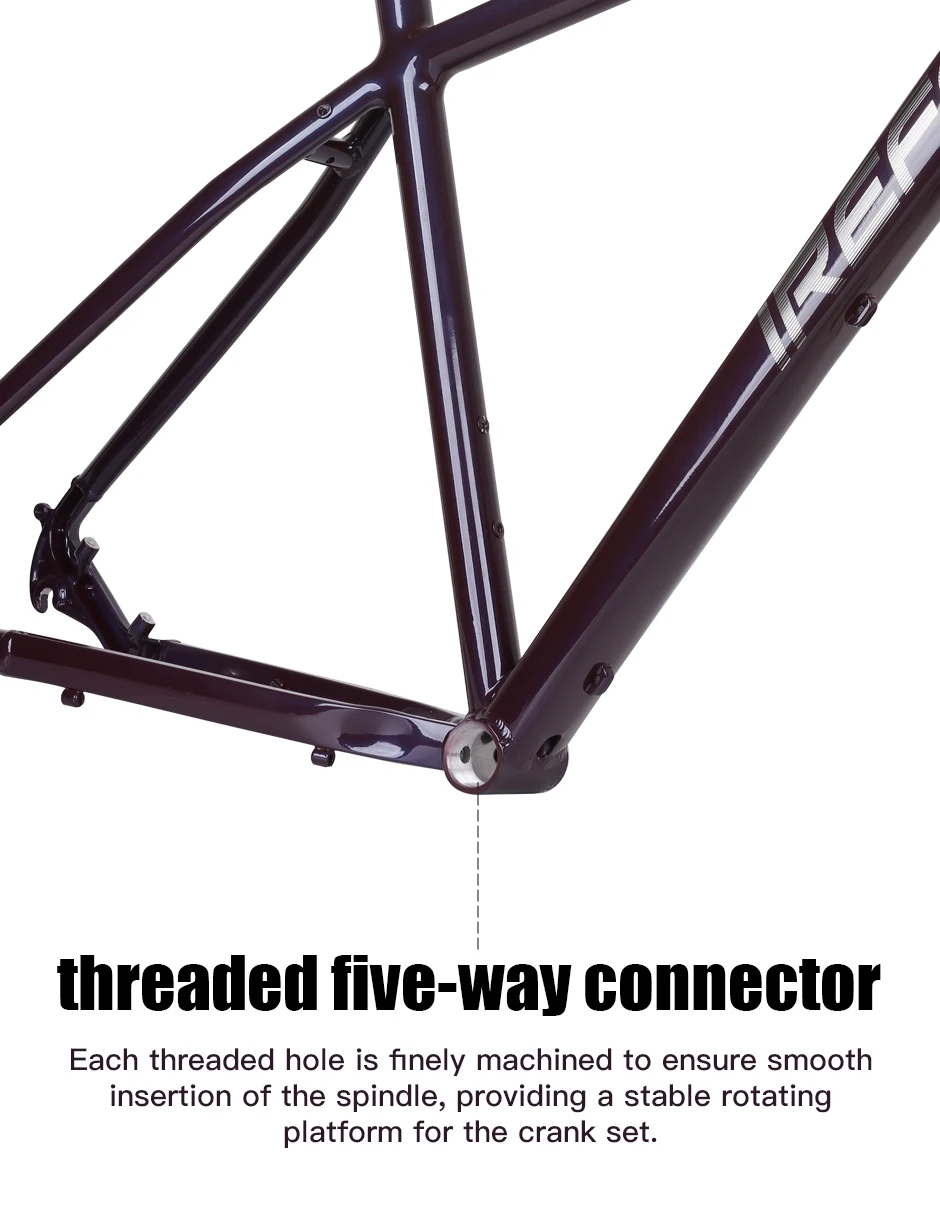

Bottom Bracket Specification: Threaded BSA 68mm

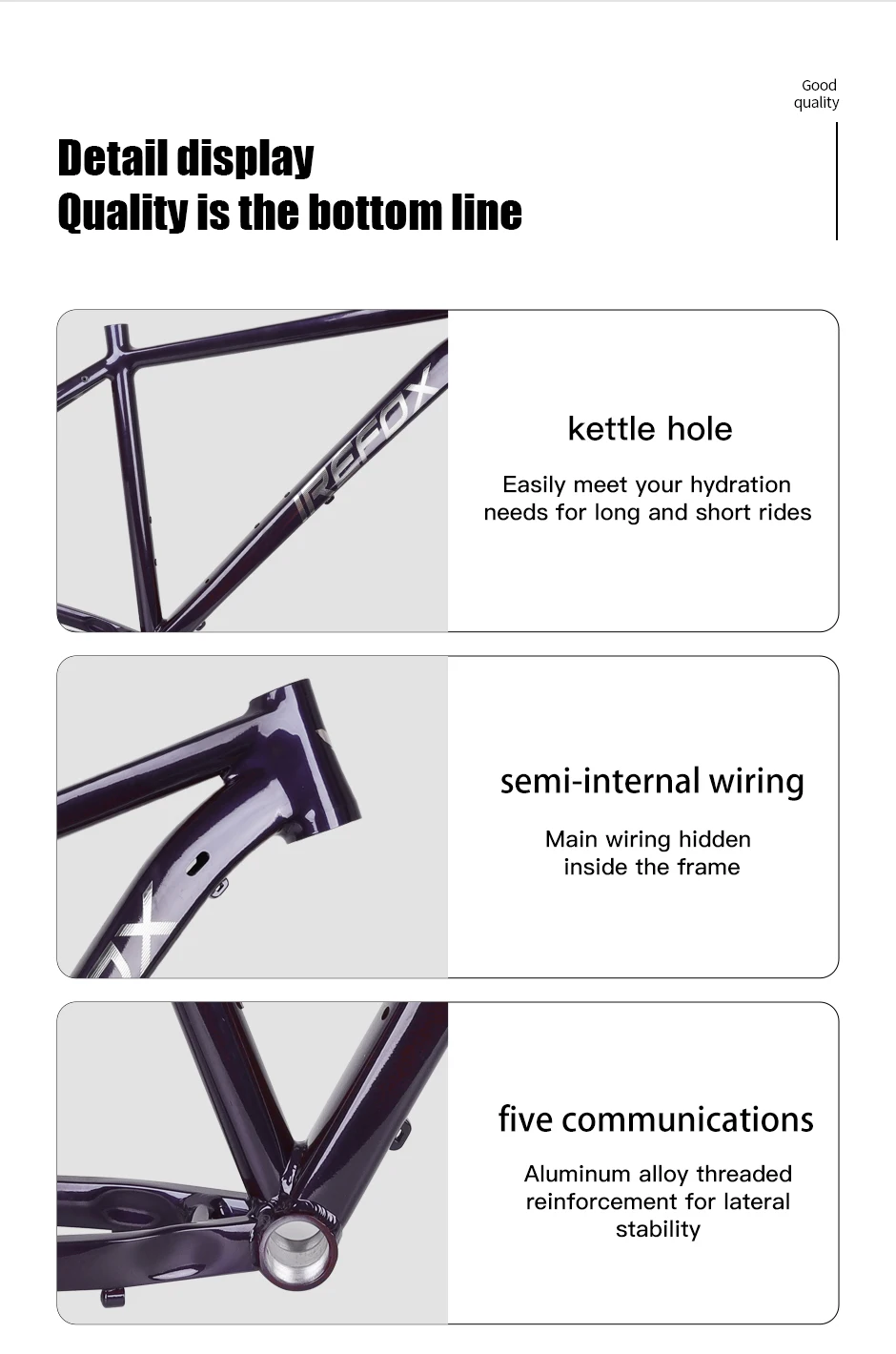

Cable Routing: Semi-Internal
Brake Type: Disc Brake
Frame Weight: 2250g
Seatpost Diameter: 31.6mm

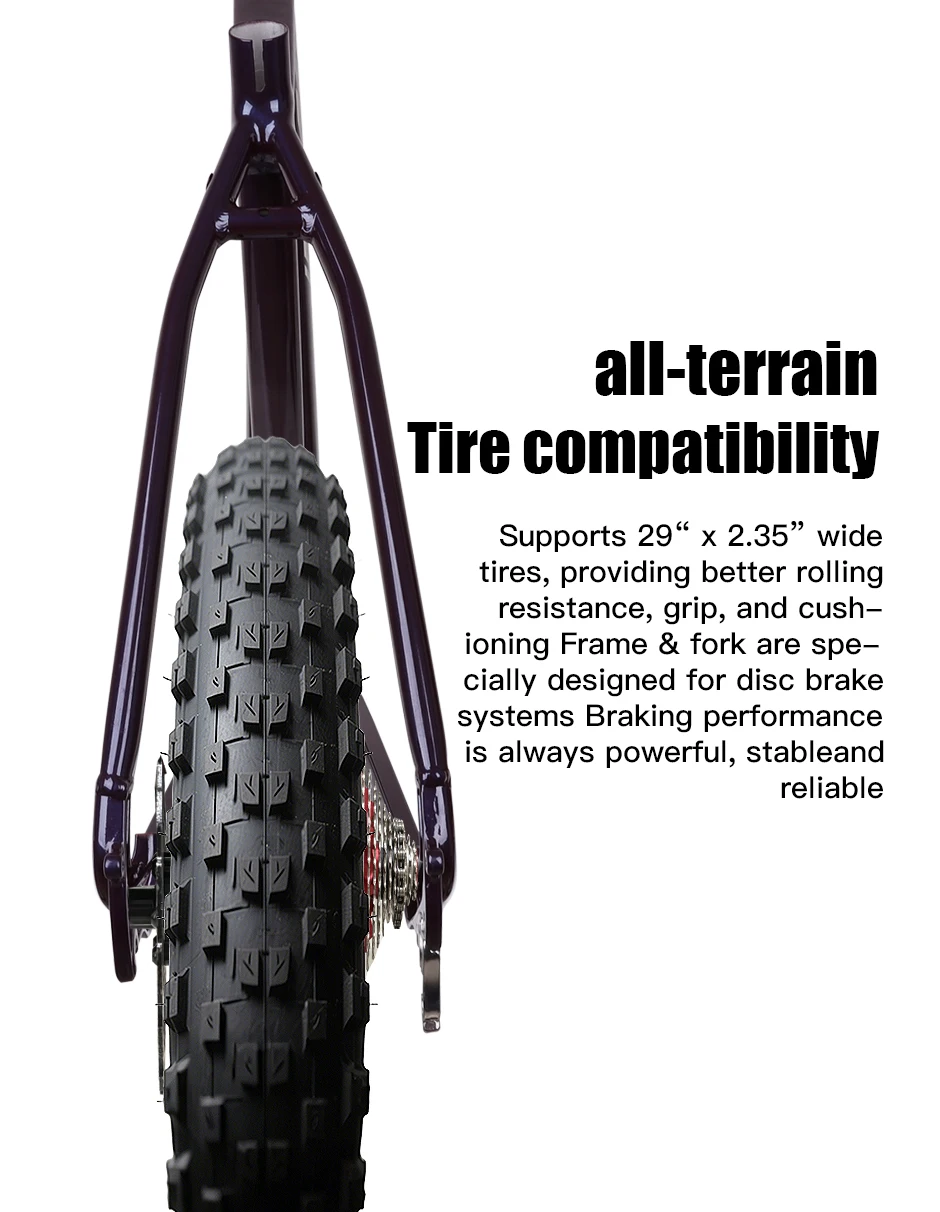

Maximum Tire Width: 29"x2.35"
Accessories Included: IREFOX Frame x1, Rear Derailleur Hanger x1, Seat Clamp x1
Recommended Rider Height:

•
M 17": 165cm - 175cm
•
L 19": 175cm - 190cm
