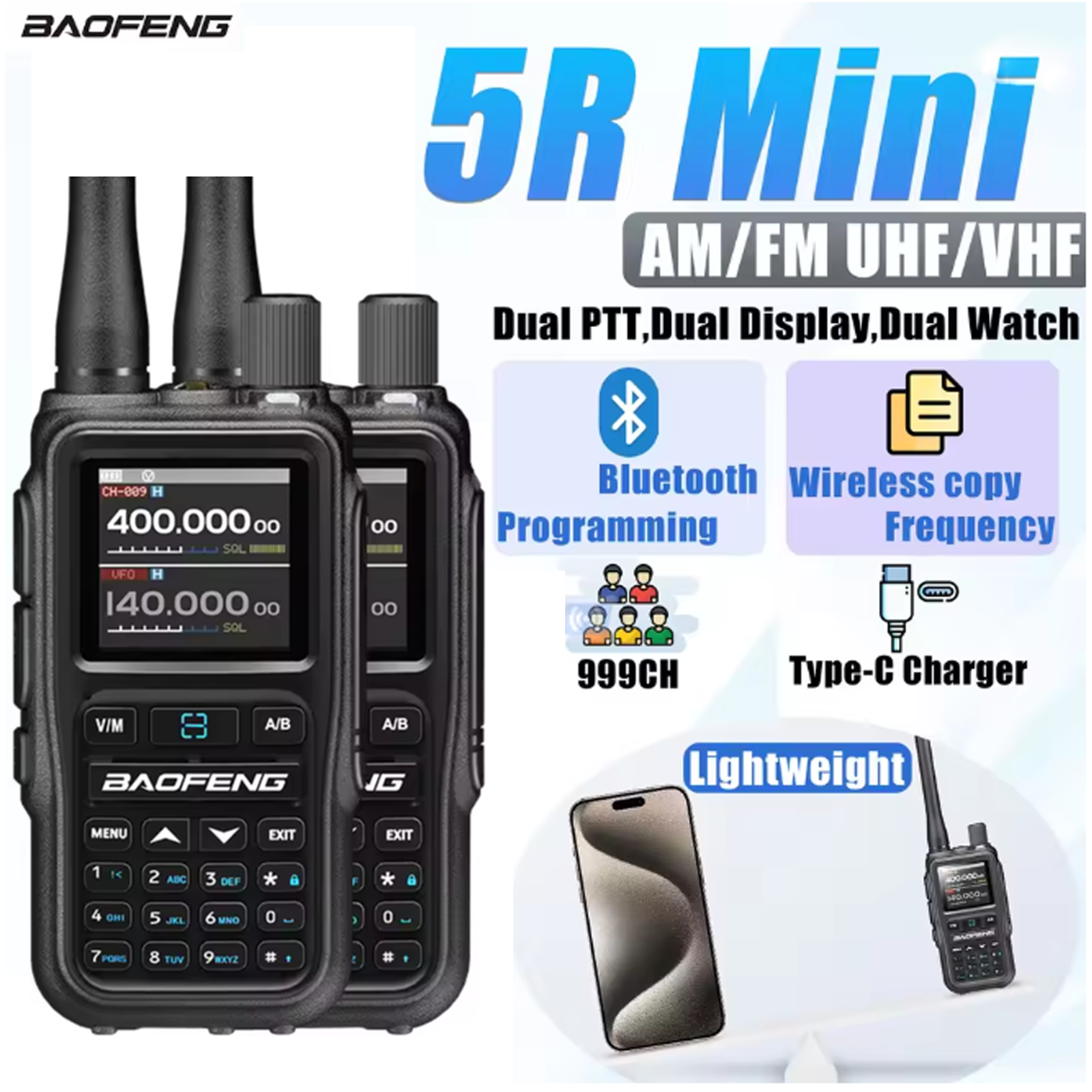

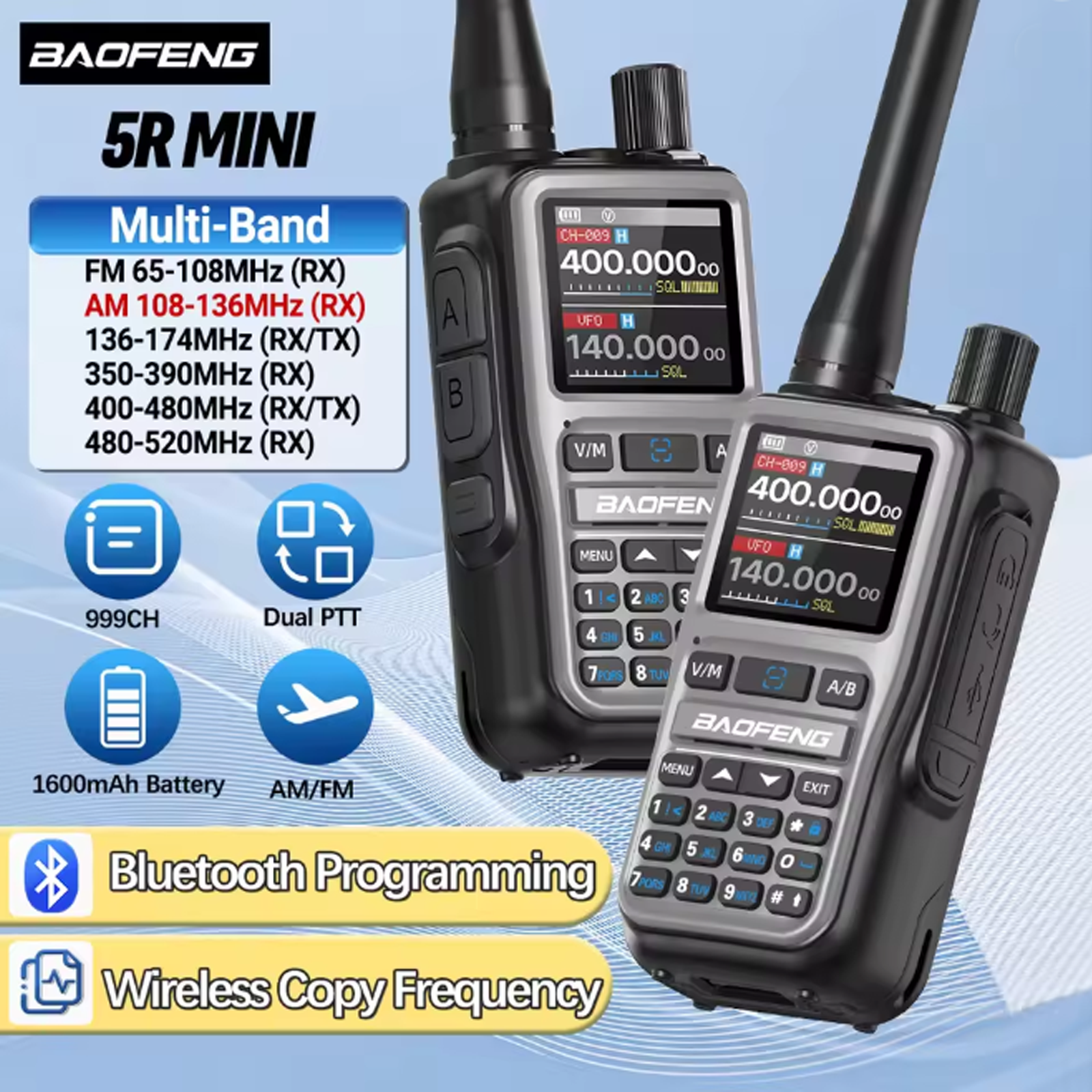

Walkie Talkie Baofeng UV-5R Mini VHF UHF Dual Band TX & RX Multi-band Receive Air Band Vox Amateur Mini Two Way Radio 5RMINI

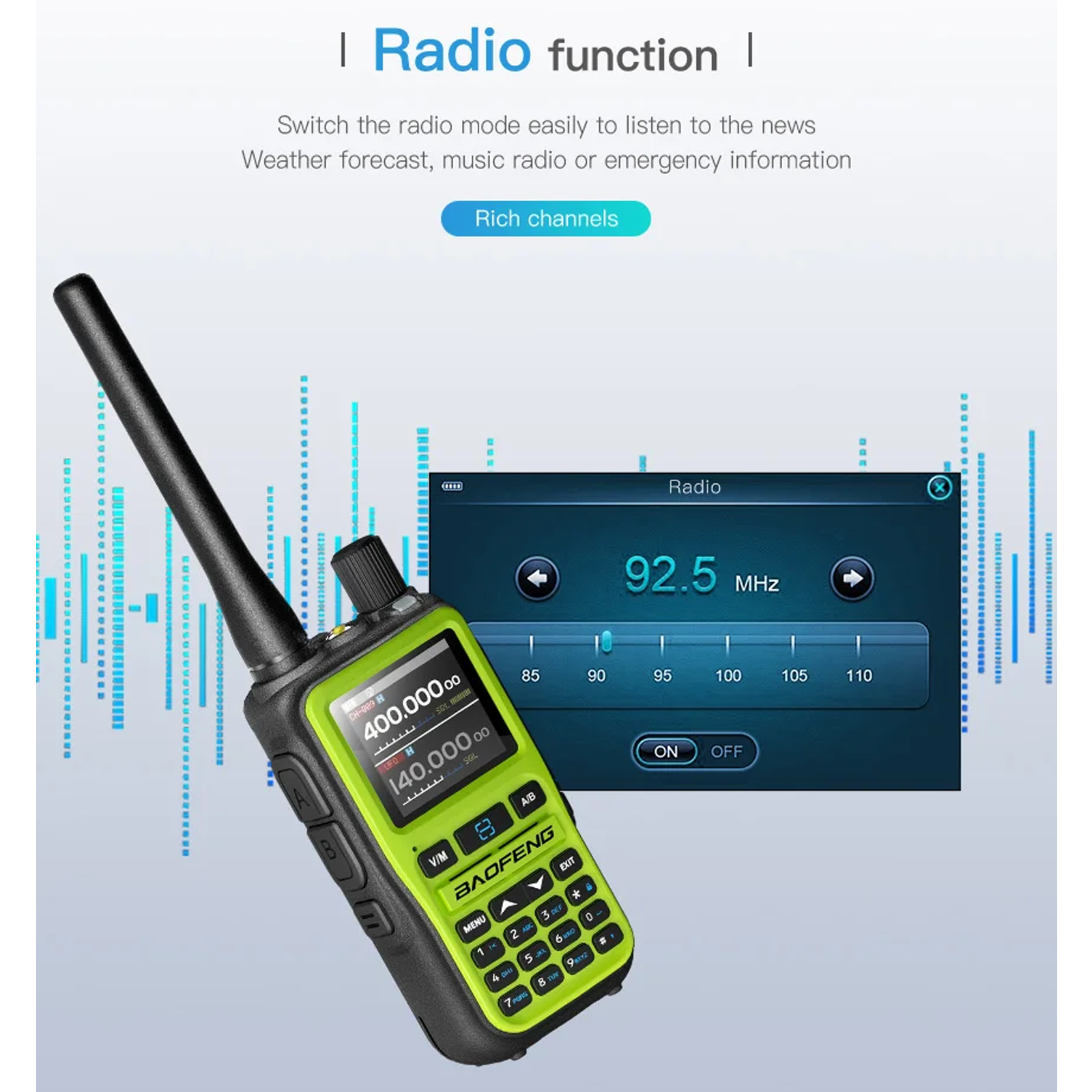

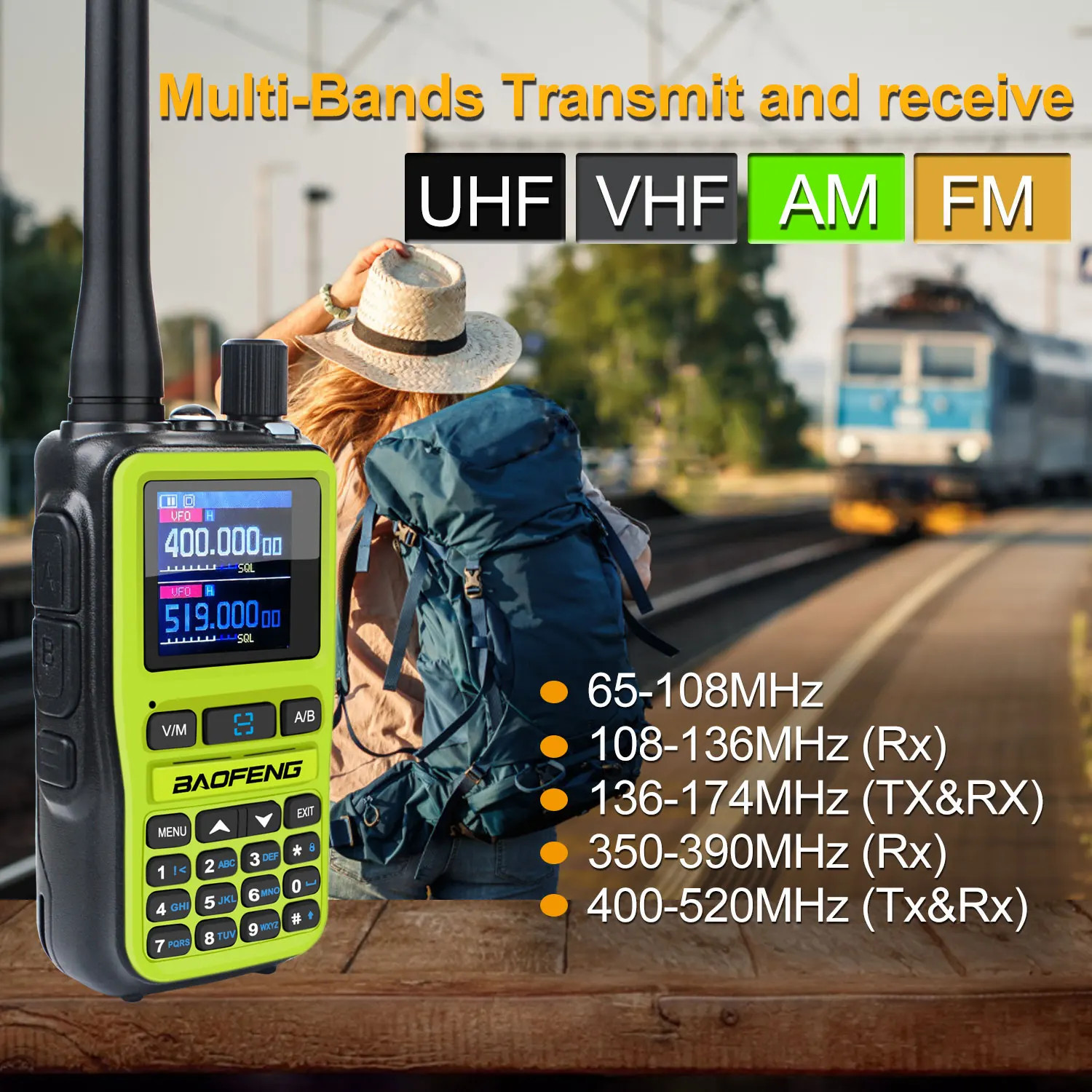

65-108MHz FM commercial Radio Receive only

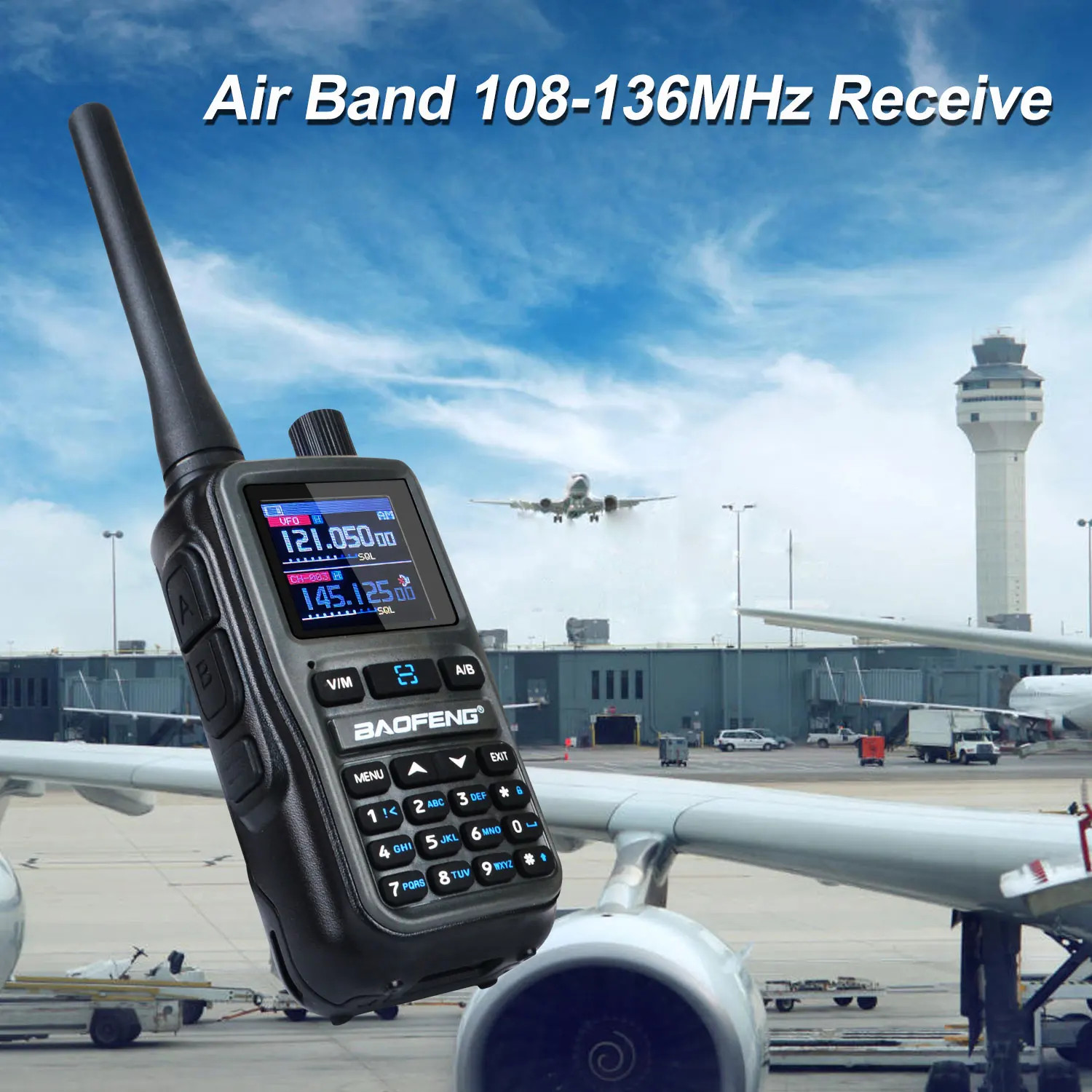

108-135.99750MHz Aviation Band Receive only
VHF:136-174MHZ TX&RX
UHF: 400-520MHz TX&RX

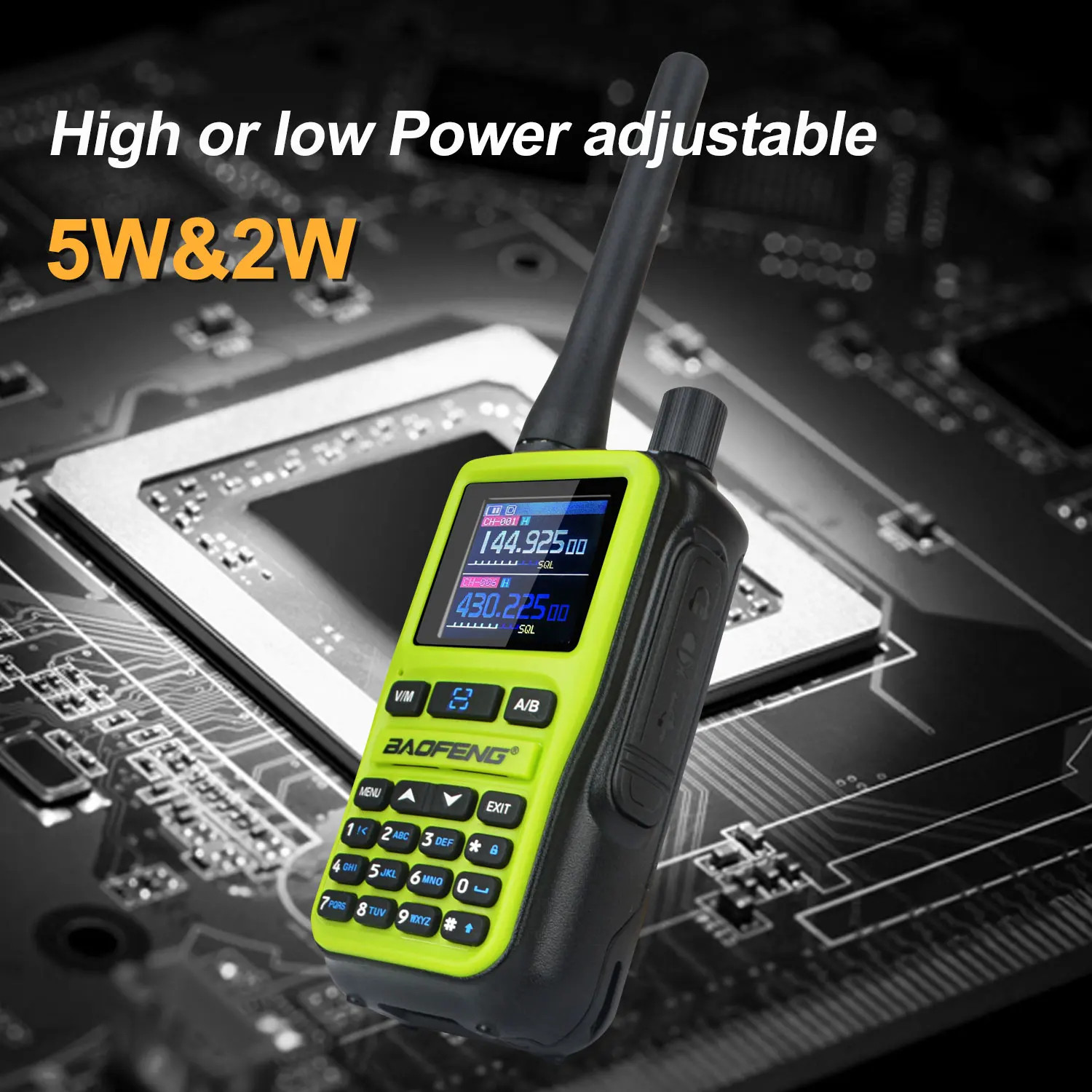

High Power (5W)/Low Power (2W) Select-able 5W/2W
1.44 inch TFT Color Display Screen

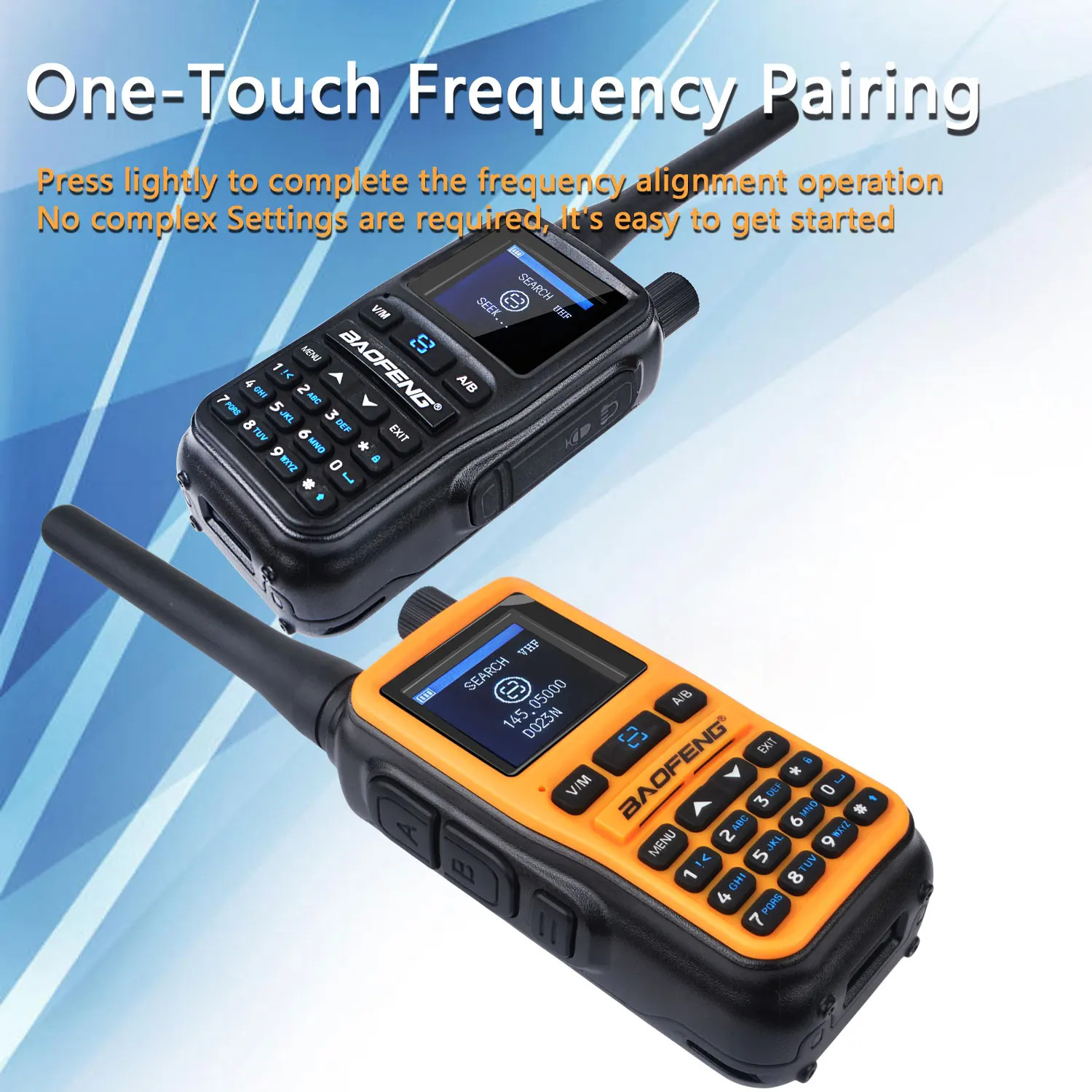

one key fast Channel Copy

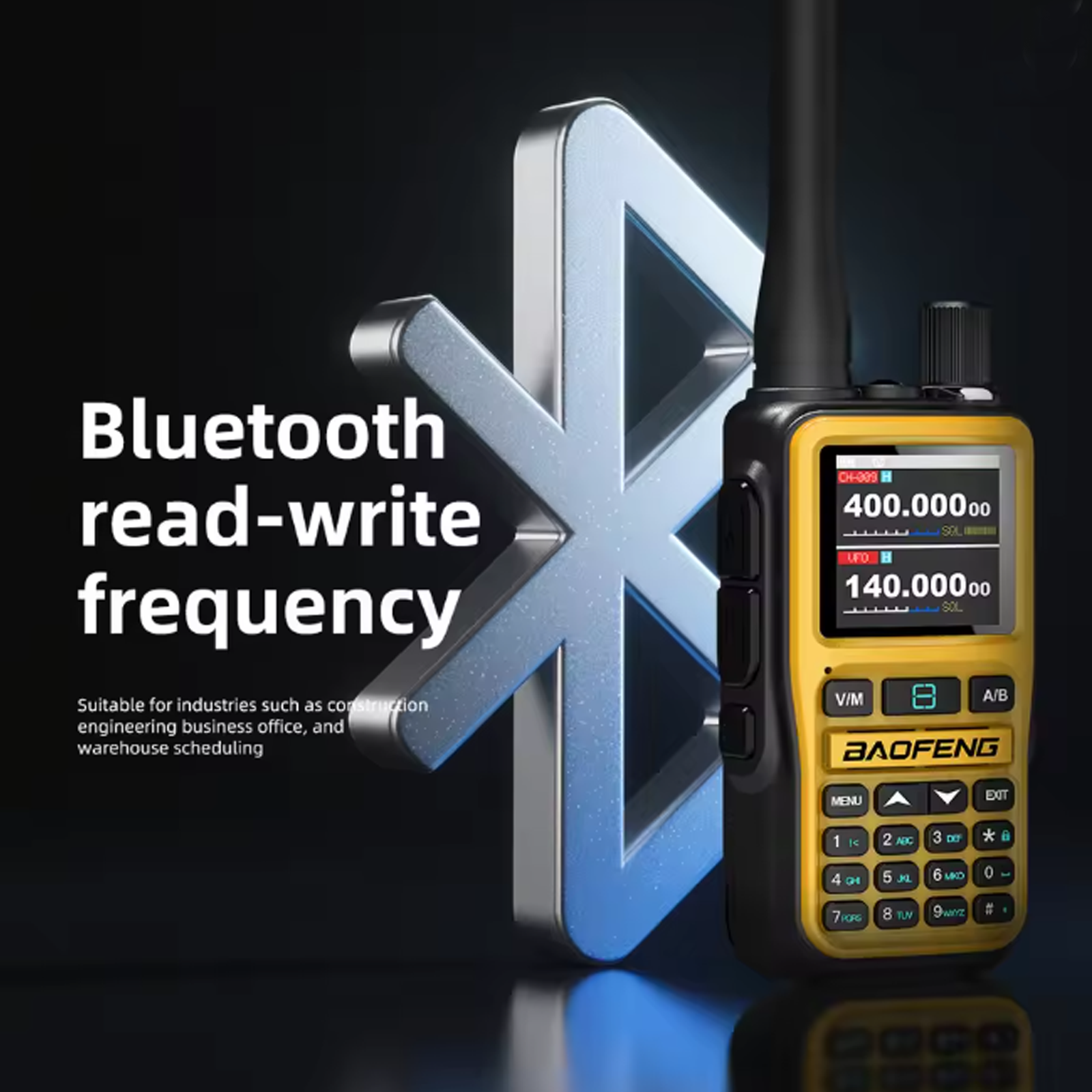

APP Wireless Programming
Mini Compact size

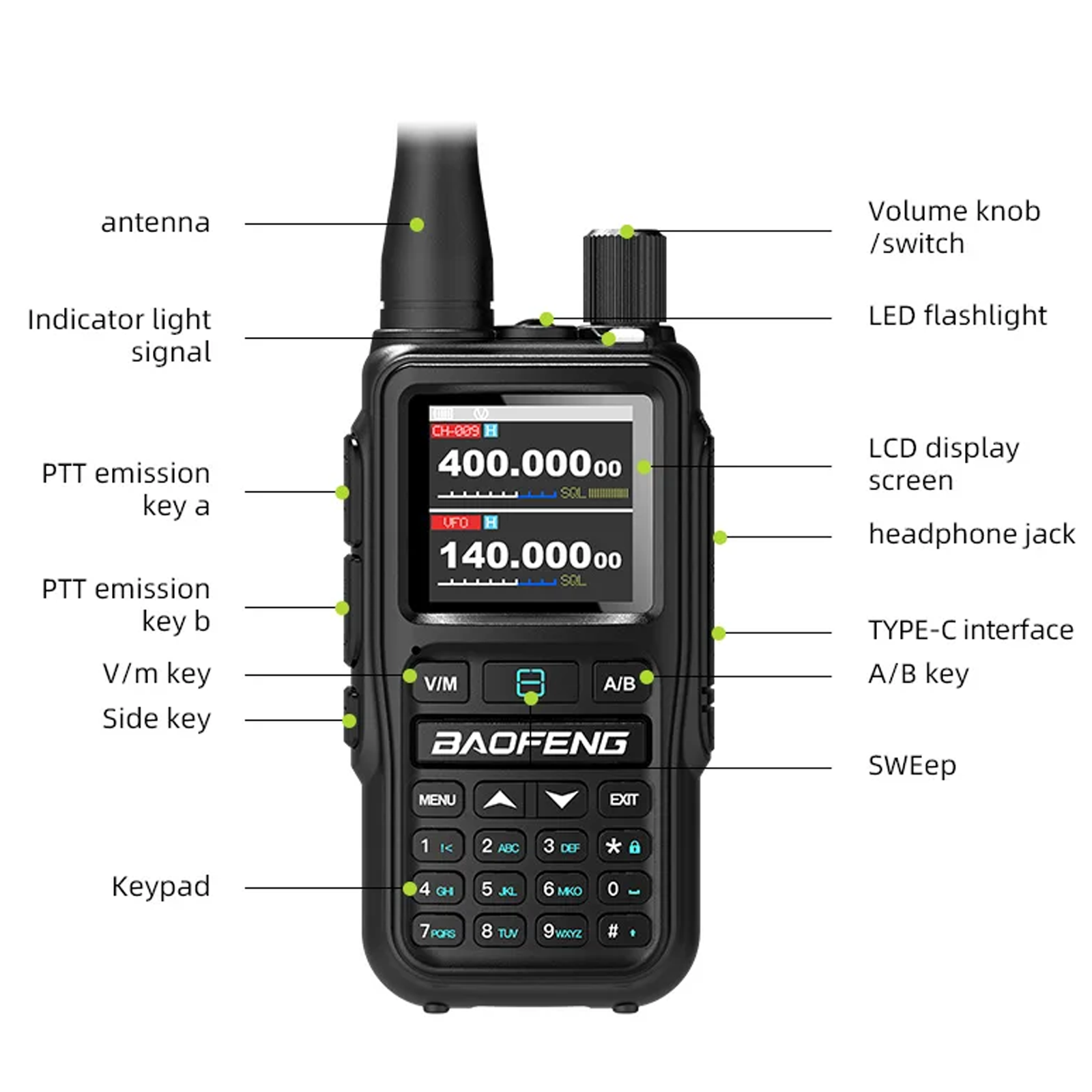

Dual-PTT Switches Design
1000Hz/1450/1750/2100Hz alert
Built-in HI-FI Speaker 16Ω 1W
10 NoAA Weather Forecast Channels
Direct Type-C cable charging port on the battery
2200mah ultra high battery power Capacity for a longer working time duration

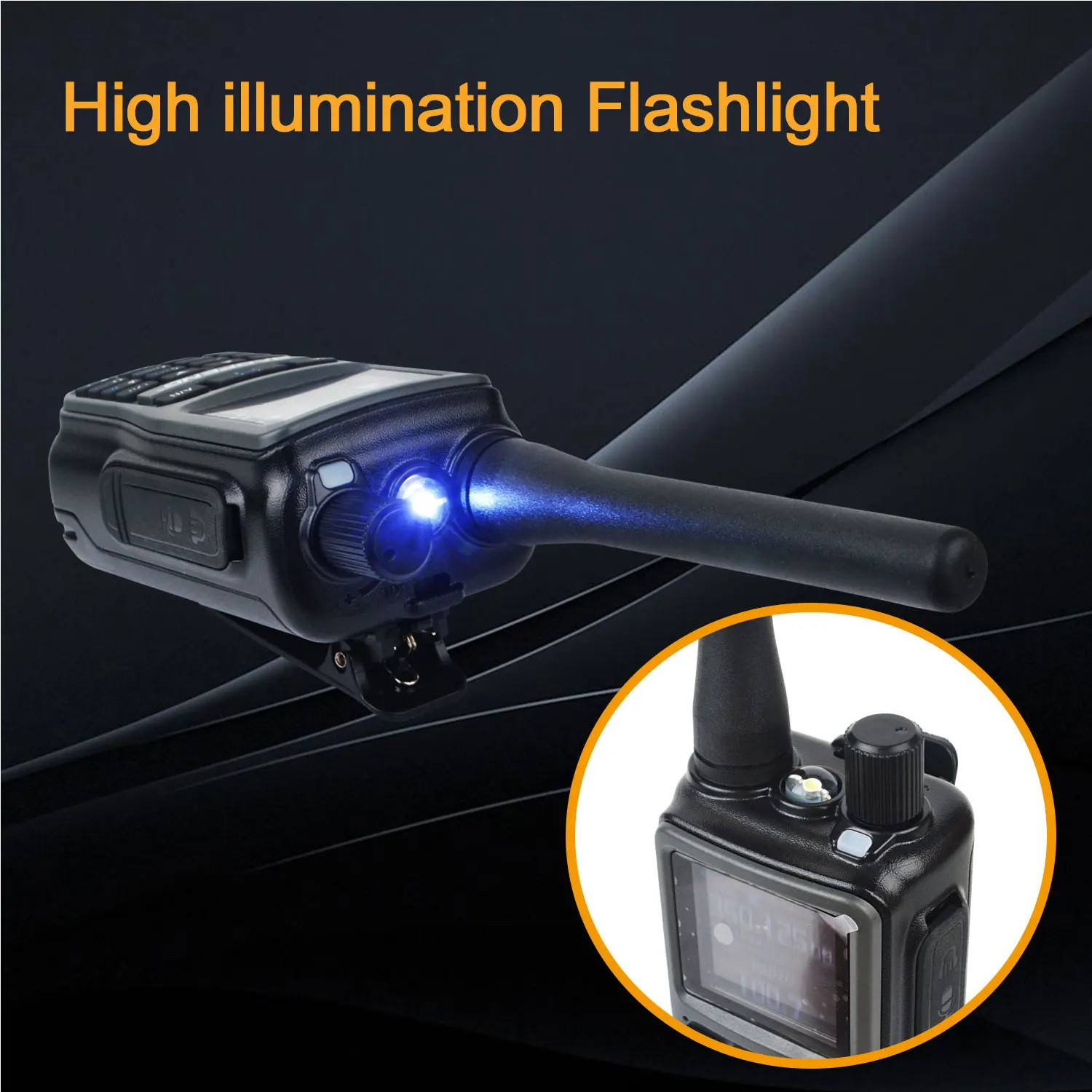

High-illumination Flashlight
Scan
VOX
Roger Beep
Dual Watch
DTMF
PTT-ID PTT
SOS Alarm
Manual Programming
Technical Specifications:
|
General |
|
|
Channel Capacity |
999 |
|
Channel Spacing |
25KHz (Wide Band),12.5KHz(Narrow Band) |
|
Input Voltage |
DC7.4V(Rechargeable Lithium Battery) |
|
Frequency Stability |
±2.5ppm |
|
Antenna Impedance |
50Ω |
|
Radio Dimensions |
52(W)*107(H)*37(D)mm |
|
Radio Weight |
200g (including antenna and battery) |
|
Transmitter |
|
|
Transmit Current Drain |
≤1.6A |
|
Modulation |
16K0 F3E/11K0 F3E |
|
Max Frequency Deviation |
≤5KHz/≤2.5KHz |
|
FM Hum & Noise |
≥-45dB/≥-40dB |
|
Receiver |
|
|
Sensitivity |
≤0.25Uv (12dB SINAD) |
|
Rated Audio Power Output |
1W 10% |
|
FM Hum& Noise |
≥45dB |
Package :
2× UV-5R mini Radio Body
2× 2200mAh Type-C Rechargeable Battery BC-5M
2× FM/136-174/400/520MHz SMA-Female Antenna
2× Belt Clip
2× USB-C Charging Cable
2× Lanyard
1× English Instruction Manual
