[ Smart UV Checker 2.0 / Google App. Installation / Android App.
/ UVA UVB UVC UV Index Blue Light Intensity Measurement UV Meter ]
- Model : GUVX-SXXSUC2.0-LA10 ( UV Sensor Probe)
UVB (220~320nm / Peak 306nm-Lamp) : GUVB-S31SUC2.0-LA10
UVC (220~280nm / Peak 254nm-Lamp) : GUVC-S10SUC2.0-LA10
UVC-LED (230~320nm / Peak 275nm-LED) : GUVL-S10SUC2.0-LA10
Blue Light (345~450nm / Peak 385/405nm-LED) : GVBL-S12SUC2.0-LA10
UV Index(240~320nm / Solar simulator) : GUVI-S11SUC2.0-LA10
- Description
: Portable UV Intensity Measurement
- Function & Display
: Absolute Power (㎽/㎠), Dose (J/㎠), Max Power (㎽/㎠),Min Power(㎽/㎠),
Avg Power(㎽/㎠),UV Safe
- Features
- Android App Display
- Detachable LA10 Sensor Probe (Micro B 5pin OTG)
- Absolute Power, Min, Max, Avg Power displayed
- UV Dose, Dose Accumulated Time, Dose Graph
- Data Save, Screen Capture
- Applications
- UV Intensity Measurements
- UV Light Transmittance Measurements
- Portable UV Intensity Meter
- UV Safe Tester
- Sensor Probe Dimensions
- Sensor Probe size(mm) : Ø40, H17.5
- Window(mm) : Ø12
- Cable length(m) : 2
- Weight(g) : 90
- Material : AL-60
- Electro-Optical Characteristics (at 25℃)
- Detection Range (10% of Rpeak.)
UVA : 240~370nm (Peak 365nm-Lamp)
UVB : 220~320nm (Peak 306nm-Lamp)
UVC : 220~280nm (Peak 254nm-Lamp)
UVC-LED : 230~320nm (Peak 275nm-LED)
Blue Light : 345~450nm (Peak 385/405nm-LED)
UV Index : 240~320nm (Solar simulator)
- Detection Power Range (Standrad) : Min. 0.0 ~ Max. 100.0 (㎽/㎠)
* Customized available (Maximum of detection power : 1W/㎠)
* UV Index Model ; 0-11 UVI
- Absolute Maximum Ratings
- Storage Temperature : Min. 0 ~ Max. 60(℃)
- Operating Temperature : Min. 0 ~ Max. 50(℃)
- Operating Humidity : Min. 10 ~ Max. 85(% RH)
- Components
- UV Sensor Probe LA10
- Soft Carrying Case

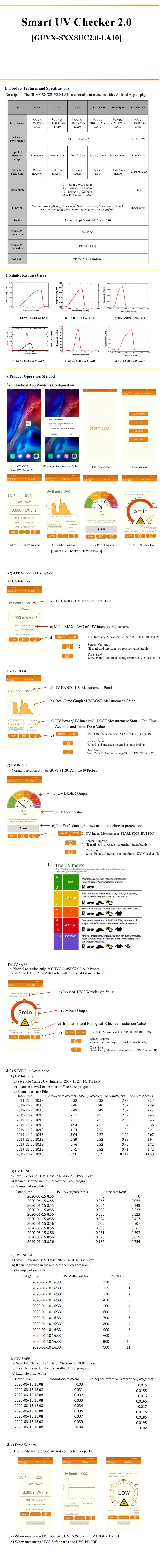

- Product Manual
- Calibration Certificate
* Product Components can be replaced on same specification according to
manufacturing company situation (Notice : Batteries not included)
