Details
Features:
- Based on ESP32-S3R2 and SX-1262, supporting Wi-Fi b/g/n, BLE, and LoRa communication.
- 2MB PSRAM and 16MB external flash memory, ideal for UI and complex systems.

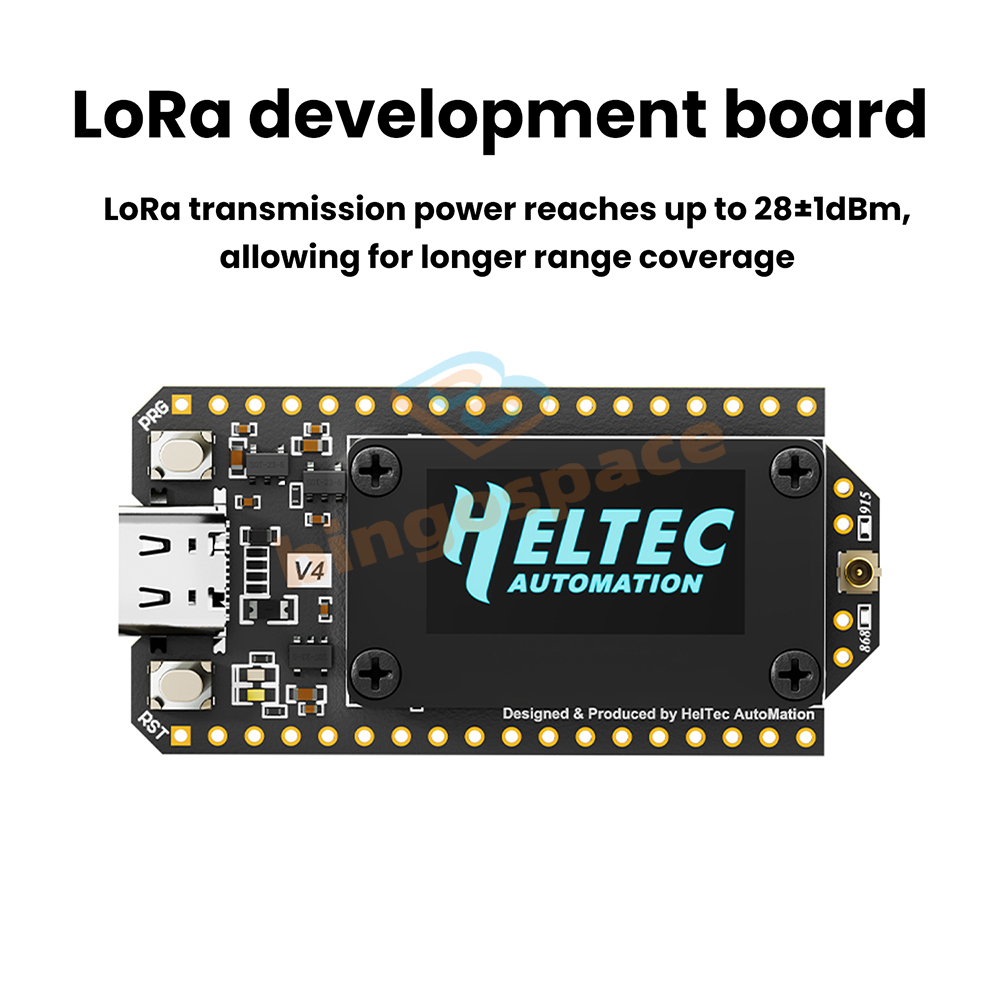

High-power version with LoRa transmit power increased to 28±1dBm.
Form factor and pinout compatible with WiFi LoRa 32 V3.

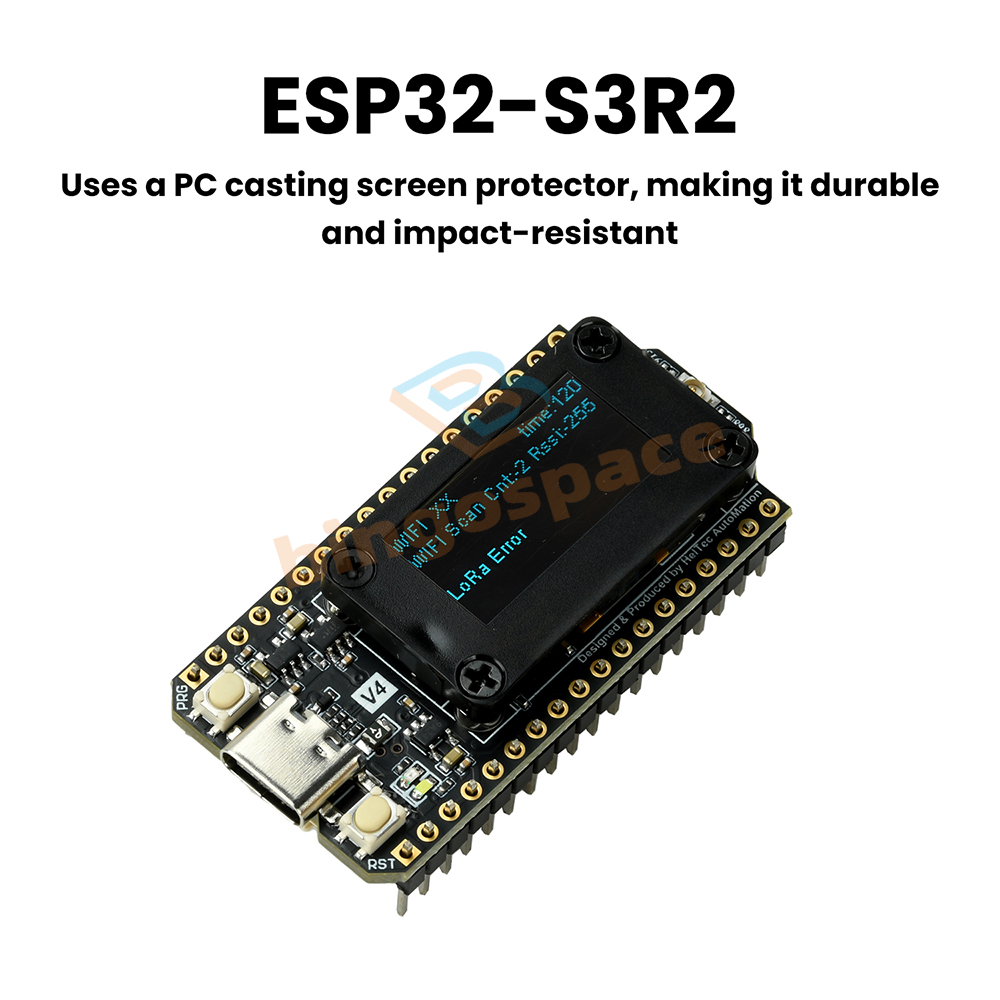

PC case protects the screen, integrated FPC 2.4G antenna.
New SH1.25-2P solar panel interface.
Optimized lithium battery management.
New SH1.25-8Pin GNSS interface.
USB Type-C interface with integrated voltage regulation, ESD protection, short-circuit protection, and RF isolation design; low power consumption <20μA.
- Based on ESP32-S3R2 and SX-1262, supporting Wi-Fi b/g/n, BLE, and LoRa communication.
- 2MB PSRAM and 16MB external flash memory, ideal for UI and complex systems.
High-power version with LoRa transmit power increased to 28±1dBm.
Form factor and pinout compatible with WiFi LoRa 32 V3.
PC case protects the screen, integrated FPC 2.4G antenna.
New SH1.25-2P solar panel interface.
Optimized lithium battery management.
New SH1.25-8Pin GNSS interface.
USB Type-C interface with integrated voltage regulation, ESD protection, short-circuit protection, and RF isolation design; low power consumption <20μA.
Specifications:
Main Controller: ESP32-S3R2
LoRa Chip: SX-1262
Frequency: 433~510 MHz, 863~928 MHz
Maximum transmit power: 21±1 dBm, 28±1 dBm
Maximum receive sensitivity: -137 dBm
Wi-Fi: 802.11 b/g/n, up to 150 Mbps
Bluetooth: Bluetooth LE, Bluetooth 5, Bluetooth Mesh
OLED: SSD1315 (0.96-inch, 128×64 resolution)
Power Supply: 5V@USB/Solar, 3.3-4.2V@Battery
Hardware Resources: 7x ADC1 + 2x ADC2, 7x Touch, 3x UART, 2x I2C, 2x I2S, 4x SPI, etc.
Storage: 384KB ROM; 512KB SRAM; 16KB RTC-SRAM; 16MB Flash; 2MB PSRAM
Interfaces: USB Type-C; SH1.25-2P lithium battery connector; SH1.25-2P solar panel connector; 2x IPEX1.0 ANT (LoRa and 2.4G); 2x 18x2.54 header pins, 2x 2x2.54 header pins
Operating Temperature: -40~85°C (OLED operating temperature: -40~70°C)
Dimensions: 51.7*25.4*10.7mm
Main Controller: ESP32-S3R2
LoRa Chip: SX-1262
Frequency: 433~510 MHz, 863~928 MHz
Maximum transmit power: 21±1 dBm, 28±1 dBm
Maximum receive sensitivity: -137 dBm
Wi-Fi: 802.11 b/g/n, up to 150 Mbps
Bluetooth: Bluetooth LE, Bluetooth 5, Bluetooth Mesh
OLED: SSD1315 (0.96-inch, 128×64 resolution)
Power Supply: 5V@USB/Solar, 3.3-4.2V@Battery
Hardware Resources: 7x ADC1 + 2x ADC2, 7x Touch, 3x UART, 2x I2C, 2x I2S, 4x SPI, etc.
Storage: 384KB ROM; 512KB SRAM; 16KB RTC-SRAM; 16MB Flash; 2MB PSRAM
Interfaces: USB Type-C; SH1.25-2P lithium battery connector; SH1.25-2P solar panel connector; 2x IPEX1.0 ANT (LoRa and 2.4G); 2x 18x2.54 header pins, 2x 2x2.54 header pins
Operating Temperature: -40~85°C (OLED operating temperature: -40~70°C)
Dimensions: 51.7*25.4*10.7mm
Product Introduction:
WiFi LoRa 32 V4 represents a comprehensive upgrade to the classic LoRa development board. Since its launch, this product series has been highly favored by developers and manufacturers. Building upon the robust capabilities of its predecessor, the V4 version delivers comprehensive optimizations in transmission power, power management, expandability, and other hardware designs. It serves diverse IoT applications including smart cities, agricultural monitoring, smart homes, industrial control, security systems, and wireless metering, delivering a more efficient and flexible development experience.
WiFi LoRa 32 V4 represents a comprehensive upgrade to the classic LoRa development board. Since its launch, this product series has been highly favored by developers and manufacturers. Building upon the robust capabilities of its predecessor, the V4 version delivers comprehensive optimizations in transmission power, power management, expandability, and other hardware designs. It serves diverse IoT applications including smart cities, agricultural monitoring, smart homes, industrial control, security systems, and wireless metering, delivering a more efficient and flexible development experience.
Application Scenarios:
Environmental Sensors
Industrial IoT
Asset Tracking
Remote Meter Reading
Smart Agriculture
Wireless Alarms
Innovative Projects & Geek Applications
Environmental Sensors
Industrial IoT
Asset Tracking
Remote Meter Reading
Smart Agriculture
Wireless Alarms
Innovative Projects & Geek Applications

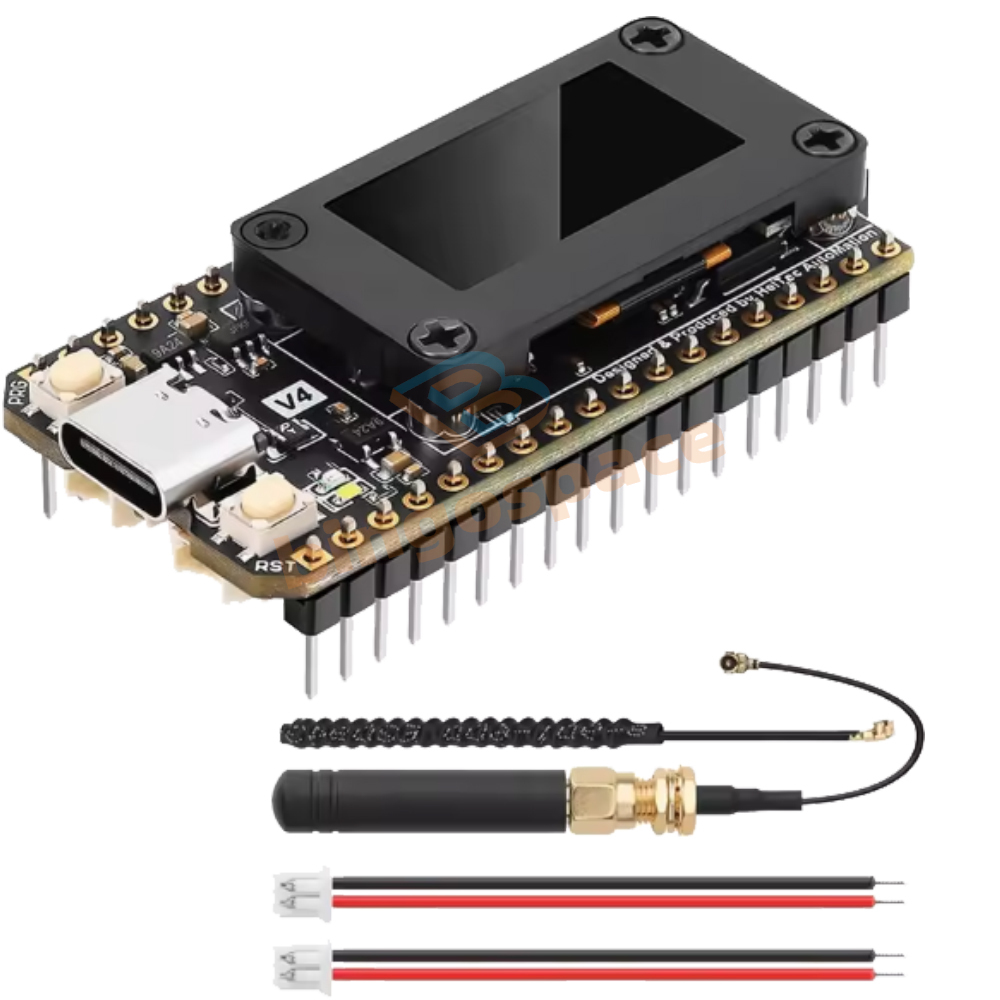

Product List:
1X Development Board
1X Antenna
2X Terminal Cables
4X Pin Header

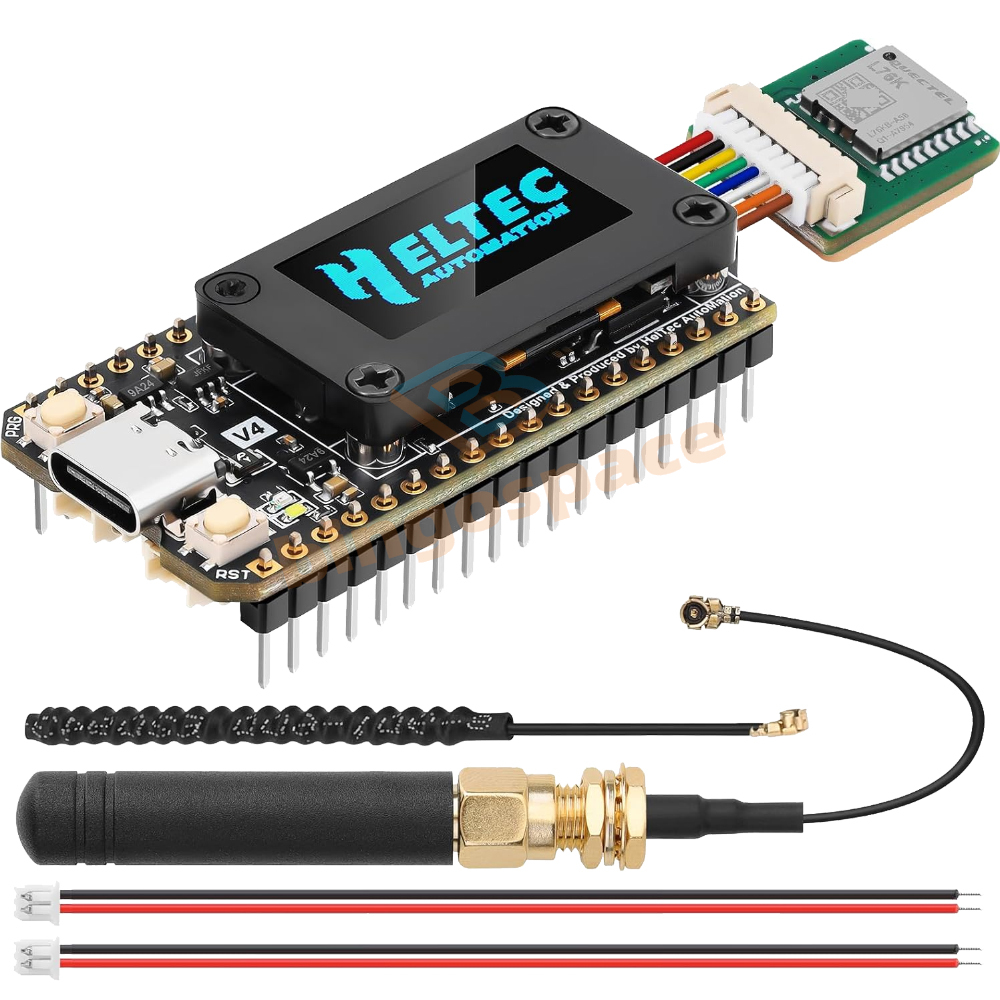

1X GPS Module (Optional)
1X Development Board
1X Antenna
2X Terminal Cables
4X Pin Header
1X GPS Module (Optional)
Copyright©2018 datacaciques
Top & Fast Shipping！
Get The Right At The Right Price！

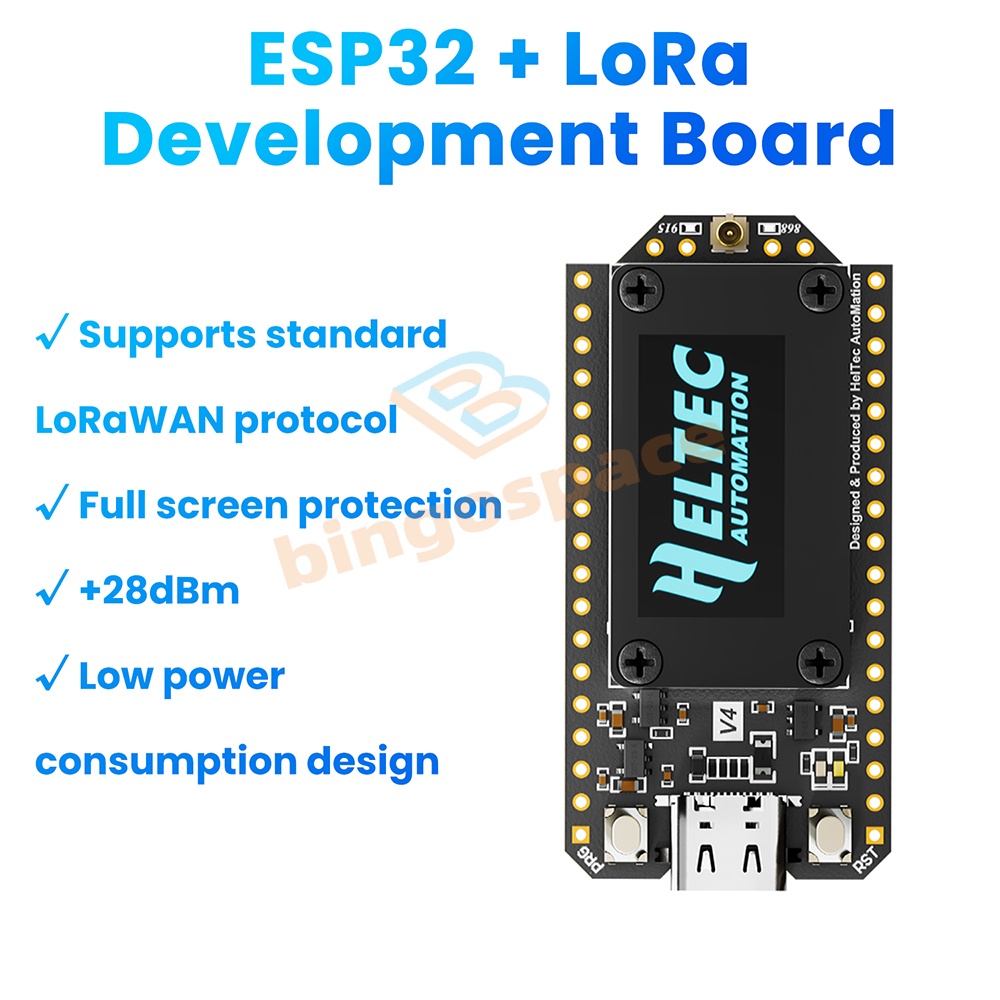

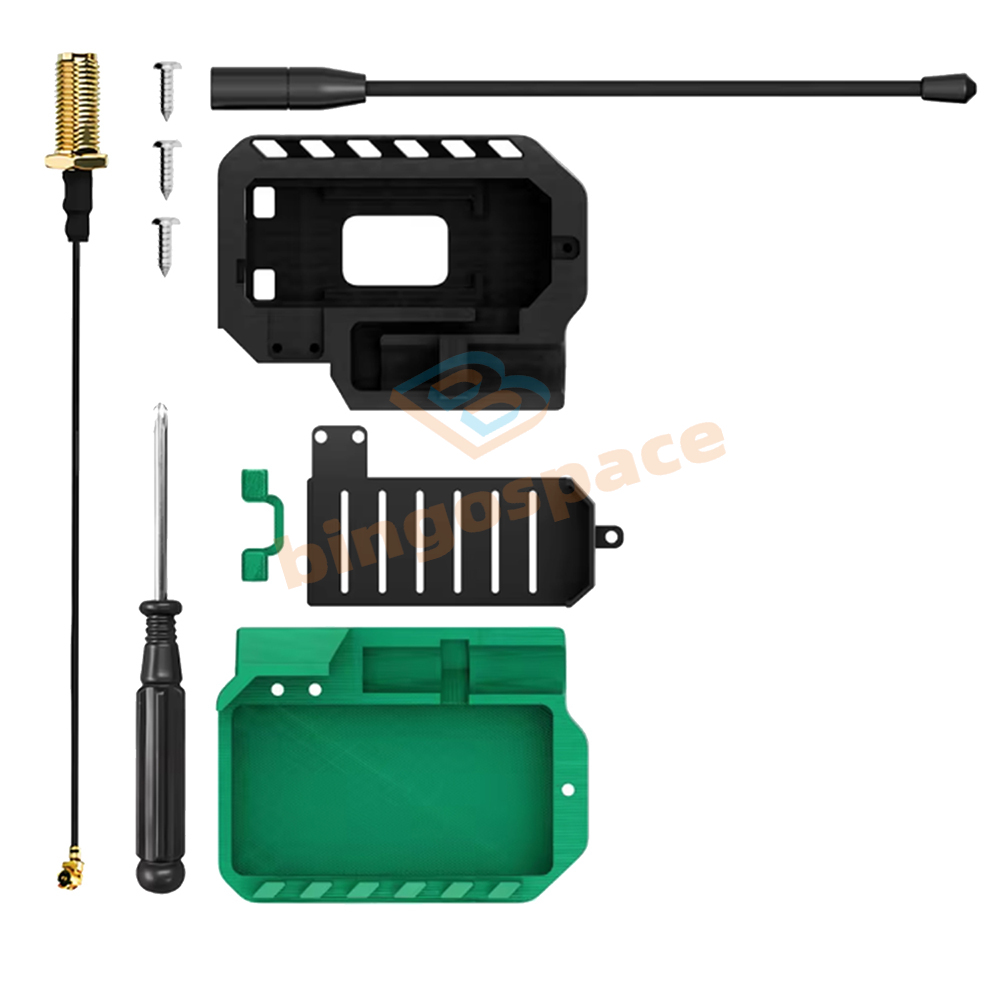

Heltec V4 LoRa ESP32 Bluetooth WiFi OLED Board + 2.4G Antenna + GPS Module +Case
DESCRIPTION
Features:
- Based on ESP32-S3R2 and SX-1262, supporting Wi-Fi b/g/n, BLE, and LoRa communication.
- 2MB PSRAM and 16MB external flash memory, ideal for UI and complex systems.
High-power version with LoRa transmit power increased to 28±1dBm.
Form factor and pinout compatible with WiFi LoRa 32 V3.
PC case protects the screen, integrated FPC 2.4G antenna.
New SH1.25-2P solar panel interface.
Optimized lithium battery management.
New SH1.25-8Pin GNSS interface.
USB Type-C interface with integrated voltage regulation, ESD protection, short-circuit protection, and RF isolation design; low power consumption <20μA.
- Based on ESP32-S3R2 and SX-1262, supporting Wi-Fi b/g/n, BLE, and LoRa communication.
- 2MB PSRAM and 16MB external flash memory, ideal for UI and complex systems.
High-power version with LoRa transmit power increased to 28±1dBm.
Form factor and pinout compatible with WiFi LoRa 32 V3.
PC case protects the screen, integrated FPC 2.4G antenna.
New SH1.25-2P solar panel interface.
Optimized lithium battery management.
New SH1.25-8Pin GNSS interface.
USB Type-C interface with integrated voltage regulation, ESD protection, short-circuit protection, and RF isolation design; low power consumption <20μA.
Specifications:
Main Controller: ESP32-S3R2
LoRa Chip: SX-1262
Frequency: 433~510 MHz, 863~928 MHz
Maximum transmit power: 21±1 dBm, 28±1 dBm
Maximum receive sensitivity: -137 dBm
Wi-Fi: 802.11 b/g/n, up to 150 Mbps
Bluetooth: Bluetooth LE, Bluetooth 5, Bluetooth Mesh
OLED: SSD1315 (0.96-inch, 128×64 resolution)
Power Supply: 5V@USB/Solar, 3.3-4.2V@Battery
Hardware Resources: 7x ADC1 + 2x ADC2, 7x Touch, 3x UART, 2x I2C, 2x I2S, 4x SPI, etc.
Storage: 384KB ROM; 512KB SRAM; 16KB RTC-SRAM; 16MB Flash; 2MB PSRAM
Interfaces: USB Type-C; SH1.25-2P lithium battery connector; SH1.25-2P solar panel connector; 2x IPEX1.0 ANT (LoRa and 2.4G); 2x 18x2.54 header pins, 2x 2x2.54 header pins
Operating Temperature: -40~85°C (OLED operating temperature: -40~70°C)
Dimensions: 51.7*25.4*10.7mm
Main Controller: ESP32-S3R2
LoRa Chip: SX-1262
Frequency: 433~510 MHz, 863~928 MHz
Maximum transmit power: 21±1 dBm, 28±1 dBm
Maximum receive sensitivity: -137 dBm
Wi-Fi: 802.11 b/g/n, up to 150 Mbps
Bluetooth: Bluetooth LE, Bluetooth 5, Bluetooth Mesh
OLED: SSD1315 (0.96-inch, 128×64 resolution)
Power Supply: 5V@USB/Solar, 3.3-4.2V@Battery
Hardware Resources: 7x ADC1 + 2x ADC2, 7x Touch, 3x UART, 2x I2C, 2x I2S, 4x SPI, etc.
Storage: 384KB ROM; 512KB SRAM; 16KB RTC-SRAM; 16MB Flash; 2MB PSRAM
Interfaces: USB Type-C; SH1.25-2P lithium battery connector; SH1.25-2P solar panel connector; 2x IPEX1.0 ANT (LoRa and 2.4G); 2x 18x2.54 header pins, 2x 2x2.54 header pins
Operating Temperature: -40~85°C (OLED operating temperature: -40~70°C)
Dimensions: 51.7*25.4*10.7mm
Product Introduction:
WiFi LoRa 32 V4 represents a comprehensive upgrade to the classic LoRa development board. Since its launch, this product series has been highly favored by developers and manufacturers. Building upon the robust capabilities of its predecessor, the V4 version delivers comprehensive optimizations in transmission power, power management, expandability, and other hardware designs. It serves diverse IoT applications including smart cities, agricultural monitoring, smart homes, industrial control, security systems, and wireless metering, delivering a more efficient and flexible development experience.
WiFi LoRa 32 V4 represents a comprehensive upgrade to the classic LoRa development board. Since its launch, this product series has been highly favored by developers and manufacturers. Building upon the robust capabilities of its predecessor, the V4 version delivers comprehensive optimizations in transmission power, power management, expandability, and other hardware designs. It serves diverse IoT applications including smart cities, agricultural monitoring, smart homes, industrial control, security systems, and wireless metering, delivering a more efficient and flexible development experience.
Application Scenarios:
Environmental Sensors
Industrial IoT
Asset Tracking
Remote Meter Reading
Smart Agriculture
Wireless Alarms
Innovative Projects & Geek Applications
Environmental Sensors
Industrial IoT
Asset Tracking
Remote Meter Reading
Smart Agriculture
Wireless Alarms
Innovative Projects & Geek Applications
Product List:
1X Development Board
1X Antenna
2X Terminal Cables
4X Pin Header
1X GPS Module (Optional)
1X Development Board
1X Antenna
2X Terminal Cables
4X Pin Header
1X GPS Module (Optional)
