Product Description
✅ PRODUCT OVERVIEW

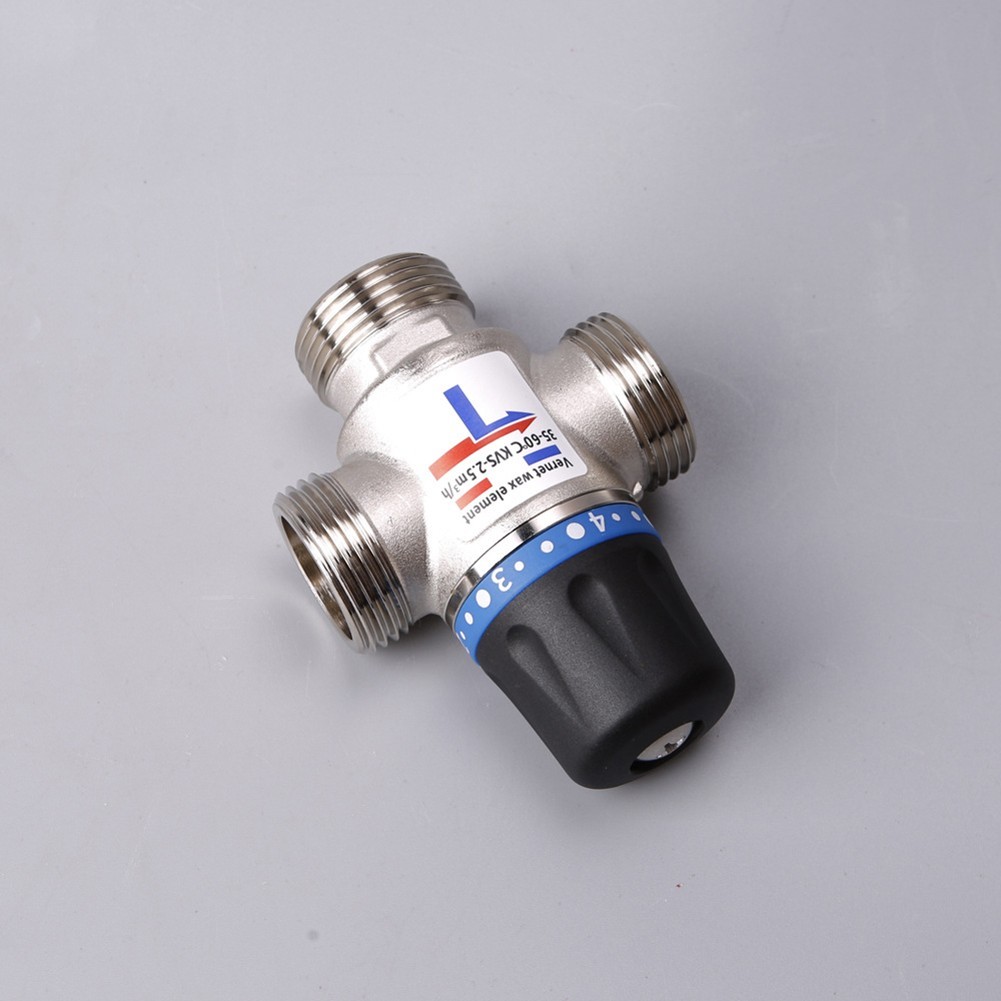

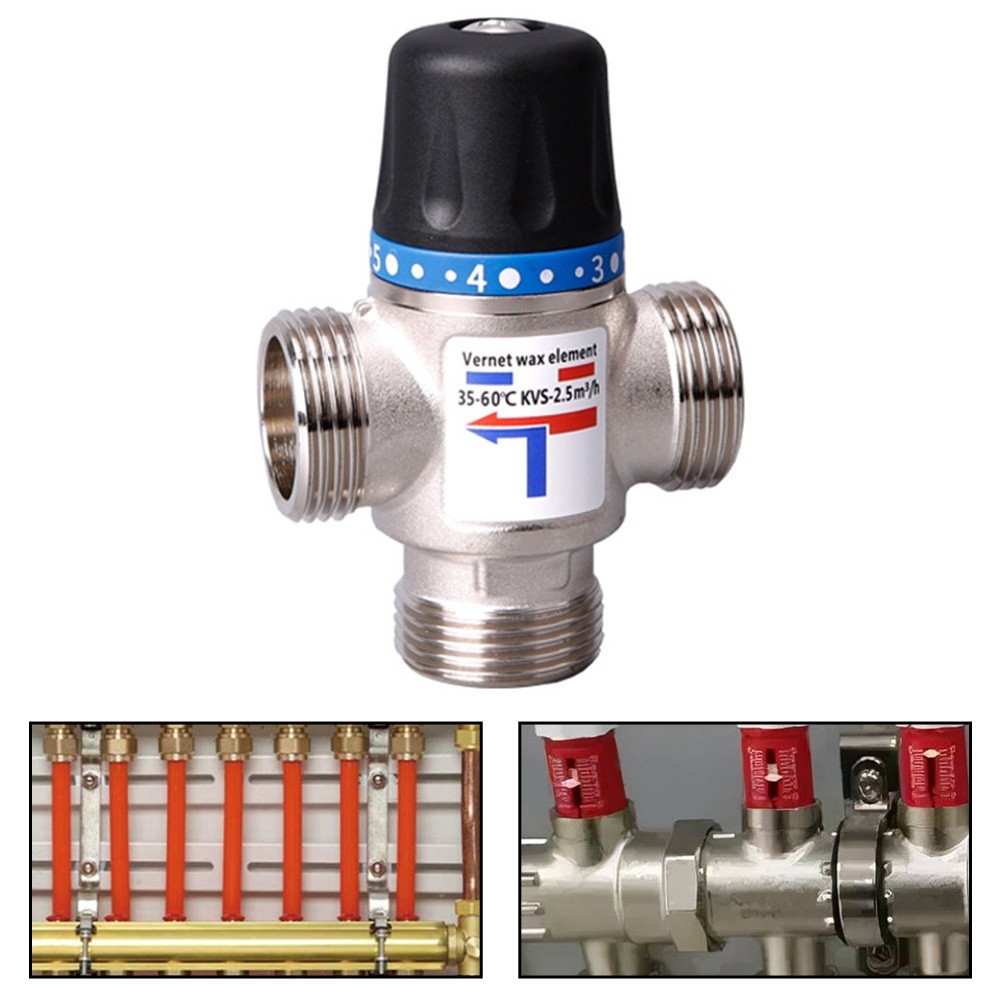

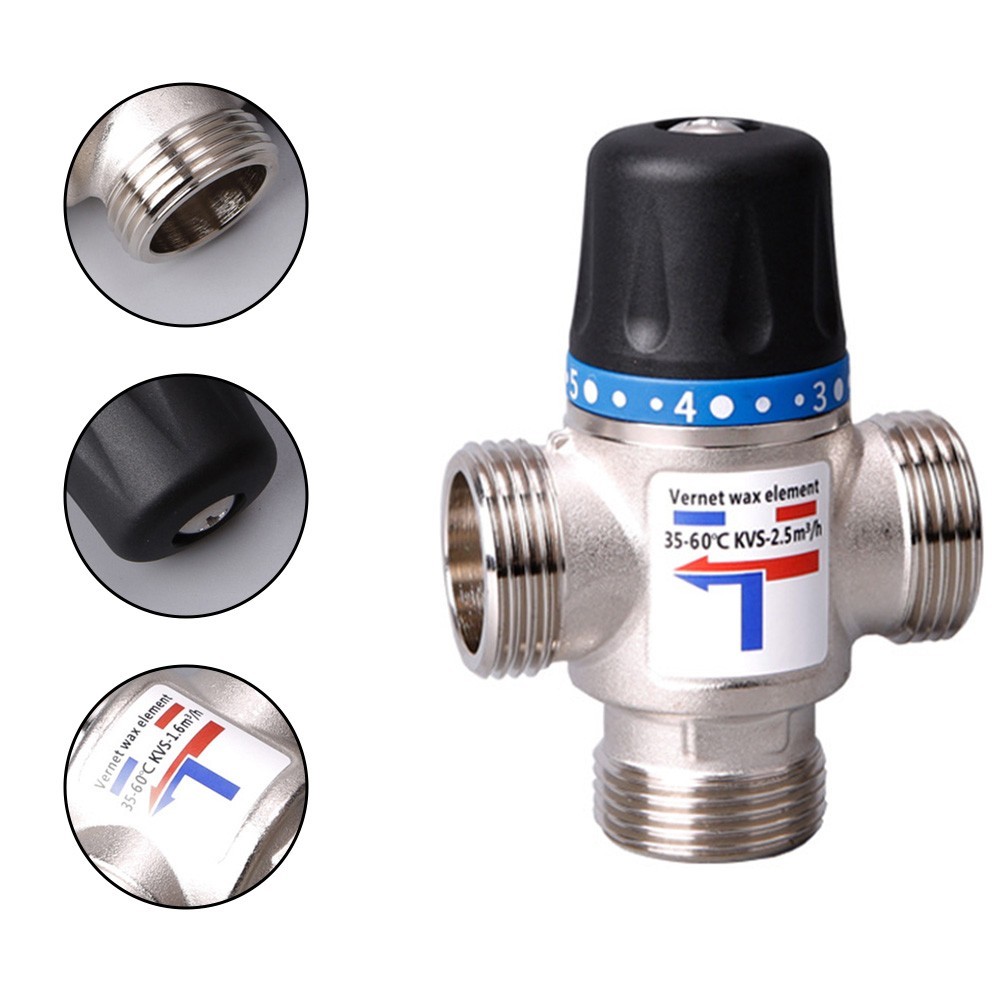

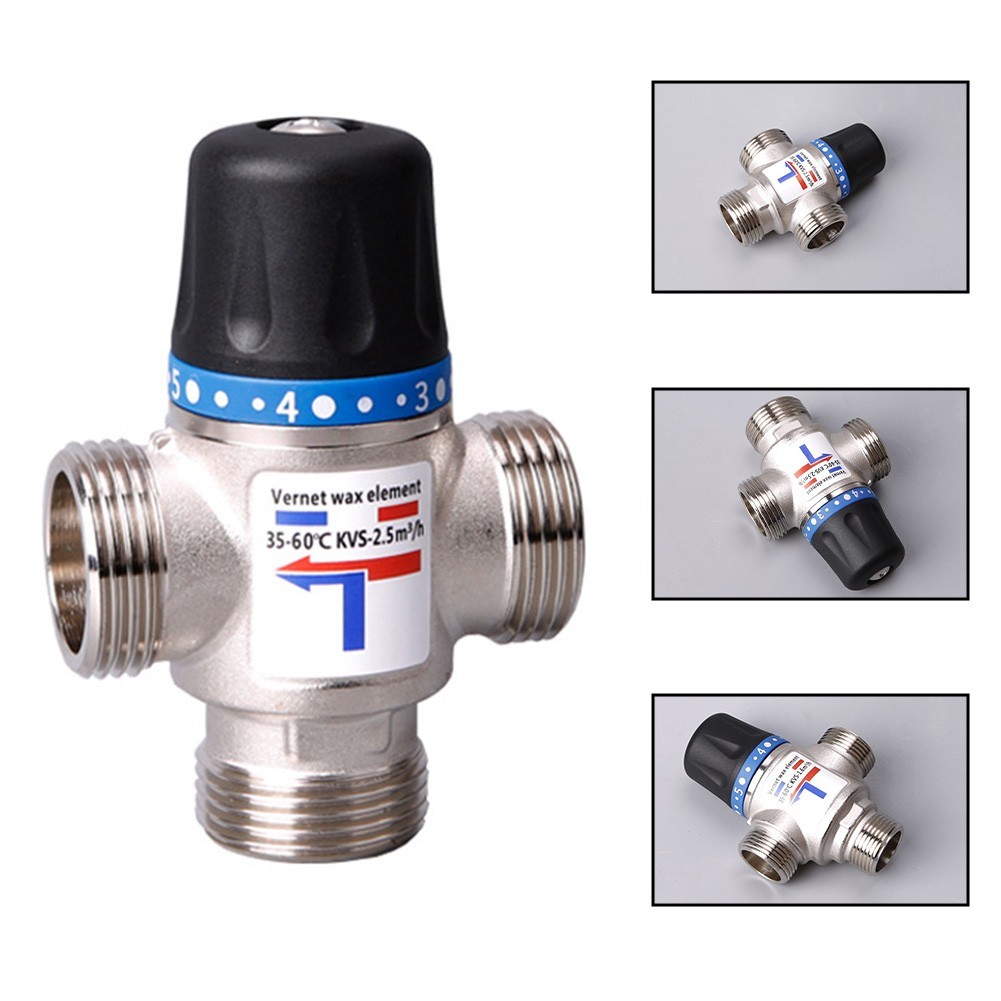

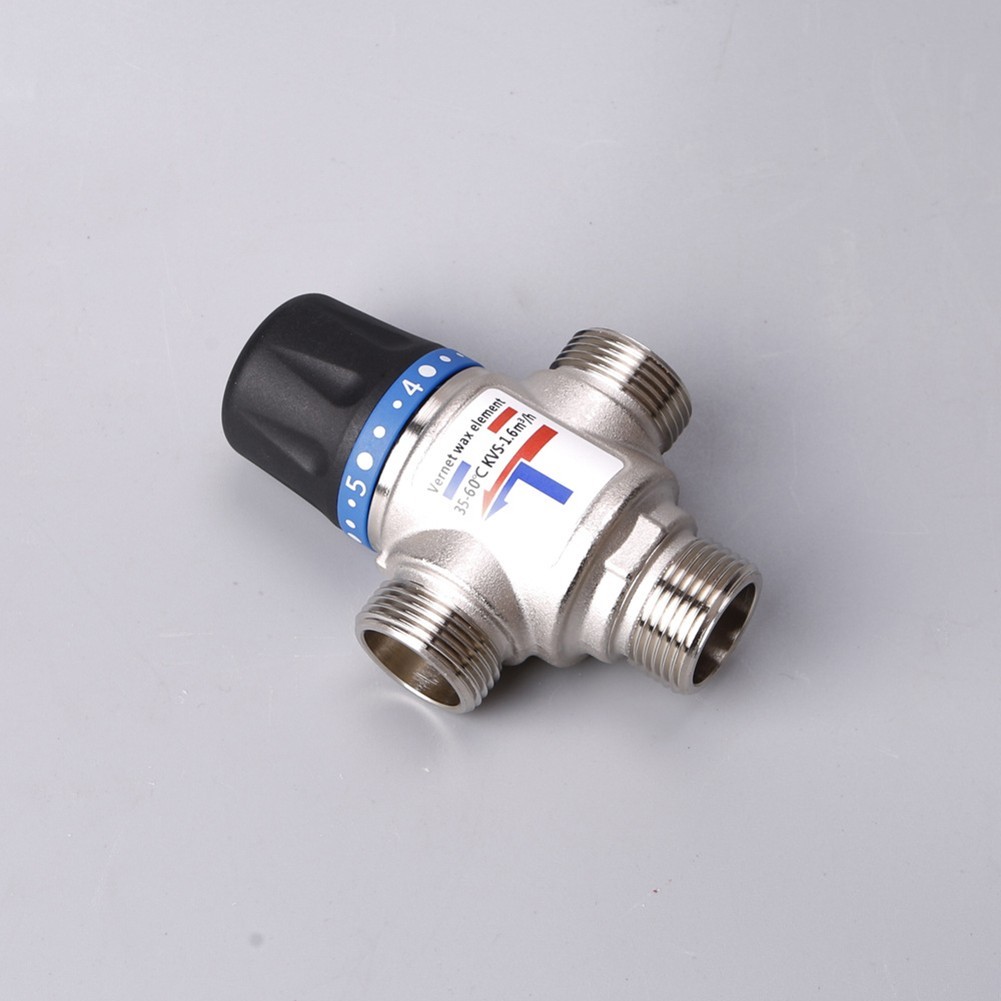

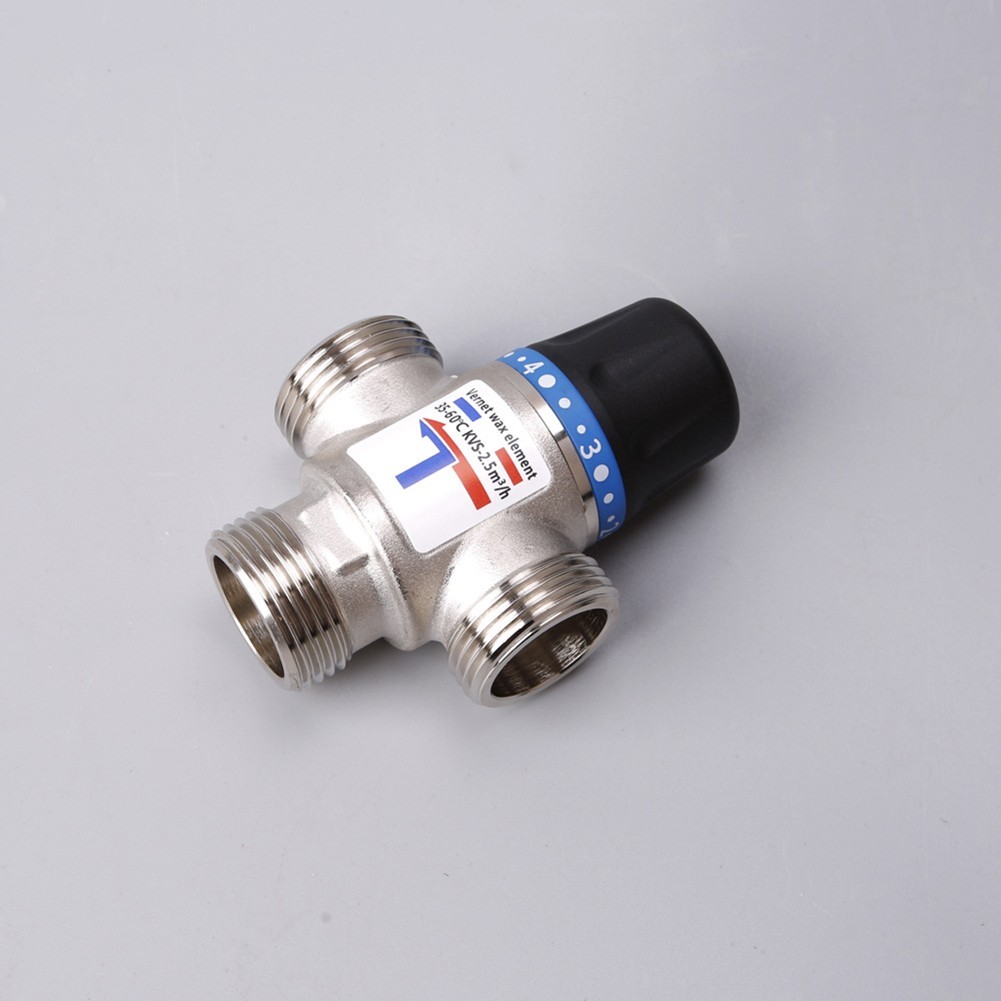

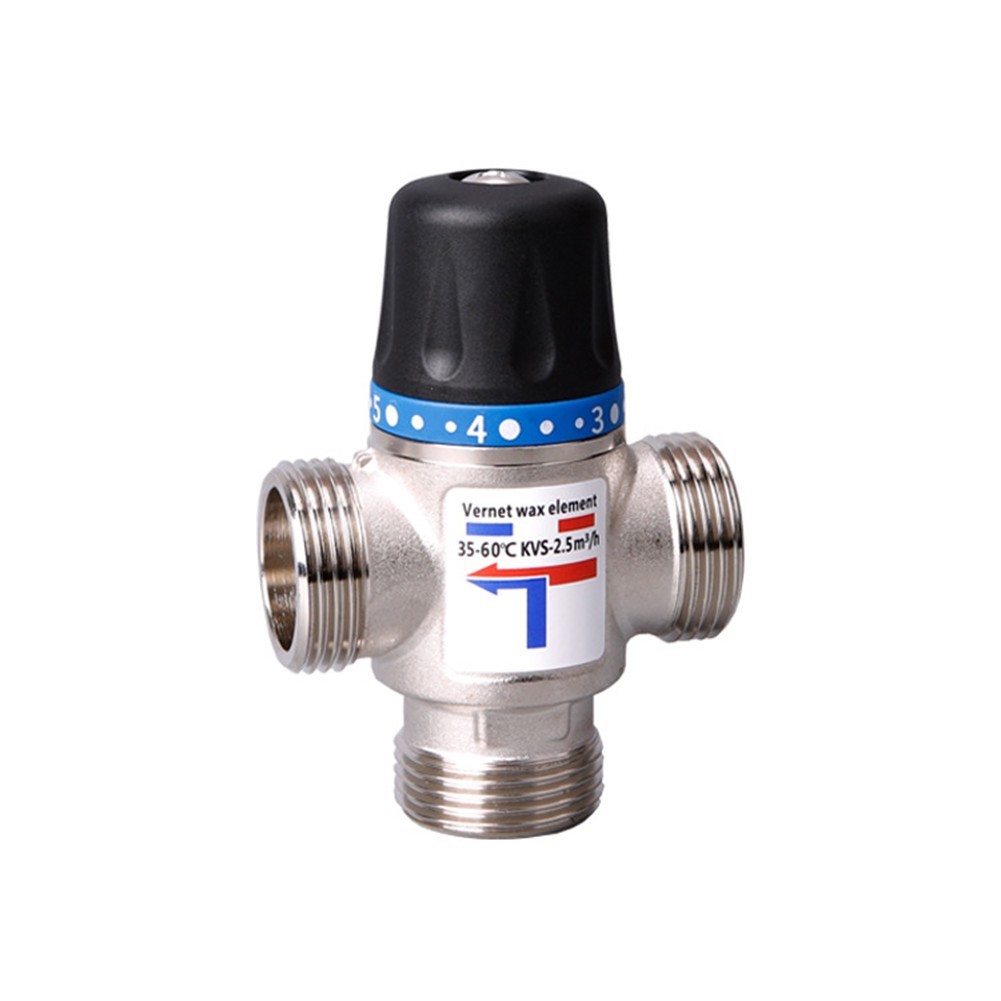

• A high‑quality thermostatic mixing valve made from nickel‑plated brass, designed for household hot‑water systems, small heating circuits, and underfloor heating.
• Provides constant mixed‑water temperature and anti‑scald safety even when supply pressures or temperatures fluctuate.
📋 KEY FEATURES
• HIGH FLOW CAPACITY: Suitable for systems with or without hot‑water circulation (WWC).
• INTEGRATED TEMPERATURE CONTROL: Maintains a safe, constant output temperature to prevent scalding.
• WIDE APPLICATION: Used in domestic hot‑water systems, heating circuits, central heating, heat generators (wall‑mounted boilers, heat pumps) and industrial water systems.
• DURABLE CONSTRUCTION: Valve body made of CW617N brass, handle in nylon, seals in EPDM.
📏 TECHNICAL SPECIFICATIONS
• Material: Nickel‑plated brass

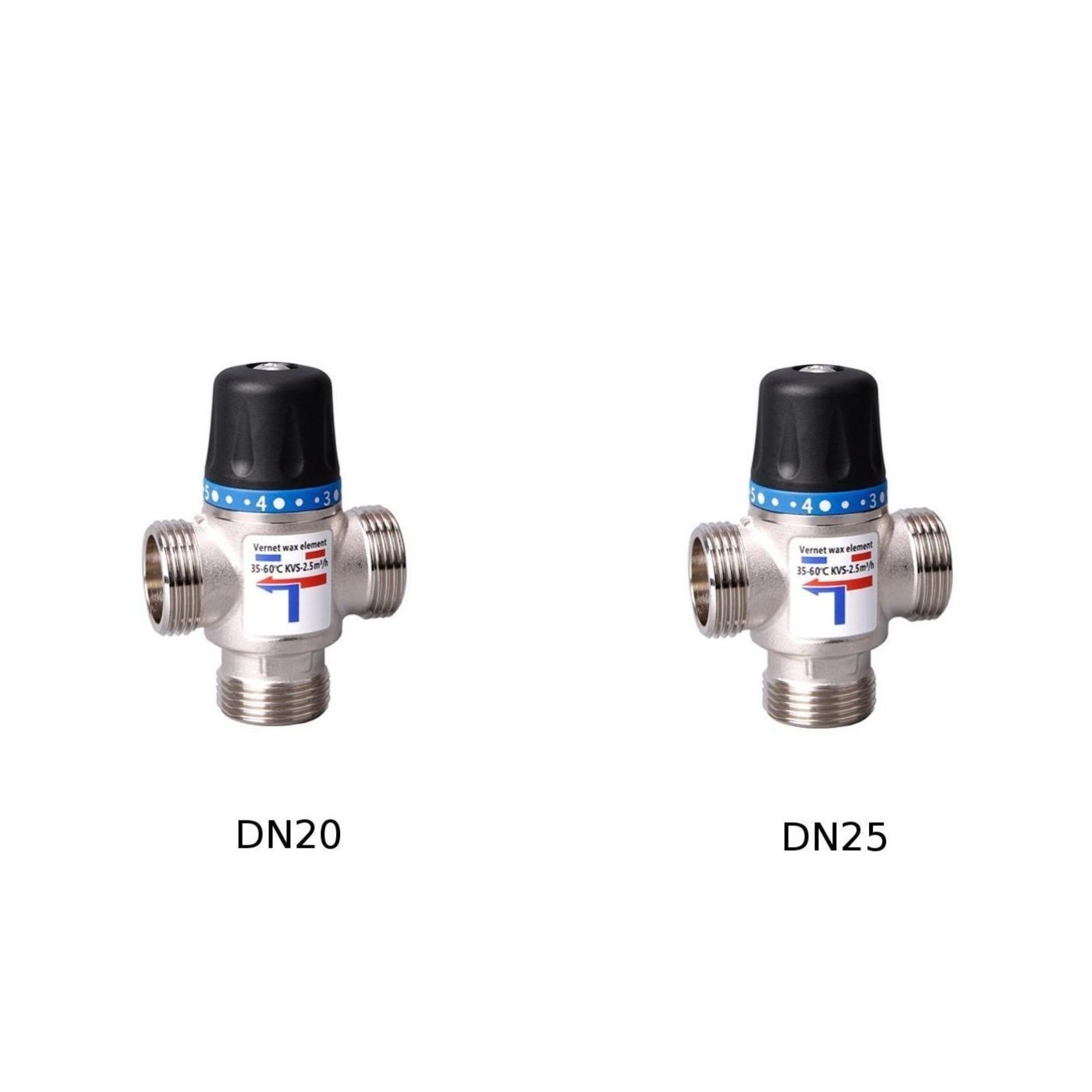

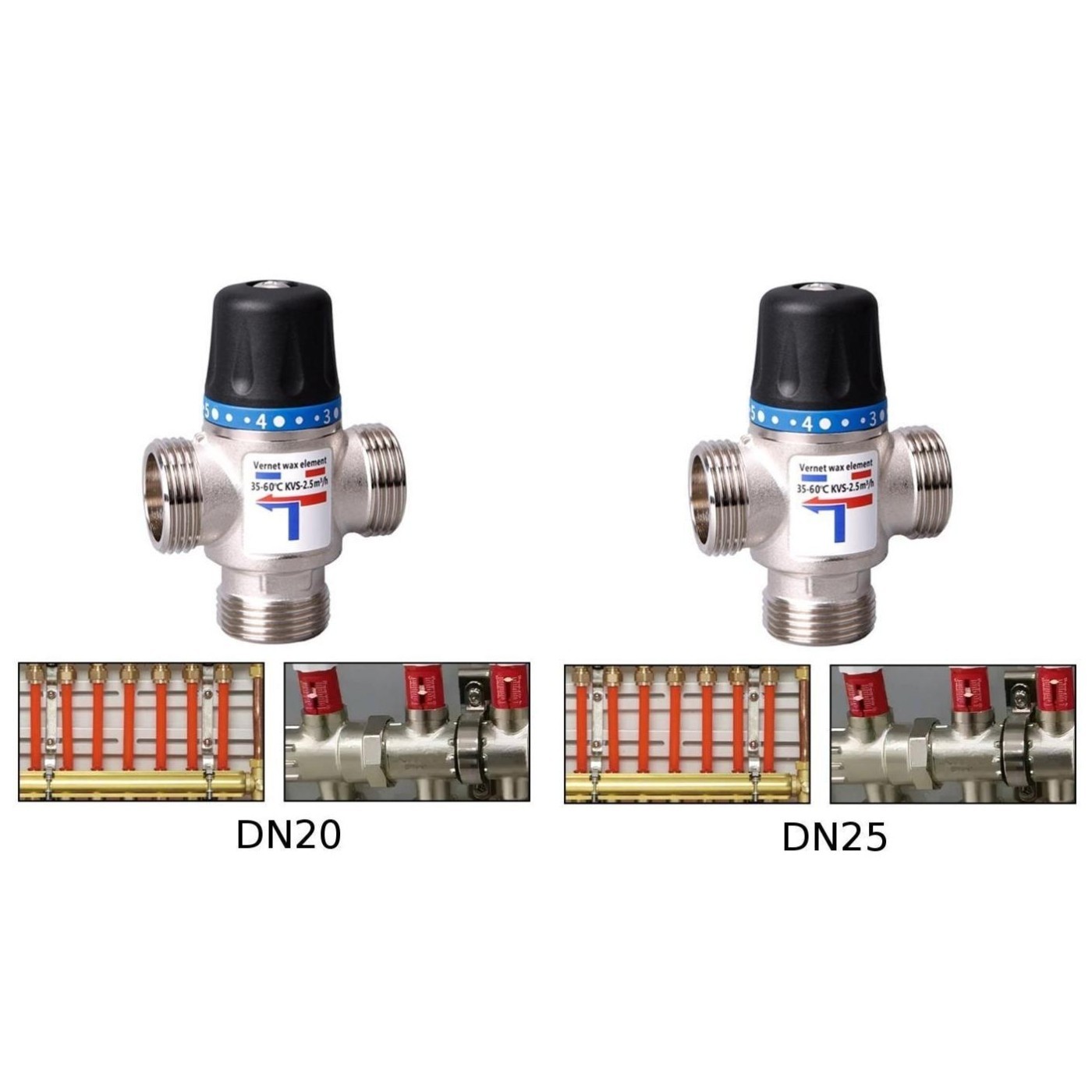

• Sizes: DN20, DN25
• Color: As pictured
• Operating Temperature Range: 20‑45°C / 35‑60°C
• Max. Operating Temperature: 95°C (short‑term up to 110°C)
• Mixed‑Water Accuracy: ±2°C
• Reference Hot/Cold Pressure: 3 bar
• Max. Static Pressure: 10 bar
• Max. Working Pressure: 5 bar
• Max. Inlet Pressure Difference: 3 bar
• Flow Rate (Kvs): Kvs 1.6 and Kvs 2.5
• Connection: External or internal thread (see table)
📦 PACKAGE CONTENTS
• 1 × Thermostatic Mixing Valve
