Simply Waterfalls 1200GPH Pump PVC Pond Free Waterfall Kit 5' x 10' PVCPXSAN2
Imagine stepping foot into your backyard, to the soothing sound of a waterfall. Simply Waterfall Kits make it easy to enjoy the sight and sound of a water feature without the maintenance of a water garden or pond. Transform your lawn and backyard by creating a beautiful waterfall with Simply Waterfalls!
Simply Waterfalls is the ideal kit for homeowners to create a Pond Free waterfall feature for their lawn. Each item in a Simply Waterfalls kit is selected to provide the ideal performance and create a beautiful, low-maintenance water feature. Only quality hardware from leading manufacturers are in your kit, allowing you to enjoy your pond free waterfall for years to come. Get more for your money and remove the guesswork of individually selecting components.
Simply Waterfalls is the perfect solution for your first waterfall or to expand a current pond. Start with the kit that includes everything you need to build a waterfall and stream.
In addition to the great value of this kit, Half Off Ponds offers free shipping and the Customer Service Team is always happy to assist. Everything you need to construct your project is included!

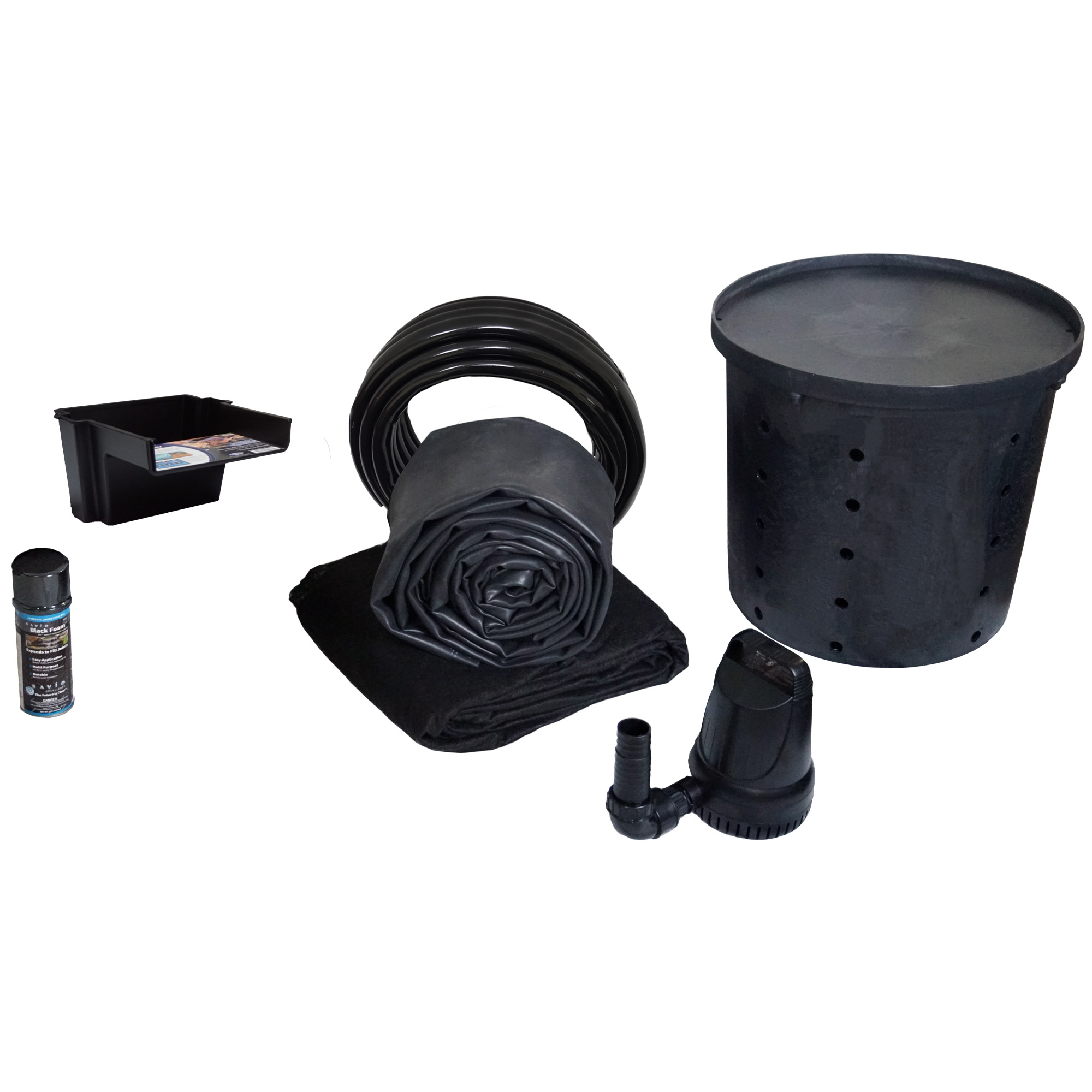

The Simply Waterfalls 1200 Pond Free PVC Waterfall Kit includes:

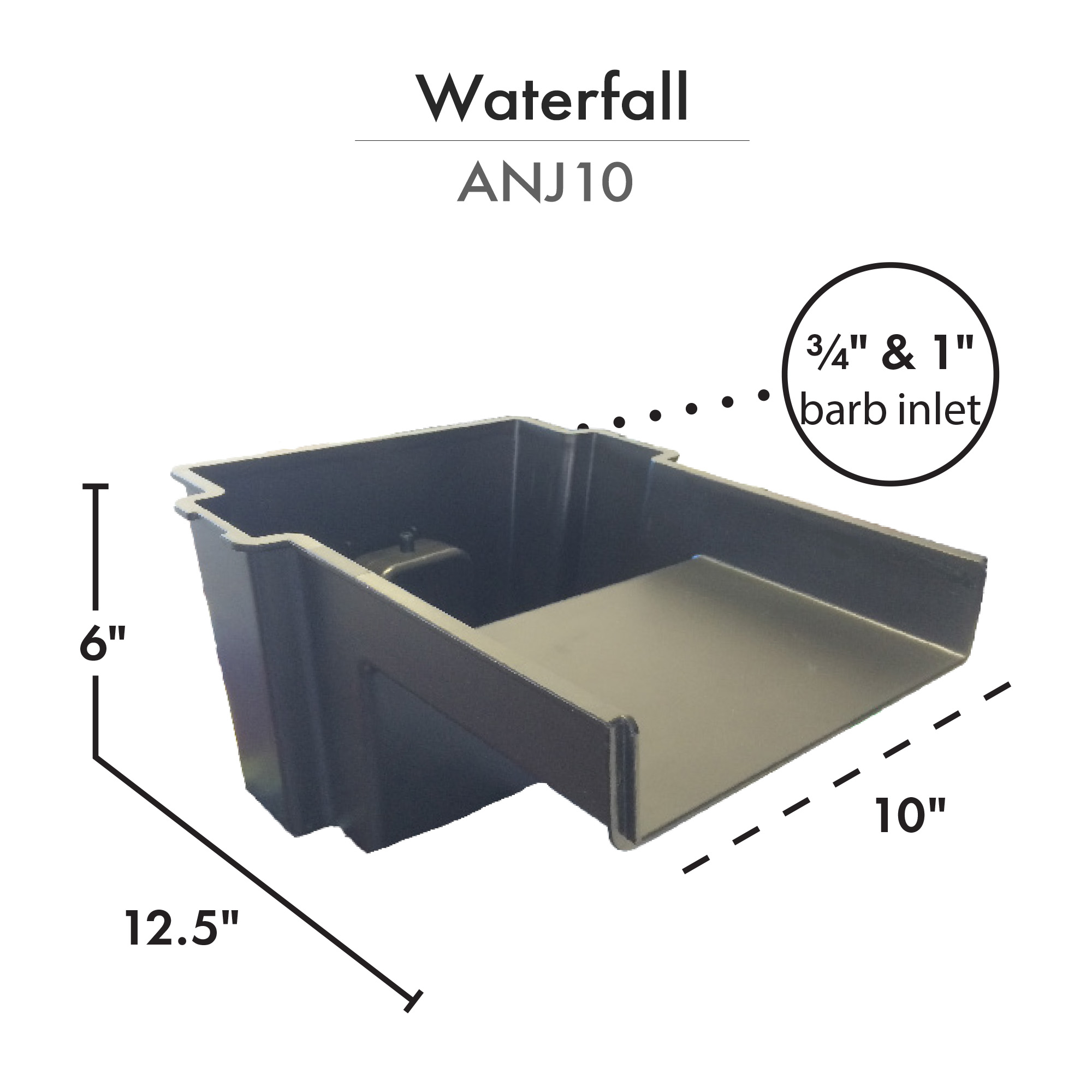

- Anjon Manufacturing 8" Spillway
- Big Frog Tuff Tank 5,000 GPH Pump Flow Rate Tank
- Half Off Ponds Manta Series 1,200 GPH Hybrid Drive Submersible Pump
- 20-Mil PVC PolyGuard Pond Liner and UnderGuard Underlayment
- 1" x 15' Black Vinyl Tubing
- Submersible Light Set - (1) 1-Watt Bronze Puck Light with 6-Watt Transformer
- 12 oz. Savio Black Foam
- All Necessary Plumbing Fittings
Simply Waterfalls 1200GPH Pump PVC Pond Free Waterfall Kit 5' x 10' PVCPXSAN2
- Elegance & Simplicity - The Simply Waterfalls Pond Free Kit is perfect for anyone looking to build a calming and perfect water feature.
- Maximum Performance in a Small Package - This kit allows for a Water In Transit (WIT) with a maximum width of 1' wide, OR, a maximum length of 4' long. The length of the system should be adjusted depending on the size of the basin. These Dimensions are estimated, every Pond Free feature is unique.We recommend you use our calculator below to determine if your project plans fit within this kit's liner.
- Stunning Pond Free Waterfalls - The Simply Waterfalls Pond Free Kit allows you to enjoy a water feature outdoors without the maintenance of a pond.

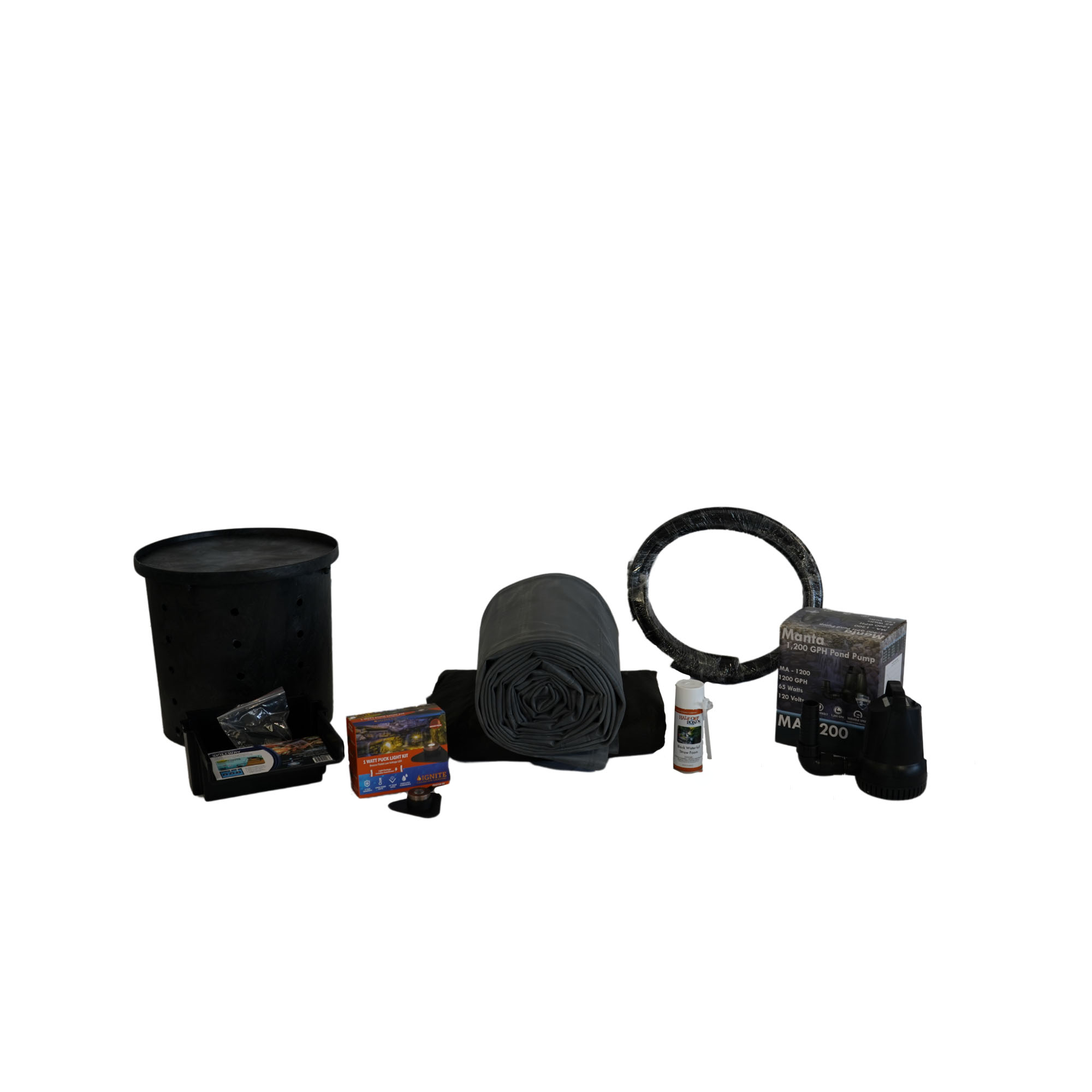

- Everything You Need in One Box - This Kit Includes: Anjon Manufacturing 10" Spillway ANJ-10, Big Frog Tuff Tank TT-15, Half Off Ponds Manta Series 1,200 GPH Submersible Pump MA-1200, 5' x 10' 20-Mil PVC PolyGuard Pond Liner and UnderGuard Underlayment (comes in One, or more pieces, equal to the square footage), 1" x 15' Black Vinyl Tubing, 1-Watt LED Puck Light, 16 oz can of Black Foam, and all necessary plumbing fittings.
- A Kit You Can Trust - All Pond Free Waterfall Kits include a manufacturer's warranty so you can enjoy your waterfall and stream for years to come. Warranties on major components: PolyGuard Pond Liner - 10 Years (when installed with UnderGuard), MA-1200 Pump - 2 Years, TT-15 Pump Vault - 5 Years, ANJ-8 Spillway - 5 Years. ShippingShips via Ground Package(s)! May ship in more than one box.
FAQs & Calculations to Help Select the Correct Kit
1. How Many Gallons of Water does My Water Feature Hold?
Rectangular Ponds
Length x Width x Average Depth x 7.48 = Gallons
Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Oval Ponds
Length x Width x Average Depth x 0.8 x 7.48 = Gallons
Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Round Ponds
Length x Width x Average Depth x 7.48 =Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Streams
Length x Width x Average Depth x 0.25 x 7.48 = GALLONS =Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
2. How Big of a Pump Do I Need??
Minimum pump size is determined by pond type, water volume, head height and friction loss. The minimum pump size recommendations are:
Water Garden, Few Small Goldfish
Circulate total pond water valoume every 2 hours.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Fish Pond, Several Small Fish
Circulate total pond water valoume every 1 hour.
Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.
Koi Pond, Several Large Fish
Circulate total pond water valoume every 3/4 hours.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Calculating Head Height
Dynamic head pressure is found by taking the vertical height of your waterfall; the distance between where your pump is (typically in the skimmer) and where your waterfall is, and adding the static head pressure (pipe and fittings) 1’ for every 10’ of tubing and 1’ for every elbow or “T” fitting.
Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure
Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.
Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure
Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.
3. What Size Tubing Do I Need?
| Tubing Size | Efficiency GPH | Minimum GPH | Maximum GPH |
|---|---|---|---|
0.5” |
< 300 |
60 |
420 |
0.75” |
< 720 |
300 |
900 |
1” |
< 1,200 |
700 |
1,500 |
1.25” |
< 1,600 |
900 |
3,200 |
1.5” |
< 2,600 |
2,000 |
4,400 |
2” |
< 4,800 |
3,000 |
6,800 |
3” |
< 9,000 |
6,000 |
14,000 |
4” |
< 21,000 |
14,000 |
28,000 |
6” |
< 42,000 |
33,000 |
60,000 |
