Pond Free Waterfall Kit 10' x 25' EPDM Liner 4,000 GPH Aqua Pulse Pump PMAN2
Pond Free Waterfall Kit 10' x 25' EPDM Liner 4,000 GPH Aqua Pulse Pump PMAN2
Imagine stepping foot into your backyard, to the soothing sound of a waterfall. Simply Waterfall Kits make it easy to enjoy the sight and sound of a water feature without the maintenance of a water garden or fishpond. Transform your lawn and backyard by creating a beautiful waterfall with Simply Waterfalls!
Simply Waterfalls is the ideal kit for homeowners to create a Pond Free waterfall feature for their lawn. Each item in a Simply Waterfalls kit is selected to provide the ideal performance and create a beautiful, low-maintenance water feature. Only quality hardware from leading manufacturers are in your kit, allowing you to enjoy your pond free waterfall for years to come. Get more for your money and remove the guesswork of individually selecting components.
The Simply Waterfalls 4000 is the perfect solution for your first waterfall or to expand an existing feature. Start with the kit that includes everything you need to build a water garden or pond.

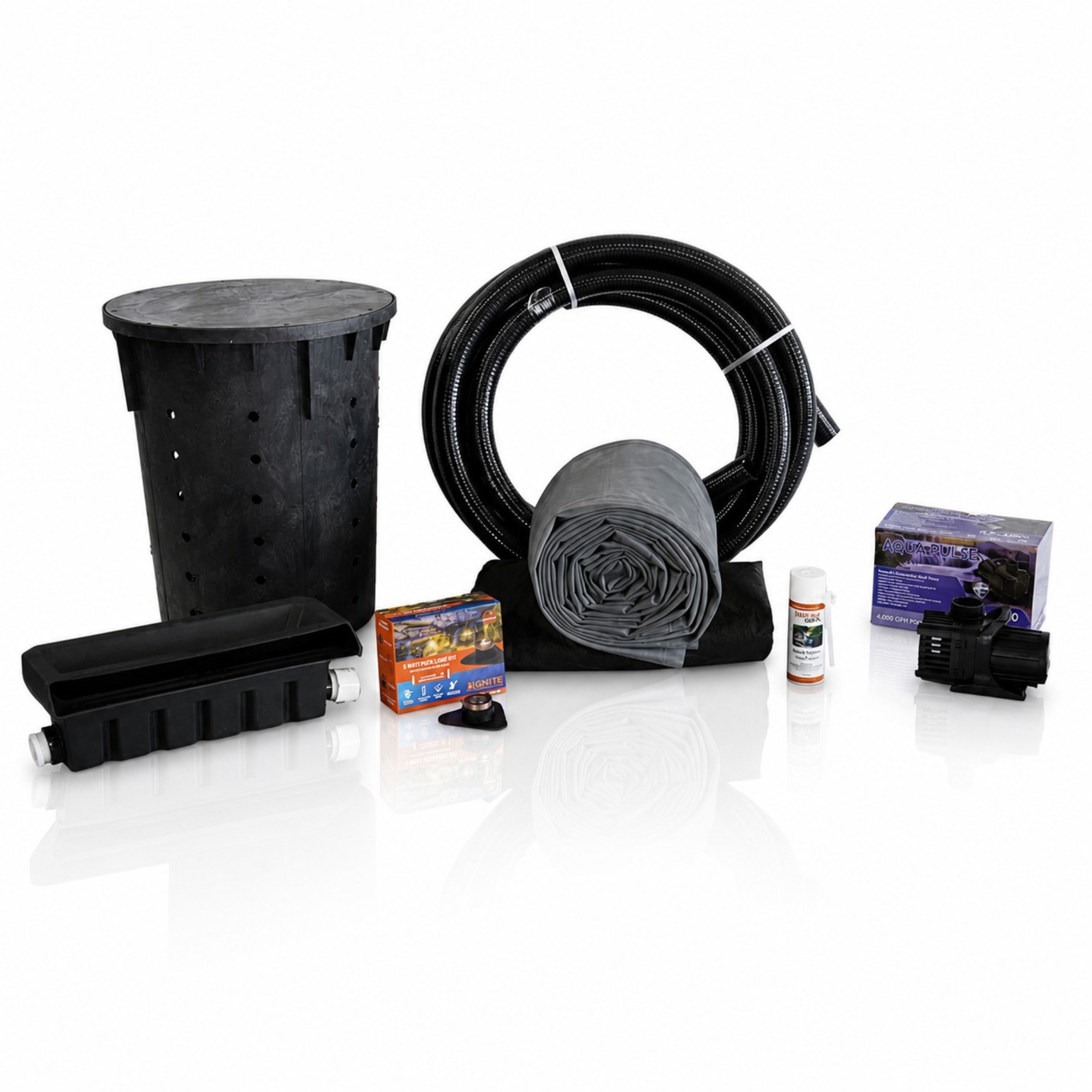

Simply Waterfalls 4000 Pond Free Kit includes:- PondBuilder 20" Cascade Falls
- Big Frog Tuff Tank - 22-Gallon Pump Tank
- Half Off Ponds Aqua Pulse Series 4,000 GPH Submersible Pump
- 45-Mil EPDM LifeGuard Pond Liner
- UnderGuard Geotextile Underlaymant
- 2" x 25' coil of Half Off Ponds Flexible PVC Tubing
- (1) Patriot Pond 1-Watt Bronze Puck Light set with Transformer

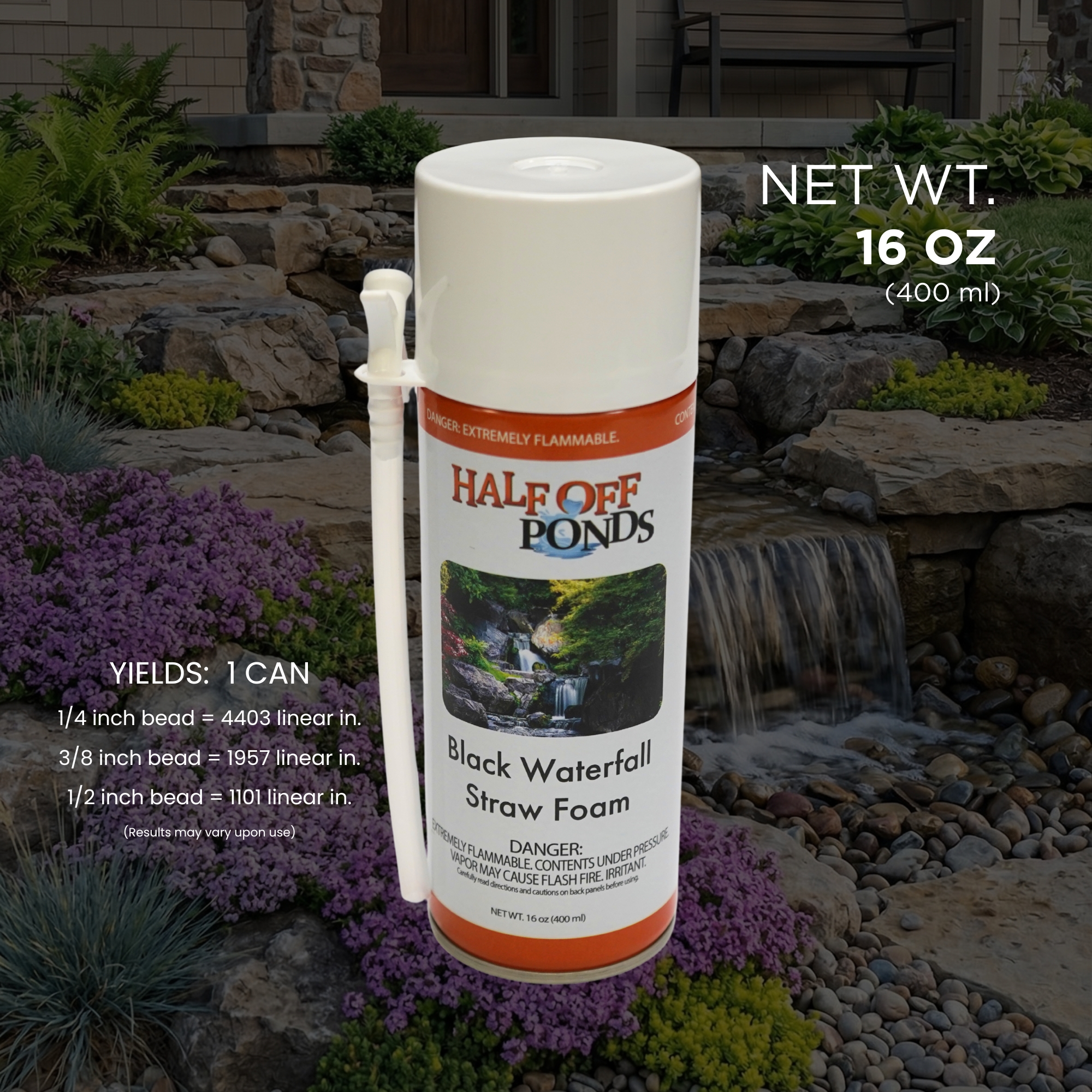

- 12 oz. Savio Black Foam
- All Necessary Plumbing Fittings
This pond free kit contains professional components from leading manufacturers, and is engineered to create a beautiful, low-maintenance backyard garden oasis. We offer the best Pond Free Kit at the best price leveraging our 25 Years of experience designing kits for DYI projects. Save time and money by choosing our kits.
When designing a Pond Free water feature, do not forget to add MatrixBlox! Building with MatrixBlox create a waterfall basin for water chambers that hold 90% more water than filling basins with rock. MatrixBlox reduces the building area required and creates more stored water in a smaller space. MatrixBlox are very strong and can support large boulders to help create a natural look (MatrixBlox NOT Included in this listing).
Our Pond Free Waterfall Kits allow you to enjoy a water feature without the maintenance and expense of a pond. Pond Free applications are safe and do not require fences. We recommend using formulas and guidelines below to determine if your project plans are compatible with this kit.
The Simply Waterfalls 4000 Pond Free EPDM Waterfall Kit includes: 10' x 25' of 45-Mil EPDM LifeGuard Pond Liner and 250 sqft. of UnderGuard Underlayment (comes in one, or more pieces, equal to the square footage), PondBuilder 20" Cascade Falls Waterfall Weir - PB1762, Big Frog Tuff Tank 22-Gallon Pump Tank - TT-22, Aqua Pulse Series 4,000 GPH Submersible Pump, 2" x 25' Flexible PVC Tubing, (1) Patriot Pond 1-Watt LED Bronze Puck Light, and all necessary plumbing fittings.
Pond Free Waterfall Kits include full manufacturer’s warranty on components so you can enjoy your waterfall and stream for years to come. Additionally, there is a Limited Lifetime Warranty on the LifeGuard Pond Liner when installed with UnderGuard!
Main Kit Components
Anjon Manufacturing's 45 Mil EPDM LifeGuard Pond Liner®
Pond Liner is the foundation for any Koi pond, water garden, or waterfall. From residential backyard ponds to commercial water features. This kit includes Anjon Manufacturing's 45 mil EPDM LifeGuard Pond Liner®. LifeGuard Pond Liner® is the quality choice of installers and feature owners.
Anjon Manufacturing's LifeGuard Pond Liner® is backed by a standard 25-Year Manufacturer's Warranty, and when installed with UnderGuard Geotextile Underlayment™, LifeGuard Pond Liner® is Warranted for LIFE! LifeGuard Pond Liner® is the BEST pond liner with the BEST Manufacturer's Warranty on the market today!
Features and Technical Specs
- Anjon Manufacturing's EPDM LifeGuard Pond Liner® is marketed in hundreds of pond kits, and installed in thousands of water features, worldwide. Professionals trust their reputation to LifeGuard Pond Liner®!
- Resists UV deterioration and contains no plasticizers which become brittle and cause cracks and splits. LifeGuard Pond Liner® is virtually indestructible; unaffected by hydrocarbons, mildew, rot, and freeze-thaw cycles!
- Durable and Puncture Resistant! LifeGuard Pond Liner® is extremely versatile and is used in a wide variety of applications, including: Pondless Waterfalls, Skimmers and Waterfalls, Retention and Koi Ponds, and Fish Hatcheries.
- LifeGuard Pond Liner® is Certified Fish & Wildlife Safe by Guardian Systems, Inc. and easily attaches to filtering waterfalls and skimmers. Readily accepts pipe and hose penetration without leaks, and can be easily seamed.
- Anjon Manufacturing's EPDM LifeGuard Pond Liner® comes with a Standard 25-Year Manufacturer's Warranty; but, when properly installed with UnderGuard Underlayment™ Nonwoven Geotextile, Anjon Manufacturing's EPDM LifeGuard Pond Liner® is warrantied for LIFE!
Anjon Manufacturing's UnderGuard Underlaymentâ„¢
Enhances soil stability and controls erosion while providing a stable and lasting foundation for water features, retaining walls, trenches, and planting projects.
Features and Technical Specs
- High tensile-strength nonwoven polypropylene fabric is easy to use.
- Enhances soil stability and controls erosion while providing a stable and lasting foundation for water features, retaining walls, trenches, and planting projects.
- Needle punched nonwoven polypropylene geotextile fabric with a random, three-dimensional pore structure and a uniform, felt-like consistency. Superior drainage characteristics versus woven geotextile fabric.
- Virtually indestructible; unaffected by hydrocarbons, mildew, rot, & freeze-thaw cycles while diffusing gas and fluid build up
- Made in the USA & backed by a 20-Year Limited Manufacturers’ Warranty! Made from UV and chemical resistant 100% virgin polypropylene & is 100% recyclable

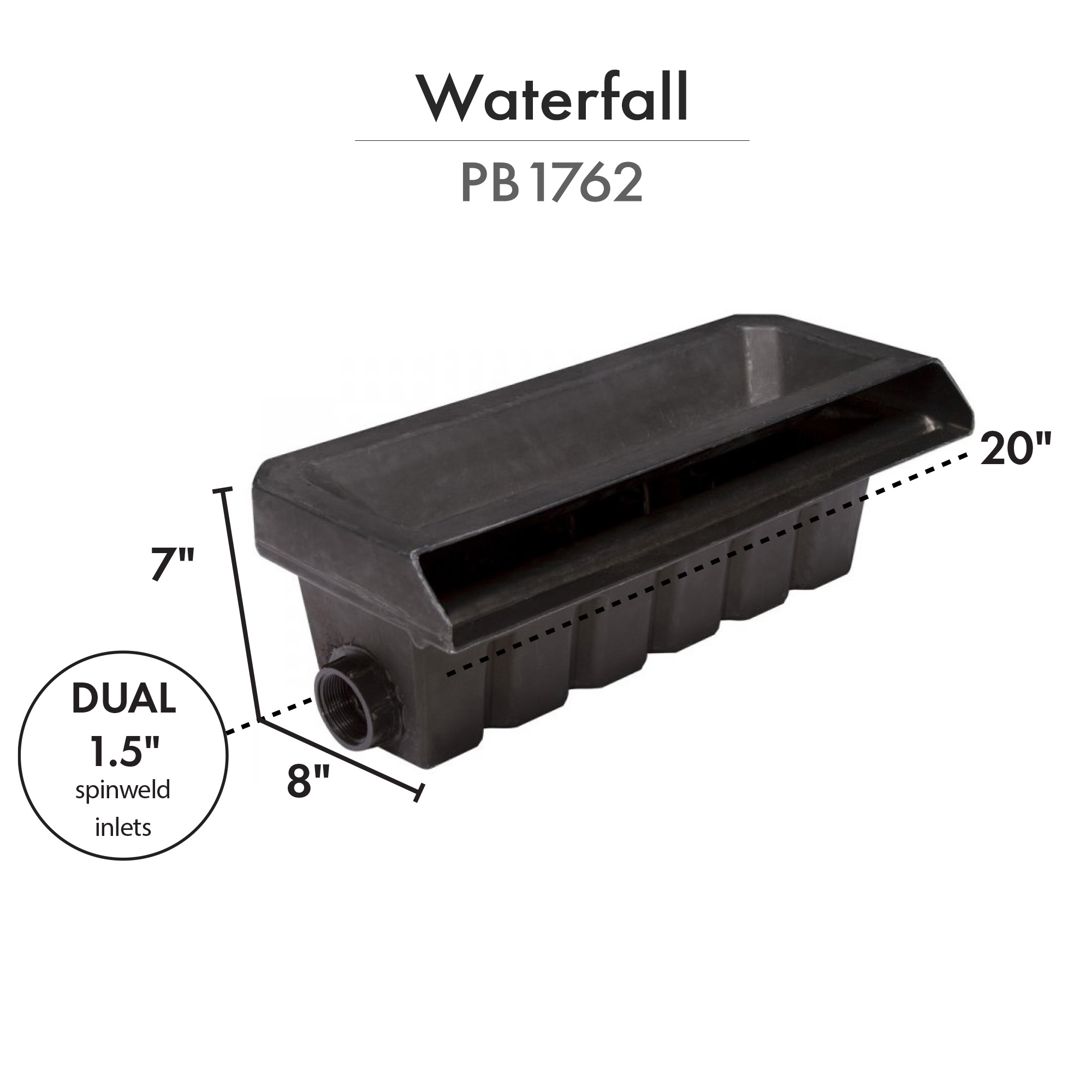

PondBuilder 20" Crystal Waterfall Box
The DIY Cascade Falls boxes are perfect for small pondless features! They fit exceptionally well in landscape beds. This is a perfect item for adding a little sound to your outdoor oasis. These units include an attached landscape lid, making it easier to disguise in the landscape.
Molded landscape lid supports aquatic plants and rocks. Install unit inside of liner for ease of use and fits in tight or confined spaces
Features and Technical Specs:
- Waterfall Width: 20†Wide
- Dimensions: 20†x 8†x 7â€
- Inlet Size: (2) 1.5" Spinwelds.
- 5 Year Warranty & Made in the USA!

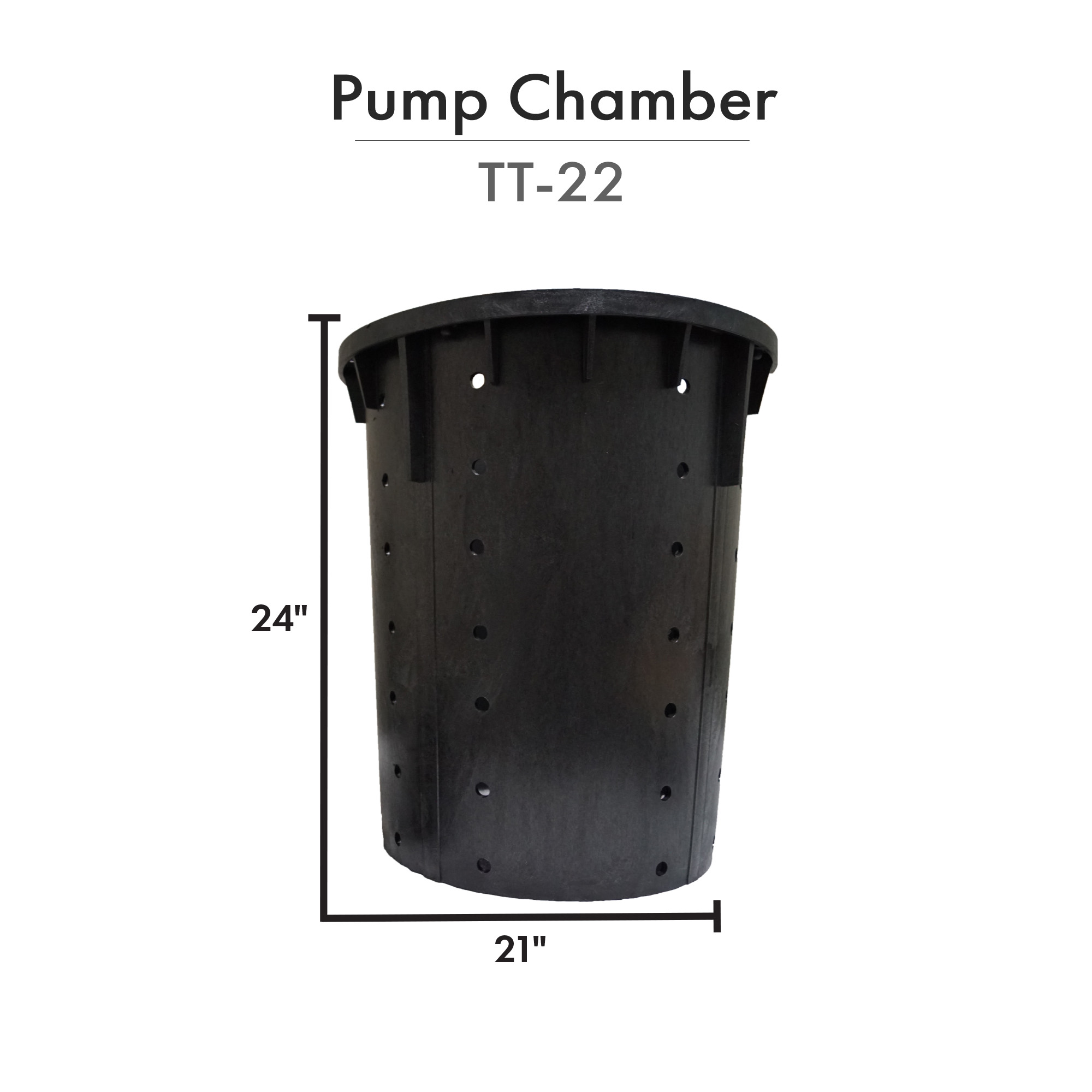

Anjon Manufacturing's Big Frog Tuff Tank - 22-Gallon
Simplifies construction of pondless waterfalls and continuous stream water features. Tuff Tank is the primary component in an easy-to-build pondless waterfall & continuous stream reservoir.
Protects your pump and allows you to check the water level in the basin. Crush-resistant design with easy access lid stands up to the crushing weight of rocks & stone.
Features and Technical Specs:
- Max Flow Rate: 12,500 GPH
- Clog-Free: The water intake allows water to enter the tank & for sediment to settle to the bottom.
- Years of Dependable Service:
Heavy duty, injection molded pump tank with structural polyethylene foam will not rust, rot or deteriorate. - Dimensions: 16" Bottom x 18" Top x 23.5" tall with a 22-gallon capacity. Site drilled discharge.
- 5 Year Warranty & Made in the USA!
Half Off Ponds Aqua Pulse Series 4,000 GPH Submersible Pump
Features and Technical Specs
- Extremely energy efficient magnetic drive technology is an ideal choice for fountains, waterfalls and most ponds
- Upright design with space-saving footprint makes this pump ideal for skimmer and pondless waterfall installations. Intake screen prevents clogging while passing solids up to 0.25 inch
- Asynchronous drive motor can be controlled with variable speed controller (not included) that permits you to increase or decrease pump flow as needed
- Vortex impeller passes solids to .25â€. Engineered for 24-hour continuous use; overload sensor prevents burnout
- Contains no oil; completely safe for fish, wildlife and aquatic plants. Backed by a 2-Year Manufacturer's Warranty!
Half Off Ponds Flexible PVC Pipe
Pipes, hoses and tubing are the 'circulatory system' any Koi pond, water garden or waterfall. Selecting the right pipe, hose or tubing for any project, from a residential backyard pond to commercial water feature or muncipal project, is a key decision to create and maintain a healthy water environment.
Half Off Ponds Flexible PVC Pipe is ideal for ponds and waterfalls requiring high-strength and flexible hose that resists kinking and collapsing. This tubing withstands freezing without compromising its' structural integrity, durability, or strength.
Features and Technical Specs
- Extremely flexible; will not kink or collapse even around tight turns, bends or curves.
- Can be frozen solid without losing strength or structural integrity.
- Smooth wall interior improves water flow while preventing friction loss. Flexible and strong, will not collapse or kink around bends or curves.
- Works with standard schedule 40 PVC slip or barb fittings.
- Certified Fish & Wildlife Safe by Guardian Systems and backed by a 25-Year Manufacturer's Warranty!
- Backed by a 25-Year Manufacturer's Warranty!

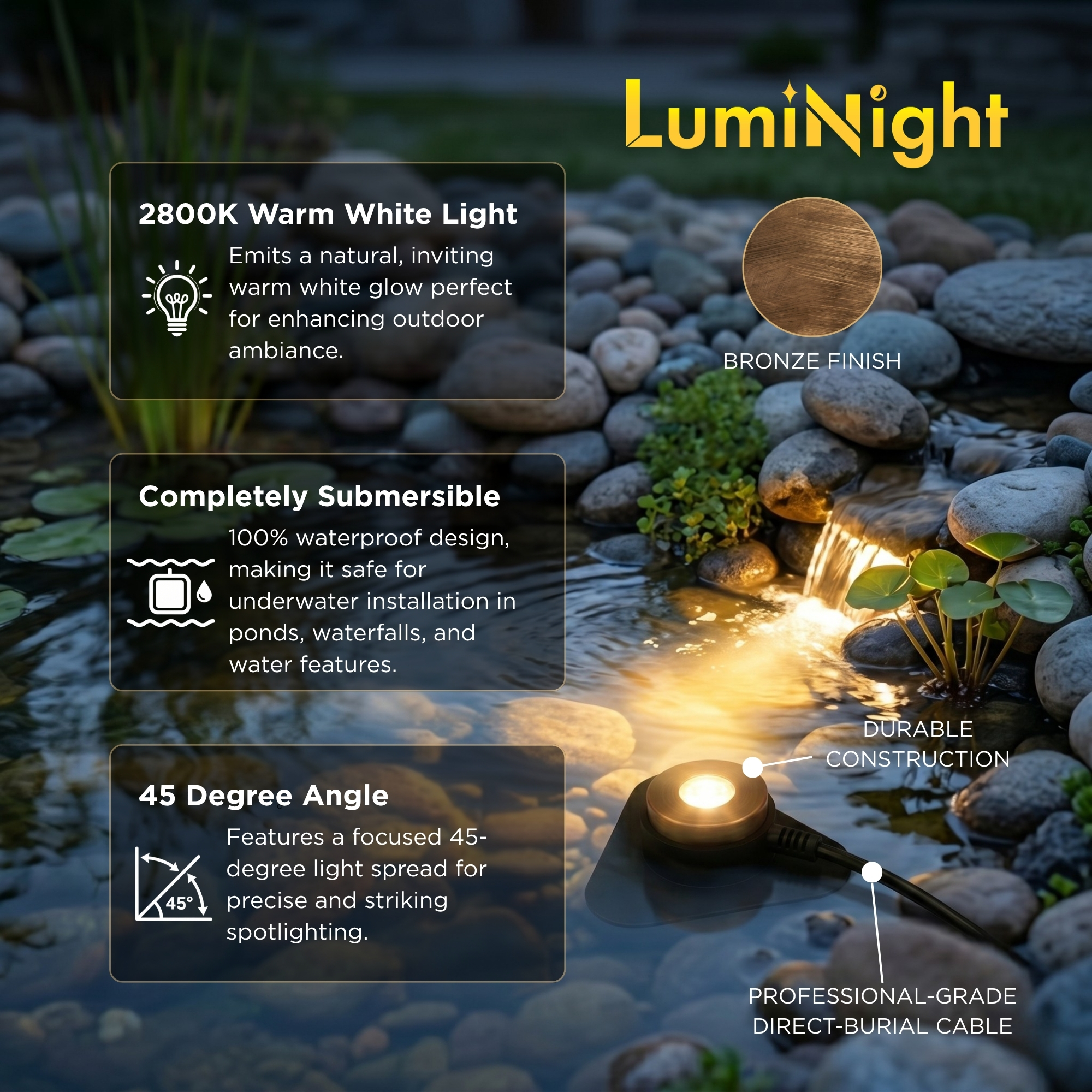

Patriot Pond Lighting 1-Watt Bronze Puck Light w/ 6-Watt Transformer
Features and Technical Specs
- (1) Cylindrical polished bronze fixture.
- 20' Low voltage power cord.
- Installation options - use 4.5" triangle base or the brass puck by itself.
- 45-degree beam angle LED bulbs produce 45 lumens of light and last 40,000 hours.
- Completely submersible; safe to use in and around water features.
Pond Free Waterfall Kit 10' x 25' EPDM Liner 4,000 GPH Aqua Pulse Pump PMAN2
- Industry Leading Materials - This pond free kit contains professional components from leading manufacturers, and is engineered to create a beautiful, low-maintenance backyard garden oasis.
- Stunning Pond Free Waterfalls - When designing a Pond Free water feature, do not forget to add MatrixBlox! Building with MatrixBlox create a waterfall basin for water chambers that hold 90% more water than filling basins with rock. MatrixBlox reduces the building area required and creates more stored water in a smaller space. MatrixBlox are very strong and can support large boulders to help create a natural look (MatrixBlox not Included in this listing).
- Child and Pet Safe - Our Pond Free Waterfall Kits allow you to enjoy a water feature without the maintenance and expense of a pond. Pond Free applications are safe and do not require fences. We recommend using formulas and guidelines below to determine if your project plans are compatible with this kit.
- Everything You Need in One Box - This kit includes: 10' x 25' of 45-Mil EPDM LifeGuard Pond Liner and 250 sqft. of UnderGuard Underlayment (comes in One, or more pieces, equal to the square footage), PondBuilder 20" Cascade Falls Waterfall Weir - PB1762, Big Frog Tuff Tank 22-Gallon Pump Tank - TT-22, Aqua Pulse Series 4,000 GPH Submersible Pump, 2" x 25' Flexible PVC Tubing, (1) Patriot Pond 1-Watt LED Bronze Puck Light, and all necessary plumbing fittings.
- A Kit You Can Trust - Pond Free Waterfall Kits include full manufacturer's warranty on components so you can enjoy your waterfall and stream for years to come. Additionally, there is a Limited Lifetime Warranty on the LifeGuard Pond Liner when installed with UnderGuard! May ship in more than one box.
FAQs & Calculations to Help Select the Correct Kit
1. How Many Gallons of Water does My Water Feature Hold?
Rectangular Ponds
Length x Width x Average Depth x 7.48 = Gallons
Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Oval Ponds
Length x Width x Average Depth x 0.8 x 7.48 = Gallons
Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Round Ponds
Length x Width x Average Depth x 7.48 =Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Streams
Length x Width x Average Depth x 0.25 x 7.48 = GALLONS =Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
2. How Big of a Pump Do I Need??
Minimum pump size is determined by pond type, water volume, head height and friction loss. The minimum pump size recommendations are:
Water Garden, Few Small Goldfish
Circulate total pond water valoume every 2 hours.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Fish Pond, Several Small Fish
Circulate total pond water valoume every 1 hour.
Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.
Koi Pond, Several Large Fish
Circulate total pond water valoume every 3/4 hours.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Calculating Head Height
Dynamic head pressure is found by taking the vertical height of your waterfall; the distance between where your pump is (typically in the skimmer) and where your waterfall is, and adding the static head pressure (pipe and fittings) 1’ for every 10’ of tubing and 1’ for every elbow or “T” fitting.
Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure
Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.
Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure
Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.
3. What Size Tubing Do I Need?
| Tubing Size | Efficiency GPH | Minimum GPH | Maximum GPH |
|---|---|---|---|
0.5” |
< 300 |
60 |
420 |
0.75” |
< 720 |
300 |
900 |
1” |
< 1,200 |
700 |
1,500 |
1.25” |
< 1,600 |
900 |
3,200 |
1.5” |
< 2,600 |
2,000 |
4,400 |
2” |
< 4,800 |
3,000 |
6,800 |
3” |
< 9,000 |
6,000 |
14,000 |
4” |
< 21,000 |
14,000 |
28,000 |
6” |
< 42,000 |
33,000 |
60,000 |
