Product
Description

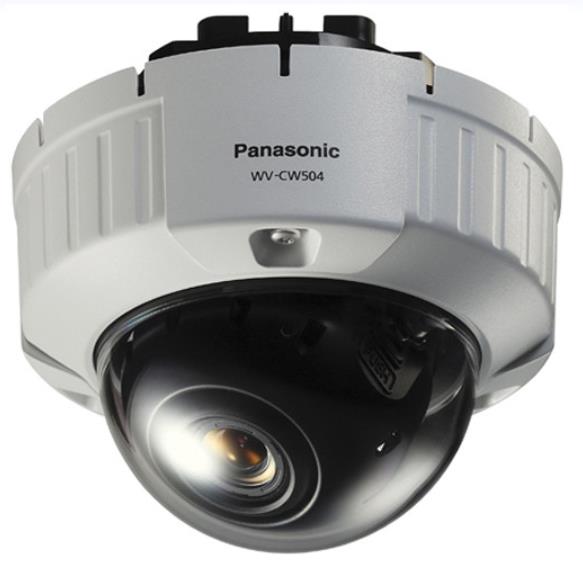

PANASONIC WV-CW504F 5 Vandal-Resistant Dome Camera - OPEN BOX


Panasonic WV-CW504F Specs

TV System
NTSC
Type
Flush mount type
Image Sensor
1/3" interline transfer CCD
Effective Pixels
976 (H) x 494 (V)
Scanning Mode
2:1 interlace scan
Scanning Area
4.8 (H) x 3.6 (V) mm
Scanning Frequency
Horizontal: 15.734 kHz
Vertical: 59.94 Hz
Scanning
525 lines
Horizontal Resolution
650 TVL typical at color mode
700 TVL at B/W mode
Minimum Illumination
With standard Clear Dome Cover:

Color: 0.1 lux (SENS UP: OFF),
0.003 lux (SENS UP: 32x) at F1.4
B/W: 0.01 lux (SENS UP: OFF),
0.0003 lux (SENS UP: 32x) at F1.4

Signal-to-Noise Ratio
50 dB (AGC Off, Weight On)
White Balance
ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K), or AWC (2,000 ~ 10,000 K)
Light Control
ALC / ALC+
Automatic Gain Control
ON (HIGH / MID / LOW) / OFF
Super Dynamic 5
ON / ON (i-VMD) / OFF (with BLC masking 8 x 6 areas)
Dynamic Range
52 dB typical (Super Dynamic 5 ON)
Electronic Shutter
OFF (1/60), 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 s
Electronic Sensitivity UP
OFF / AUTO (2x, 4x, 6x, 10x, 16x, 32x) / FIX (2x, 4x, 6x, 10x, 16x, 32x)
Digital Noise Reduction (DNR)
High / Low
Black and White Mode
Mode: AUTO1 / AUTO2 / ON / OFF
Digital Zoom
ON (up to 2x) / OFF
Scene File
2 patterns
i-VMD
Video Motion Detection, Object Detection (Removal and Left Behind), Scene Change Detection
Privacy Zone
ON (Gray / Mosaic) or OFF
Auto Image Stabilizer
ON / OFF
Camera Titles
Up to 16 characters
Lens Mount
CS-mount
Back Focus Adjustment
ABF (AUTO / PRESET / FIX), MANUAL-ADJ
Synchronization
Internal (INT), Multiplexed Vertical Drive (VD2), Line-Lock (LL)
Lens
Focal Length: 3.8 to 8.0 mm, 2x varifocal
Angular Field of View: H: 35.6° (Tele) ~ 73.6° (Wide) / V: 26.6° (Tele) ~ 53.4° (Wide)
Maximum Aperture Ratio: 1 : 1.4 (Wide) ~ 1 : 1.8 (Tele)
Focusing Range: 3.9' (1.2 m) ~ ∞
Pan/Tilt
Panning Range: ±170°
Tilt Tilting Range: ±75°
Azimuth Range: ±100°
Input/Output
Video Output:
1.0 V [P-P] / NTSC composite
75 Ω / BNC Connector
Multiplexed VD2 and control data capable

Monitor Output:
1.0 V [P-P] / NTSC composite
75 Ω / RCA Jack
General
Dehumidification Device: Yes
Setup Method: OSD setup menu
Language: English, Russian (For setup menu and camera title), German, French, Italian, Spanish (For setup menu), Japanese (Only for camera title. Setup menu is in English.)
Safety/EMC Standard: UL (UL60065), FCC (Part15 ClassA), C-UL (CAN/CSA C22.2 No.60065), DOC (ICES003 ClassA)
Power
Power Source and Power Consumption:
24 V AC 60 Hz, 3.4 W, 14 W (with optional Heater Unit WV-CW5H)
12 V DC, 280 mA (Optional Heater Unit WV-CW5H cannot be used under 12 V DC operation)
Ambient Operating Temperature
14 to 122° F (-10 to 50° C)
With optional Heater Unit WV-CW5H: -22 to 122° F (-30 to 50° C)
Ambient Operating Humidity
90 % or less (without condensation)
Rating
Water and Dust Resistance: IP66, IEC60529 measurement standard compatible
Impact Protection
IEC 60068-2-75 test Eh, 50J
Dimensions
ø6-1/16 x 5-3/4" (H) / ø154 x 145.5 mm (H)
Weight
2.97 lb (1.35 kg)
