General
- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A

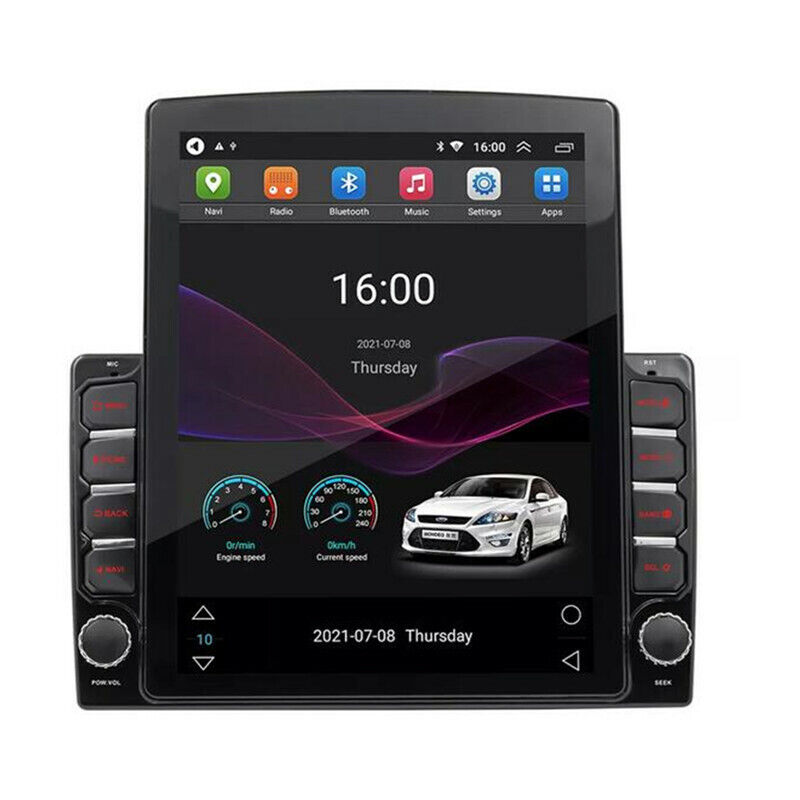

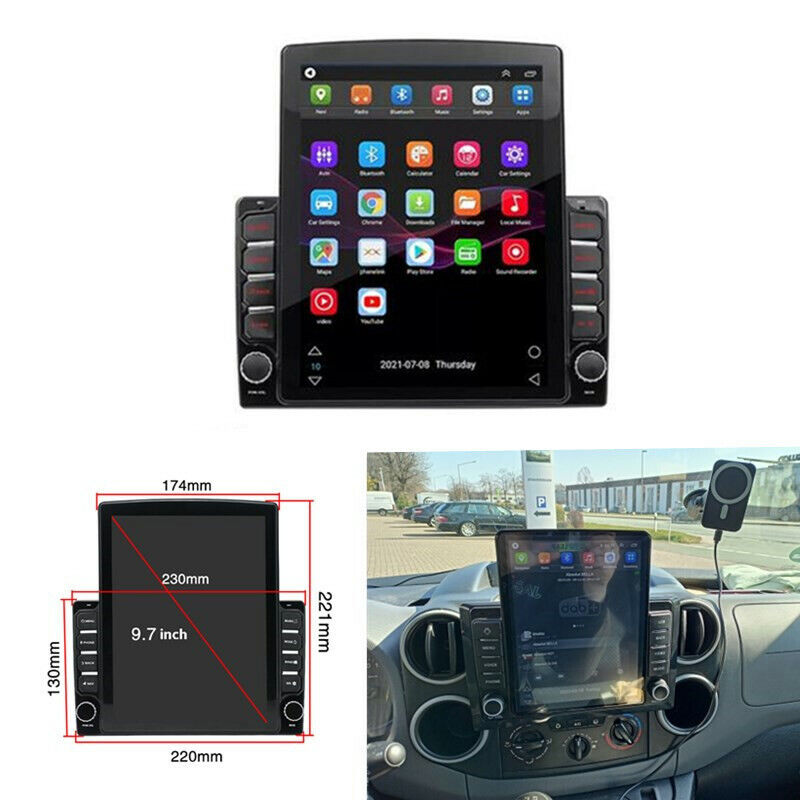

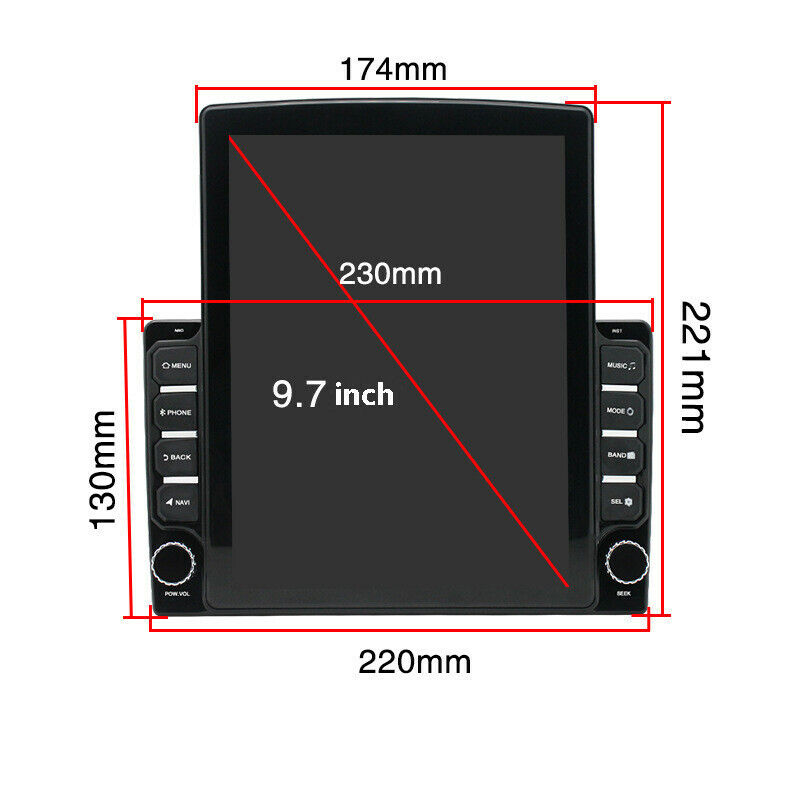

- Screen Size: 9.7 inch

Type
- Single Din

System
- Operation System: Android 8.1
- CPU: Quad Core
- GPU: Quad Core
- ROM: 16GB
- RAM: 1GB
- Extended USB: Support USB Disk up to 16GB

Display
- Touch Screen: Yes
- Resolution: 1024*600
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time
- Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Apps-Icon Position: Yes

WiFi
- Connector: On the Back
- WiFi: Built-in WiFi Modem, support 802.11b/g/n

Internet
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Google Maps Navigating
- Online Games: Yes, online play or you can download it from google play store
- Online Communication: WeChat, Twitter, Facebook, Skype, Gmail, Whatsapp etc.
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT

Audio
- Format: MP3/WMA/MP2/OGG/AAC/MA4/FLAC/APE/WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB

Video
- Format: Support AVI (H.264, DIVX, XVID), RM, RMVB, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG, DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP, MPG etc. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot

GPS
- Operation System: Android 8.1
- Support Maps: IGO, Sygic, Google Map etc.
- Voice Guidance: Yes
- Support 2D/3D Map Views: Yes
- Dual Zone: Yes, navigating while music playing
- Online Navi: Yes, support google maps online navigating

Bluetooth
- Hands Free: Yes
- A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
- Bluetooth Music Control: Yes, play/pause/previous/next
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Setup: Auto Answer, Auto connect, Device name
- Built-in Microphone: Yes, on the front panel

Radio
- AM Frequency Range: 522-1620KHz
- AM Increment: 9KHz(EU)/10KHz(US)
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- Preset Stations: 30(FM 3*6, AM 2*6)

USB
- Position: 2 USB Port, can be connected with Media/Camera/DAB  Box/Smartphone
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P

- Touch Music Title to play directly: Yes

Setup
- WiFi/Hotspot/Bluetooth: Yes
- Brightness level adjustable: Yes
- Wallpaper: Wallpapers/Live Wallpapers/Gallery
- Sound: Key Tone & Volume - Storage: Display Internal Storage/Nand Flash/Connected Device Storage
- Apps: Running Apps display/force stop/uninstall
- Security: Yes
- Accounts: Yes
- Languages and Input: more than 70 Languages and choose input method
- Backup and Reset: Yes
- Date and Time: Setting Date&Time by yourself or choose GPS/network-provided time
- Accessibility: Yes
- GPS: Yes, GPS application options/monitoring/sound mode/mixing ratio
- Steering Wheel Control: Yes
- About Device: Display Parameter Info.

Input
- AUX Video In
- Rear-View Camera Video In
- AUX Audio In: R/L
- DTV Box In
- DAB+ Box In
- Car DVR In
- GPS Antenna In

Output
- Video Out
- Audio Out: LF, LR, RR, RF
- Surround Stereo Out: 4*50W
- Subwoofer Out

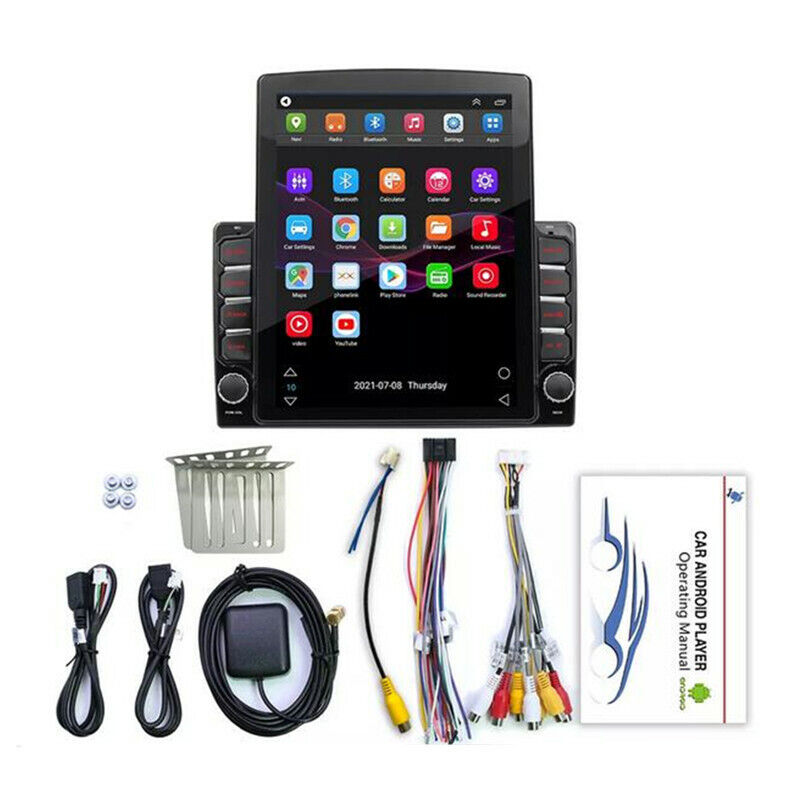

Accessories
-1 x Android Host
-1 x GPS Cable
-2 x USB Cable
-1 x Power Cable
-1 x RCA Cable
-1 x Camera Input Cable

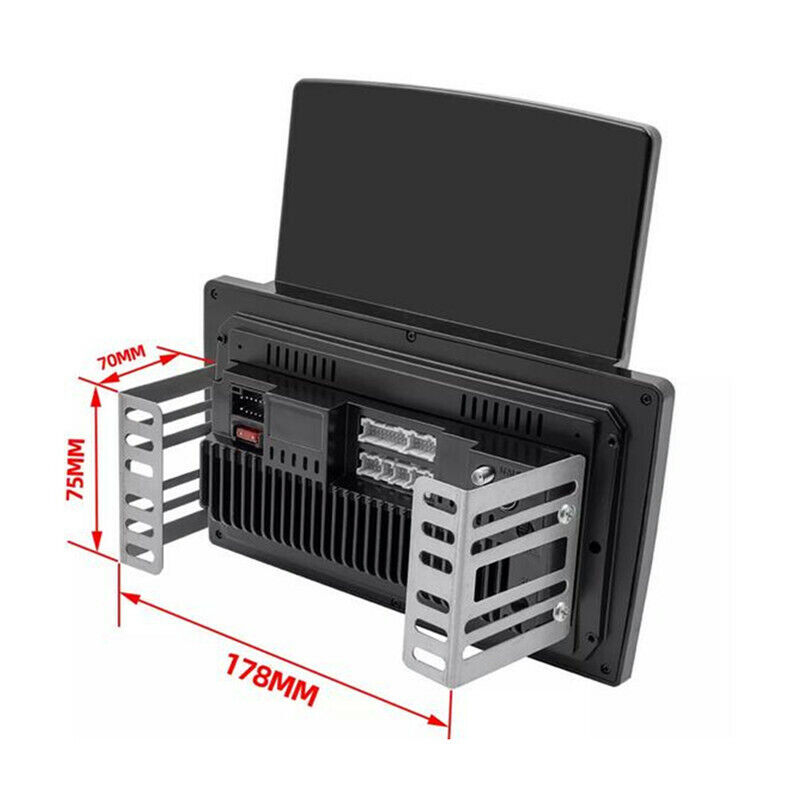

-2 x Mount Support
