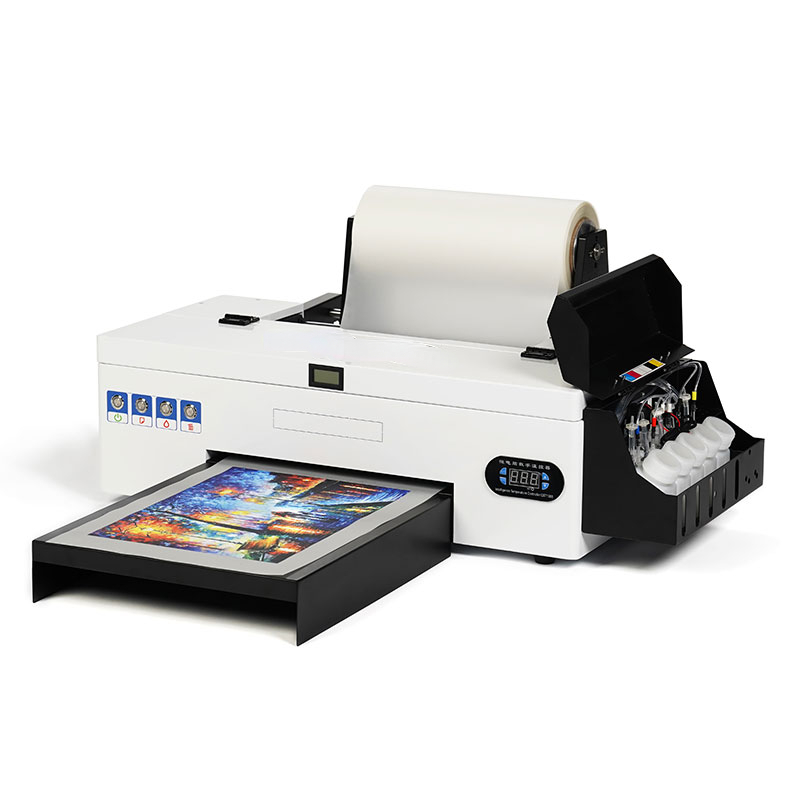

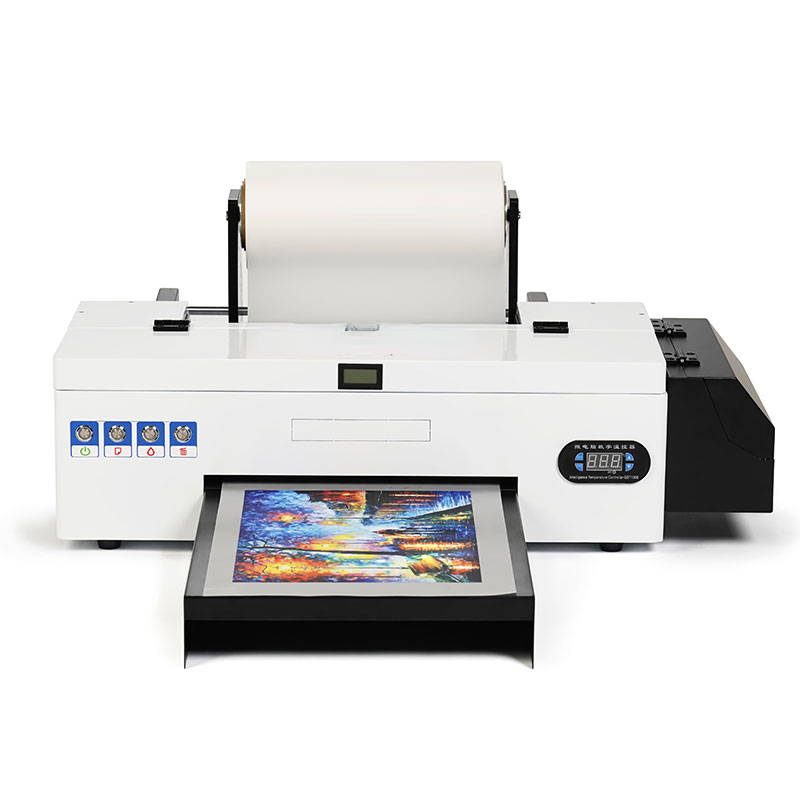

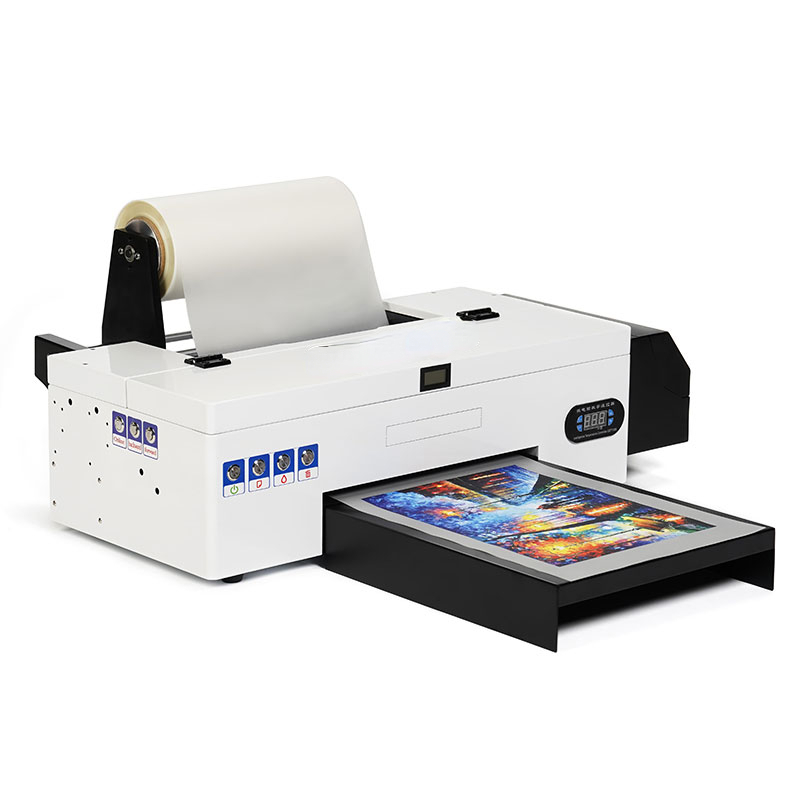

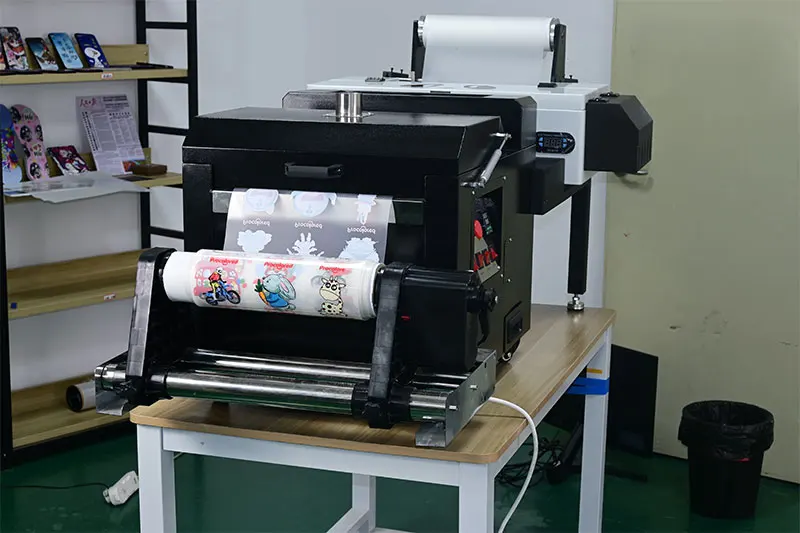

A3 DTF Printer T Shirt Printing Machine Epson L1800 R1390 DX5 Printhead Heat Transfer Film Printer With Automatic Powder Shaker



L1800 Major update


1. Using the new control board, when the command to clean the print head is sent, there will be no problem of ejecting paper



2. Increase the function of white ink circulation, so that the printer has dual functions of white ink stirring and white ink circulation at the same time, greatly reducing the situation of white ink clogging


Features:



Support up to 2880*2880DPI

More vivid colors
Minimum ink drop: 1.5pl, 6X90=540 nozzle holes

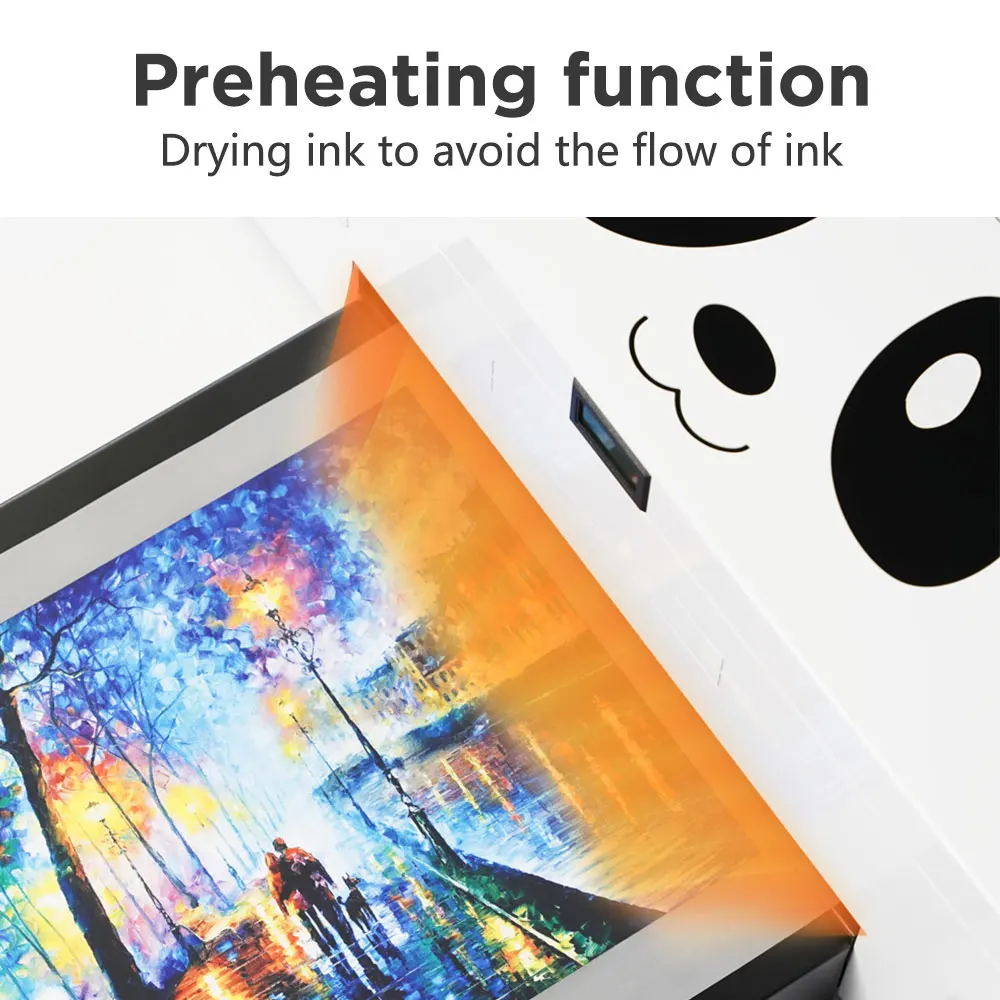

Preheating function

Drying ink to avoid the flow of ink

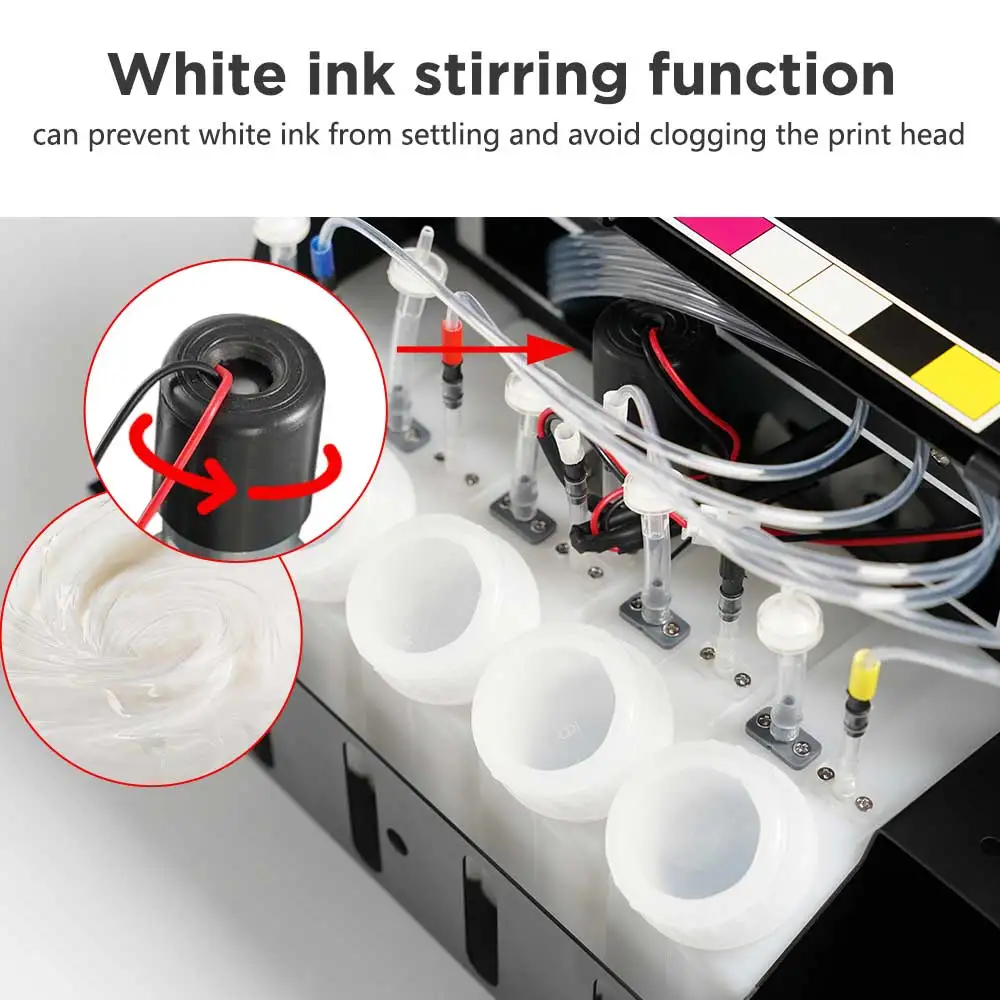

White ink stirring function

can prevent white ink from settling and avoid clogging the print head


White color at the same time;

white ink and color ink can be printed at the same time to improve printing efficiency


Automatic cleaning;

using RIP software, press F12 to automatically clean the print head

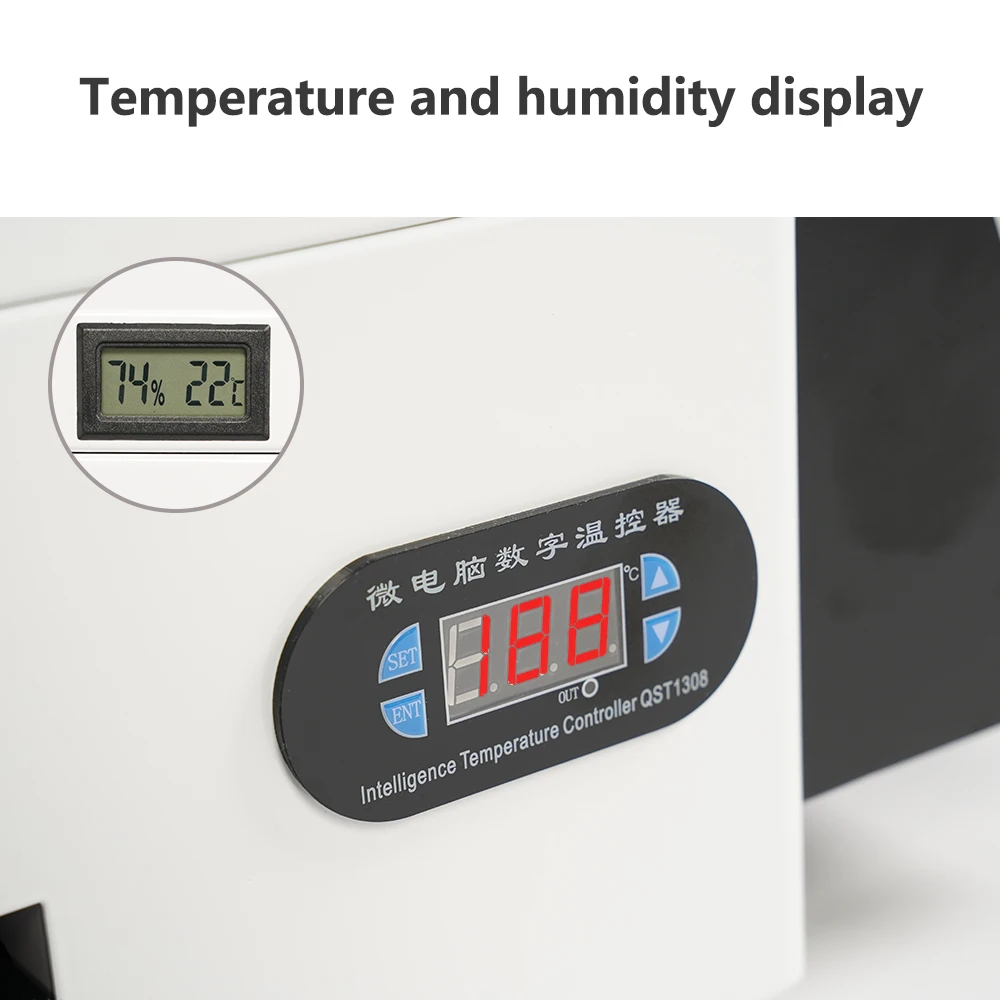

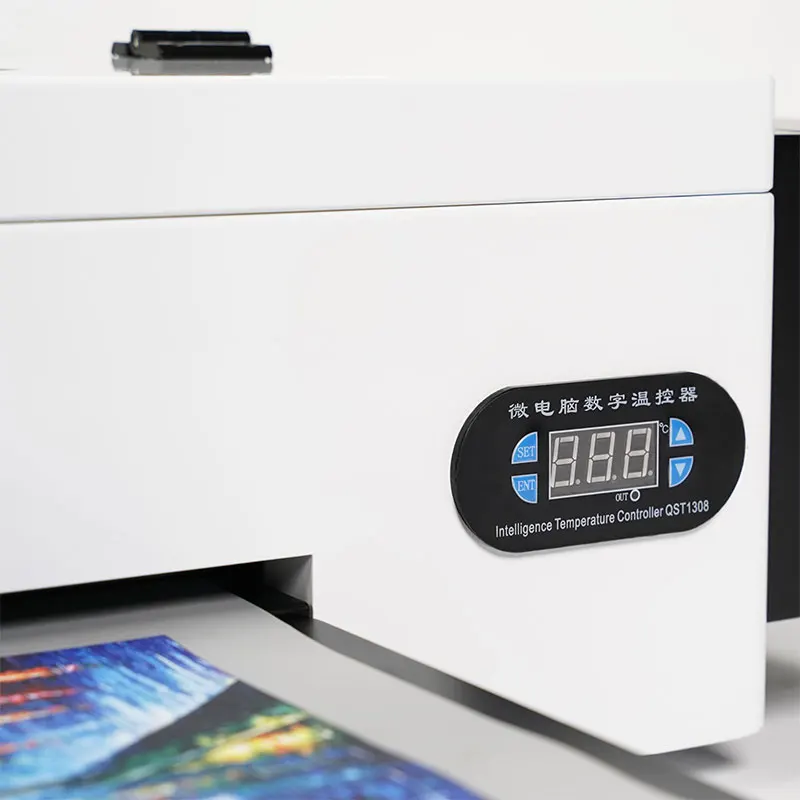

Temperature and humidity display

Best printing environment make print effect better
20- 30 degrees celsius. Humidity is 30- 40%


Ultra fast printing

A3 size, need to print 7 minutes; consume 20ml ink per square meter

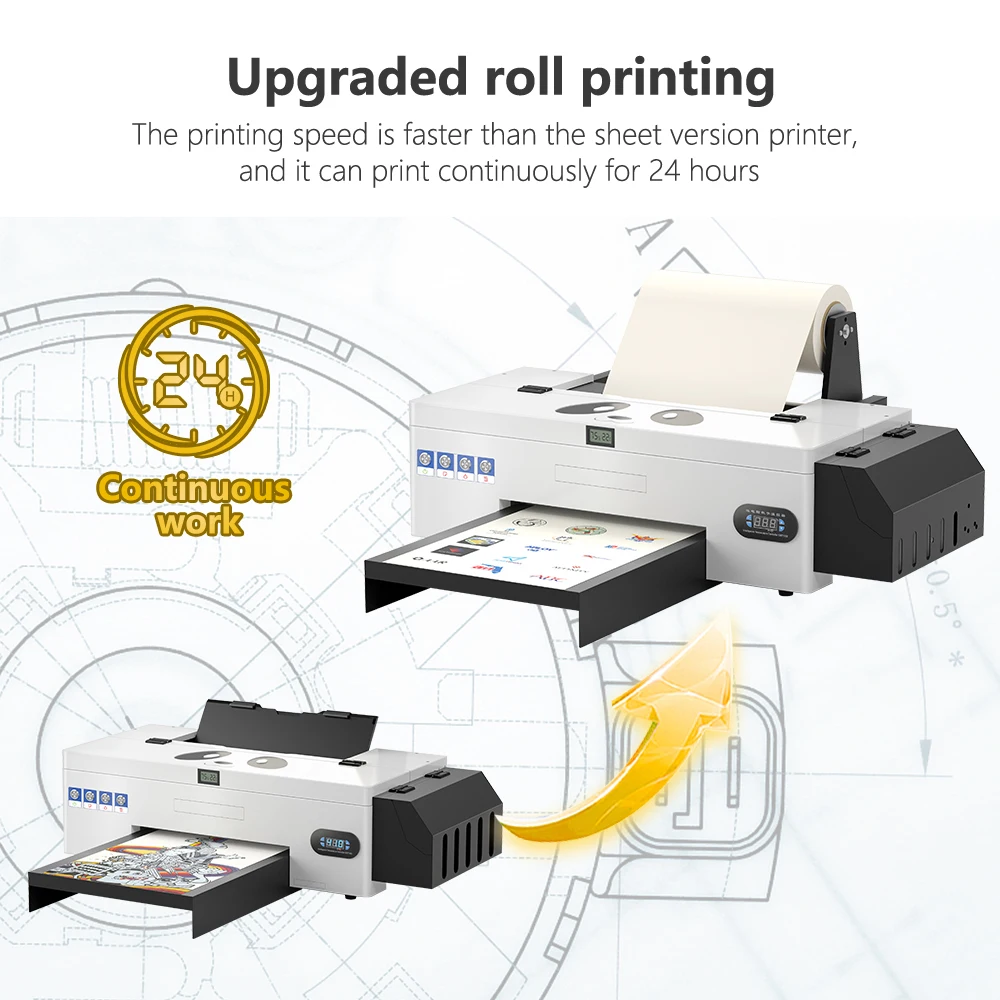

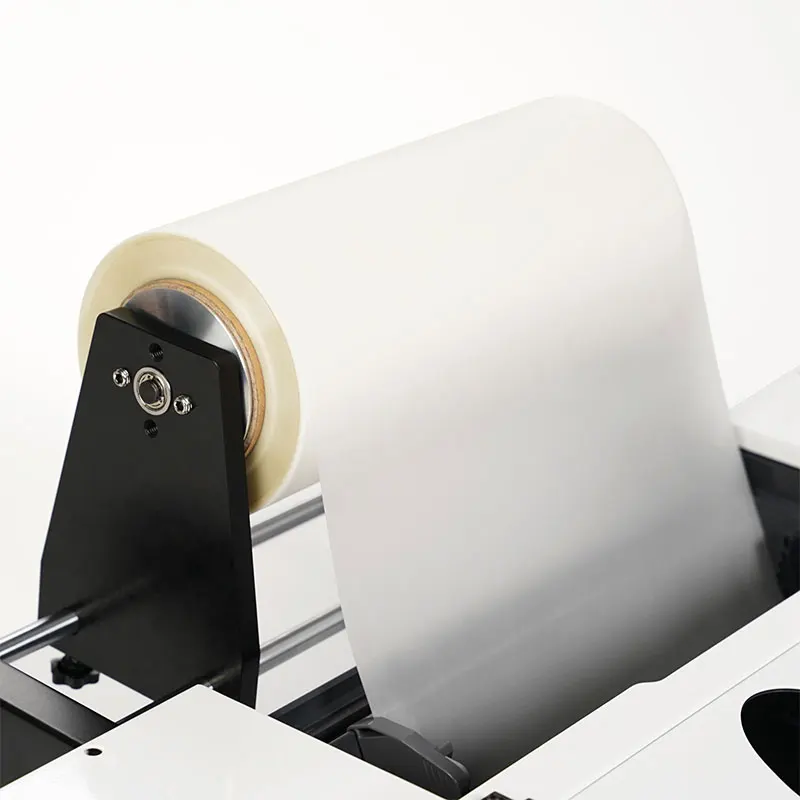

Upgraded roll printing

the printing speed is faster than the sheet version printer, and it can print continuously for 24 hours


Washable，NO FADE

The graphics transferred from our film to the t-shirt can be washed, we ensure that the graphics will not peel off and deform.


Stretchable

We have done hundreds of stretch tests, the pattern will not be deformed and broken

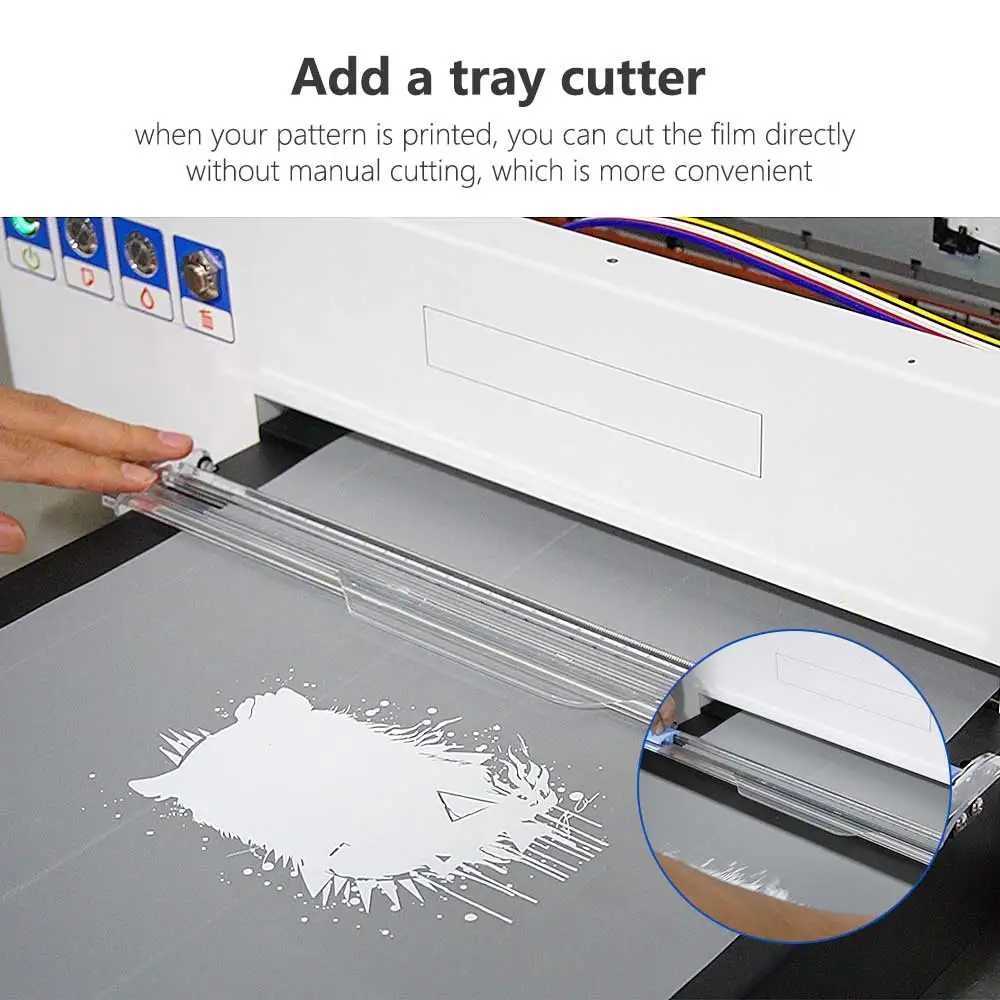

Add a tray cutter

when your pattern is printed, you can cut the film directly without manual cutting, which is more convenient


Steps to start printing every day


1. The maintenance cost of our printer is low. We will give you a maintenance device for free. The printer has the functions of white ink circulation, stirring and filtering, which can effectively avoid the clogging of the print head
2. If you are a beginner, it is the most economical choice to choose L1800 single-head printer. When you have some printing experience and your business is getting better and better, you can choose our double-head XP600 DTF printer

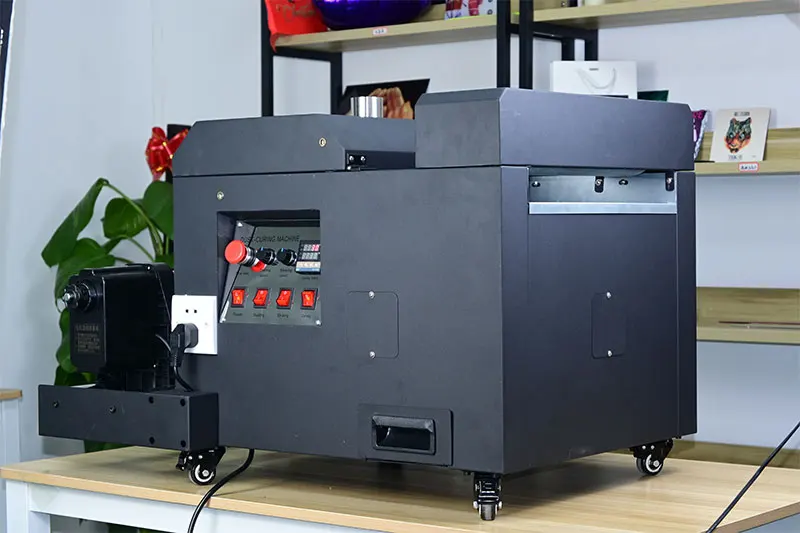

Powder Shaker Features：

1. Automatically shake the powder to dry. This Shaker & Dryer can help you greatly improve your DTF printing efficiency. Direct to Film printing is a revolutionary technology that not only reduces costs, but also increases the efficiency of custom production without the need for plate making. Suitable for DTF, silk screen, heat transfer business owners to carry out a new upgrade!

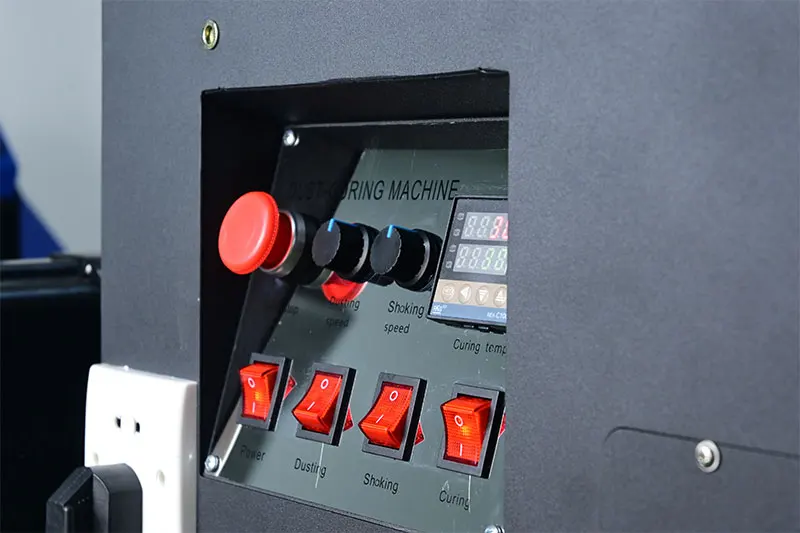

2. [Function] Shake powder control, dust removal control, curing temperature PID setting; far-infrared carbon fiber heating tube heating; automatic induction winding
Note: Only the blue powder shaker has automatic powder feeding and smoke filtering functions

3. [Easy to use] Large shaking width of 650mm; powder vibration and heating integrated machine for automatic induction winding.



How to choose the printerhead ?

1、R1390 Printer CMYKWw (6 color)

2、L1800 Printer CMYKWW (6 color)
If you are a newcomer, I recommend choosing L1800, L1800 has been upgraded, and it also has white ink stirring and circulation functions, which greatly reduces the risk of white ink clogging

3、DX5 Printer CMYKWwww (8 color)
This meeting will be a bit more expensive, but the printing speed and effect are the best.

4The price of DX5 is more expensive. Its print head and motherboard are the best. The print head has 8 channels, and each channel has 180 nozzles. The colors printed will be very bright, the effect will be very good, and the speed will be better.
The L1800 and R1390 nozzle has only 6 channels, and each channel has only 90 nozzles. L1800 motherboard is better than R1390
If you are a newcomer in this industry, I would recommend you to use L1800, which is more economical. If you have very high quality requirements, then you have to choose DX5.


Specification:



Model： DTF-1390、1800、DX5
Print precision： 1440*1440DPI
Print speed： A3 format (1440dpi/7min)
Ink consumption： 1 m2 / 20 ml
Ink supply mode： 6 colors with ink supply
White ink output： Support/white color with out
Stir in white ink： Yes
Voltage/plug： Depending on the country
Sprinkler protection： Ink absorber care fluid is anti-clogging.
Print media： Leather/textiles, etc
Warranty： One-year warranty [No warranty on parts that come into contact with ink (or parts damaged by ink)]
Print nozzles： Epson R1390, L1800, DX5
Print width： 297mm (L1800 is 330mm 13inch)
Software： prorip
Applicable systems： Windows
Color configuration： CMYK+WW
Heating function： Yes

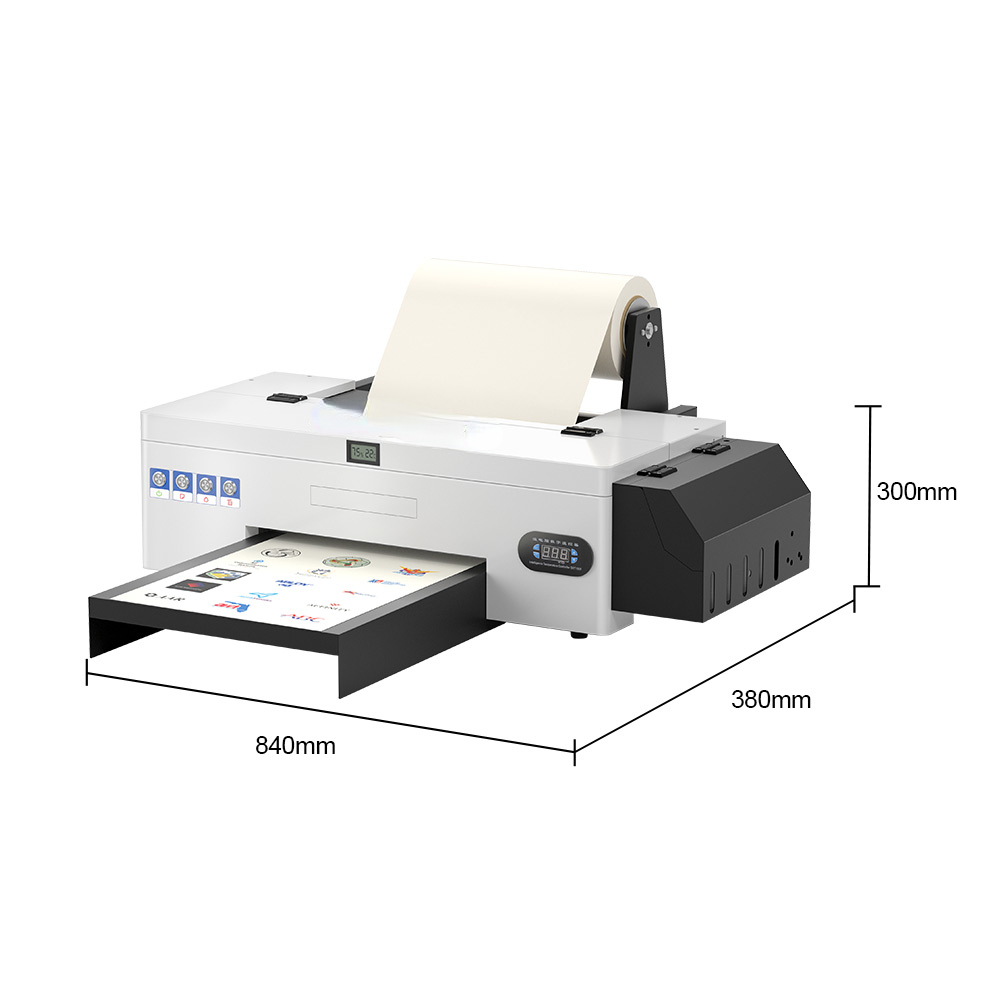

Packing size： 38*84*30(with oven 84*38*48cm)
Device size： 800*330*215
Net weight/gross weight： 20KG/28KG(with oven 38KG)
Outer packaging： Export wooden box (with forklift feet) + foam

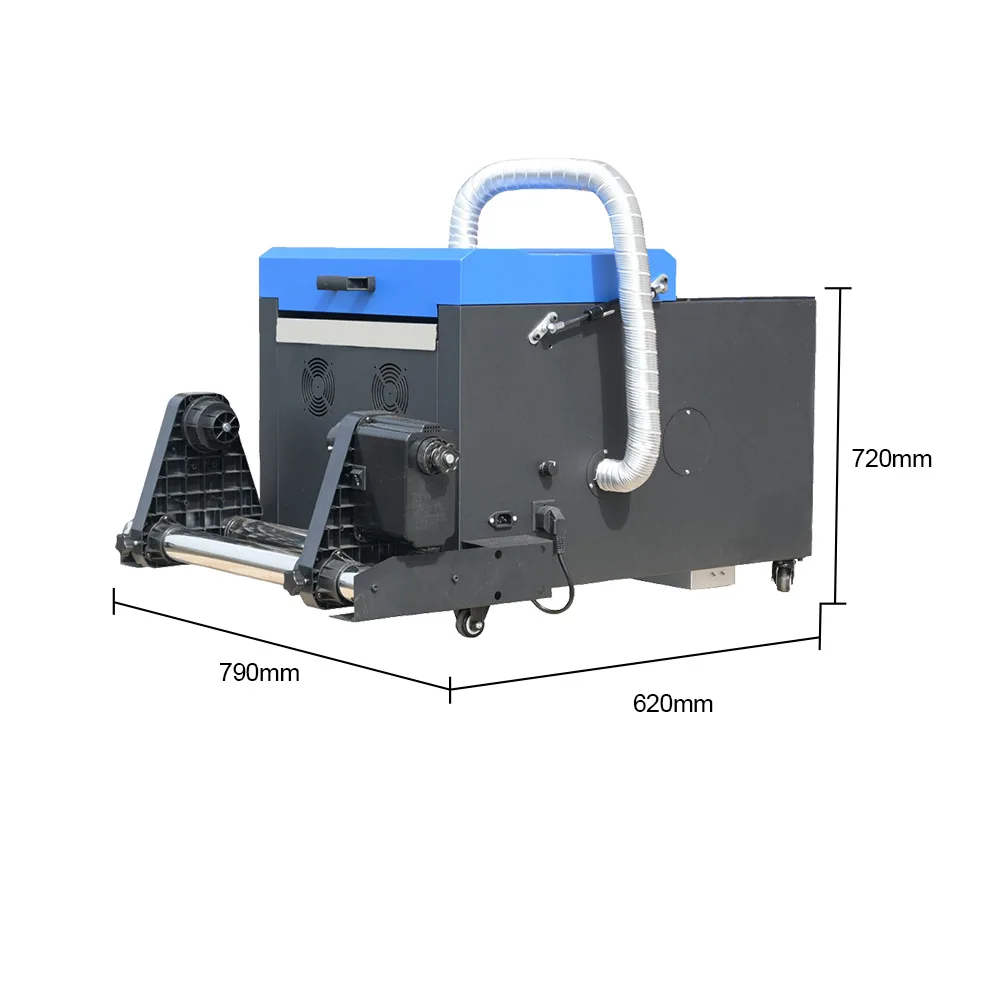

Powder Shaker Specifications：

Maximum width: (650mm);
Power: 1000W;
Powder shake mode: Motor powder.
Speed: Automatically adjusts to the speed of the printer
Temperature control: Temperature (0-150 °C)
Delivery mode: Automatic paper collection

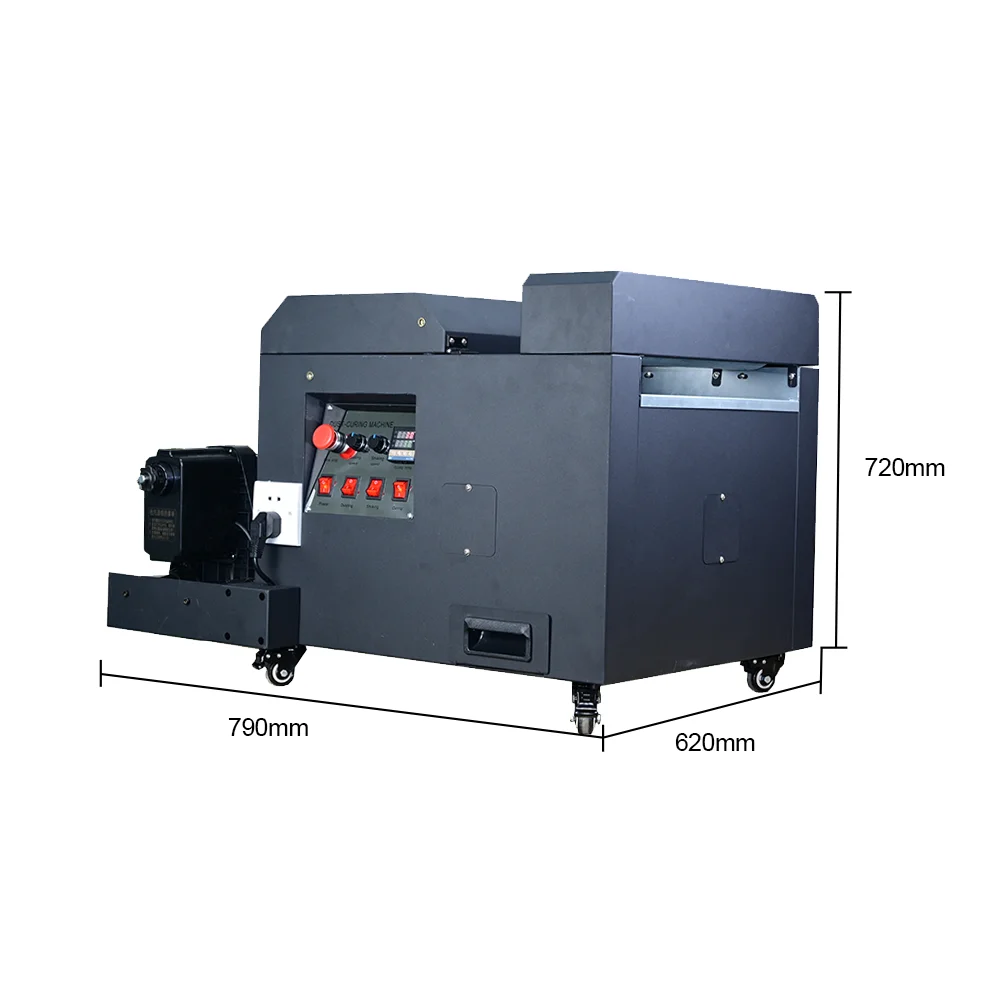

Machine Size: 950*650*550mm
Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Dving Suit, PVC, EVA, etc.


What is in the box？

DTF A3 Printer

DTF SHAKING POWDER DRYER

100M pet Film（30cm*100m）

Initial Ink Cmykw 250ml*5

Rip Software

Other Accessories

500 white powder (only US customers can get the powder for free, because we have a US warehouse, powder from other countries cannot pass customs and needs to be shipped with special logistics)



Printing step


What is DTF Printing?

The DTF process is as simple in its working as its name suggests – Print on a film and directly transfer it onto fabric. The most prominent factor that makes this process worthy of use across a larger number of people is the freedom to choose almost any fabric. Be it polyester, cotton, silk, or synthetic fibers like rayon or terrycot, the DTF printing process will work its magic on them.

Pre-requisites for DTF Printing

1. Direct to Film Printer
2. Films
3. Software
4. Hot-melt adhesive Powder
5. DTF Printing Inks
6. Curing Oven
7. Heat Press Machine

Direct to Film Printing (Basic Steps)

Step 1 – Print on Film

Step 2 – Powdering

Step 3 – Melting the powder

Step 4 – Pre-pressing

Step 5 – Transfer

Step 6 – Cold Peel


Sample Display



Product display
