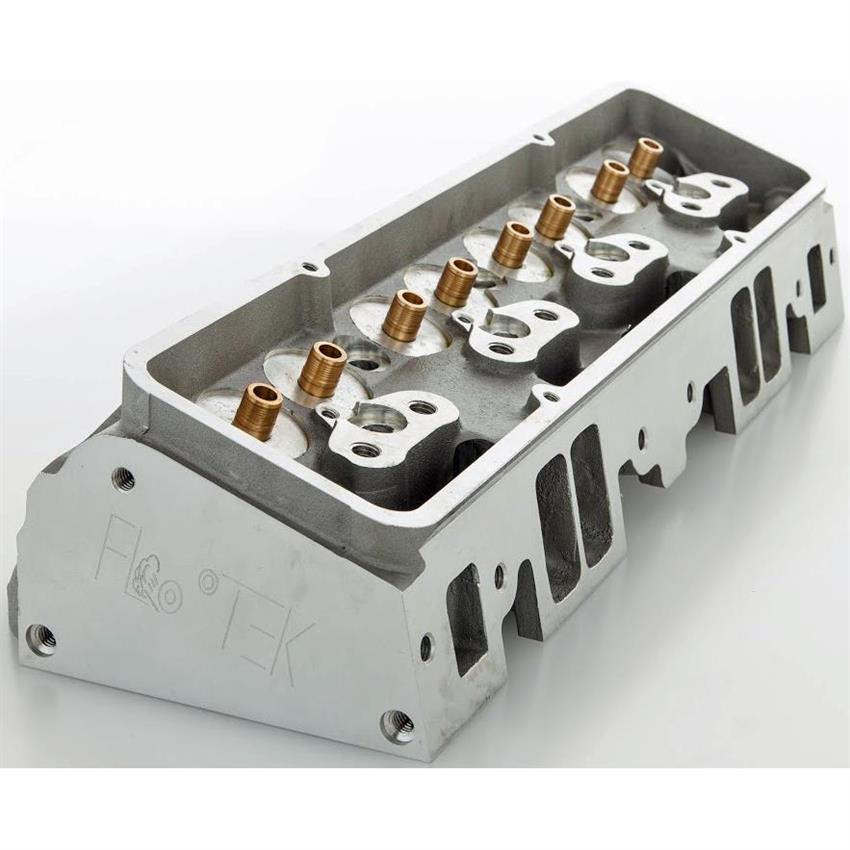

Breathe new life into your small block Chevy with a set of FloTek aluminum cylinder heads from Speedway Motors. If you're looking for a budget-conscious, yet proven, performance cylinder head to build upon, check out these bare cylinder heads from FloTek. Features like fast-burn combustion chambers, high-velocity ports, large-diameter spring pockets, and rugged construction make these heads the obvious performance platform for small block engines.
FloTek cylinder heads are designed for optimal airflow and performance on SBC engines with a 4.0" bore. Large 180cc intake runners, with an improved short-side radius, provide a rush of air into the cylinders, increasing torque. The key ingredient for big power, however, is the 64cc fast-burn combustion chambers. Air flows in and out of these chambers via a 3-angle valve job. A 62cc exhaust runner gets the spent gasses out. All told, these heads will flow 238 CFM @ .600" lift on the intake and 181 CFM @ .600" lift on the exhaust.
FloTek aluminum cylinder heads arrive packed full of standout features at an incredible value. At 20 lbs. apiece, the state-of-the-art aluminum alloy casting is a great base for any mild SBC build. FloTek cylinder heads are built with bronze valve guides, high nickel valve seats, milled and drilled ends for accessory bracket mounting, and are available in or angle spark plug configurations. Fully are also available for engines using flat-tappet cams up to .550" lift.
Features
- Heads are sold EACH
- Standard port location for use with most intake and exhaust manifolds
- 180cc intake port volume
- 62cc exhaust port volume
- 64cc fast-burn combustion chambers deliver big power
- 2.02” intake/1.60” exhaust valves
- 3-angle valve job enhances flow at low-to-mid lifts
- Intake flows 238 CFM @ .600” lift
- Exhaust flows 181 CFM @ .600” lift
- Accepts both perimeter and center bolt valve covers
- 1.560” max spring pocket diameter gives you many valve spring options
- High nickel powdered metal valve seats provide optimum heat transfer and wear characteristics
- Manganese bronze valve guides reduce friction
- Valve guides are compatible with all common valve materials and fuels
- Machined for 3/8” screw-in rocker arm studs and guide plates (not included)
- Blocked exhaust heat riser manifold crossover port
- 3/8” NPT coolant temperature probe port
- Designed for 4" bore small block Chevy engines (302/327/350/383)
I will be definitely purchasing another set of these heads!
Summary: I found these heads well built, and properly machined for use with a typical sbc build, I mounted them up in my mill and drilled them for a vortec intake. Engine runs awesome and there is plenty of material for porting. Definitely very happy with this purchase. Priced Right and better than a standard cast iron set.
Yes, I recommend this product.
