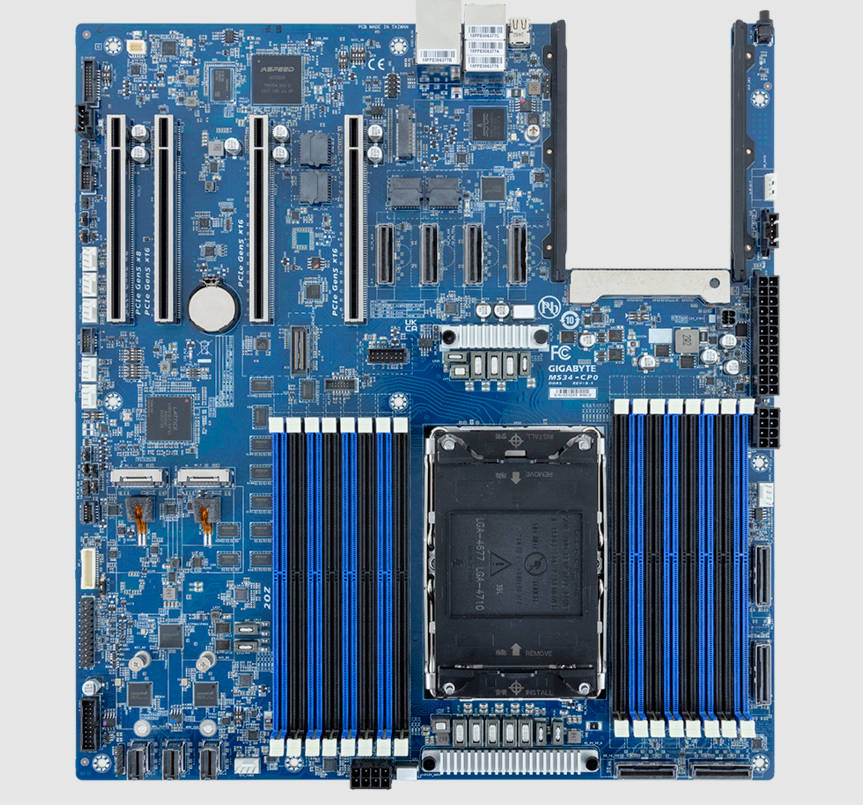

Gigabyte MS34-CP0 LGA4710 Intel Xeon 6 CPU(6700/6500-Series) TDP up to 350W

Product Description

Parameter
Details
Release Time
2024-06-12 00:00:00
Product Model
MS34-CP0 (rev. 1.x) - Server Motherboard
Form Factor
E-ATX (304.8 x 330.2 mm)
Supported Processors
Intel® Xeon® 6 Processors (6700-Series, 6500-Series), Single processor, TDP up to 350W
Socket
1 x LGA 4710 (Socket E2)
Memory Type
16 x DIMM slots, DDR5 memory supported, 8-Channel memory per processor, MRDIMM supported [1], RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC), MRDIMM: Up to 8000 MT/s
Integrated Network
2 x 1Gb/s LAN (1 x Broadcom® BCM5720), Support NCSI function, 1 x 10/100/1000 Mbps Management LAN
Integrated Video Controller
Integrated in ASPEED® AST2600, 1 x Mini-DP
Storage Interface
MCIO: 2 x MCIO 8i for 4 x Gen5 NVMe; SlimSAS: 3 x SlimSAS 4i for 12 x SATA 6Gb/s [1]; M.2: 1 x M.2 (2280/22110), PCIe Gen5 x2, 1 x M.2 (2280/22110), PCIe Gen5 x2, shared with SATA
Support RAID Function
Onboard VROC key header
PCIe Expansion Slots
Slot_6: PCIe x16 (Gen5 x16); Slot_4: PCIe x16 (Gen5 x16); Slot_2: PCIe x16 (Gen5 x16 or x8), shared with Slot_1; Slot_1: PCIe x16 (Gen5 x8); 1 x OCP NIC 3.0 (Gen5 x16), Supports NCSI function; 2 x MCIO 8i (Gen5 x8); 6 x MCIO 8i (Gen5 x8) [1]
On-Board Connector
1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x 4-pin 12V standby power connector, 1 x CPU fan header, 6 x System fan headers, 1 x USB 3.2 Gen1 x2 header, 2 x M.2 slots, 8 x MCIO 8i connectors, 3 x SlimSAS connectors, 1 x VROC connector, 1 x NCSI connector, 1 x Front panel header, 1 x Backplane board header, 1 x COM header, 1 x PMBus header, 1 x IPMB header, 1 x TPM header, 1 x PRoT connector (only enabled on RoT SKU)

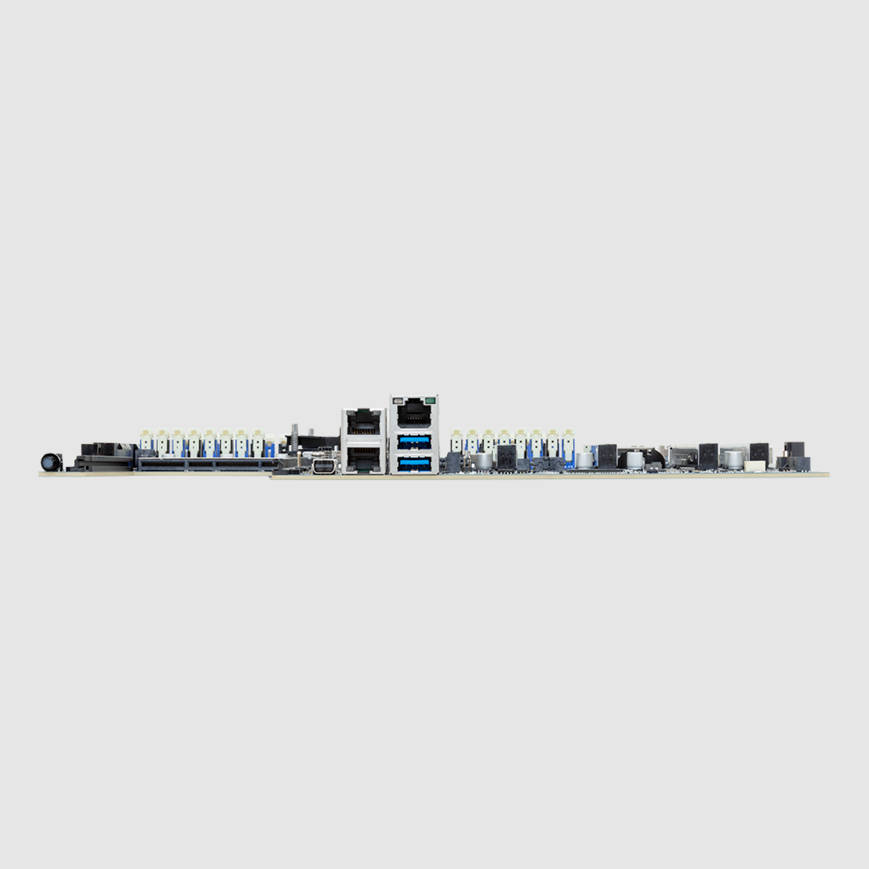

Rear I/O Connectors
2 x USB 3.2 Gen1 ports (Type-A), 1 x Mini-DP, 2 x RJ45 ports, 1 x MLAN port, 1 x ID button with LED
Security Modules
1 x TPM header with SPI interface, Optional TPM2.0 kit: CTM012; 1 x PRoT connector (only enabled on RoT SKU)
Server Management
ASPEED® AST2600 Baseboard Management Controller, GIGABYTE Management Console web interface, Dashboard, HTML5 KVM, Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.), Sensor Reading History Data, FRU Information, SEL Log in Linear Storage / Circular Storage Policy, Hardware Inventory, Fan Profile, System Firewall, Power Consumption, Power Control, Advanced power capping, LDAP / AD / RADIUS Support, Backup & Restore Configuration, Remote BIOS/BMC/CPLD Update, Event Log Filter, User Management, Media Redirection Settings, PAM Order Settings, SSL Settings, SMTP Settings
PSU Connector
1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x 4-pin 12V standby power connector
Operating Temperature
10°C to 40°C
Operating Humidity
8-80% (non-condensing)
Non-operating Temperature
-40°C to 60°C
Non-operating Humidity
20%-95% (non-condensing)

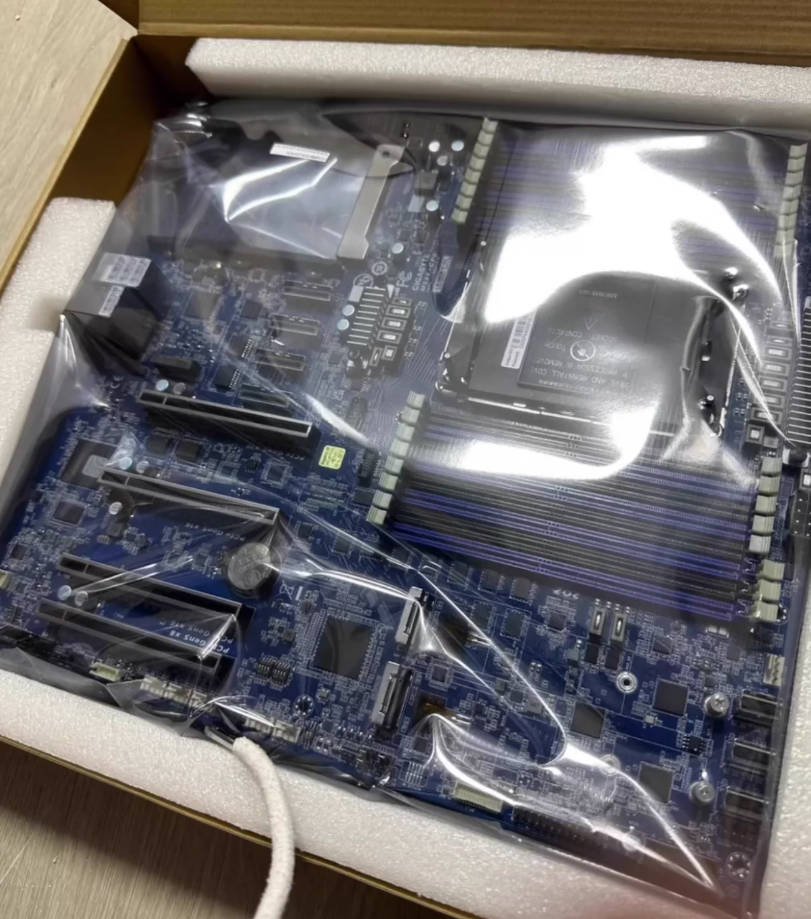

Packaging Bundle
1 x MS34-CP0, 1 x I/O shield, 1 x Quick start guide, 1 x Mini-DP to D-Sub cable, 2 x Carriers, Single Box dimensions: 409 x 355 x 78 mm, Carton dimensions: 729 x 415 x 432 mm, Quantity: 10 x single boxes in one carton
Ordering Information
Retail: 9MS34CP0MR-000-1*; Bulk: 9MS34CP0NR-000-1*
