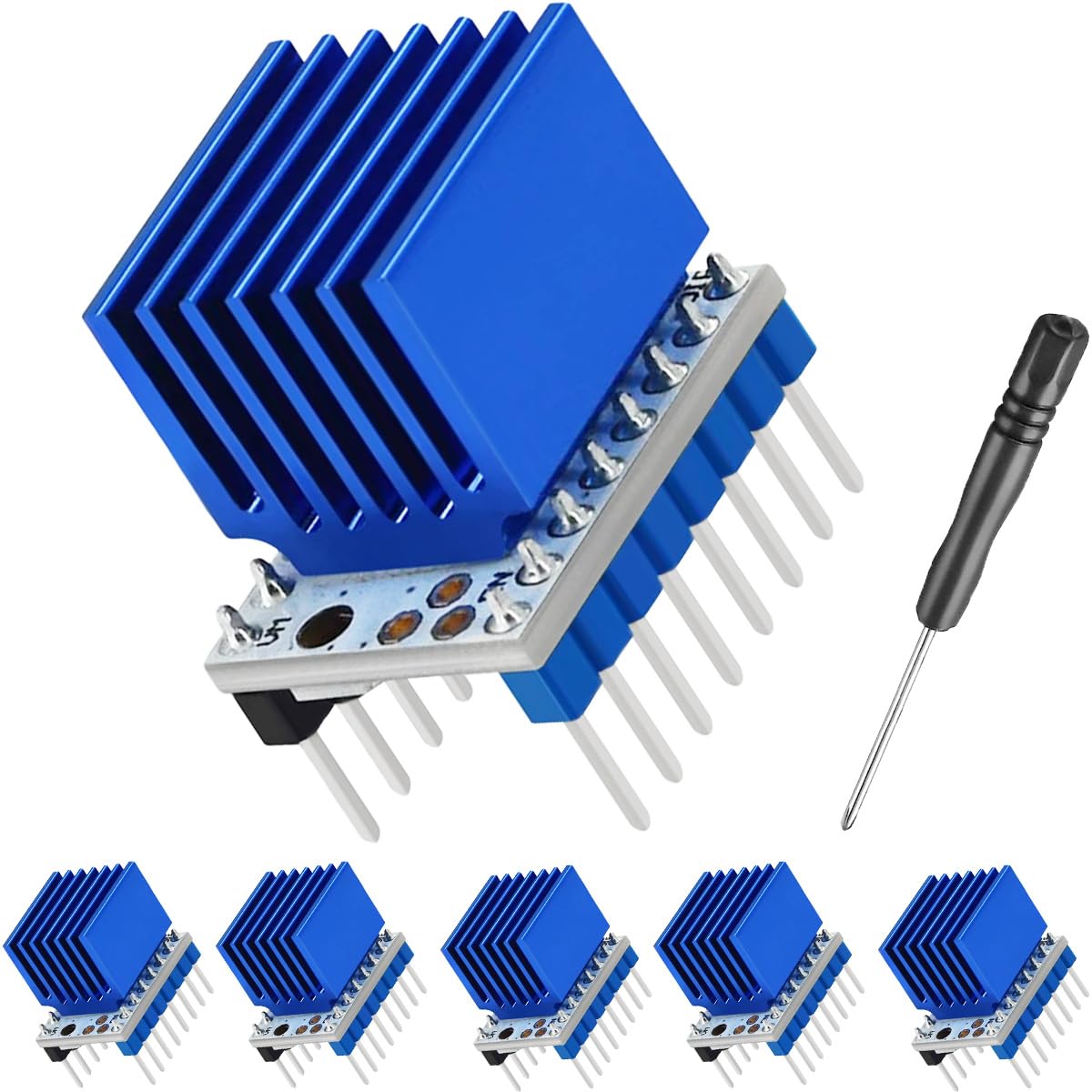

3D Printer Stepper Motor Driver Module TMC2208 V1.2 with Heat Sink Screwdriver for 3D Printer Controller Mother Boards Reprap MKS Prusa i3 Ender-3 Pro, pack of 6



Features


  • WHAT IT DOES: TMC2208 V1.2 is an ultra-quiet two-phase stepper motor drive chip.The flexible microPlyer interpolation unit provides up to 256 subdivisions, allowing perfect sinusoidal control even in systems with limited pulse frequencies
  • ‌SILENT DRIVE TECHNOLOGY‌: Using the StealthChop2 chopping algorithm to achieve nearly silent motor operation, suitable for noise-sensitive scenarios (such as 3D printers, medical equipment)
  • HIGH COMPATIBILITY: Supports UART serial port configuration and can directly replace common driver modules (such as A4988) without modifying the hardware
  • FUNCTION: It can replace the original TMC2100 A4988 DRV8825 LV8729, lower heat, especially for 3D printing market
  • VOLTAGE AND CURRENT: Continuous drive current 1.4A, peak current 2A, voltage range 4.75V-36V
  • APPLICATIONS: Widely used in 3D printer controller motherboard Reprap MKS Prusa i3 Ender-3 Pro
  • PACKAGE INCLUDES: 6 x TMC2208 V1.2 Stepper Motor Driver module;6 x Heat Sink;1 x Screwdriver
  •

    Item Description


    The TMC2208 V1.2 is an ultra-quiet two-phase stepper motor drive chip.The flexible microPlyer interpolation unit provides up to 256 subdivisions, allowing perfect sinusoidal control even in systems with limited pulse frequencies.These are also designed because stealthChop2 ultra-quiet technology is widely used in 3D printing.

    Specifications :
    Interface: Step/Dir
    Configuration: CFG Pins or UART
    Native Microsteps: up to 1/256
    MicroPlyer Microsteps: 1/256
    Logic Voltage (VIO): 3-5V
    Motor Voltage (VM): 4.75-36V
    Motor Phase Current max: 1.2A RMS, 2.0A Peak

    Note :
    1.TMC2208 V1.2 driver needs extra fan to cool it, otherwise the high temperature may destroy it.
    2.Don't connect the motor when measuring the voltage, otherwise it is easy to burn the driver.
    3.Power should be connected when measuring voltage, do not just connect USB power supply.

    Package Includes:
    6 x TMC2208 V1.2 Stepper Motor Driver module
    6 x Heat Sink
    1 X Screwdriver
