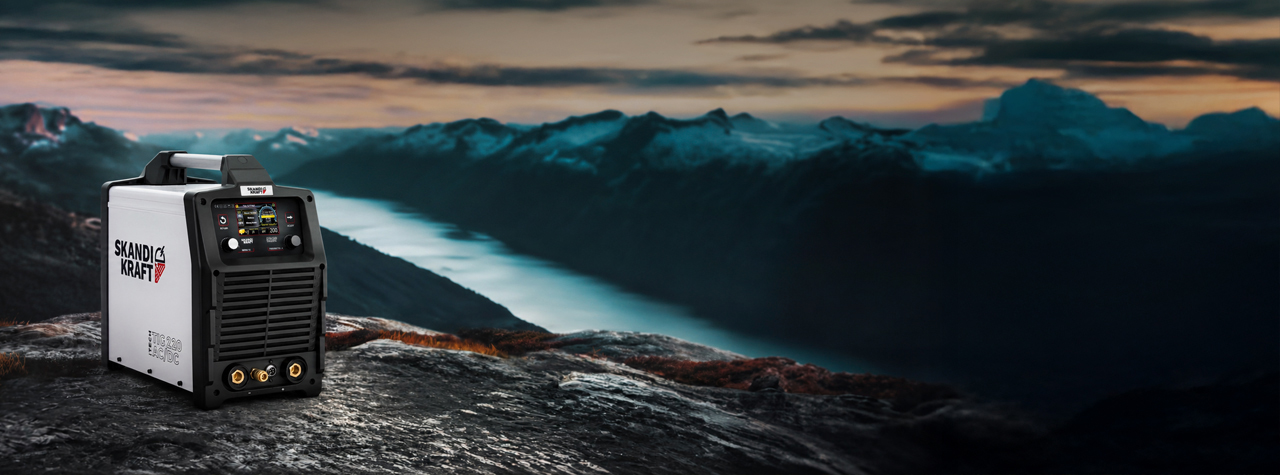

The SKANDI KRAFT iTECH TIG 220 AC/DC delivers precise TIG AC/DC welding with intelligent TIG AUTO technology for automatic parameter adjustment. The compact design, 3.5-inch LCD display, as well as HF TIG, LIFT TIG and MMA functions ensure comfortable and efficient operation – both in the workshop and for mobile applications.
Precise TIG AC/DC welding with intelligent TIG AUTO technology, compact design and a modern LCD display. Ideal for efficient work in workshops and mobile applications.

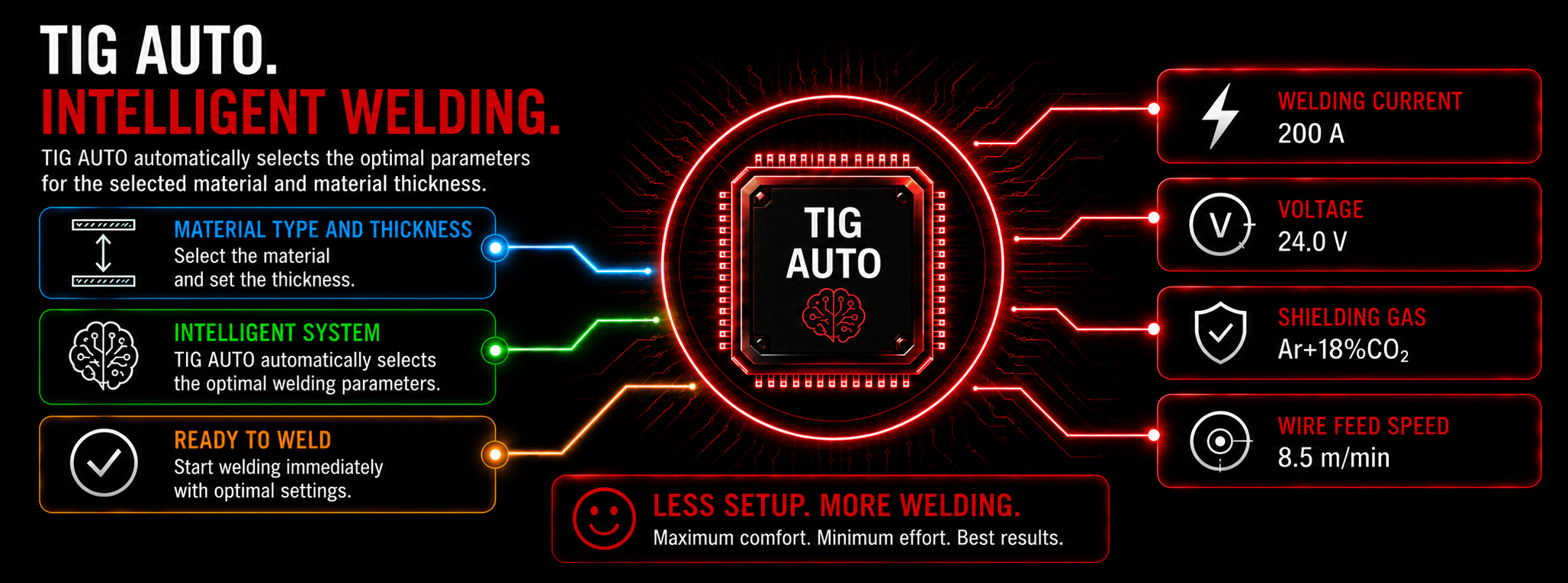

Intelligent TIG AUTO technology – The machine automatically adjusts welding parameters to material type and thickness, making precise work easier even for demanding applications.

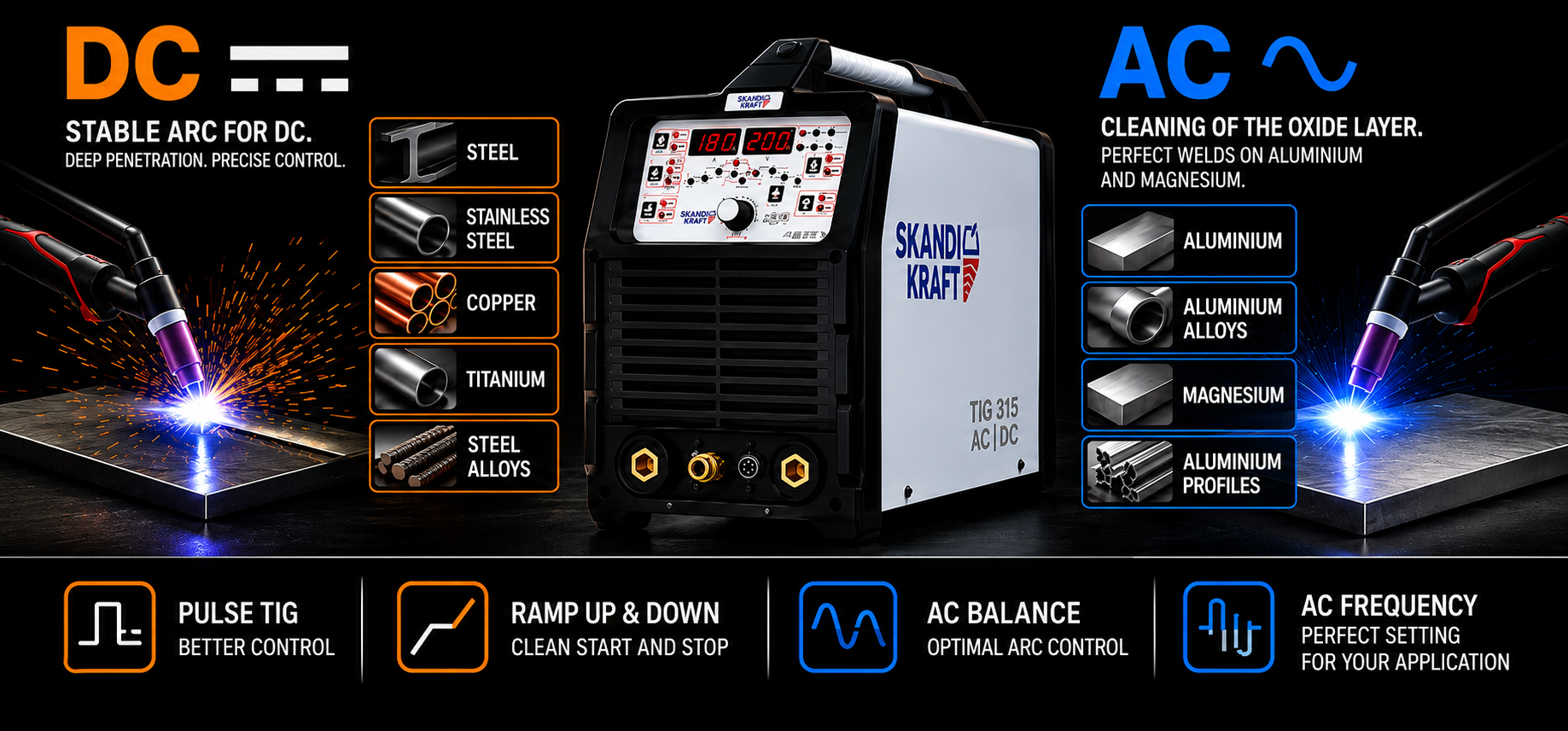

Precise TIG AC/DC welding – Ideal for welding steel, stainless steel and aluminium with stable arc control and a clean weld appearance.
Compact design with LCD display – The modern 3.5-inch LCD display ensures clear operation, while the compact design provides maximum mobility.
Versatile welding functions – Supports HF TIG, LIFT TIG and MMA, making it suitable for workshop work, installation jobs and professional applications.
Intelligent TIG AUTO technology – The machine automatically adjusts welding parameters to material type and thickness, making precise work easier even for demanding applications.
Precise TIG AC/DC welding – Ideal for welding steel, stainless steel and aluminium with stable arc control and a clean weld appearance.
Compact design with LCD display – The modern 3.5-inch LCD display ensures clear operation, while the compact design provides maximum mobility.
Versatile welding functions – Supports HF TIG, LIFT TIG and MMA, making it suitable for workshop work, installation jobs and professional applications.
KEY BENEFITS

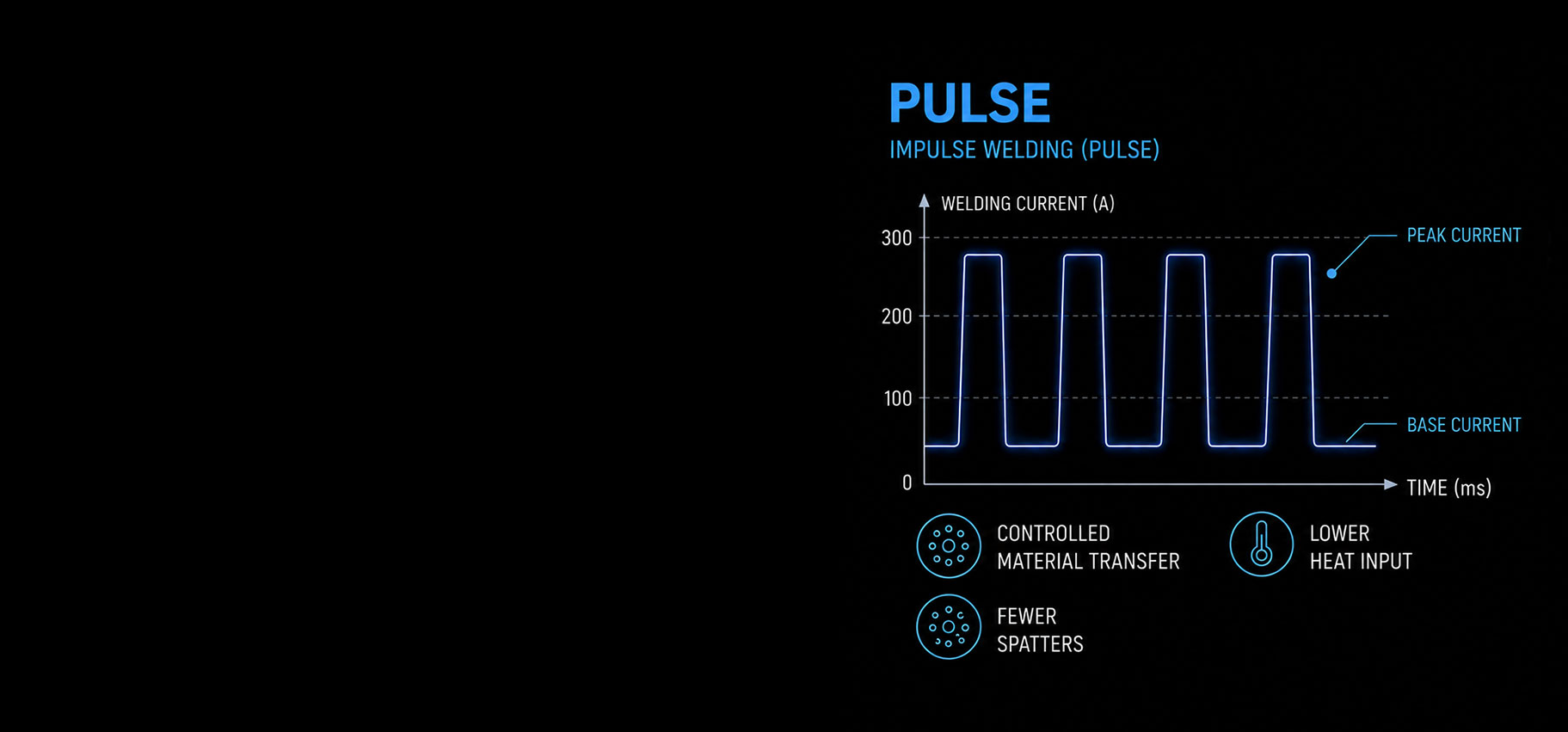

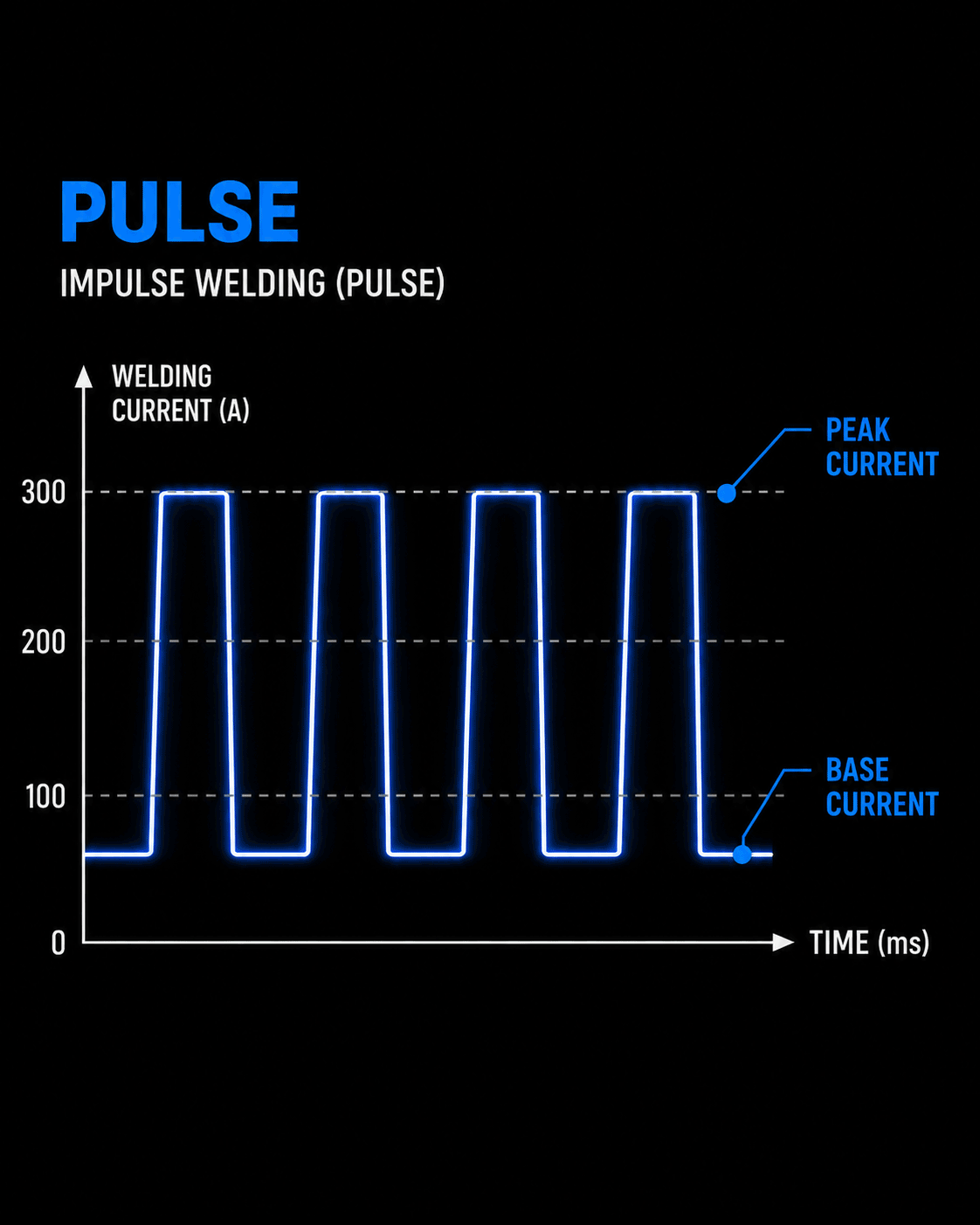

The PULSE function uses a pulsed current waveform to provide a stable arc, controlled material transfer and reduced spatter. Reduced heat input improves weld quality and makes welding thin materials, stainless steel and aluminium easier.
PULSE provides a stable arc, reduced spatter and clean welds – ideal for stainless steel, aluminium and thin materials.

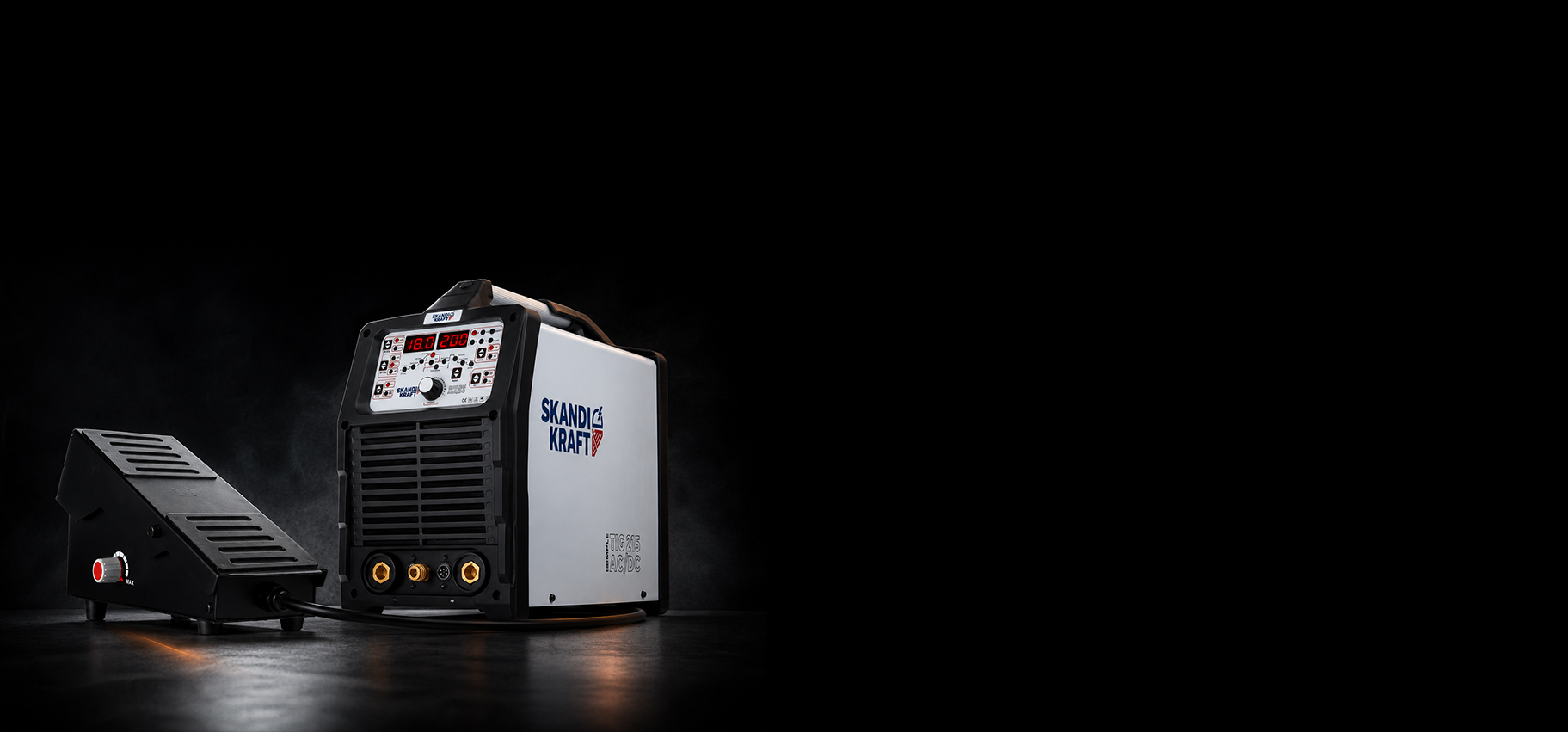

Connecting a foot pedal allows smooth adjustment of the welding current without removing your hands from the torch. This gives the user maximum arc control, greater working comfort and improved precision – especially when welding aluminium and thin materials.
The optional foot pedal enables smooth current adjustment for maximum arc control and precision, especially when welding aluminium and thin materials.
The integrated FAN-STOP mode increases efficiency and comfort. The fan operates only when required, reducing energy consumption and noise levels. At the same time, dust ingress is reduced, extending the service life of the machine.
The integrated FAN STOP mode reduces noise and energy consumption by running the fan only when needed, while also extending the machine's service life.

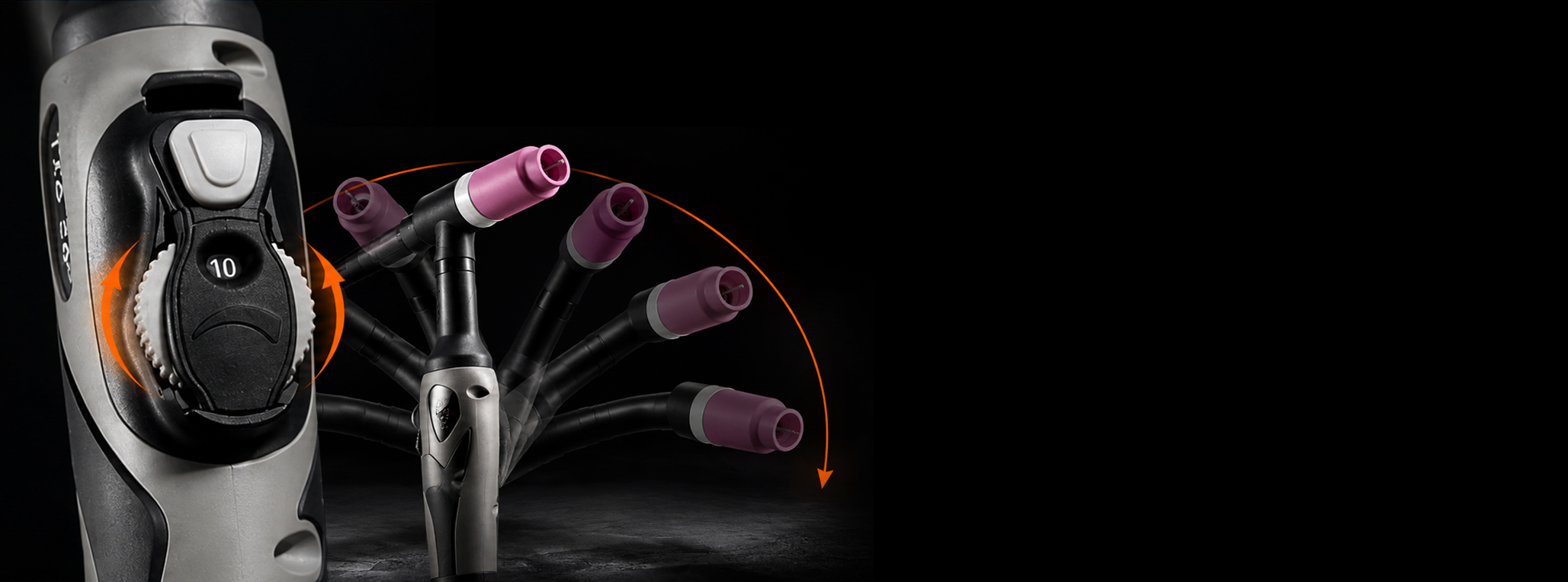

The TIG SR26 FLEX torch allows convenient current adjustment directly from the handle, enabling precise control during welding. Thanks to the flexible torch head, it is ideal for working in hard-to-reach areas while providing excellent comfort and maximum freedom of movement.
The TIG SR26 FLEX torch enables current adjustment directly from the handle for precise welding control. The flexible torch head makes welding in hard-to-reach areas easier and provides excellent working comfort.

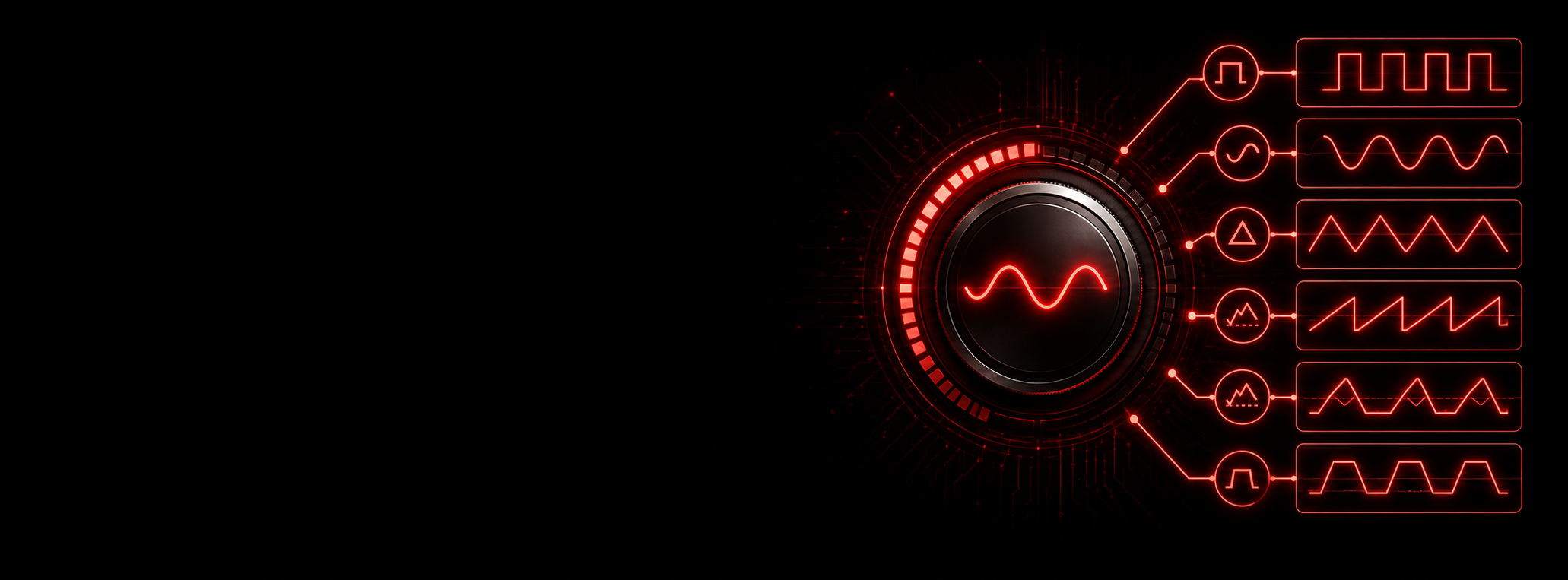

The selection of up to 6 AC waveforms allows optimal adjustment of arc characteristics to the material and working style. This makes aluminium welding more precise, stable and comfortable, while also providing better control over heat input and weld appearance.
The selection of 6 AC waveforms enables precise and stable aluminium welding with optimum control over the arc and heat input.

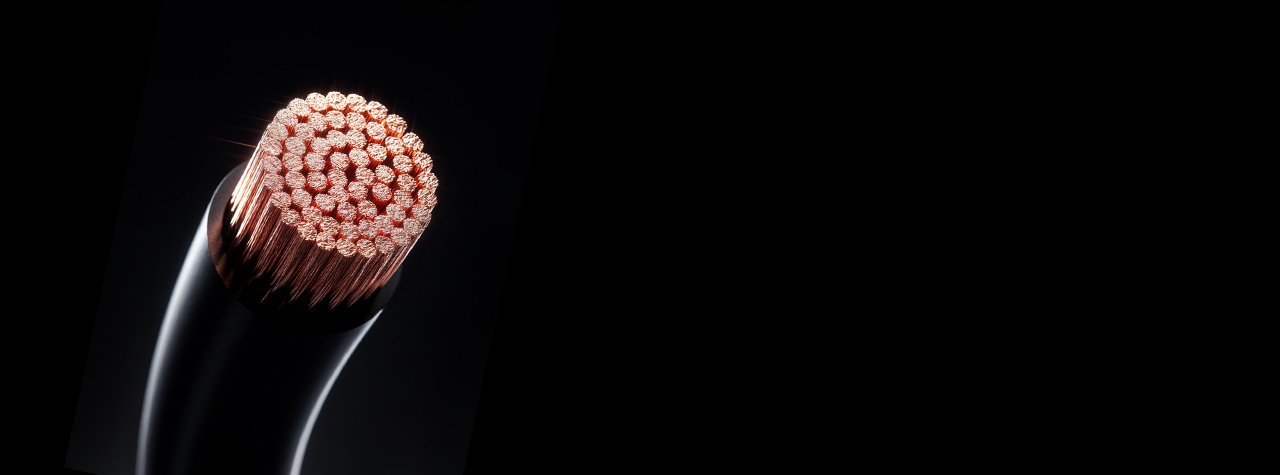

The electrode holder and earth clamp included in the set are equipped with high-quality pure copper cables with a cross-section of up to 25 mm². This is a major advantage over many competing products that use cheaper aluminium cables or cables with a smaller cross-section. As a result, you benefit from better current conductivity, increased durability and a more stable arc, directly improving comfort and welding quality.
The electrode holder and earth clamp are equipped with high-quality 25 mm² copper cables. Compared with cheaper aluminium cables, they provide better current conductivity, increased durability and a more stable arc.
The TIG HF ignition system enables non-contact and clean arc starting for maximum precision and comfort.
The TIG HF ignition system enables non-contact and clean arc starting for maximum precision and comfort.

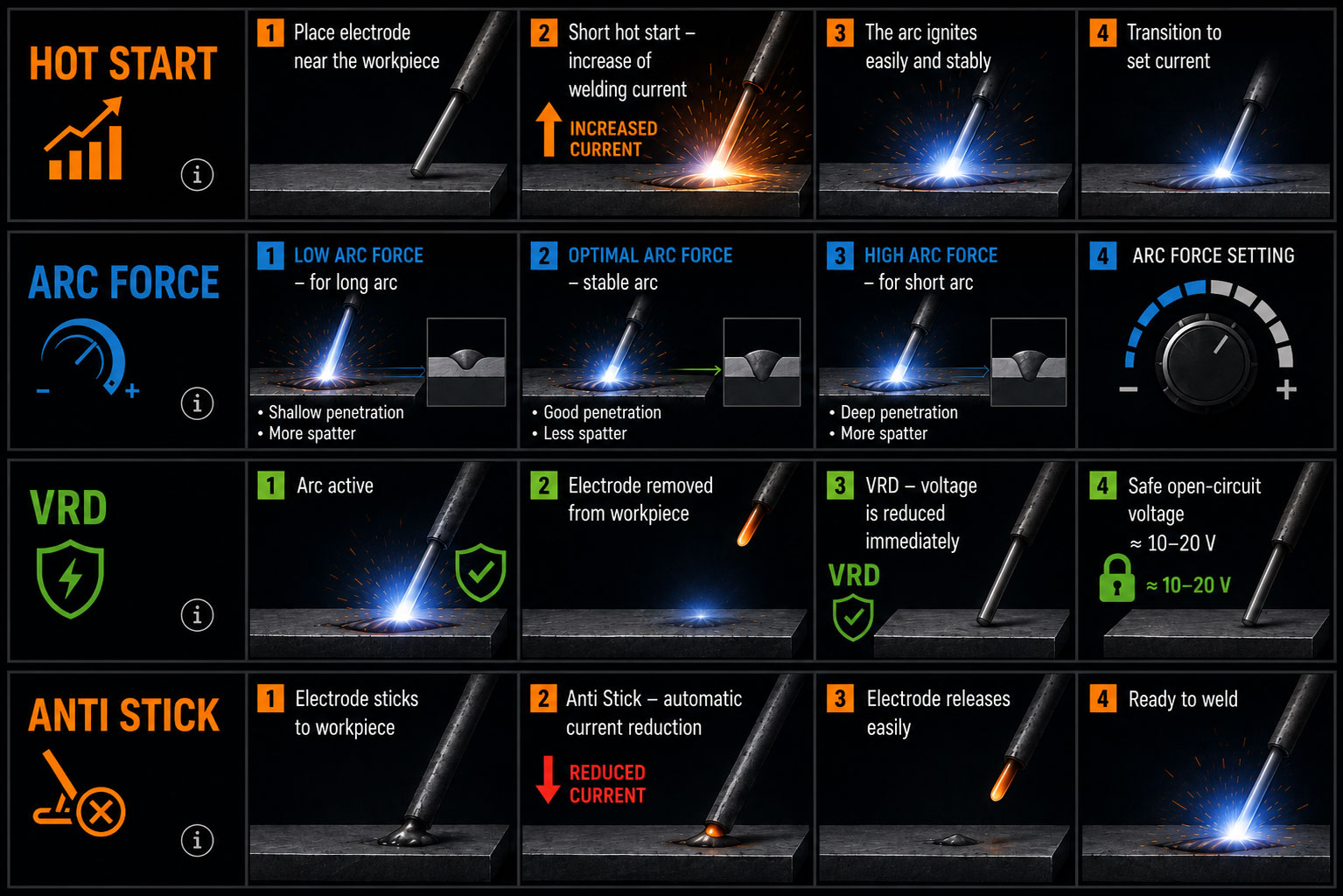

The welding machine is equipped with functions that simplify MMA welding, stabilise the arc and reduce electrode sticking. Thanks to HOT START, ARC FORCE, ANTI STICK and VRD, welding becomes easier, safer and more comfortable.
● HOT START – makes arc ignition easier.
● ARC FORCE – ensures a stable arc.
● ANTI STICK – prevents electrode sticking.
● VRD – increases safety through reduced open-circuit voltage.
The welding machine features HOT START, ARC FORCE, ANTI STICK and VRD – for a stable arc, reduced electrode sticking and easy, safe MMA welding.
TECHNICAL DATA
General Functions
PULSE – Yes
2T / 4T mode – Yes
TIG AUTO mode – Yes
Remote control – Yes
FAN STOP – Yes
Programme memory – Yes
MMA Functions
HOT START – Yes
ARC FORCE – Yes
ANTI STICK – Yes
VRD – Yes
Welding Parameters
TIG welding current – 10–200 A
MMA welding current – 30–200 A
TIG duty cycle – 40% [200 A] | 60% [163 A] | 100% [126 A]
MMA duty cycle – 40% [200 A] | 60% [163 A] | 100% [126 A]
TIG Settings
Pre-gas – 0–1 s
Post-gas – 0–10 s
Current rise time – 1–15 s
Current fall time – 0–25 s
Start current – 10–200 A
End current – 10–200 A
AC / PULSE Settings
AC balance – 10–90 %
Pulse frequency – 0,5–200 Hz
HF ignition – Yes
Power Supply and Housing
Mains voltage – 230 V
Mains protection – 20 A
Open-circuit voltage – 65 V
Protection class – IP21S
Dimensions – 480 × 210 × 380 mm
Weight – 14,8 kg
INCLUDED IN THE SET
● SKANDI KRAFT iTECH TIG 220 AC/DC with 3 m mains cable 3×2,5 mm²
● TIG torch SR26 Flex 4 m with torch control
● Full-copper earth cable 3 m, 25 mm²
● Electrode holder 3 m, 25 mm²
● Gas lenses, tungsten electrodes and collets 1,6 / 2,0 / 2,4 mm
● Ceramic nozzles, insulator and torch caps
● Gas connection set with 2 m hose, spanner and Allen key
● User manual
● SKANDI KRAFT iTECH TIG 220 AC/DC with 3 m mains cable 3×2,5 mm²
● TIG torch SR26 Flex 4 m with torch control
● Full-copper earth cable 3 m, 25 mm²
● Electrode holder 3 m, 25 mm²
● Gas lenses, tungsten electrodes and collets 1,6 / 2,0 / 2,4 mm
● Ceramic nozzles, insulator and torch caps
● Gas connection set with 2 m hose, spanner and Allen key
● User manual
