10PCS/Box Mini Chip IC Test Clamp SDK08 Test Clip SMD IC Test Hook Clips for Electrical Testing Ultra Small Clip Test Clamp

Feature:

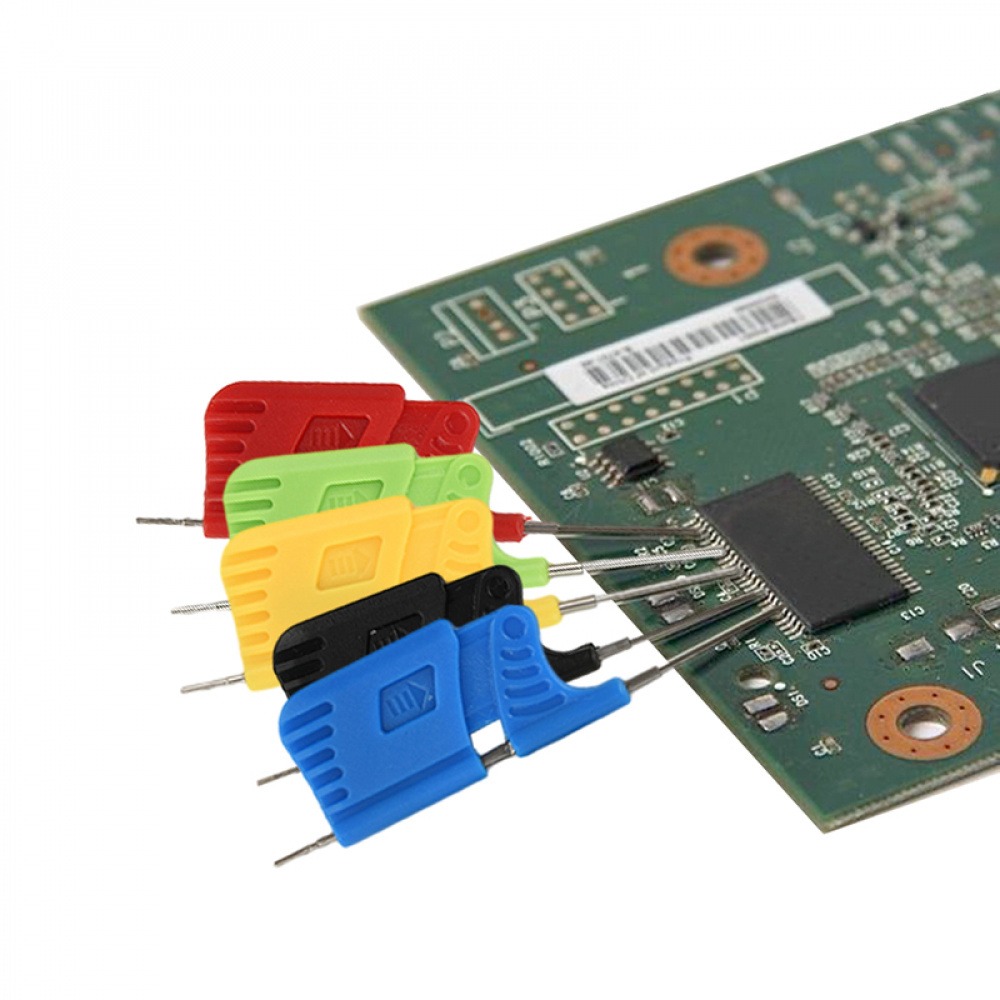

1. Universal IC compatibility: suitable for a variety of SMD/IC packages, such as SOP, TSSOP, QFP, etc

2. Precise clamping design: For chip pins with spacing greater than 0.3mm to ensure stable contact

3. Safety isolation layer: The clamp surface is covered with a non-conductive isolation layer to ensure safe handling

4. Easy to use: Simple clamp design, no welding can be quickly and easily tested

5. Compact and portable: The smallest integrated circuit clip, portable design, easy to use a variety of electronic projects

Specifications:

Chip read/write free soldering

Clip diameter 0.13 mm as thin as hair

External tube insulation treatment is not conductive

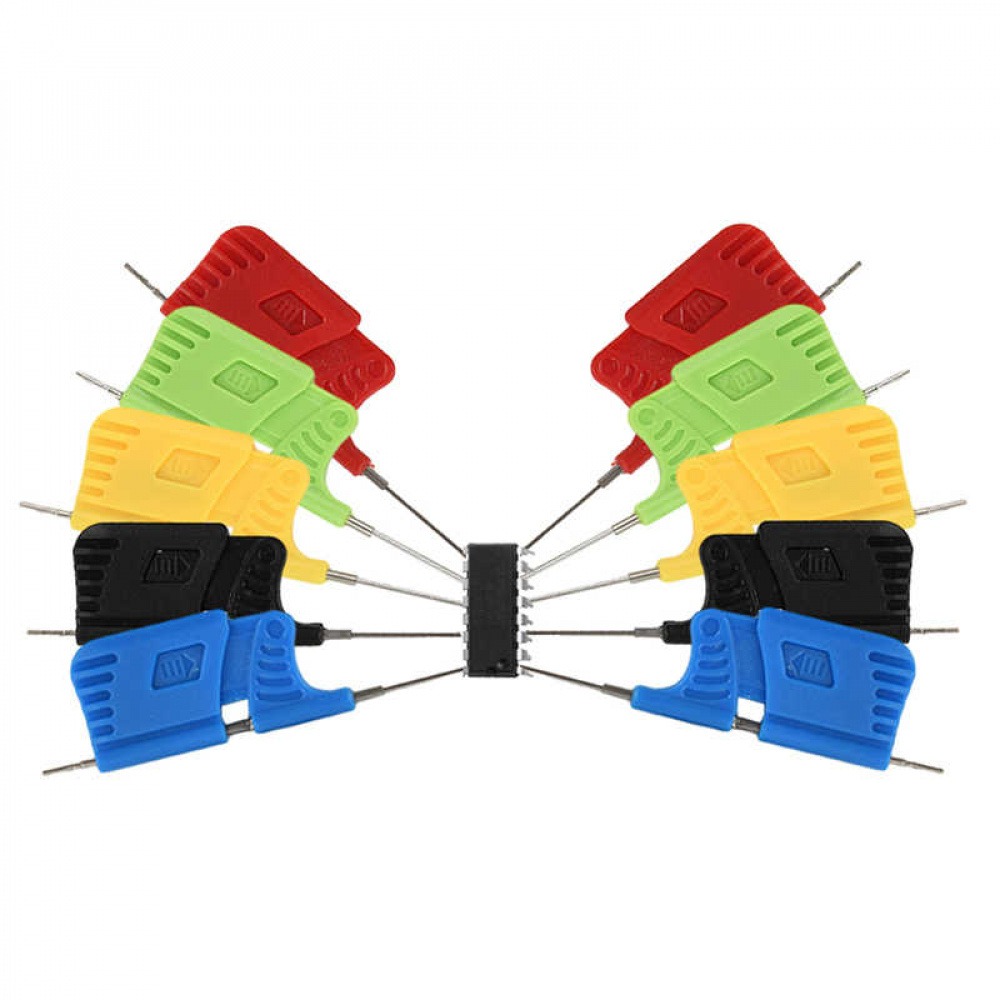

This product is a set of 10 pin; compatible with a variety of packaged chips (including TSOP/MSOP/SSOP/TSSOP/SOIC/SOP and other ultra-small chip) pin clip, whether it is memory, or MCU microcontroller are applicable

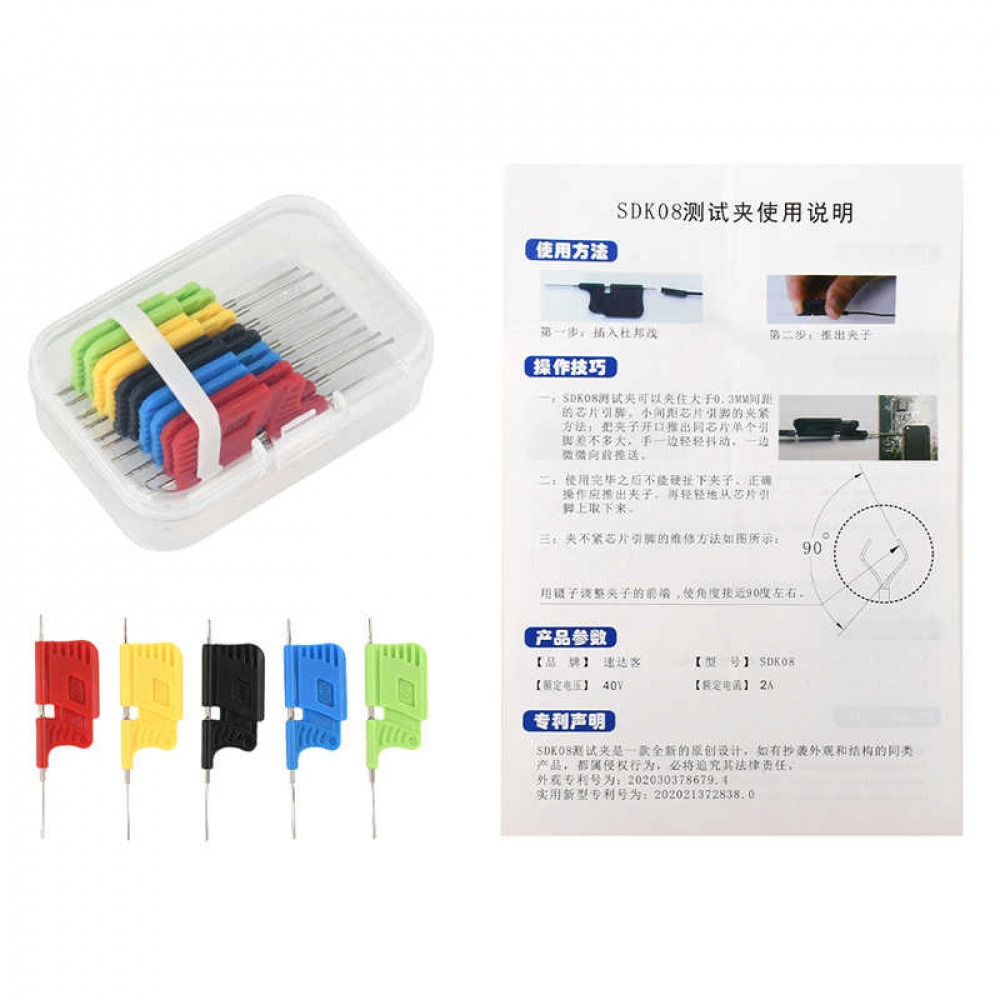

Instructions:

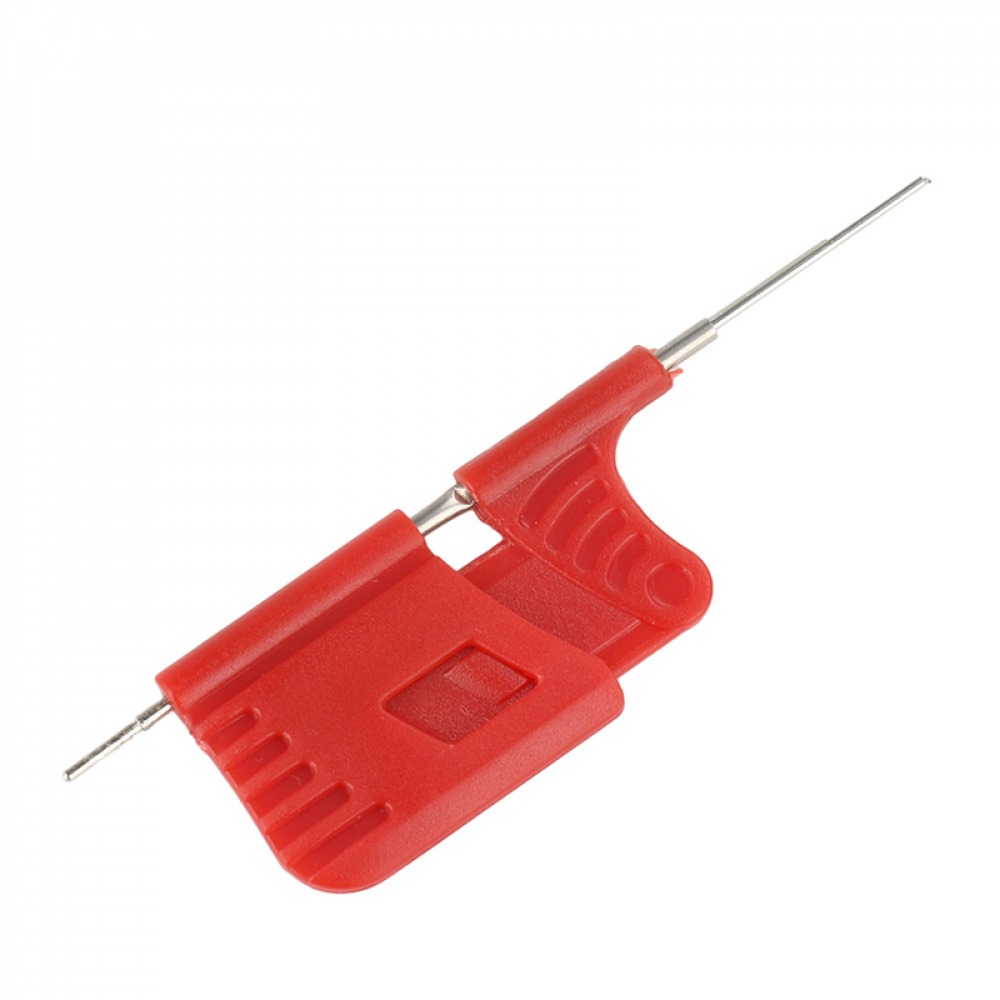

The long is the front end The short is the trailing end

(a) Insert the end of the foot clip into the hole of the Dupont cable

(b) The feet of the mounted leg clamps are held against the palm of the hand, and the thumb and forefinger hold the foot clamp in the step position, and they contract back to withdraw the clamp.

Note:

1.Due to the light and screen difference, the item's color may be slightly different from the pictures.

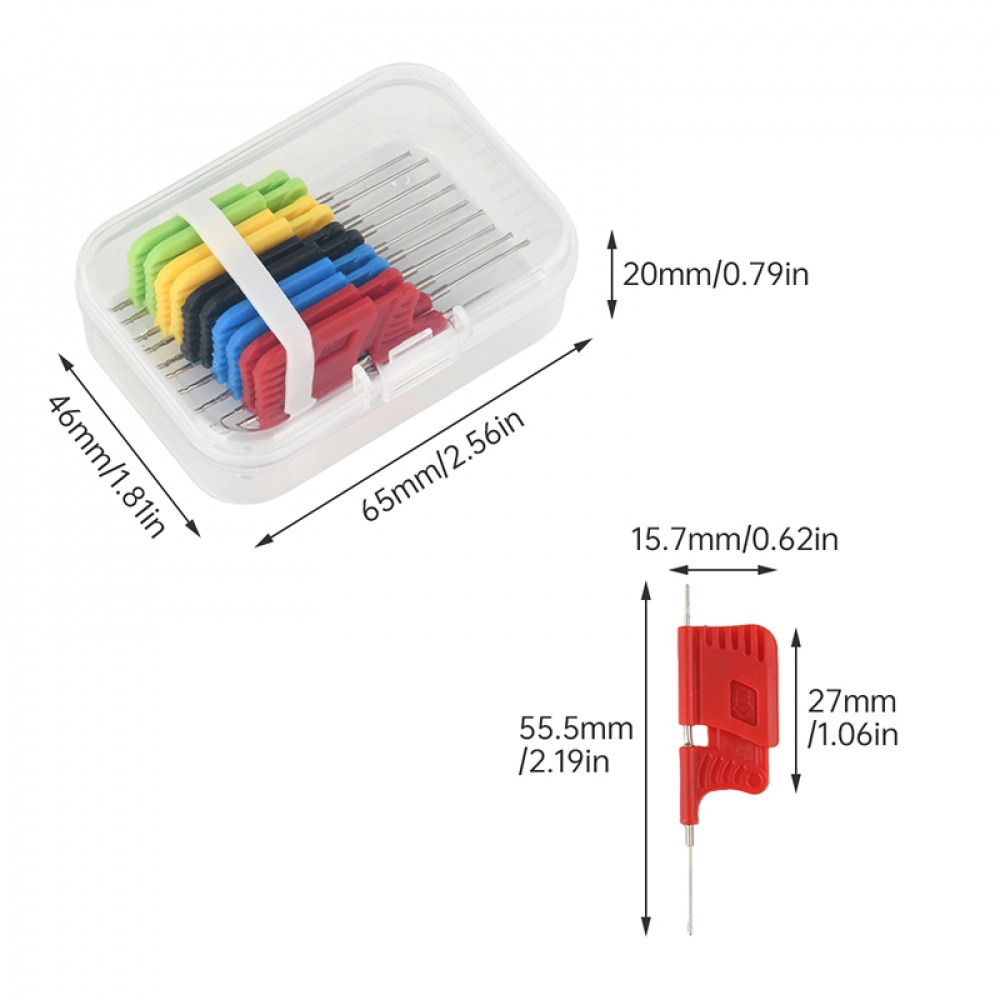

2.Please allow 1mm-1cm differences due to manual measurement.

 Package includes:

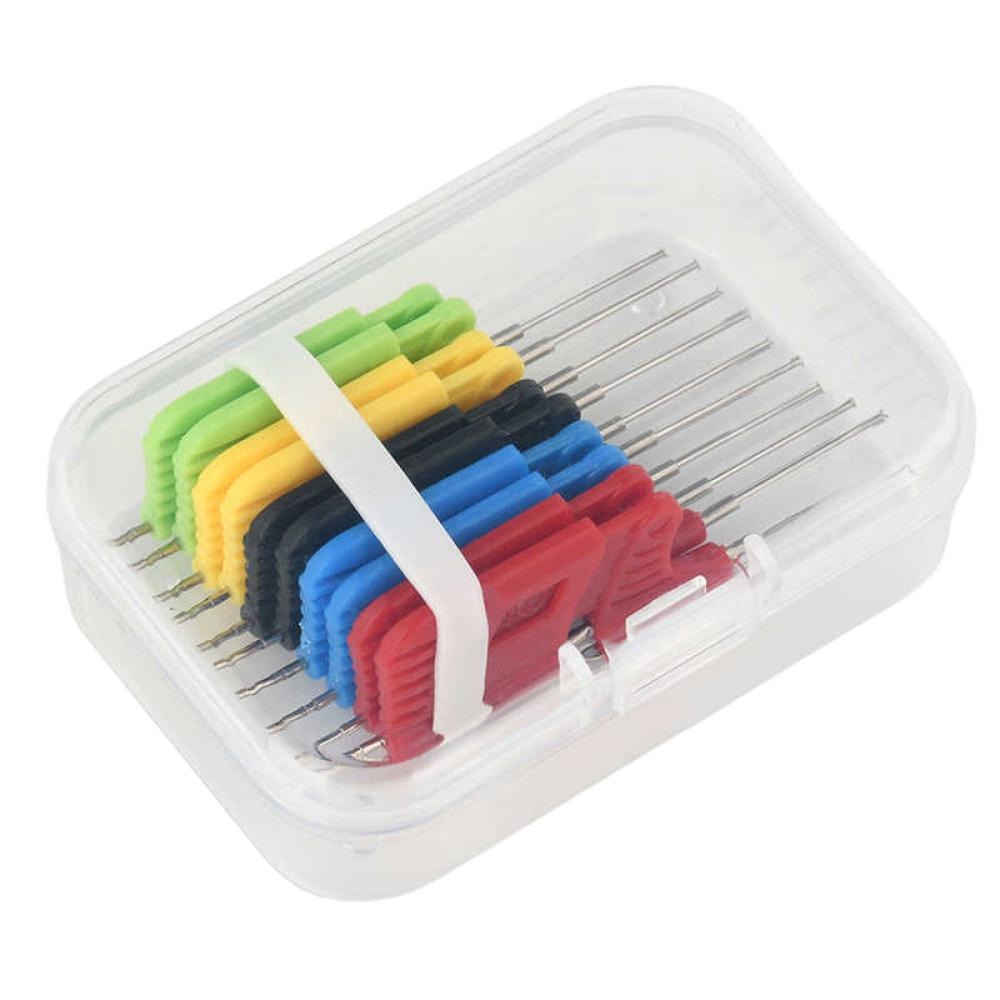

1x Box IC Test Clamp(10PCS)
