Profile
Specifications
| Size |
29er MTB XC |
Depth |
30mm |
| Type |
Tubeless |
Finish |
matte / glossy |
| Material |
Toray T700+ T800 |
Braking System |
Disc |
| Spoke Holes |
24H 28H 32H 36H |
Cycling Tire Pressure |
55psi Max |
| Weave |
UD 3K 12K 3K Twill 12K Twill |
ERD |
579mm |
| Nipple Position |
External or Internal |
Max Weight Limit |
90-110kg |
| Warranty |
12 months |
Max Spoke Tension |
180KGf |

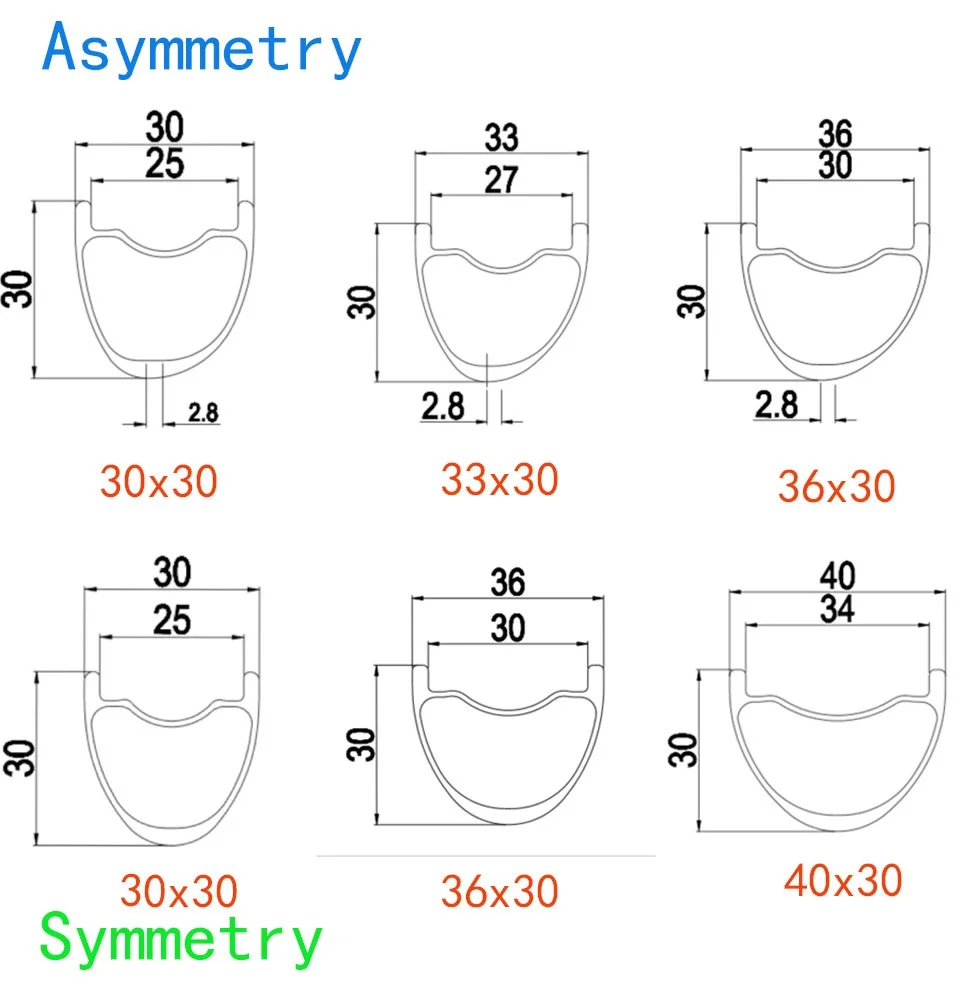

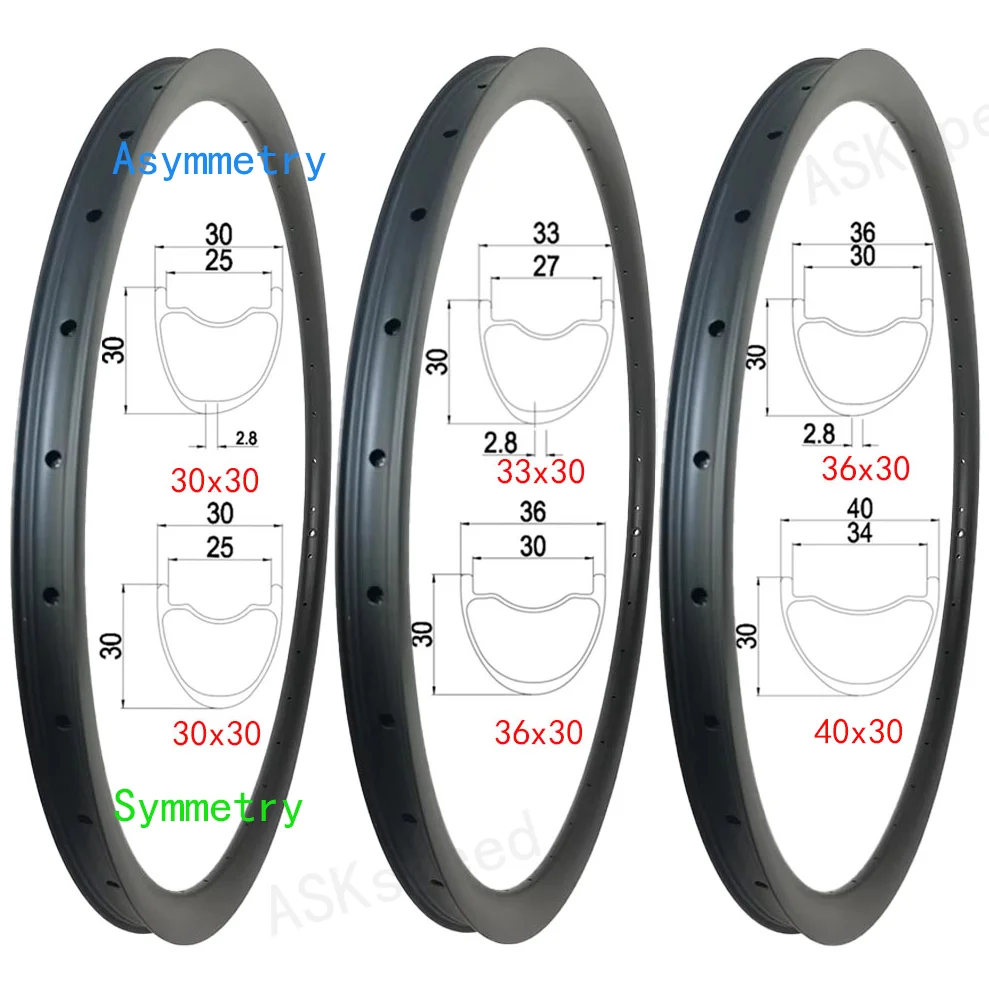

Detailed information
| Size |
Model |

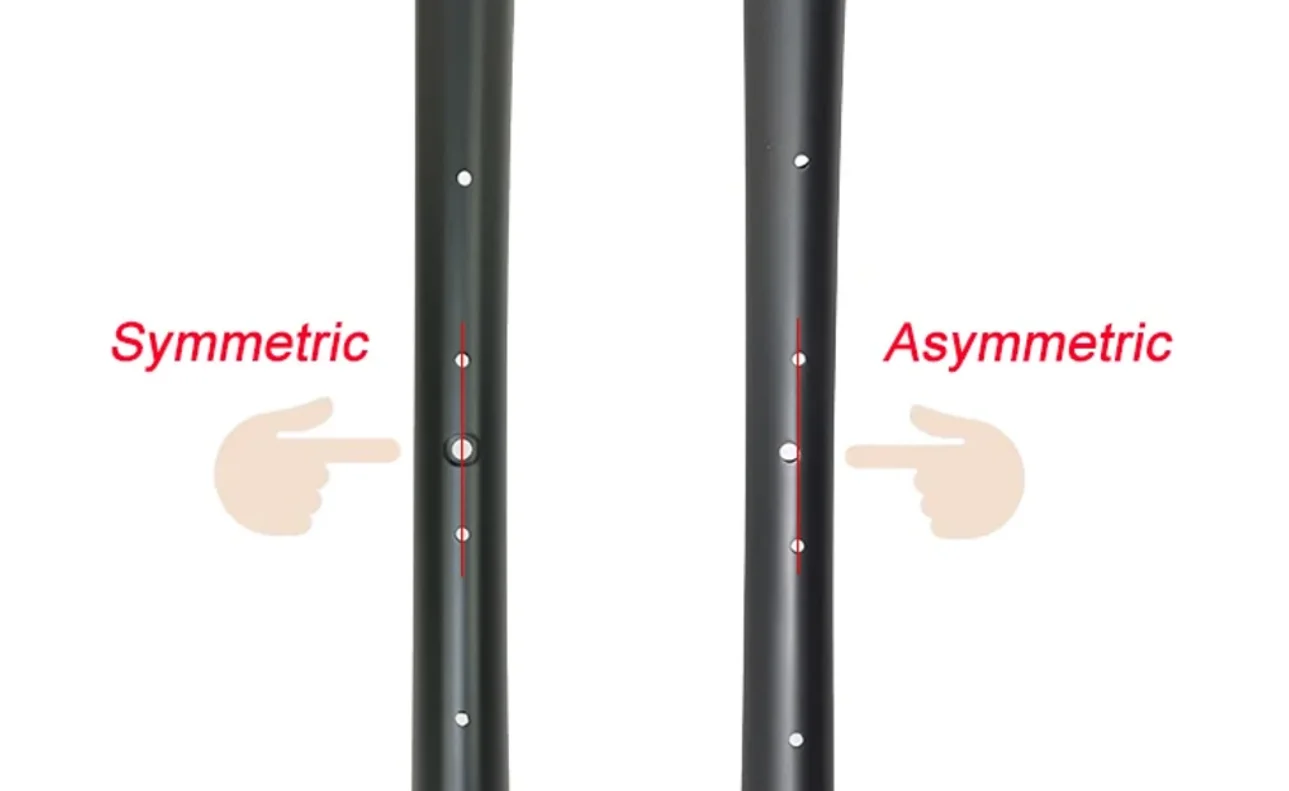

SY/ASY |
Depth |
Outer Width |
Inner width |
Standard Weight |
Fly Weight |
ERD |
| 29er |
30x30 |
Symmetry |
30mm |
30mm |
25mm |
385±15g |
325±10g |
579mm |
| 30x30 |
Asymmetry |
30mm |
30mm |
25mm |
385±15g |
325±10g |
579mm |
|
| 33x30 |
Asymmetry |
30mm |
33mm |
27mm |
450±15g |
380±10g |
579mm |
|
| 36x30 |
Symmetry |
30mm |
36mm |
30mm |
455±15g |
385±10g |
579mm |
|
| 36x30 |
Asymmetry |
30mm |
36mm |
30mm |
455±15g |
385±10g |
579mm |
|
| 40x30 |
Symmetry |
30mm |
40mm |
34mm |
465±15g |
410±10g |
579mm |
|
| 27.5er |
30x30 |
Symmetry |
30mm |
30mm |
25mm |
380±15g |
315±10g |
540mm |
| 30x30 |
Asymmetry |
30mm |
30mm |
25mm |
380±15g |
315±10g |
540mm |
|
| 33x30 |
Asymmetry |
30mm |
33mm |
27mm |
430±15g |
365±10g |
540mm |
|
| 36x30 |
Symmetry |
30mm |
36mm |
30mm |
435±15g |
370±10g |
540mm |
|
| 36x30 |
Asymmetry |
30mm |
36mm |
30mm |
435±15g |
370±10g |
540mm |
|
| 40x30 |
Symmetry |
30mm |
40mm |
34mm |
440±15g |
390±10g |
540mm |
Dear friend
Welcome to our store!
When you place an order, please leave us a message and tell us which specifications you need, we will confirm with you.Thank you!
1、Spoke Holes:24,28,32,36【Other holes can be customized, free of charge】
2、Hole Type : Outer holes or Not outer holes ( tapeless )
3、Nipples position :External, Internal
4、Size:27.5er or 29er
Note:
1、If not specified, the Hole Type defaults to Outer holes, and the Nipples position defaults to External.
2、The displayed price is only for 1 piece, if you want 1 pair, just buy 2pcs.
3、The displayed sizes are all 29er ,If you need 27.5er, please note or contact customer service.
