Details

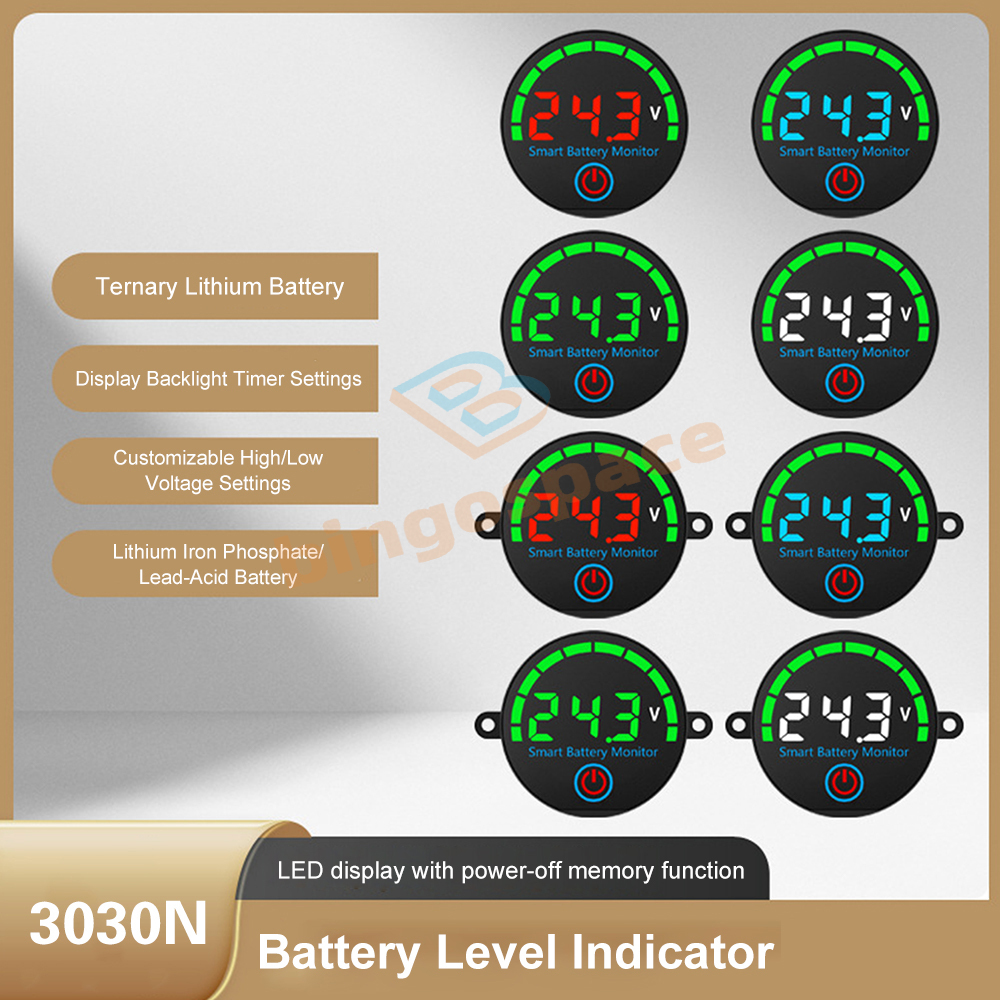

Features:

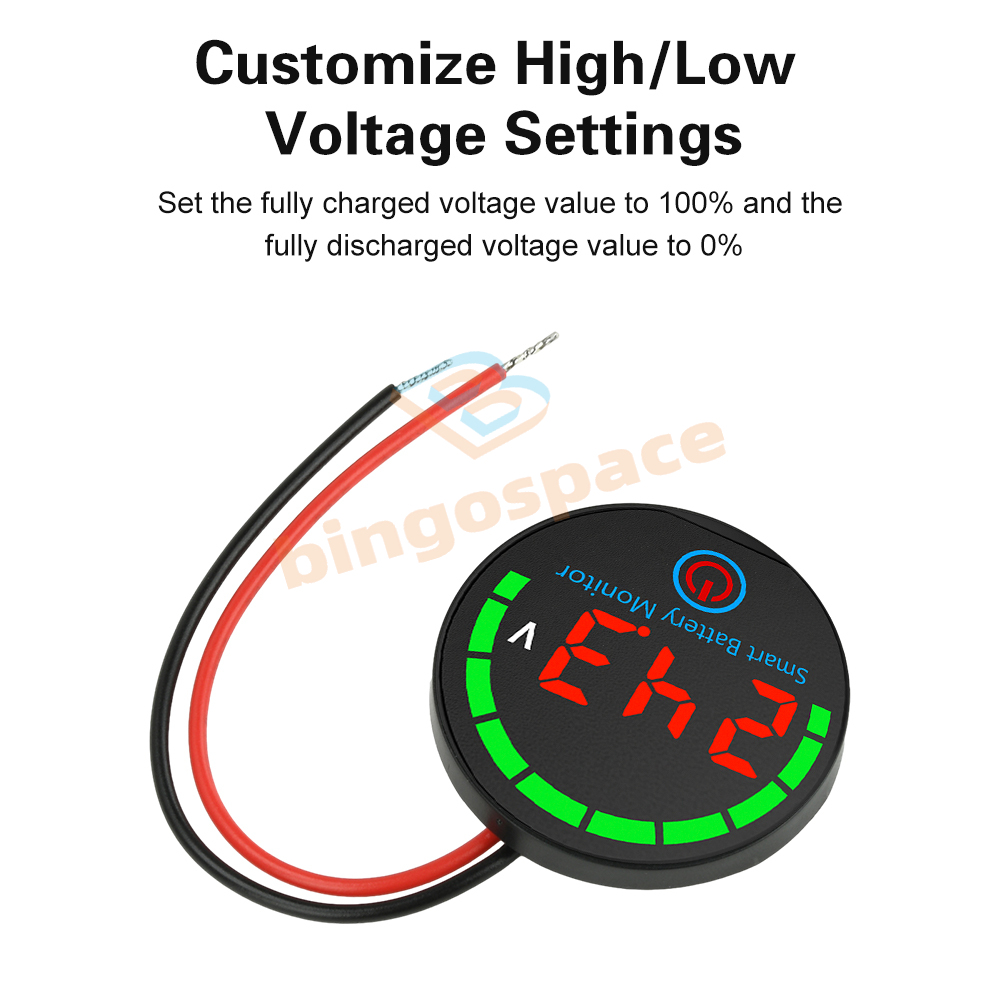

1. Customizable high/low voltage settings: Set the 100% fully charged voltage value and the 0% fully discharged voltage value
2. Low voltage alarm function: When battery power is critically low, a red lightning symbol will flash
3. Display Backlight Timer: Built-in adjustable backlight timer with constant-on or timed options
4. Power-Off Memory: Automatically saves current charge data even during unexpected power interruptions
5. Wide Battery Compatibility: Supports ternary lithium, iron phosphate, lead-acid batteries, etc., suitable for EVs, energy storage systems, and diverse industrial/civil applications
1. Customizable high/low voltage settings: Set the 100% fully charged voltage value and the 0% fully discharged voltage value
2. Low voltage alarm function: When battery power is critically low, a red lightning symbol will flash
3. Display Backlight Timer: Built-in adjustable backlight timer with constant-on or timed options
4. Power-Off Memory: Automatically saves current charge data even during unexpected power interruptions
5. Wide Battery Compatibility: Supports ternary lithium, iron phosphate, lead-acid batteries, etc., suitable for EVs, energy storage systems, and diverse industrial/civil applications
Product Specifications:
Voltage Measurement Range: DC 7-55V (Red Display: DC 7-40V)
Operating Current: ≤20mA
Display Type: LED Screen
Display Colors: Red, Green, Blue, White (Selectable)
Default voltage setting upon initial power-up: Lithium-ion battery L03S (L03)
Lithium-ion battery L measurement: 3S~12S
Lithium iron phosphate battery F measurement: 3S~14S
Lead-acid battery P measurement: 12V/24V/36V/48V

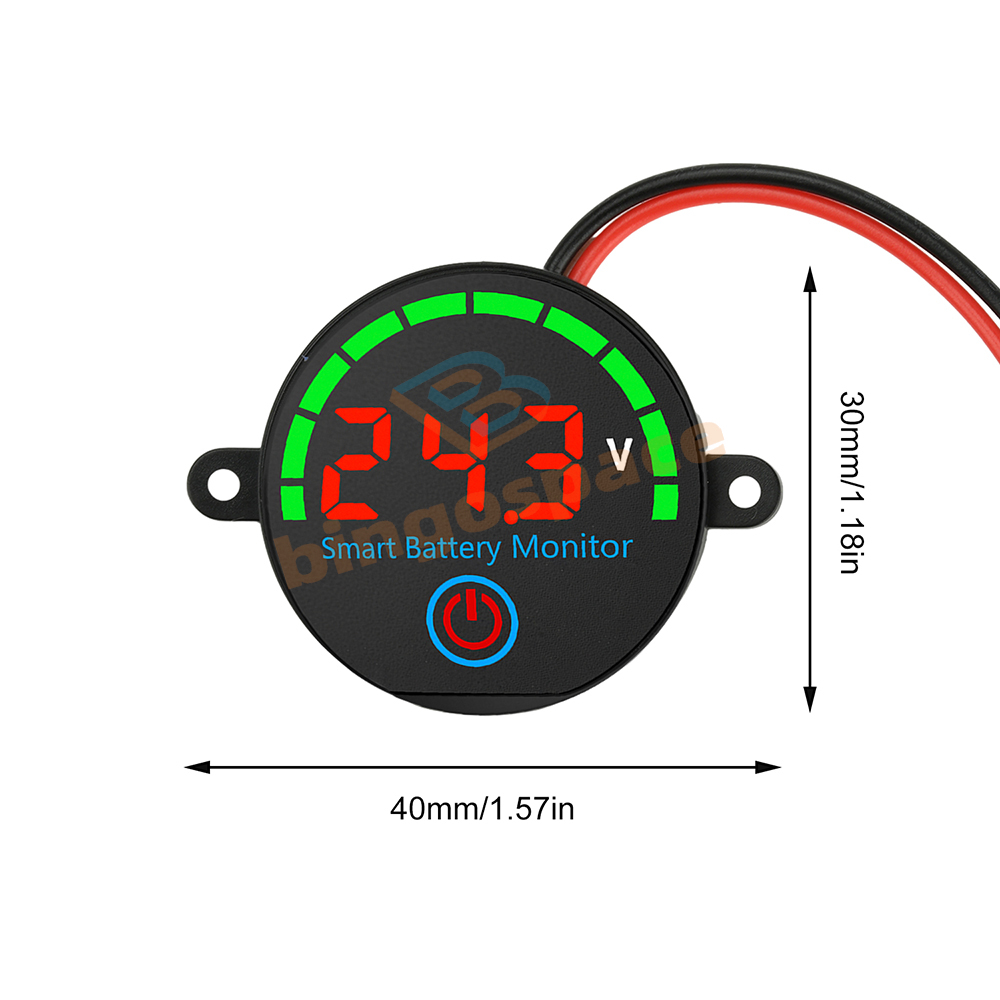

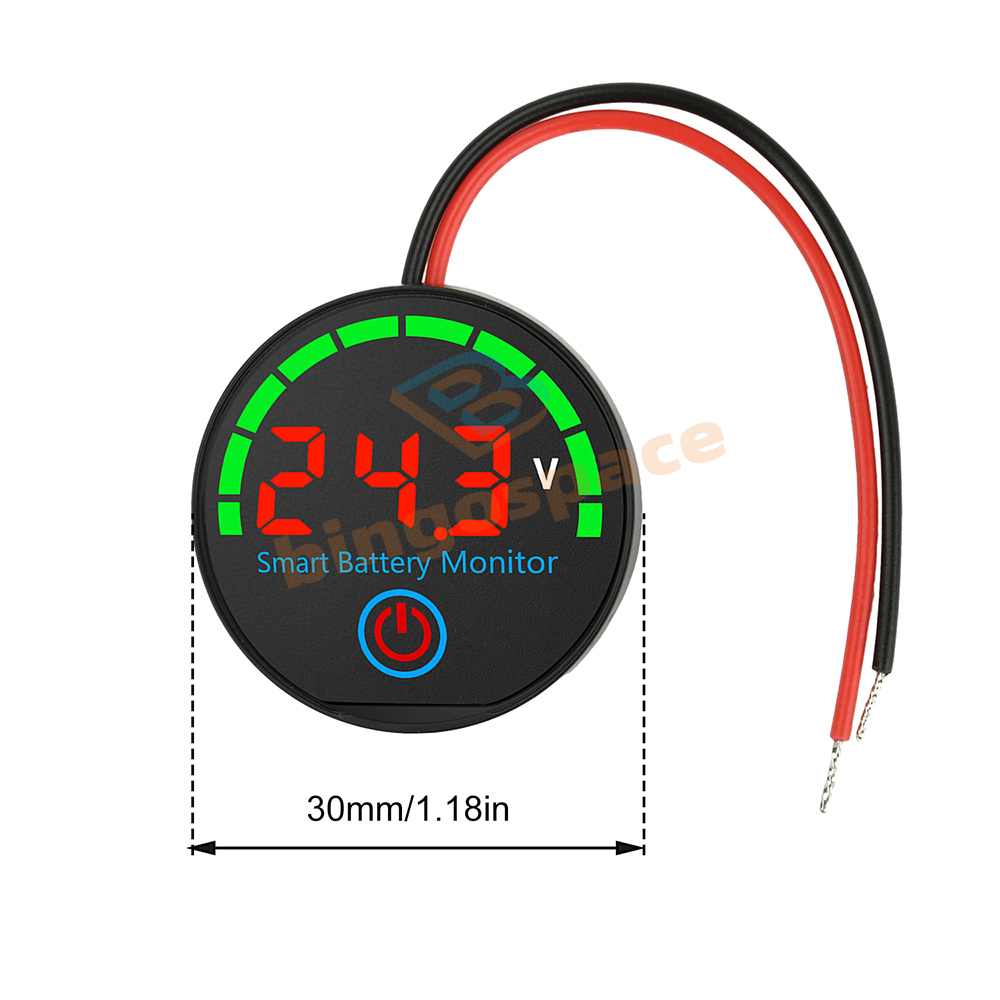

Product dimensions: 30*30*3mm
Voltage Measurement Range: DC 7-55V (Red Display: DC 7-40V)
Operating Current: ≤20mA
Display Type: LED Screen
Display Colors: Red, Green, Blue, White (Selectable)
Default voltage setting upon initial power-up: Lithium-ion battery L03S (L03)
Lithium-ion battery L measurement: 3S~12S
Lithium iron phosphate battery F measurement: 3S~14S
Lead-acid battery P measurement: 12V/24V/36V/48V
Product dimensions: 30*30*3mm
Package Contents:
Battery indicator x1
Battery indicator x1
Copyright©2018 datacaciques
Top & Fast Shipping！
Get The Right At The Right Price！

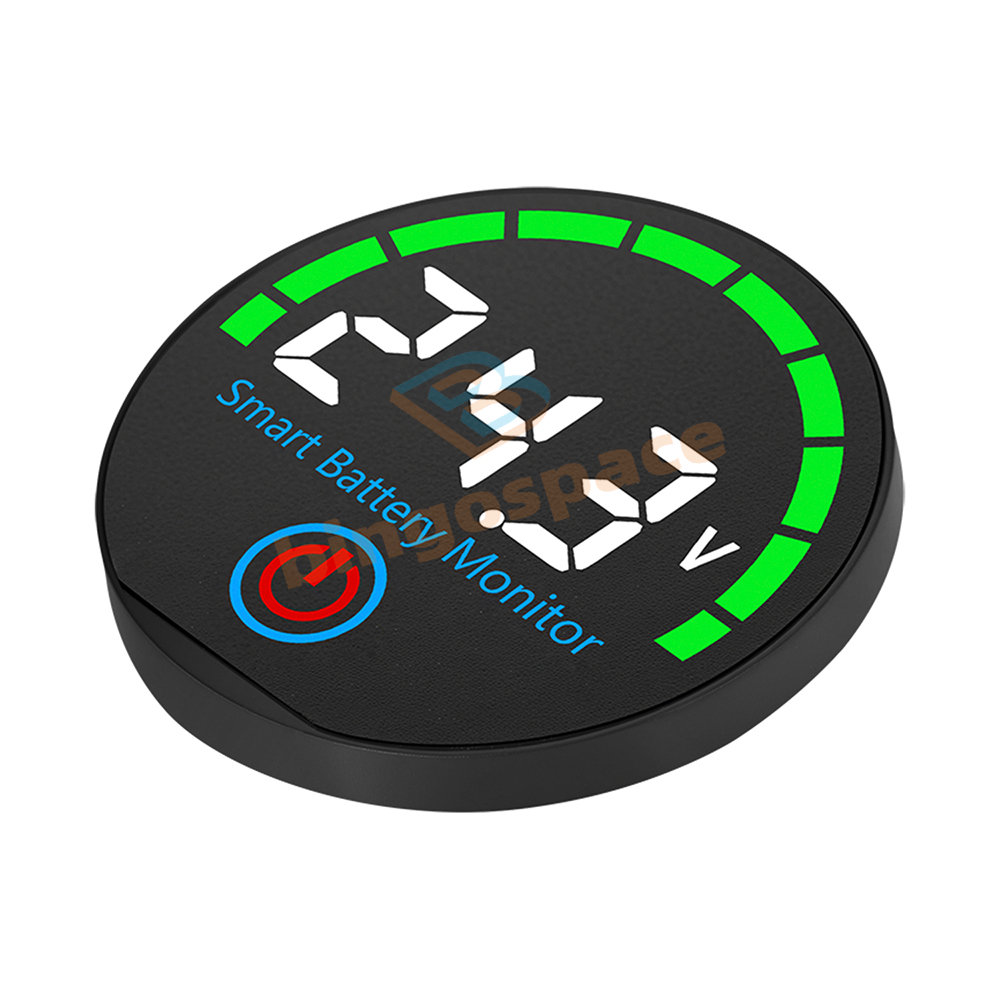

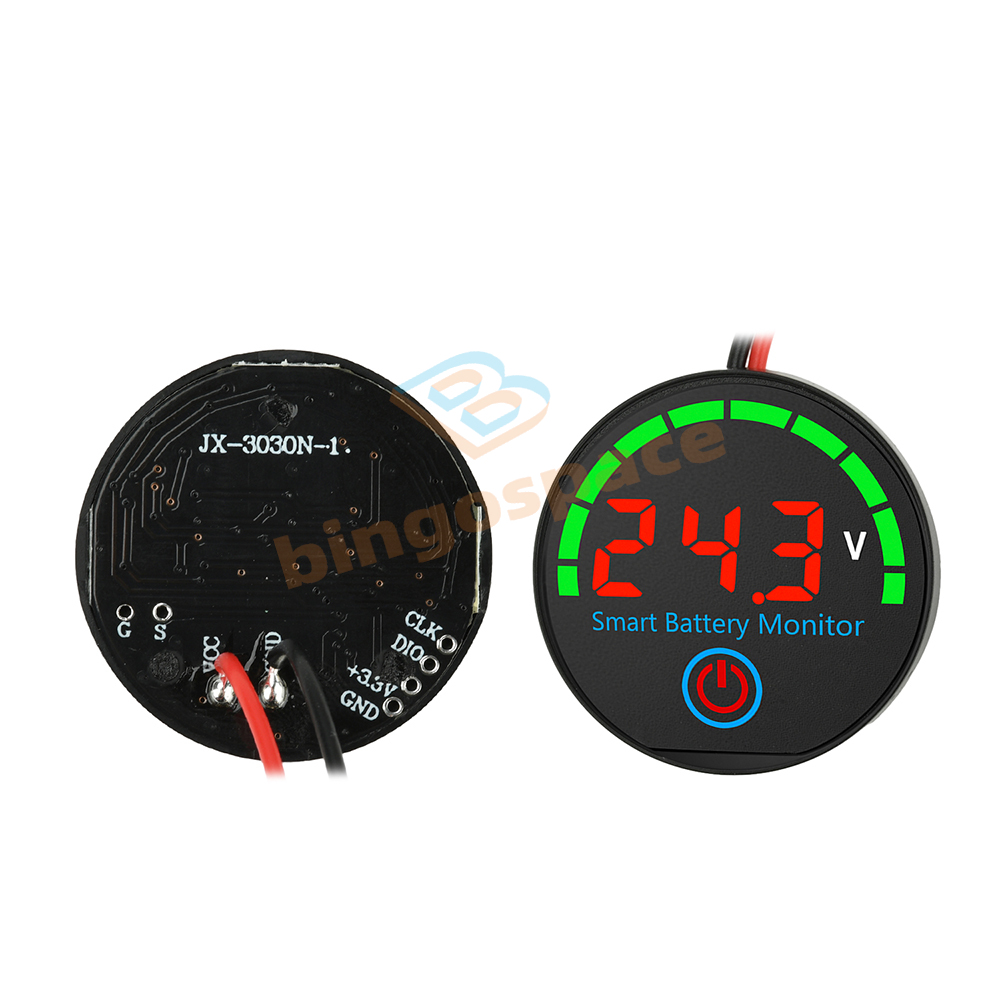

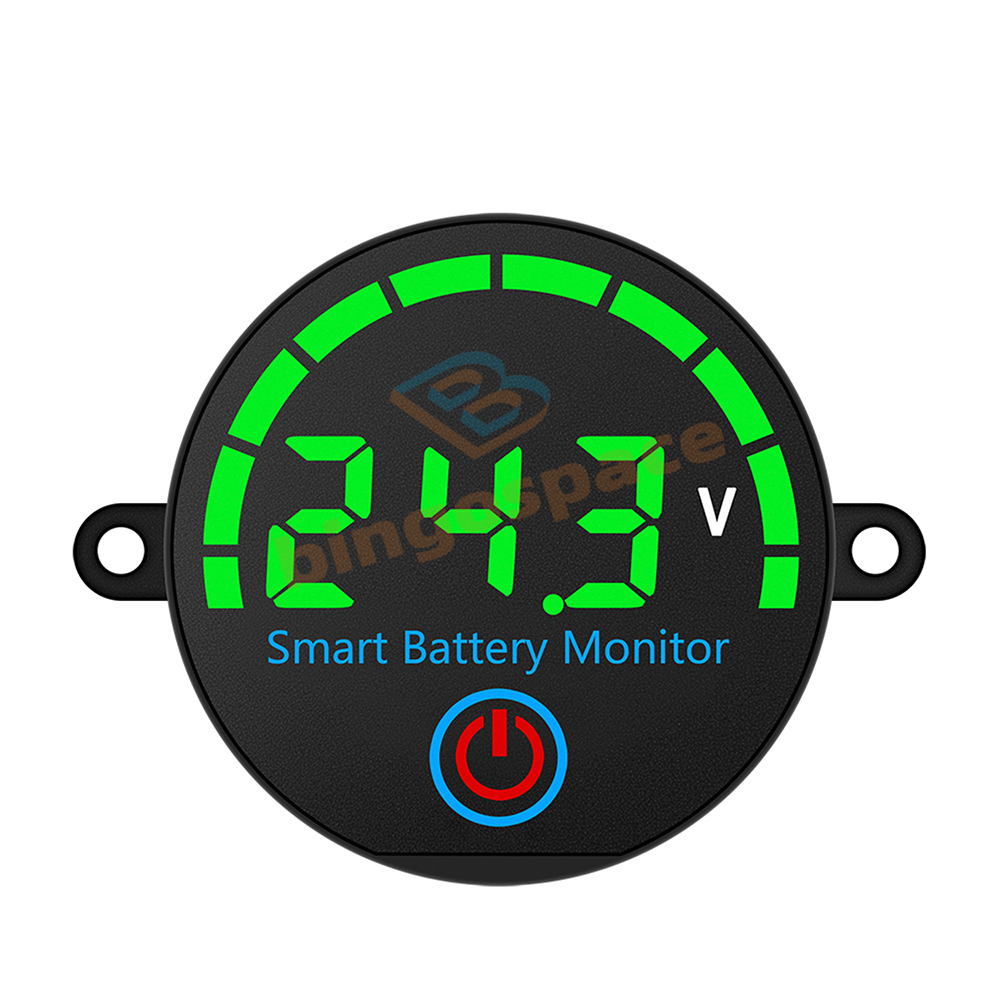

DC 7-55V Acid/Li-ion Universal Battery Charge Indicator Battery Level Indicator
DESCRIPTION
Features:
1. Customizable high/low voltage settings: Set the 100% fully charged voltage value and the 0% fully discharged voltage value
2. Low voltage alarm function: When battery power is critically low, a red lightning symbol will flash
3. Display Backlight Timer: Built-in adjustable backlight timer with constant-on or timed options
4. Power-Off Memory: Automatically saves current charge data even during unexpected power interruptions
5. Wide Battery Compatibility: Supports ternary lithium, iron phosphate, lead-acid batteries, etc., suitable for EVs, energy storage systems, and diverse industrial/civil applications
1. Customizable high/low voltage settings: Set the 100% fully charged voltage value and the 0% fully discharged voltage value
2. Low voltage alarm function: When battery power is critically low, a red lightning symbol will flash
3. Display Backlight Timer: Built-in adjustable backlight timer with constant-on or timed options
4. Power-Off Memory: Automatically saves current charge data even during unexpected power interruptions
5. Wide Battery Compatibility: Supports ternary lithium, iron phosphate, lead-acid batteries, etc., suitable for EVs, energy storage systems, and diverse industrial/civil applications
Product Specifications:
Voltage Measurement Range: DC 7-55V (Red Display: DC 7-40V)
Operating Current: ≤20mA
Display Type: LED Screen
Display Colors: Red, Green, Blue, White (Selectable)
Default voltage setting upon initial power-up: Lithium-ion battery L03S (L03)
Lithium-ion battery L measurement: 3S~12S
Lithium iron phosphate battery F measurement: 3S~14S
Lead-acid battery P measurement: 12V/24V/36V/48V
Product dimensions: 30*30*3mm
Voltage Measurement Range: DC 7-55V (Red Display: DC 7-40V)
Operating Current: ≤20mA
Display Type: LED Screen
Display Colors: Red, Green, Blue, White (Selectable)
Default voltage setting upon initial power-up: Lithium-ion battery L03S (L03)
Lithium-ion battery L measurement: 3S~12S
Lithium iron phosphate battery F measurement: 3S~14S
Lead-acid battery P measurement: 12V/24V/36V/48V
Product dimensions: 30*30*3mm
Package Contents:
Battery indicator x1
Battery indicator x1
