Product Description
Gasket or Seal Included: No
Outlet Outside Diameter (IN): 0.313in
Items Included: 1x Fuel Pump Assembly - FG1271
Outlet Quantity: 1
In Tank or External: In Tank
Resistance Ohms Empty (82): 200.0Ohms
Lock Ring Included: No
Superseded Part Number: FG1271,SP3021M,E8819M,FG0799,E8804,P76510,E16002,P77214M,M3496395,C17112474TG
Average Flow Rating GP: 40
Strainer Included: Yes
Brand: KAC
Type: Fuel Pump Module Assembly
Interchange Part Number: FG1271,SP3021M,E8819M,FG0799,E8804,P76510,E16002,P77214M,M3496395,C17112474TG
Vapor Pressure Sensor Included: No
Manufacturer Warranty: 5 Years
OE/OEM Part Number: 311102H000,311102H000DS
Maximum Pressure (PS): 80.0psi
Resistance Ohms Full (82): 8.0Ohms
Outlet Type: Quick Connect
Fuel Level Sender Assembly Included: Yes
Package Included
1x Fuel Pump Assembly - FG1271
Fitment For
For Hyundai:Hyundai Elantra 2007-2010 All engine
Hyundai Elantra 2011-2012 L4 2.0L
Features
- Designed for seamless integration with specified vehicles for optimal performance.
- Includes fuel level sender assembly, offering reliable fuel level readings.
- Constructed with high-grade materials to ensure durability and longevity.
- No gasket or seal included, allowing for customization based on user needs.
- Backed by a 5-year manufacturer warranty to provide peace of mind.

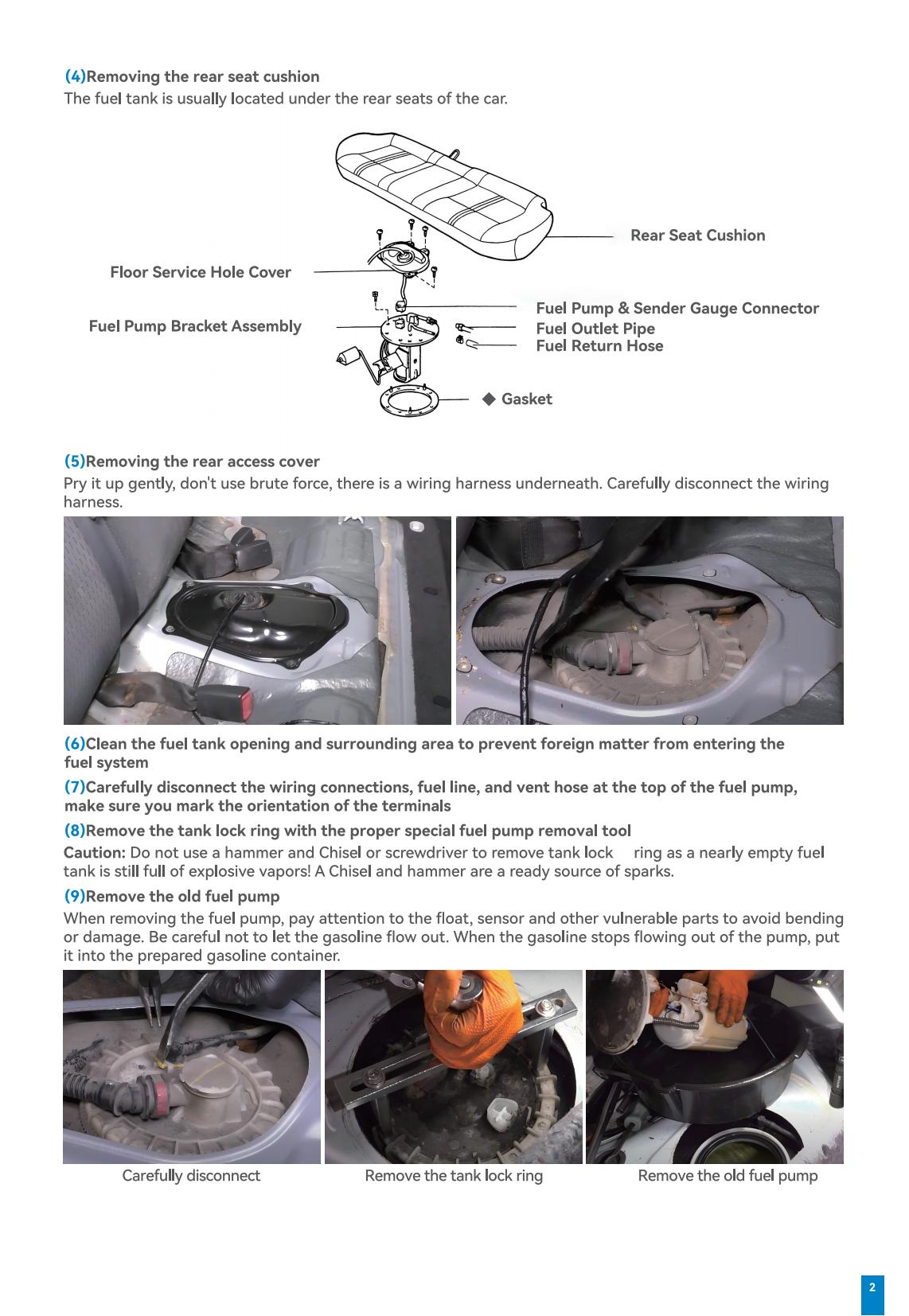

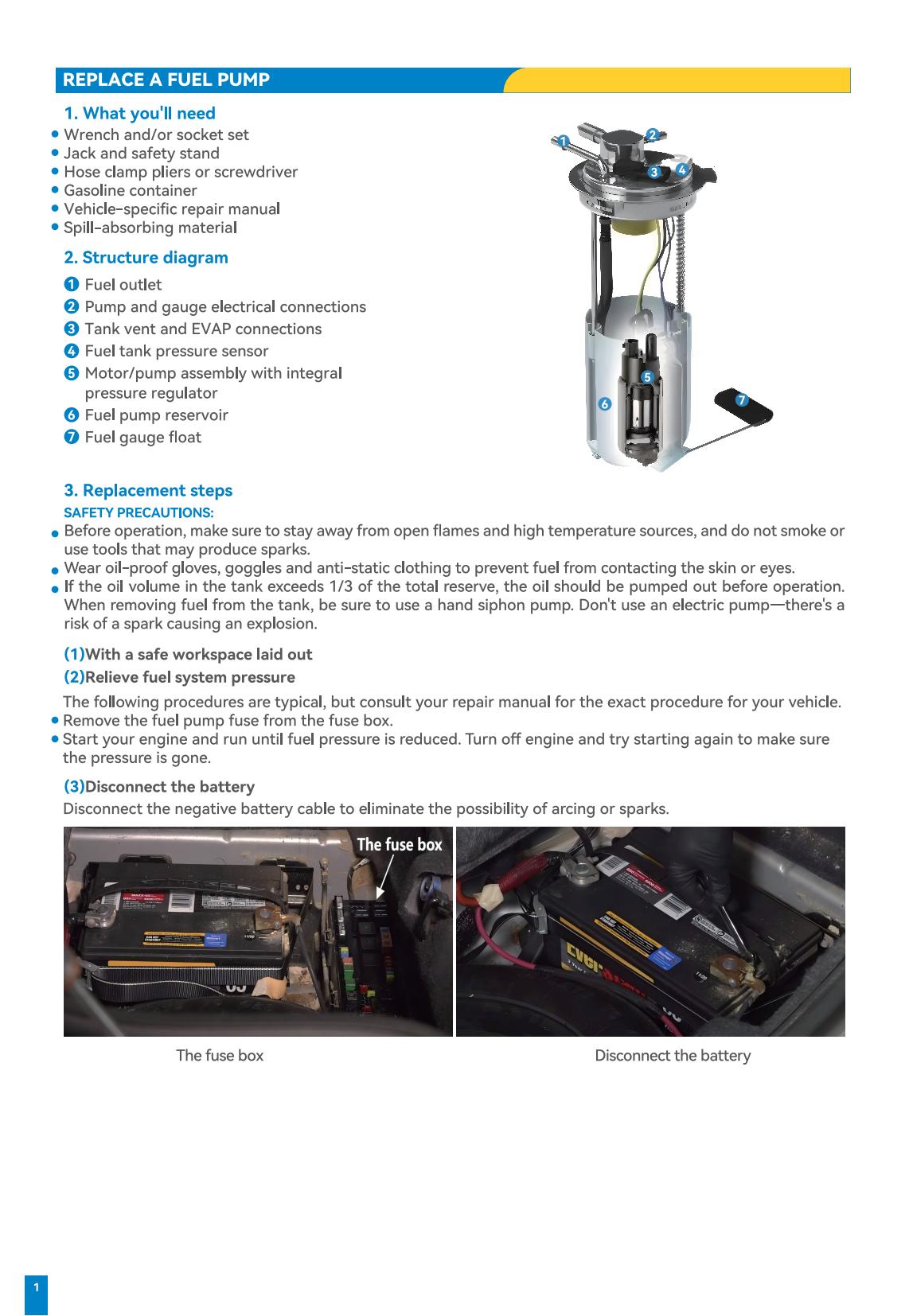

Installation Guide
- Ensure the vehicle is parked on a leveled surface and the battery is disconnected.
- Relieve the fuel system pressure and remove the fuel tank from the vehicle.
- Install the new fuel pump assembly in the tank, ensuring the strainer is properly positioned.
- Connect the fuel lines using the quick connect outlet type for hassle-free installation.
- Reinstall the fuel tank and reconnect the battery before testing the assembly.
Important Notes
- Fits for 2007-2010 Hyundai Elantra all engine and 2011-2012 Hyundai Elantra L4 2L models.
- Does not come with a gasket or lock ring; these must be sourced separately if needed.
- Verify compatibility with OE numbers FG1271, SP3021M, 311102H000 prior to installation.
- Ensure that resistance settings of 200.0 Ohms empty and 8.0 Ohms full are met for accurate operation.
- Maximum pressure capacity of 80.0 psi should not be exceeded to avoid damage.
