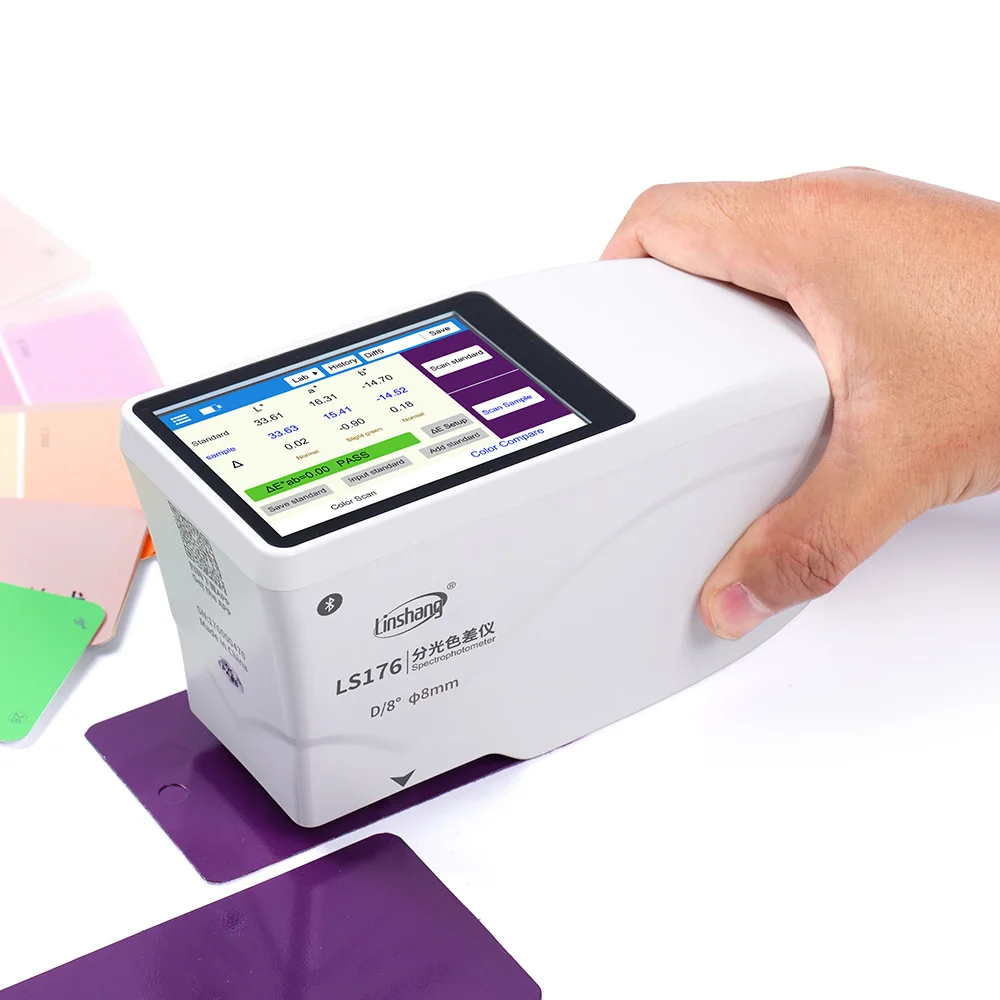

Product Model: LS176
Data Interface: USB, Bluetooth
Applicable Materials: Suitable for various industries including plastics, paints and coatings, metal products, ceramics, etc.
Illumination Method: D/8, including specular component (SCI)
Illumination Source: Full-spectrum LED light source
Measurement Conditions: Light source D65, field of view 10°
Measurement Time: Approximately 1 second
Color Spaces LS170/LS171: CIELab, Luv, LCh, Yxy, CMYK, RGB, Hex LS172/LS173/LS175/LS176: CIELab, Lch, Luv, Yxy, CMYKRGB, Yellowness-98, Whiteness-98, Whiteness-Gauz, Whiteness-Hunter, Whiteness-R457HSL, HSV, ITA, Spectral Reflectance
Color Difference Formulas ΔE*ab, ΔE*uV, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE*cmc(1.4:1)
Repeatability Standard Deviation ΔE*ab: Within 0.03 (Measurement Conditions: After warm-up calibration, average of 30 measurements on white plate at 3-second intervals)
Battery Capacity: Rechargeable Lithium Battery 3.7V@4000mAh, supports continuous measurement for 10,000 cycles on a single full charge
System Languages: Simplified Chinese, English
Charging Interface: USB (Type-C)
Operating Temperature Range: 0~45°C, 0~85% RH (non-condensing)
Storage Temperature Range: -25~55°C, 0~85% RH (non-condensing)
