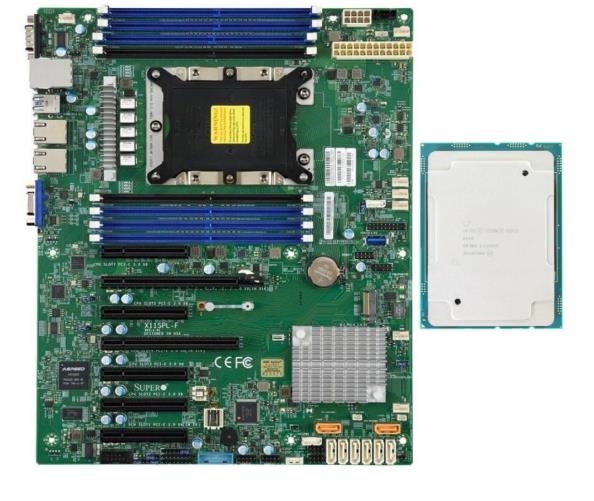

Intel Xeon Gold 6148 LGA3647 Motherboard Supermicro X11SPL-F 2.4Ghz 20c/40t

Product Description

Package include:

1X  Supermicro X11SPL-F

1 x Intel Xeon Gold 6148  20c/40t

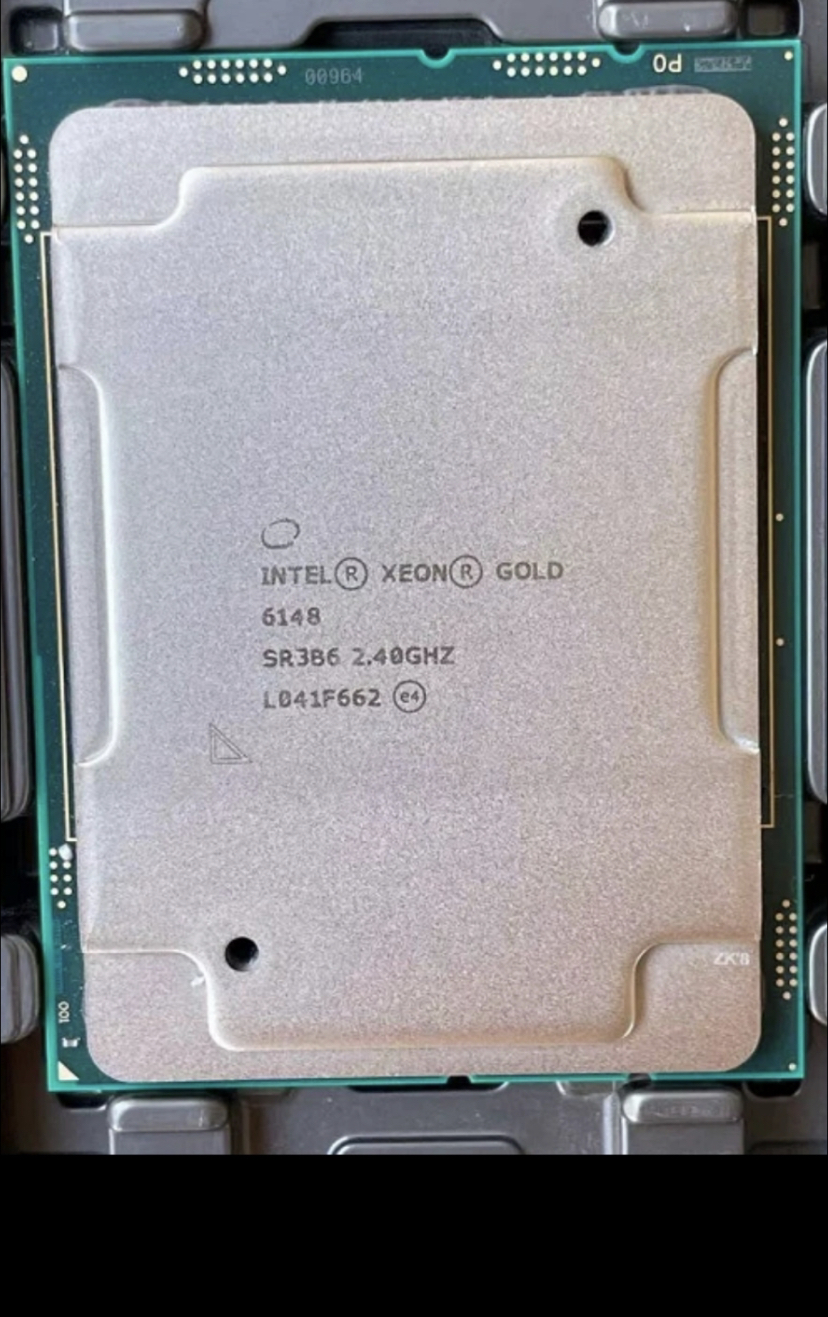

CPU


Essentials
Product CollectionIntel® Xeon® Scalable Processors
Code NameProducts formerly Skylake
Vertical SegmentServer
Processor Number6148
Lithography14 nm
Recommended Customer Price$3072.00 - $3078.00


CPU Specifications
Total Cores20
Total Threads40
Max Turbo Frequency3.70 GHz
Processor Base Frequency2.40 GHz
Cache27.5 MB L3 Cache
Max # of UPI Links3
TDP150 W


Supplemental Information
Marketing StatusDiscontinued
Launch DateQ3'17
Servicing StatusESU Notification Issued
End of Servicing Updates DateSunday |  December 31 |  2023
End of Interactive Support DateSunday |  December 31 |  2023
Embedded Options AvailableNo
DatasheetView now
Product BriefView now
Additional InformationView now


Memory Specifications
Max Memory Size (dependent on memory type)768 GB
Memory TypesDDR4-2666
Maximum Memory Speed2666 MHz
Max # of Memory Channels6
ECC Memory Supported   ‡Yes


Expansion Options
ScalabilityS4S
PCI Express Revision3
Max # of PCI Express Lanes48


Package Specifications
Sockets SupportedFCLGA3647
TCASE86°C
Package Size76.0mm x 56.5mm


Advanced Technologies
Intel® Optane™ Memory Supported ‡No
Intel® Speed Shift TechnologyYes
Intel® Turbo Boost Max Technology 3.0 ‡No
Intel® Turbo Boost Technology ‡2
Intel® Hyper-Threading Technology ‡Yes
Intel® Transactional Synchronization ExtensionsYes
Intel® 64 ‡Yes
Instruction Set ExtensionsIntel® SSE4.2 |  Intel® AVX |  Intel® AVX2 |  Intel® AVX-512
# of AVX-512 FMA Units2
Enhanced Intel SpeedStep® TechnologyYes
Intel® Volume Management Device (VMD)Yes


Security & Reliability
Intel vPro® Eligibility ‡Intel vPro® Platform
Intel® AES New InstructionsYes
Intel® Trusted Execution Technology ‡Yes
Execute Disable Bit ‡Yes
Intel® Run Sure TechnologyYes
Mode-based Execute Control (MBEC)Yes
Intel® Virtualization Technology (VT-x) ‡Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
Intel® VT-x with Extended Page Tables (EPT) ‡Yes

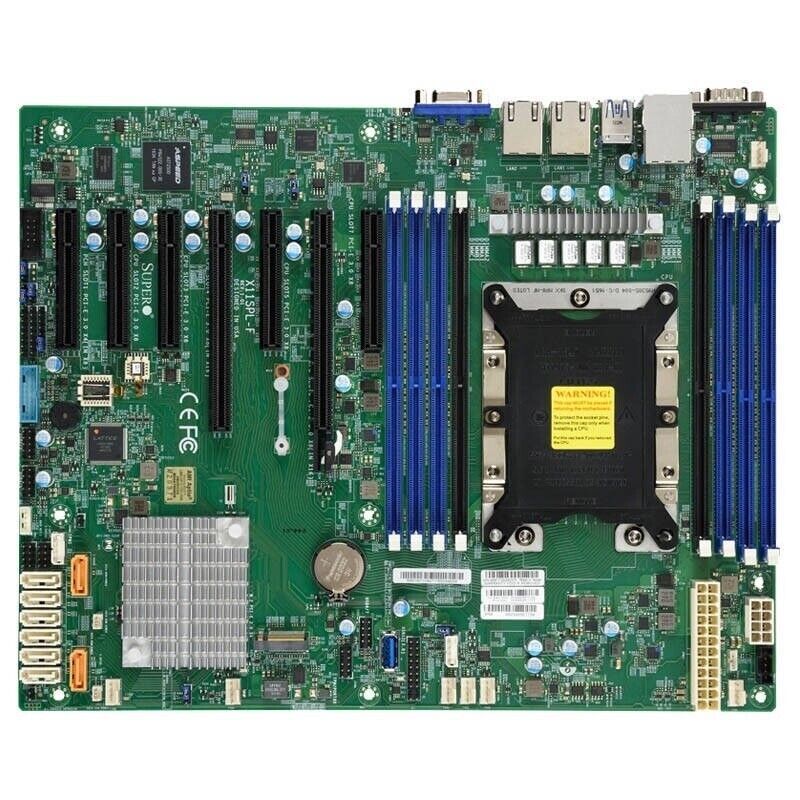

Motherboard

Motherboard chip
Main chipsetIntel C621
Chip manufacturersIntel
Chipset descriptionUses Intel C621 chipset
Graphics chipAspeed 2500
Network chipsOnboard dual Intel I210-AT Gigabit network cards

CPU specifications
Applicable PlatformsIntel platform
CPU typeXeon
CPU socketLGA 3647

Memory specifications
Memory typeDDR4
Memory description8×DDR4 DIMMs support up to 2TB ECC memory,

Expansion slots
PCI slotsPCI-E 3.0×8
PCI-E 3.0×8
PCI-E 3.0 x4 (×8)
SATA interfaceSATA3 (6 Gbps) port

I/O interface
USB interface5× USB3.0, 8× USB2.0 interface
Parallel serial port2×COM interface
Other internal sockets1×TPM interface
External portVGA interface

Form factor
Motherboard form factorATX
Form factor30.48×24.38cm

Software management
BIOS performanceAMI UEFI

Other features
Other features7 x 4-pin fan head, fan speed control, signs of overheating, PWM fan speed control, system level control

Product characteristics
Product feature 1Product SKU
MBD-X11SPL-F X11SPL-F


Physical Statistics
Constituent factors
ATX
Dimensions
12" x 9.6" (30.48cm x 24.38cm).

Processor/Cache
CPU
3647nd generation Intel Xeon Scalable Processor (Cascade Lake-SP), Intel®®Xeon®® Scalable Processor.
Supports single-socket P (LGA 165), CPU TDP supports 28W
cores/cache
Up to 3 cores
Note BIOS 0.<>a
or higher is required to support the <>nd generation Intel Xeon Scalable Processor-SP

Product feature 2System memory
Memory capacity
up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, 8 DIMM slots;
Up to 1TB Intel Optane DC persistent memory in memory mode (Cascade Lake only)
Memory type
2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM DIMM
size
RDIMM: 8GB, 16GB, 32GB, 64GB LRDIMM: 32GB, 64GB, 128GB 3DS LRDIMM: 64GB, 128GB, 256GB


Memory voltage
1.2V
Error detection
Corrects single-bit errors

Onboard device
chipset Intel C621 SATA

Intel ®®C621 controller for 8
SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controller
Dual LAN

image with 1GbE and Intel®I210 Aspeed AST2500 BMC

Product feature 3Input and output SATA
8
SATA3 (6Gbps) ports
LAN 2 RJ45 Gigabit Ethernet LAN ports USB 8 USB 2.0 ports (2 rear + 6 headers)
5
USB
3.0 ports (2 rear +
2 headers+ 1 x Type A) Video output 1 x VGA port
Serial port/header
2 COM ports (1 back,
1 plug)

TPM TPM
Title

Expansion slot
PCI-E 2 PCI-E 3.0 x8 (x16 slots),
4 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (x8 slots) M.2

M.2 interfaces: PCI-E
3.0 x4 and SATA
Form factor: 2280, 22110
Key: M-Key
Dual Height Connector

System BIOS BIOS Type AMI UEFI
BIOS

Features
ACPI

RTC (Real Time Clock) wake-up
SMBIOS 3.0 or later

Management
software
Intel ® Node Manager, IPMI 2.0, KVM WITH DEDICATED LAN, NMI, SPM, SUM, SuperDoctor®5,

Power Configuration
ACPI Power Management Power-On
mode for AC power recovery
Product feature 4PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V,
+5V Standby, 3.3V Standby, 7 Fan Status, Chassis Open Connector, HT, Monitor CPU
Voltage, Support System Management Utility, VBAT
Fan 7 x 4-pin fan headers (up to
7 fans), Fan speed control, Overtemperature LED indication, PWM fan speed control, system level control
temperature
CPU thermal trip support, PECI LED CPU / SYSTEM OVERHEATING
LED
, UID / REMOTE UID, PAUSE STATIC INDICATOR LED
other features
ACPI power management, power-on control to recover from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL

Operating environment
Operating temperature range
0°C~50°C (32°F~122°F).
Non-operating temperature range -40°C - 70°C (-40°F - 158°F) Operating relative humidity range
8% - 90% (noncondensing)


Non-operating relative humidity range
