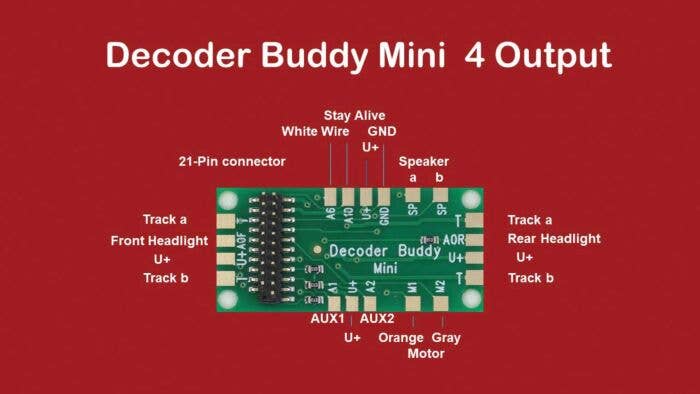

NixTrainz - NTZ8 - Decoder Buddy Mini | Motherboard with 21-Pin Decoder Socket -- With 2.2K Ohm

Decoder Buddy from Nix Trainz is a 21-pin-friendly replacement motherboard for the standard factory-supplied DCC 8-pin loco motherboard in many locomotives. It allows you to take full advantage of all the functions and features of the latest decoders. This board allows easy 21-pin decoder installs from vendors such as Digitrax, ESU, SoundTraxx, TCS and NCE!

Depending on your DCC decoder, up to 8 lighting functions are available. The Decoder Buddy board features amply sized soldering pads for your LED leads. LED installation is also possible with built-in resistors already on the Decoder Buddy board. The benefits of the three Decoder Buddy models include:

Popular 21-pin decoders from ESU, SoundTraxx, TCS, Digitrax, and NCE easily fit in Decoder Buddy's 21-pin socket  - 14-PIN V5 socket and plug with wire-outs for 12 output 21-pin decoder functions - 14-pin plug fully removable for easy separation of loco shell and chassis - "W" pad added for three-wire stay alive/capacitor units and is controlled by Aux 7! - On-board/built-in resistors for LED lighting provided - Specifiable resistors for function outputs available on request - On board soldering pads for two and three wire stay alive - Older 8-pin loco motherboard weaknesses solved with Decoder Buddy - No more inaccessible JST connections - Decoder Buddy fits most HO and larger locomotives. The standard board measures 2.20 x 0.67 x 0.35" 56 x 17 x 9mm and a Decoder Buddy Mini is available for tighter installations. only.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Canadian shipping and handling, the same for all foreign countries will be at United States Ground mail rates. That means around $14.00. Assume 4 ounces for shipping weight. Multiple purchases will be combined to save on shipping, BUT the added weight does add something to the cost of shipping and handling. Shipping is a day or two after payment is received. Thank you for your purchase.
