Leister 400V 11000W VARIANT 706 Dual-Nozzle System, 20mm, CEE 5/16 - 176.868

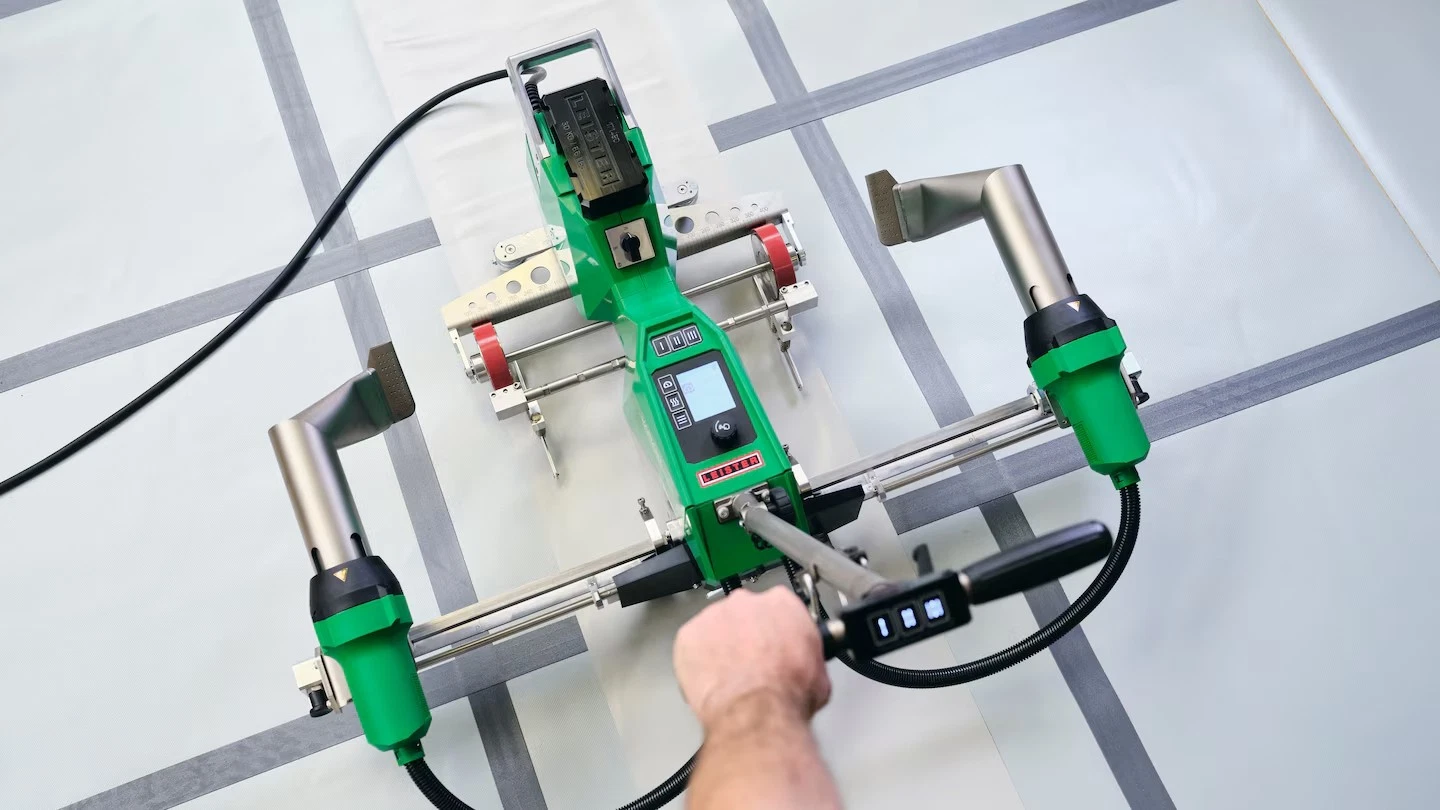

Details Dual-Nozzle System for more efficiency
The welding machine VARIANT 706 excels in versatility and efficiency. Its dual-nozzle system allows simultaneous welding from two sides PVC reinforcements and cutting welding time by 50%. Featuring a smart, one-touch operation which ensures safety and precision. The 706’s modular design effortlessly switches between reinforcement tape welded on both sides, spriegel to overlap or tape welding, with a speed of up to 20 m/min, making it ideal for truck tarpaulin production.
In addition, the VARIANT 706 is equipped with plug-and-play wheels, allowing effortless repositioning and transport in different working environments. Its ability to handle a variety of materials and welding widths from 20 mm to 50 mm offers great adaptability. Furthermore, the welding width between the two nozzles can be individually adjusted from 80 to 400 mm. The machine’s energy-efficient Eco Mode allows for significant cost savings over time. The powerful 400V dual-nozzle system ensures compliance with global electrical standards and meets high operational requirements.
Article: 176.868
Voltage: 400 V
Frequency: 50/60 Hz
Power: 11000 W
Speed: 1 - 20 m/min / 3.28 - 65.62 ft/min
Temperature: 100 - 620 °C / 212 - 1148 °F
Air volume adjustable: Yes
Welding nozzle / seam width: 20 mm / 0.78 in
LQS: No
Brushless blower motor: Yes
Length: 800 mm / 31.49 in
Width: 1059 mm / 41.69 in
Height: 347 mm / 13.66 in
Weight: 31.1 kg / 68.56 lb
Plug: CEE red, 5 poles, 16A
Approvals: CE; UKCA
Protection class: I
Country of origin: Switzerland
Highlights Dual-Nozzle System for more efficiency
The VARIANT 706 features a dual-nozzle system that allows simultaneous welding from two sides, adjustable between 80–400 mm. This ensures efficiency and precision in welding tasks.

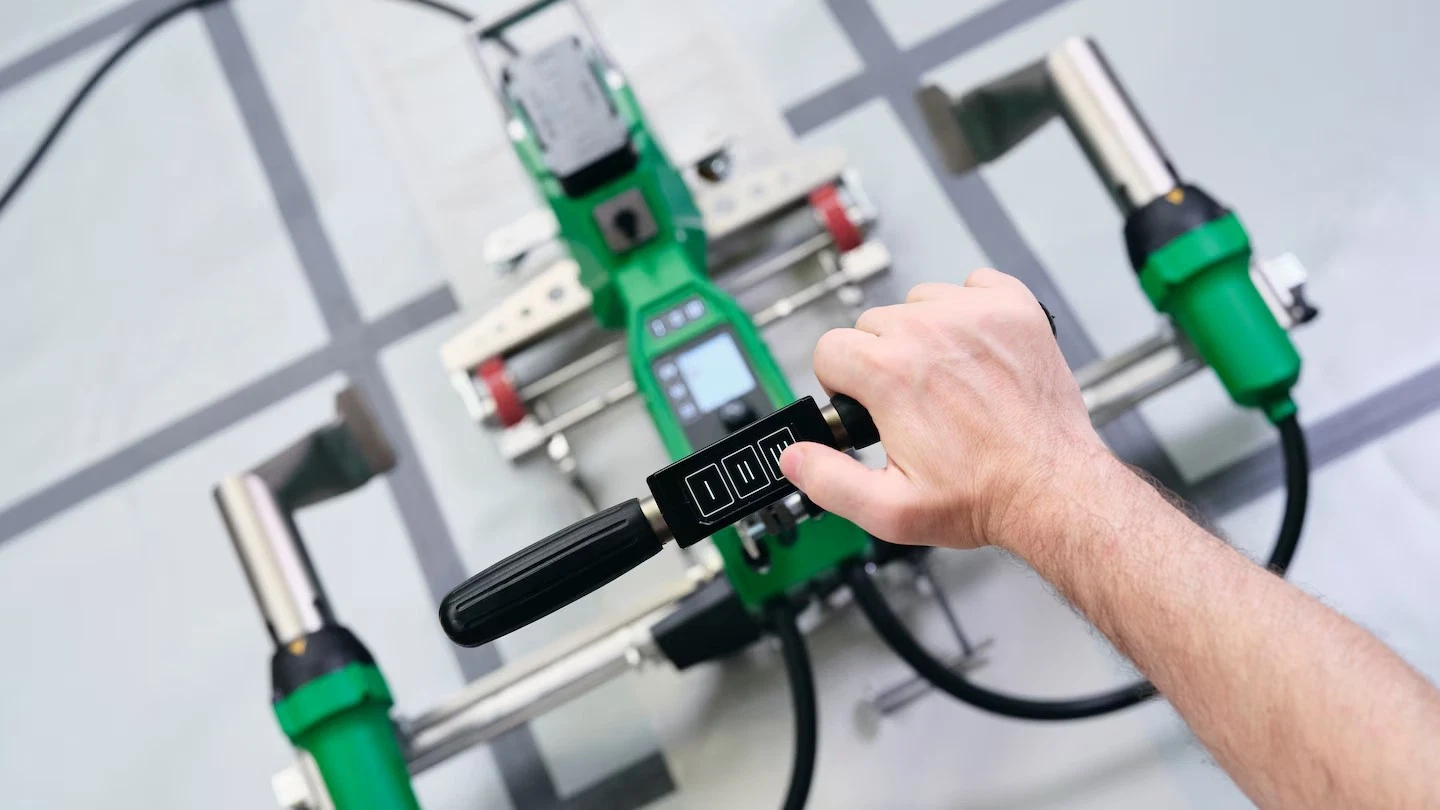

2. Innovative: Automatic start/stop
With auto start/stop functionality and easy-to-use nozzle in/out features, the VARIANT 706 simplifies the welding process, enhancing user safety, operational efficiency and process safety.
3. Modular: Versatile welding capabilities
The modular design allows it to switch effortlessly from spriegel to overlap or tape welding. This flexibility makes it ideal for various applications.
Applications: Virtually unlimited
Truck tarpaulin welding
Tent tarpaulin welding
