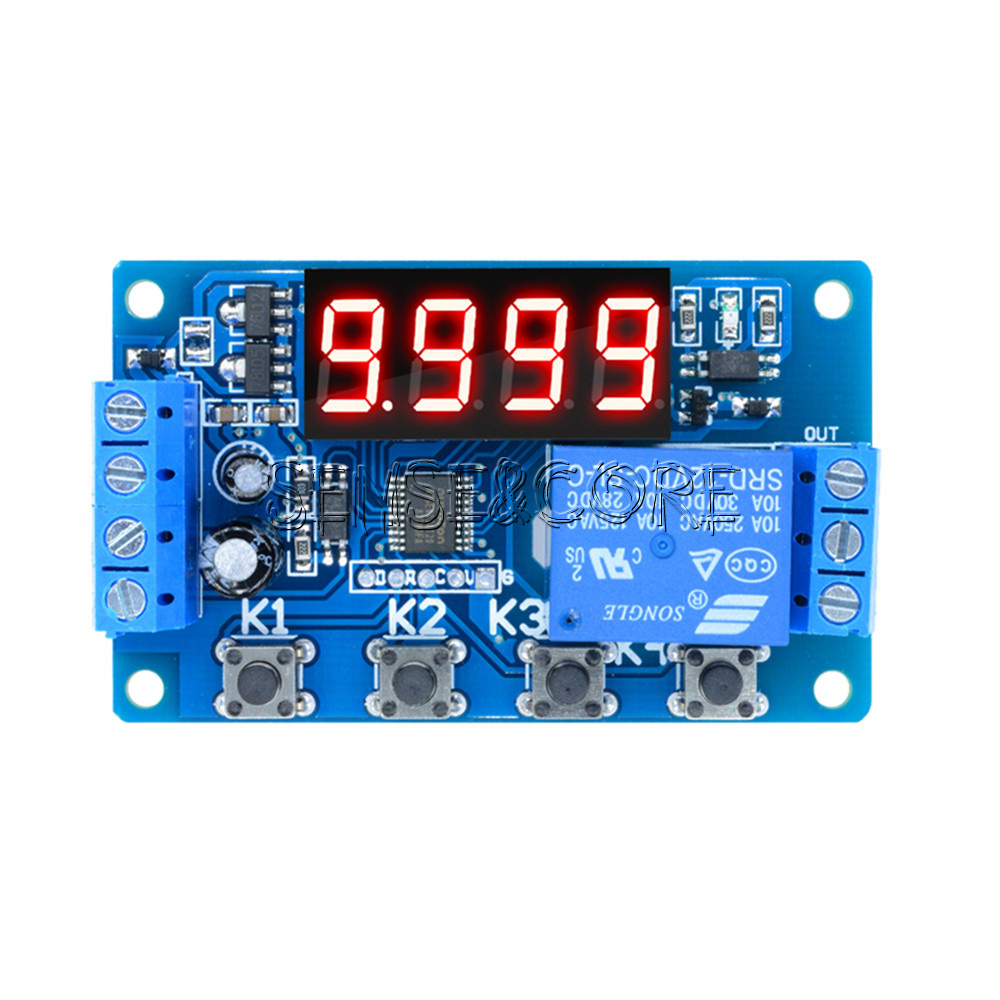

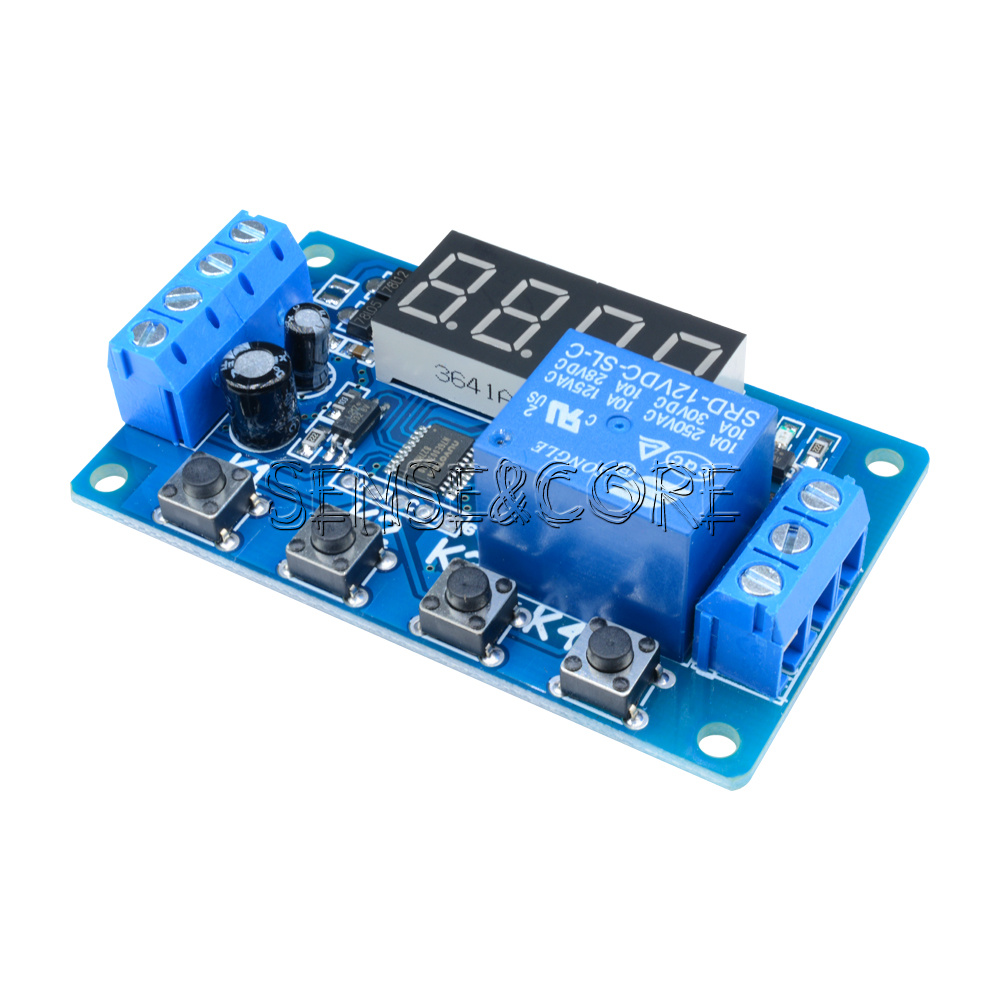

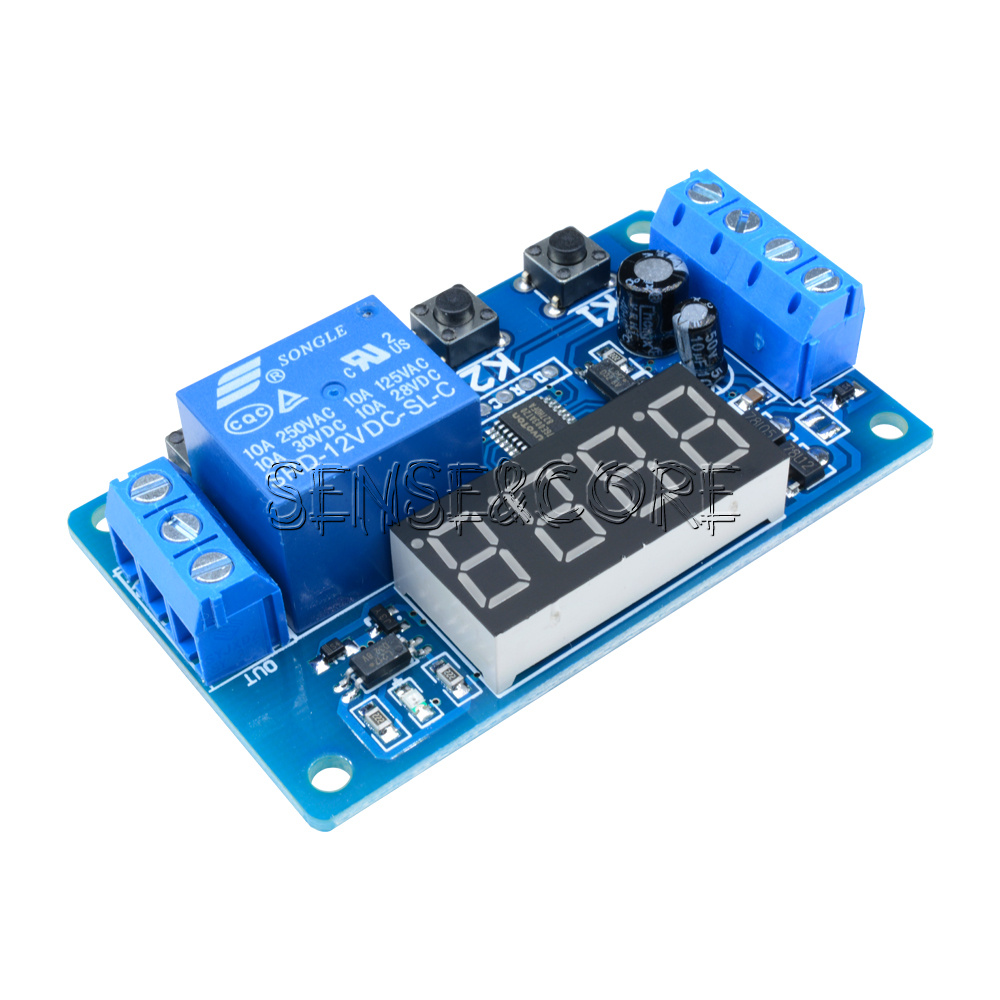

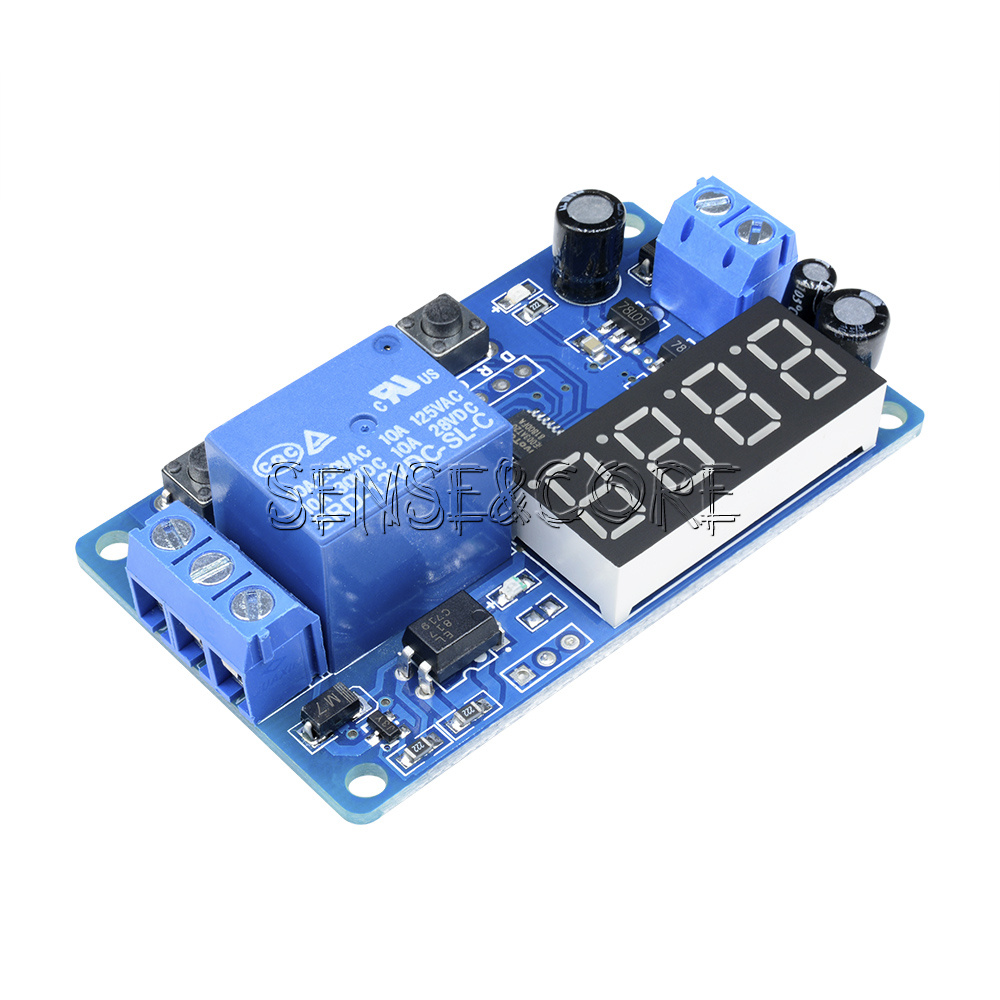

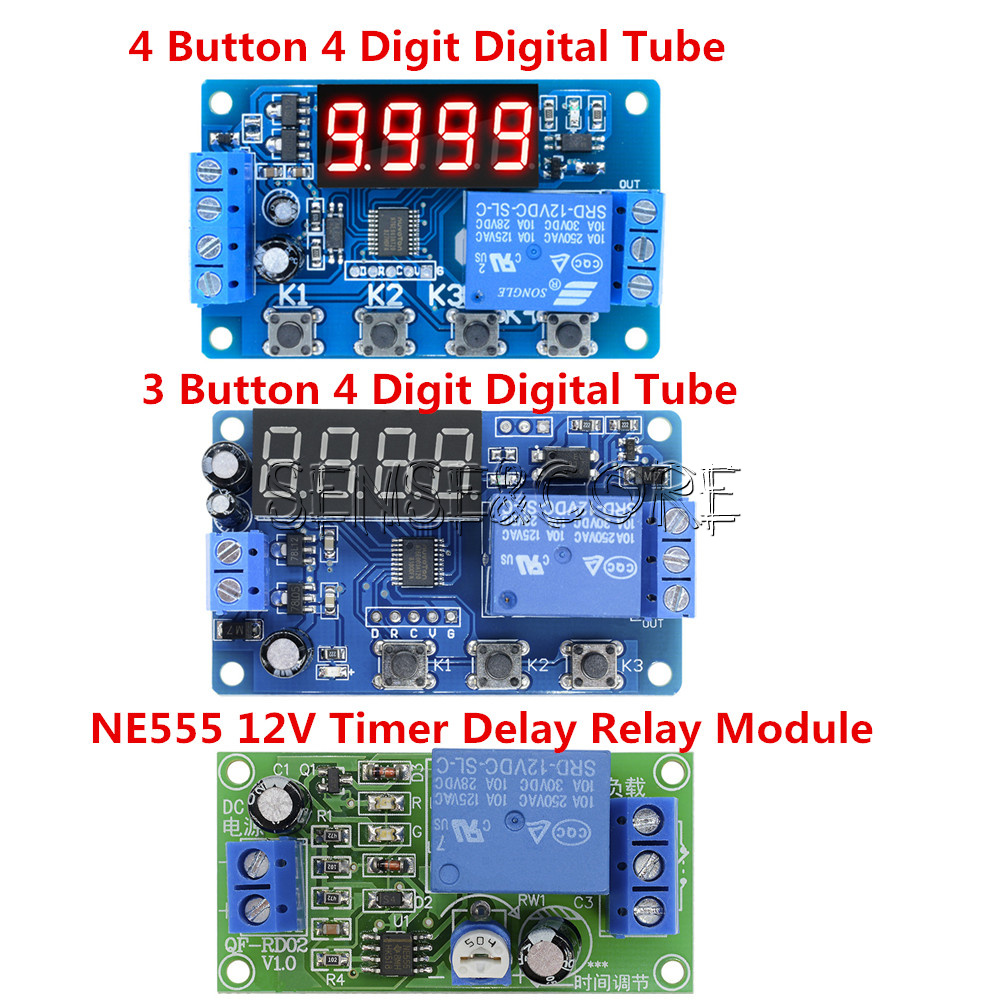

4 Button 4 Digit Digital Tube:

Item Special:
1: Product model: YYC-2S 24 common functions, to meet more application needs; can control solenoid valves, pumps, motors, lights, etc.
2: Input voltage: DC 5/12/24V optional
3: Output power: can control DC or AC load within 10A
4: Time range: 0.01 seconds to 999 minutes adjustable at any time

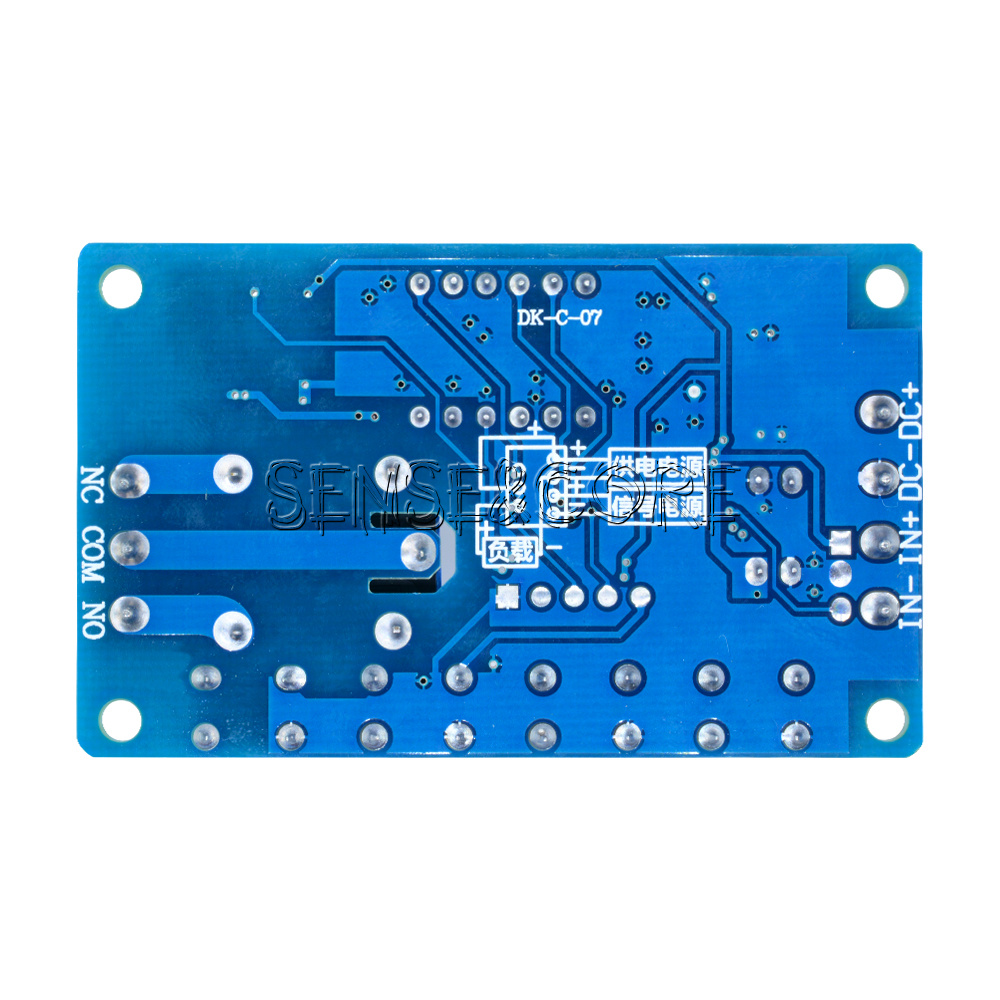

5: Description of the wiring port:
(1) DC+: input DC power supply positive
(2) DC-: input DC power supply negative
(3)IN+: positive input terminal
(4) IN-: signal input terminal
(5) NO: relay normally open interface, the relay is suspended before the suction, after the suction and short circuit with COM
(6) COM: relay common interface
(7) NC: The relay normally closes the interface, and the relay is shorted to COM before the suction is closed.

1: Function list:
P-11: Jog P-12: Self-locking P-13: Give signal, the relay will stop automatically for A seconds; the trigger will be invalid during the delay.
P-14: Give signal, relay will stop automatically for A seconds; trigger re-time during delay
P-15: Give signal, relay is automatically stopped for A seconds; trigger timing is triggered during delay
P-16: Give signal, relay will stop automatically for A seconds; trigger reset during delay
P-17: Give signal, relay is closed, input signal is disconnected, output is off after A seconds
P-18: After power-on, the relay will immediately pull in, after a delay of A seconds, the power will be turned off;
P-21: Disconnect the signal relay, after a delay of A seconds, the relay pulls in
P-22: Give signal, after more than A seconds, the relay pulls in, the signal disappears, the relay stops.
P-23: After the signal disappears for more than A seconds, the relay is closed, there is a signal, and the relay stops.
P-24: There is a signal. After more than A seconds, the relay is closed. When the signal disappears for more than A seconds, the relay stops.
P-25: There is a signal after more than A seconds, the relay is closed, and after a signal exceeds A seconds, the relay stops.
P-26: There is a signal. The relay stops after A seconds of suction, and the signal disappears. The relay stops again after A seconds.
P-27: The pulse signal is detected and the relay is closed; if there is no pulse signal, the relay delays for A seconds;
P-28: After power-on, after a delay of A seconds, the relay pulls in until the power is turned off.
P-31: After power-on, the relay pulls in for A seconds, disconnects B seconds, infinite loop; power-off stops P-32: signal, start P-31
P-33: Give a signal, start P-31 infinite loop; give another signal to terminate the loop
P-34: After power-on, after a delay of A seconds, the relay pulls in and closes after B seconds.
P-35: There is a signal. After a delay of A seconds, the relay pulls in and closes after B seconds.
P-36: There is a signal. After more than A seconds, the relay pulls in and closes after B seconds.
P-37: There is a signal, the relay will stop automatically for A seconds, and then stop for 24 seconds. The signal trigger is invalid during A+B time.
P-38: There is a signal, the relay will stop automatically for A seconds, stop and re-time for B seconds, and then automatically close for A seconds.
P-41: There is no signal; the signal disappears; the relay works after the delay of A time.
P-42: The signal disappears, after a delay of A time, the relay works; the end of work B time
P-43: The signal disappears. After the A time, the relay works; the working B time ends.
P-44: After power-on, the relay works for A time, and stops B time; the cycle stops automatically for C times.
P-45: The power is not activated, after the signal is given; the relay works for A time, the B time is stopped; the cycle C stops automatically; the signal is given again, once again
P-46: After the signal is sent for more than A times, the relay is closed; the suction is kept; the power is stopped.
P-47: After the signal is sent for more than A times, the relay is closed for B seconds.
P-48: In C seconds, after the signal is continuously sent for more than A times, the relay is closed for B seconds.

2: Button setting instructions:
The power-on display “————” means to enter the standby state;
Press K1 for the first time (more than 1 second is required to prevent false triggering)
Screen display: P -11: K2 adjusts the main mode, K3 and K4 adjustment functions
Press the second time K1, the screen displays: A001: K2 and K3 adjust the first time A, K4 adjust the decimal point (time unit)
Pressing the third K1, the screen displays: B001: K2 and K3 adjust the second time B, K4 adjusts the decimal point (time unit)
Pressing the fourth K1, “————” means entering the standby state;
Press K4 in standby mode to permanently turn off/on the display and switch the low power mode.
X.XX decimal point in hundred, timing range: 0.01 seconds to 9.99 seconds
XX.X decimal point in ten, timing range: 0.1 seconds to 99.9 seconds
XXX has no decimal point, timing range: 1 second ~ 999 seconds
XXX. The decimal point is in one place, the time range is from 1 minute to 999 minutes.

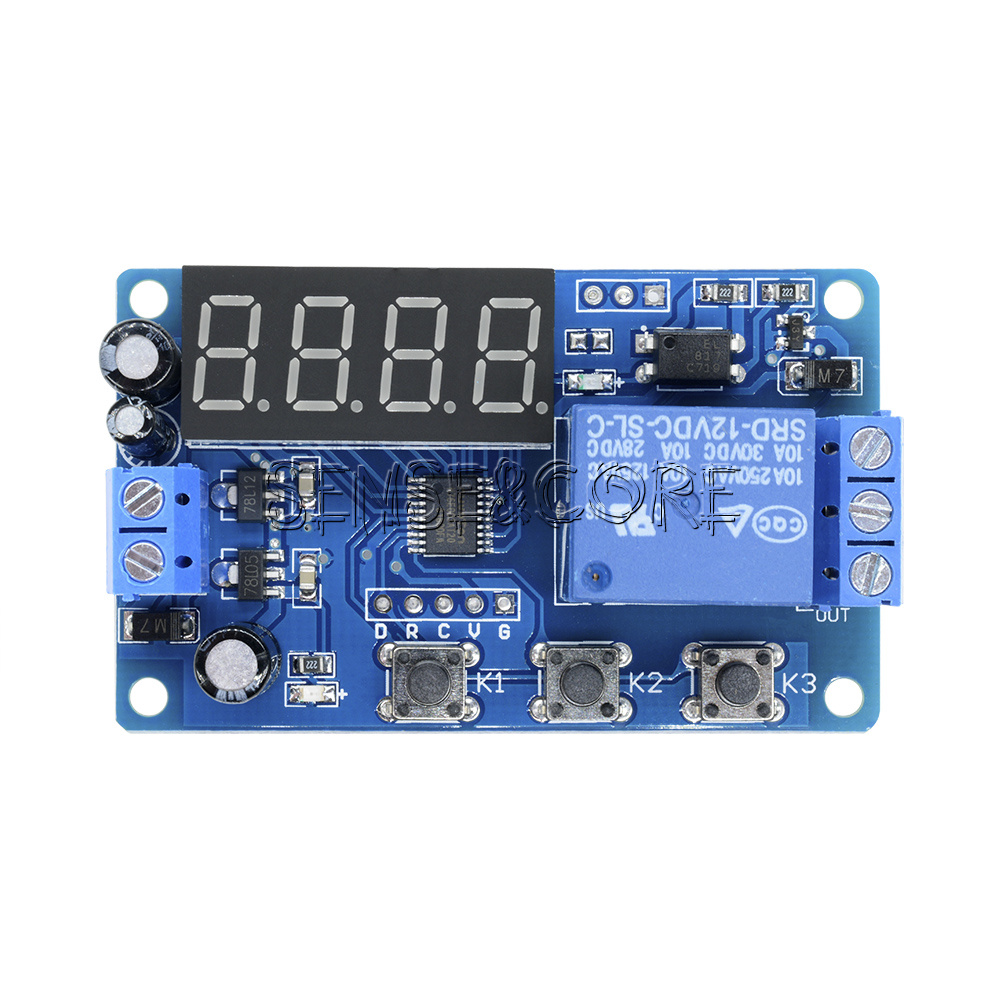

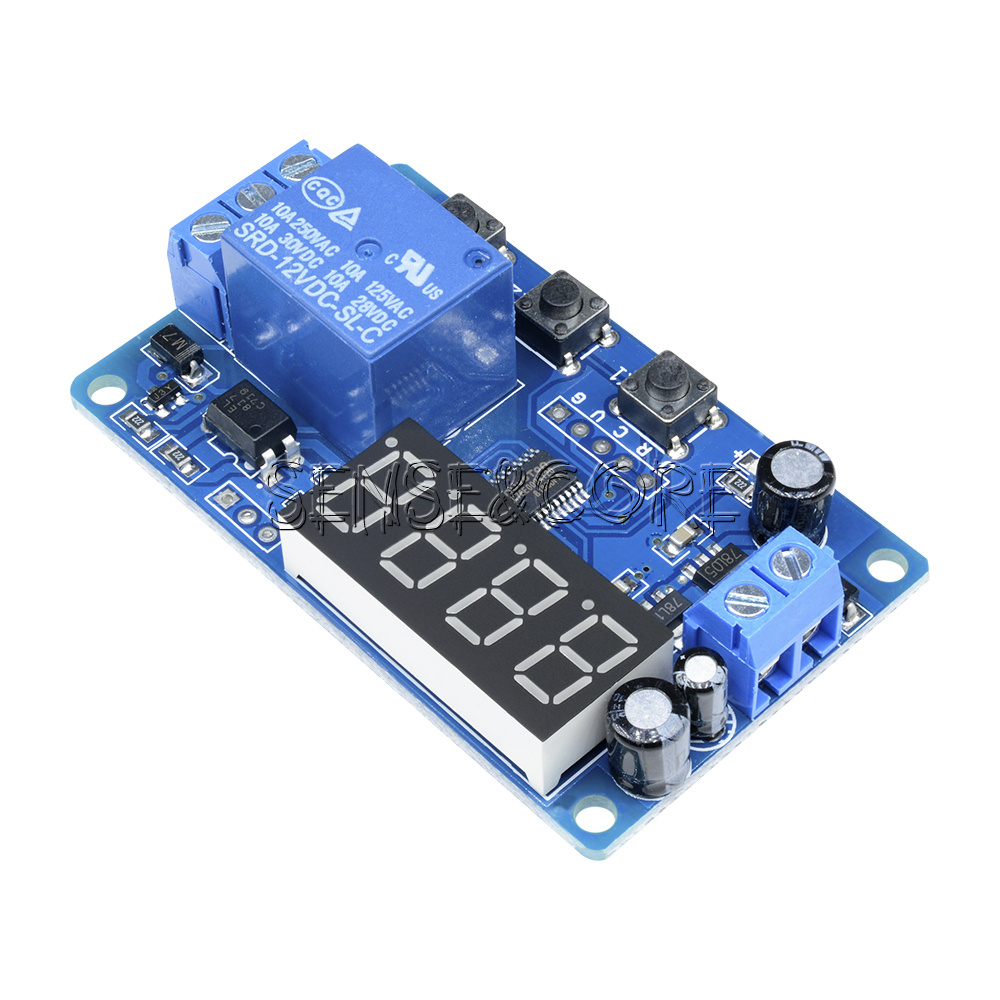

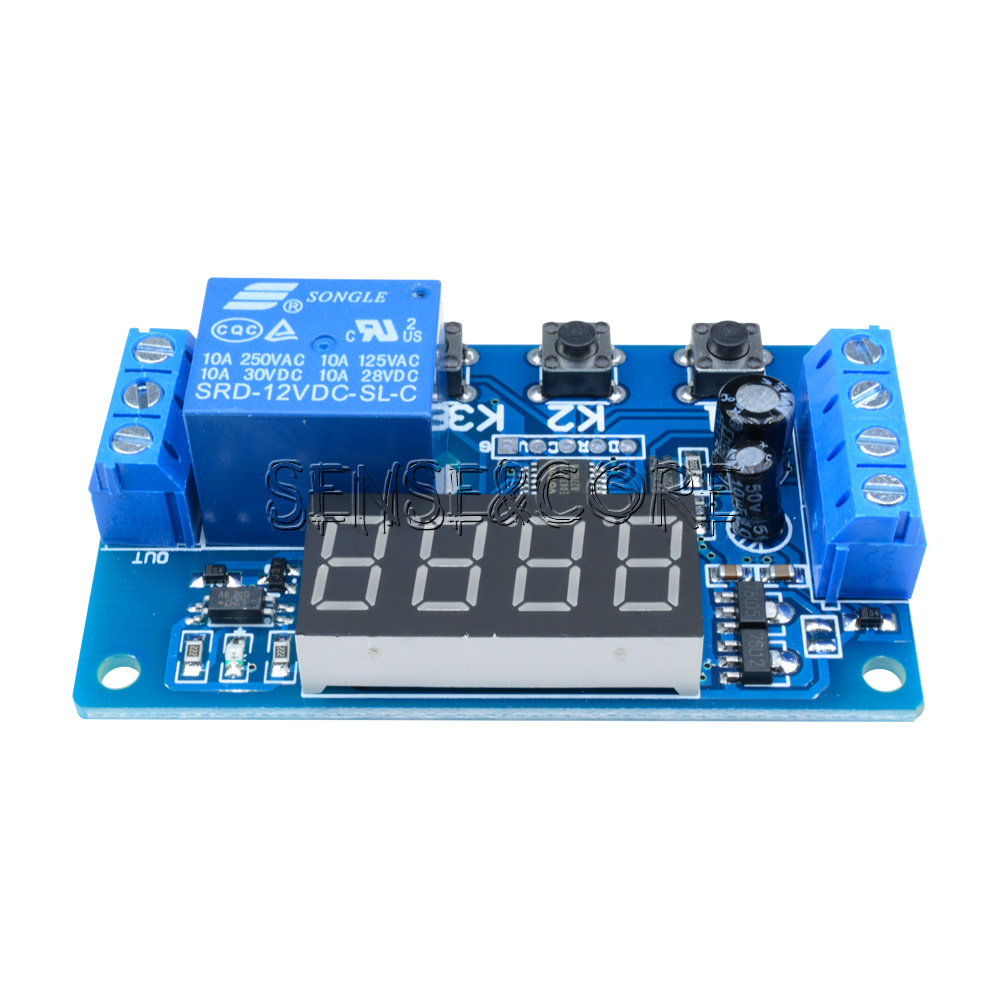

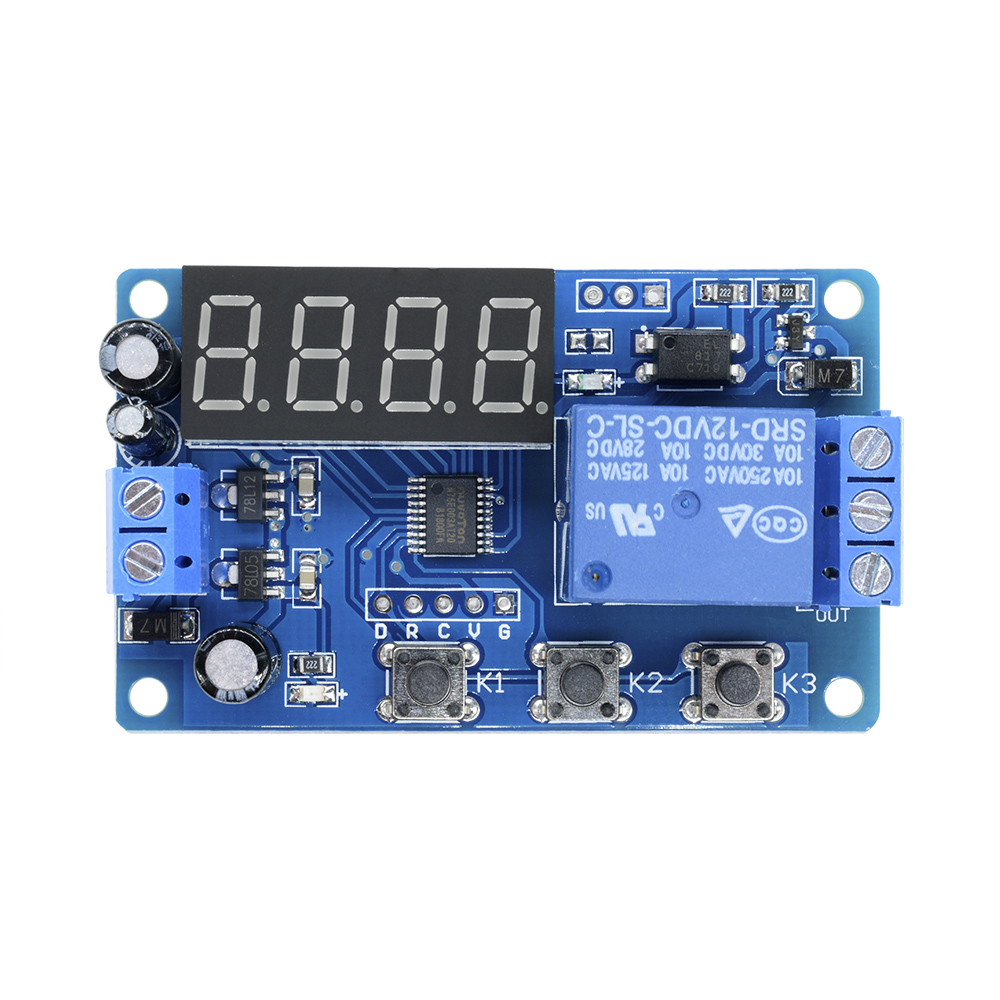

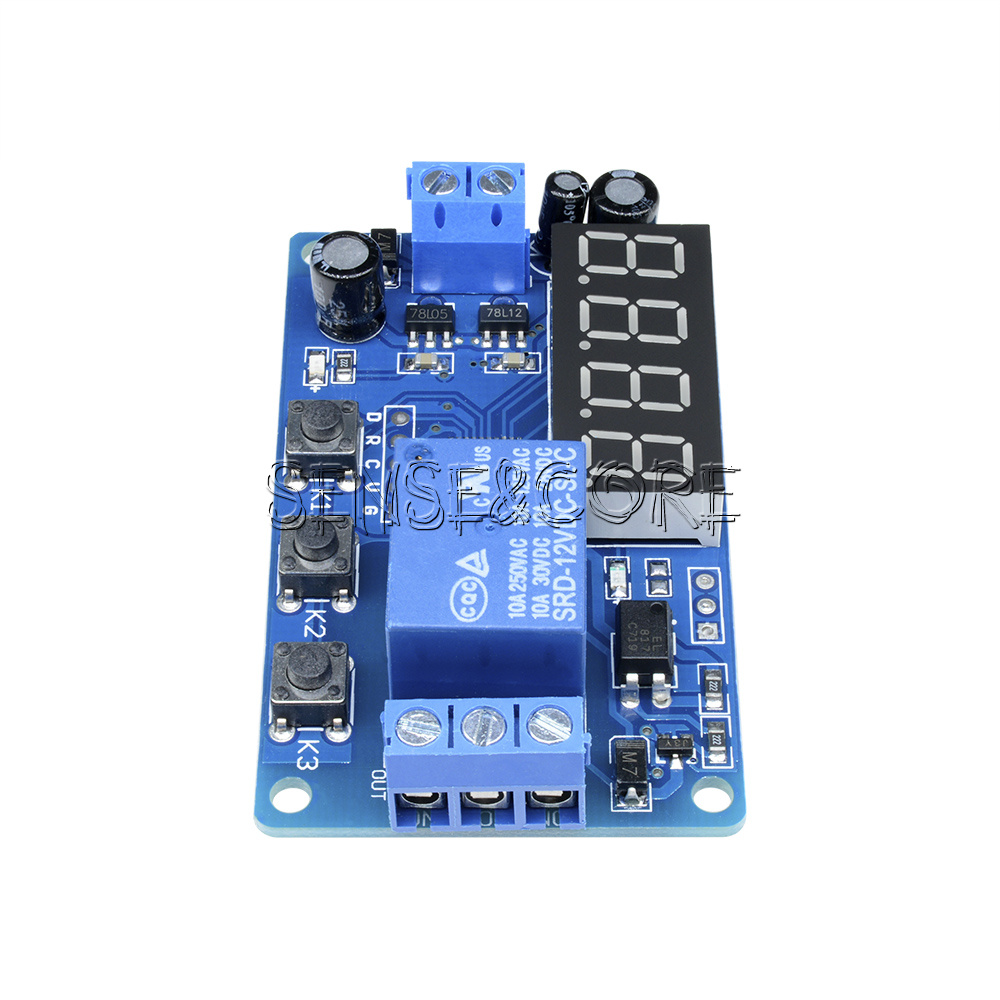

3 Button 4 Digit Digital Tube:

Description :
100% brand new and high quality
Power, equipment delay some time before power work until disconnect the power. Or power equipment to work immediately, delay time, automatically stops
This product is a new digital LED countdown display 12v delay module module. It can be widely with various control switch places.
Products can set the delay time, can press "set" buttons. After setting up, power-up setting value is previous setting delay time as we set last time (power-down memory function)
Products are precision delay, error 0.01% per second, a delay of 0-99 seconds , LED changes per seconds
The wide range of products can be used in many fields
products are working low-power mode, press the left button to turn off the digital display or begin to show
Products with high current input voltage regulator chip , with opto -isolated output , enhanced anti-jamming capability and ensure stability
Increase supply anti-reverse function
Voltage: Voltage DC 12V
Inputs and outputs are opto-isolated, enhanced anti-jamming capability Power:
Quiescent Current: 20mA Working Current: 50mA
Ensure stability, industrial grade circuit boards, class PLC
Operating voltage: 10 ~ 16V (if other ranges can be customized)
After setting the parameters of power can never remember
Time: 0 to 999.9 seconds from 0 to 9999 seconds 0 to 9999 minutes
Increase the power-saving features, a key switch, permanent power
Life: "10 million times Working temperature: -40 ~ 85'C
Operating Mode Selection: When powered on, long press K1 2 seconds later enter the selection function mode, P1-1 ~ P1-3 optional; Long press K2 closes the digital display.

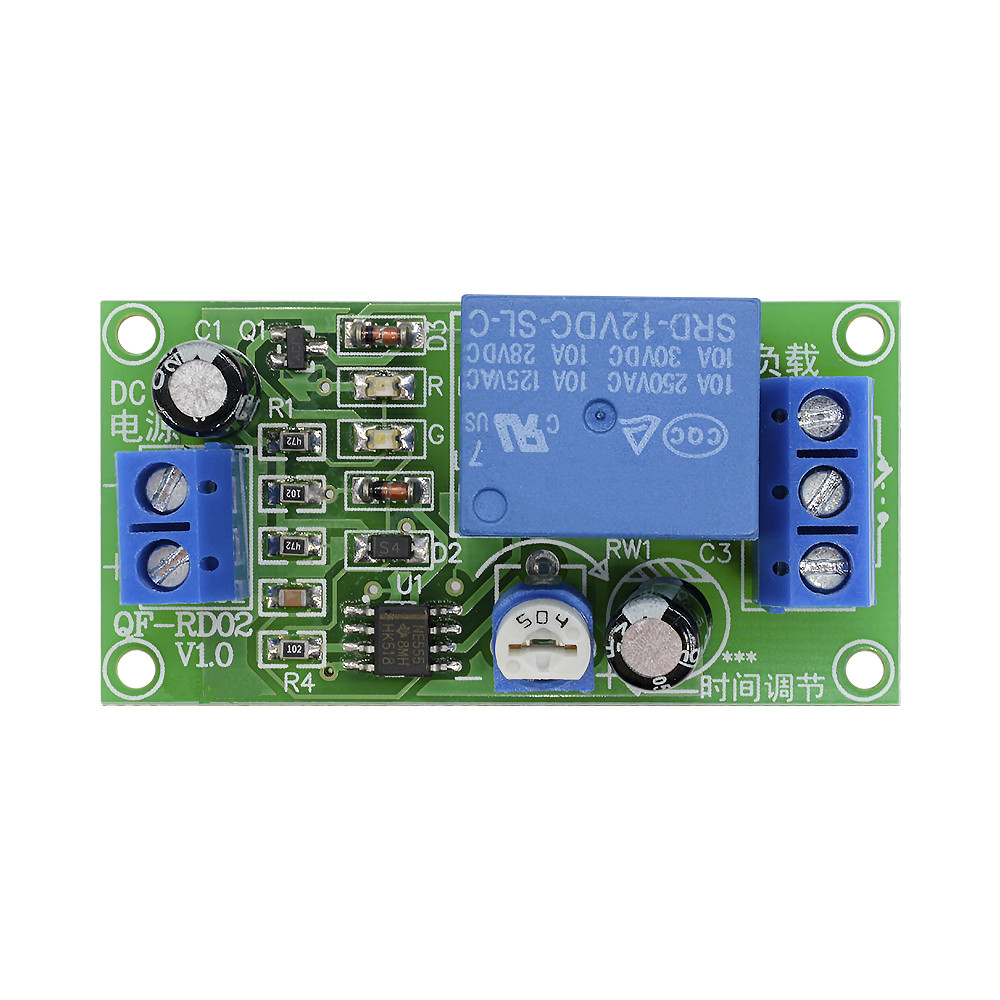

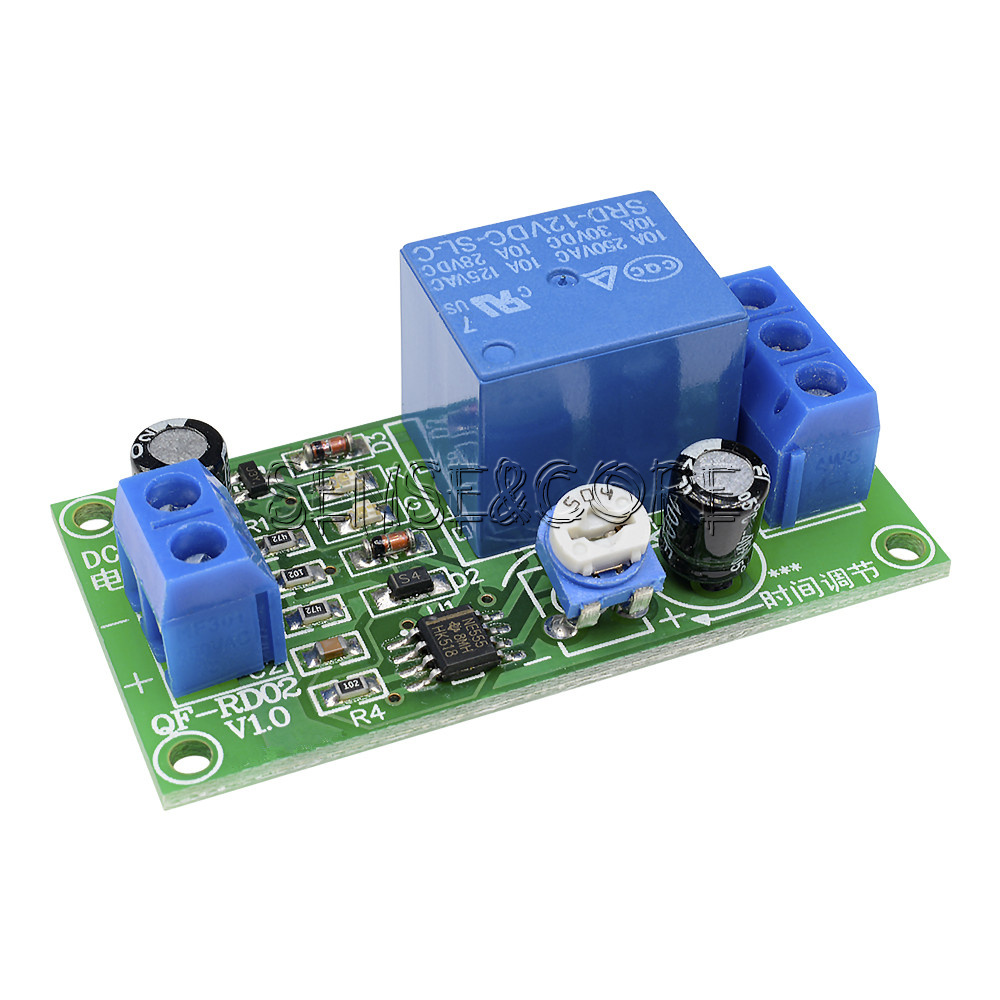

NE555 12V Timer Delay Relay Module:

Feature:

This is a 12V Conduction delay relay module
- This is a brand new and high quality delay turn-on / Turn off module.the use of high-performance timing CPU design.
- the power indicator LED and switch trigger timing indication LEDs;
- The output can be connected to AC 250V 10A or DC 30V 10A load;
- There is the chronopotentiometry regulation time, adjustable from 0 to 60 seconds by default, or by changing the capacitance adjustment time longer Standby current: 5mA Action: 45mA

For applications of：

Vehicle equipment-delay to prevent car ignition, prevention of high sudden current to burn components and devices.

Parameter:

1.Module based on: NE555 chip.
2.Delay module: delay connect module
3.Input voltage: DC12V (DC 10v ~ 14.5v is okay.)
4.Control voltage: AC 0~250V / max. 10A, DC 0~30V / max. 10A the operating voltage: 12 volts DC; (otherwise 12V optional)
5.Max. load: 2200W

Main Chip (NE555) Characteristics:

1.Timing from microseconds to long hours
2.Simple circuit design
3.Precision Pulse Generation / Timing,
4.Adjustable Duty Cycle
5.Countless Application and Information Sources

Package included:

1Pcs Timer Delay Relay Module(Optional)
