Feature:
High efficiency and low heat radiation with sendust core inductor
Portable and easy to carry with the compact size and lightweight design
Powerful with the efficiency in step up mode is 90% and 88% in step-down mode
Used in notebook power supply, car power, industrial power, model power, embedded systems, and so on.
Specification:
Size: (L x W x H) 70 x 39 x 32 mm
Wide Input Voltage Range: DC 6 ~ 35V
Output Voltage: DC 1 ~ 35V
Conversion Efficiency: 90%
Maximum Output Current: 5A
Maximum Input Current: 7A
Constant Current Adjusting Range: 0.05A~5A
Note:
1. Do not reverse the positive and negative terminal, or it will damage this item. 2. The input current and output current may not reach the maximum value as the item works in long time. 3. This auto step-up/down module which supports the input voltage higher or lower than the output voltage 4.90% conversion efficiency was measured as 12V input voltage and 19V/2.5A output voltage. 5. The conversion efficiency is related to input and output voltage, current.
Package Included:

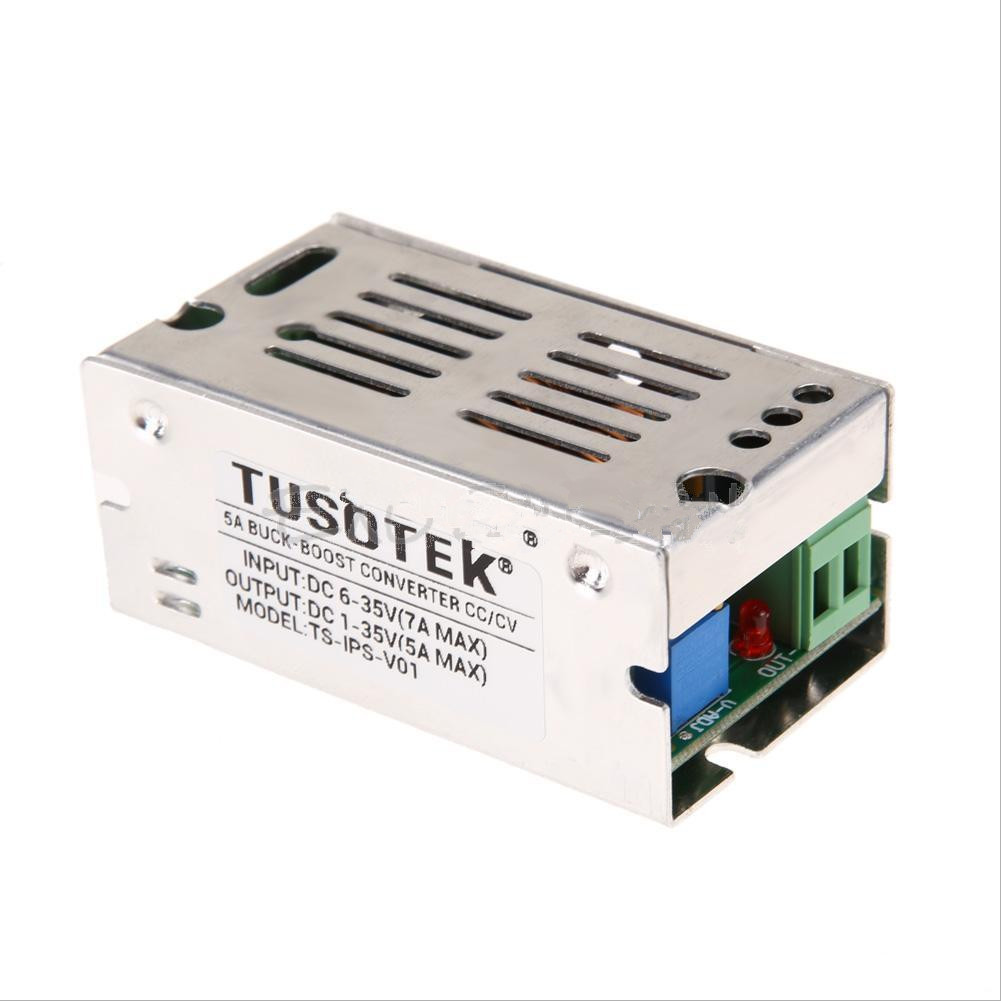

1 x 5A Auto Step Up/Down Regulator Module
