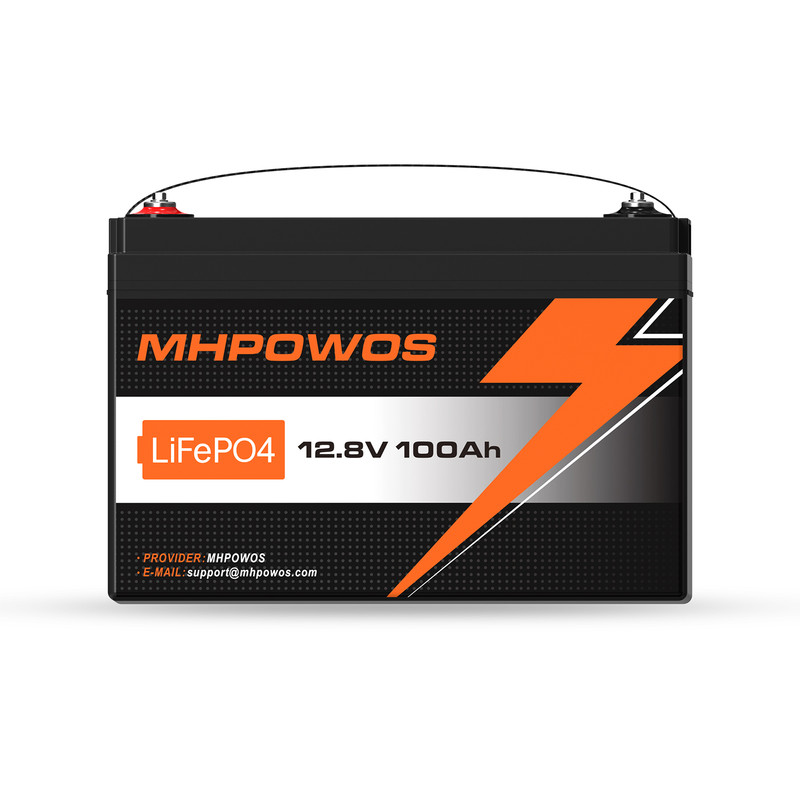

12V 100Ah LiFePO4 Battery
| Specification | Value |
|---|
| Cell | Brand New Grade A LiFePO4 Cells |
| Capacity | 1280 Wh |
| Nominal Voltage | 12.8 V |
| Sustained Charge / Discharge Current | 100 A / 120 A |
| Maximum Charge Voltage | 14.6 V |
| Minimum Discharge Voltage | 9.6 V |
| Peak Discharge Current | 300A / 5S, 500A / 3S |
| Number of Cycles | 6000+ (80% DOD) |
| Charge Ambient Temperature | 14℉ ~ 149℉ |
| Discharge Ambient Temperature | -22°F ~ 167°F |
| BMS Protection Functions | over-charge, over-discharge, short circuits, high and low temperatures for both charging and discharging, FET high-temperature protection, automatic cell voltage balancing, disconnection protection |
| Series / Parallel Configuration | up to 4S4P |
| Dimensions | 12.99(L) x 6.77(W) x 8.58(H) inch |
| Weight | 24.25 lb |
| Waterproof | IP65 |
| Warranty | 5 Years |
Core Specifications & Physical Design

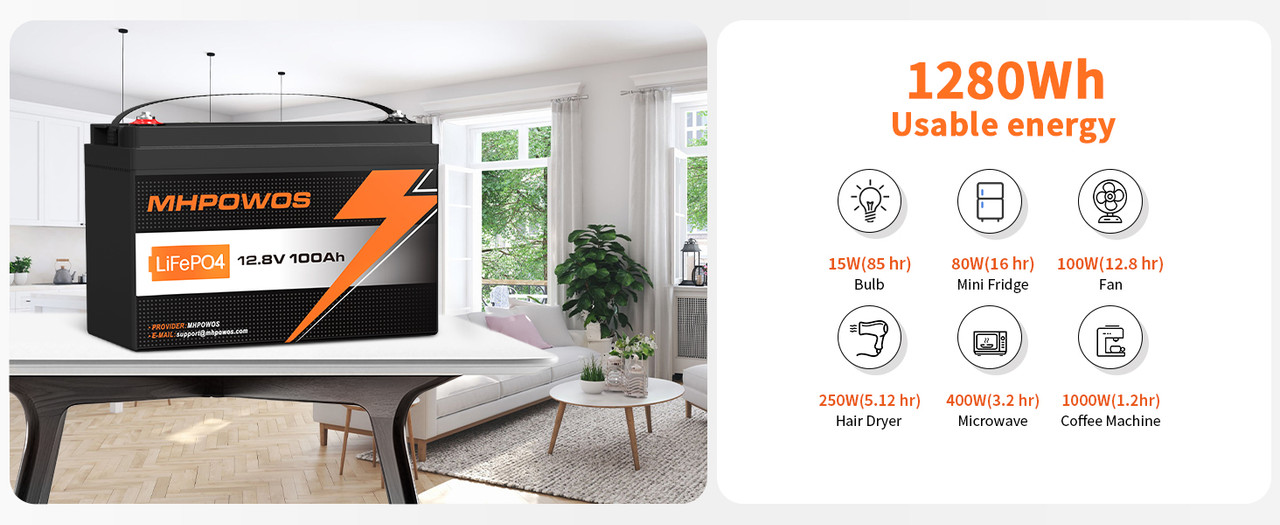

- The MHPOWOS 12V 100Ah is a LiFePO4 battery built to standard Group 31 specifications, measuring 12.99(L) x 6.77(W) x 8.58(H) inches and weighing 24.25 lbs (11.0 kg). It delivers a nominal voltage of 12.8V and a full 100Ah capacity (1280Wh energy). The unit is housed in a durable IP65-rated dustproof and waterproof casing and is equipped with standard M8 terminals for secure and efficient power connection.
Premium Grade-A Cells for Unmatched Longevity & Warranty

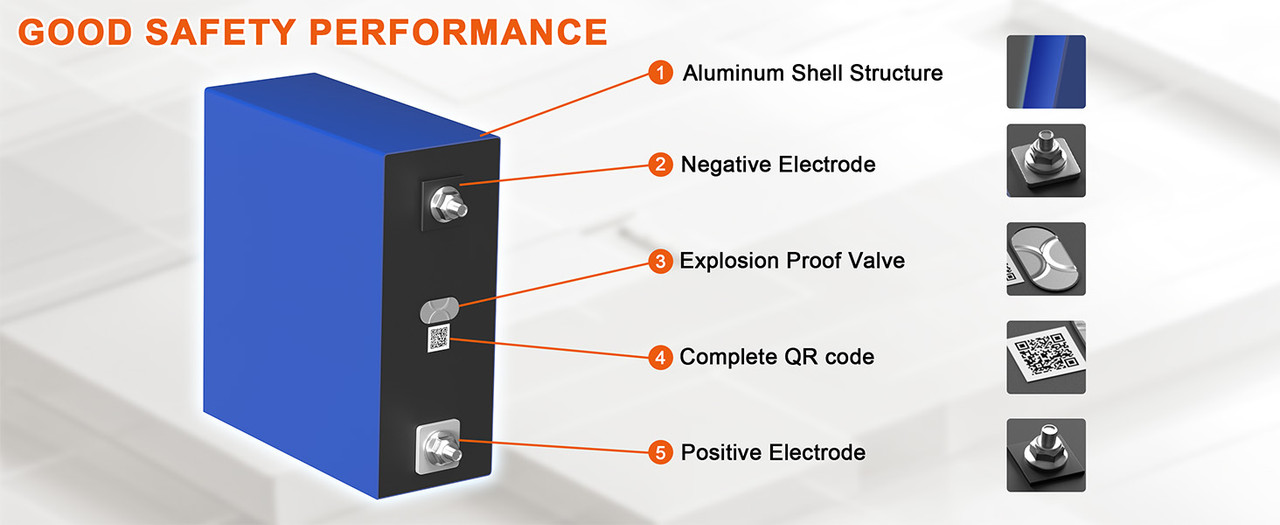

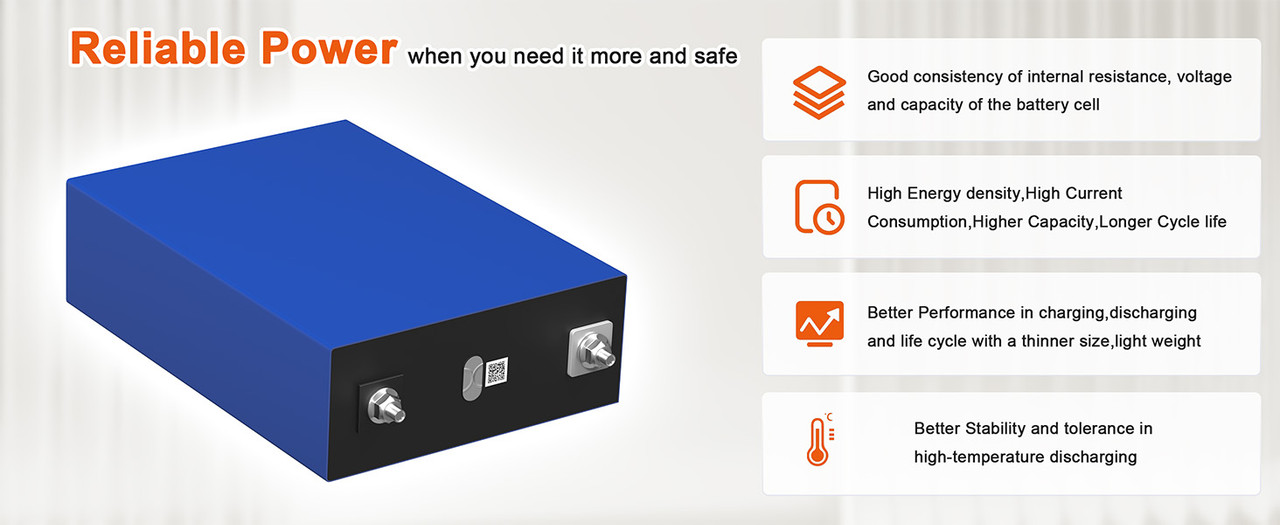

- At its core, this battery utilizes 100% Brand New, Grade-A LiFePO4 cells, a critical feature ensuring superior performance, safety, and a remarkably long service life. This premium construction guarantees an extensive lifespan of over 6000 deep cycles at 80% DOD. Its durability is further supported by a wide operating temperature range (Charging: 14°F ~ 149°F / Discharging: -22°F ~ 167°F) and is backed by a solid 5-year manufacturer's warranty.
High-Output Deep Cycle Performance (Not for Engine Starting)
- This battery is specifically engineered for deep cycle use and is explicitly not a starting battery. It excels at providing sustained power, supporting a maximum continuous charge current of 100A and a powerful maximum continuous discharge current of 120A. For demanding loads, it can handle high-power surges, delivering peak currents of 300A for 5 seconds or 500A for 3 seconds. The battery's health is maintained within a precise voltage window, with a maximum charge voltage of 14.6V and a discharge cut-off at 9.6V.
Advanced 100A BMS Protection & System Scalability

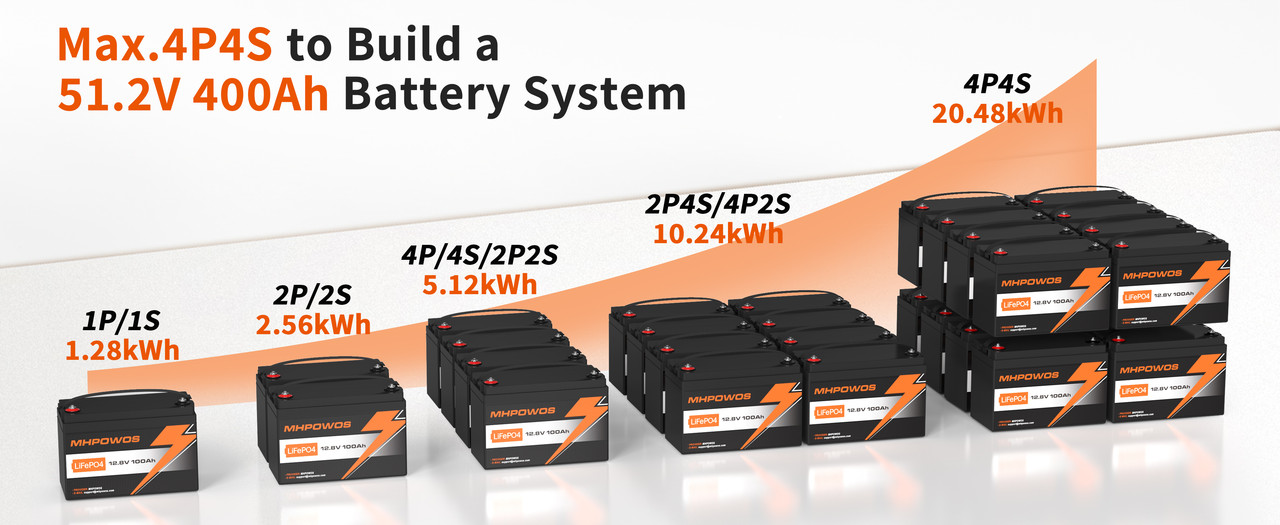

- A sophisticated built-in 100A Battery Management System (BMS) provides comprehensive, multi-level protection. This includes safeguards against over-charge, over-discharge, short circuits, high and low temperatures for both charging and discharging, FET high-temperature protection, automatic cell voltage balancing, and disconnection protection. For larger energy requirements, the battery fully supports system expansion, allowing you to connect up to 4 units in series and 4 in parallel (4S4P).
Versatile Application Scenarios
- Home Energy Storage: Store renewable energy from solar panels or wind systems.
- Off-Grid Power: Provide electricity for cabins, worksites, and farms without grid access.
- UPS Systems: Ensure uninterrupted backup power for servers, communication hubs, and medical equipment.
- RV & Camping: Powers appliances like fridges, lights, TVs, coffee makers and other appliances on the road.
- Marine & Yachting: Serve as a primary or auxiliary power source for navigation, lighting, small electric thrusters, and trolling motors.
- Outdoor Power Stations: Pair with an inverter to drive laptops, fans, lights, and cooking equipment for work or recreation.
24V 100Ah LiFePO4 Battery
| Specification | Value |
|---|
| Cell | Brand New Grade A LiFePO4 Cells |
| Capacity | 2560 Wh |
| Nominal Voltage | 25.6 V |
| Sustained Charge / Discharge Current | 100 A |
| Maximum Charge Voltage | 29.2 V |
| Minimum Discharge Voltage | 18.4 V |
| Peak Discharge Current | 300A / 5S, 500A / 3S |
| Number of Cycles | 6000+ (80% DOD) |
| Charge Ambient Temperature | 32℉ ~ 140℉ |
| Discharge Ambient Temperature | -4°F ~ 149°F |
| BMS Protection Functions | Over / Under Voltage, Charge / Discharge Overcurrent, Short Circuit, High / Low Temp (Charge / Discharge), FET Overheat, Voltage Balance |
| Series / Parallel Configuration | up to 4S4P |
| Dimensions | 20.9(L) x 8.2(W) x 8.4(H) inch |
| Weight | 46.3 lb |
| Waterproof | IP65 |
| Warranty | 5 Years |
Core Specifications & Physical Design
- The MHPOWOS 24V 100Ah is a LiFePO4 battery measuring 20.9(L) x 8.2(W) x 8.4(H) inches and weighing 46.3 lbs (21.0 kg). It delivers a nominal voltage of 25.6V and a full 100Ah capacity (2560Wh energy). The unit is housed in a durable IP65-rated dustproof and waterproof casing and is equipped with standard M8 terminals for secure and efficient power connection.
Premium Grade-A Cells for Unmatched Longevity & Warranty

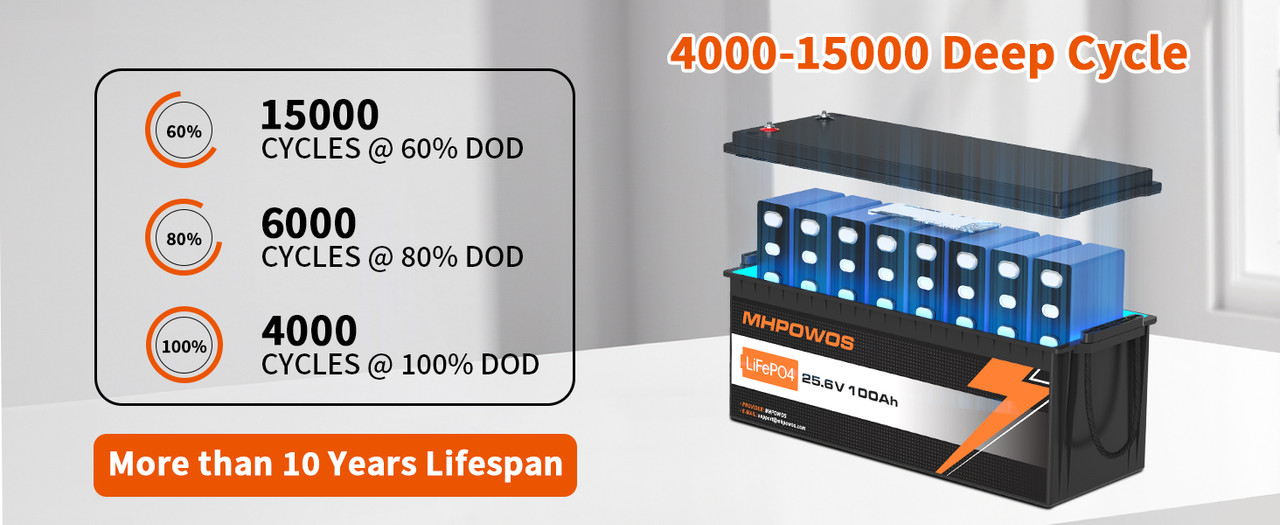

- At its core, this battery utilizes 100% Brand New, Grade-A LiFePO4 cells, a critical feature ensuring superior performance, safety, and a remarkably long service life. This premium construction guarantees an extensive lifespan of over 6000 deep cycles at 80% DOD. Its durability is further supported by a wide operating temperature range (Charging: 32°F ~ 140°F / Discharging: -4°F ~ 149°F) and is backed by a solid 5-year manufacturer's warranty.
High-Output Deep Cycle Performance (Not for Engine Starting)
- This battery is specifically engineered for deep cycle use and is explicitly not a starting battery. It excels at providing sustained power, supporting a powerful maximum continuous charge and discharge current of 100A. For demanding loads, it can handle high-power surges, delivering peak currents of 300A for 5 seconds or 500A for 3 seconds. The battery's health is maintained within a precise voltage window, with a maximum charge voltage of 29.2V and a discharge cut-off at 18.4V.
Advanced 100A BMS Protection & System Scalability

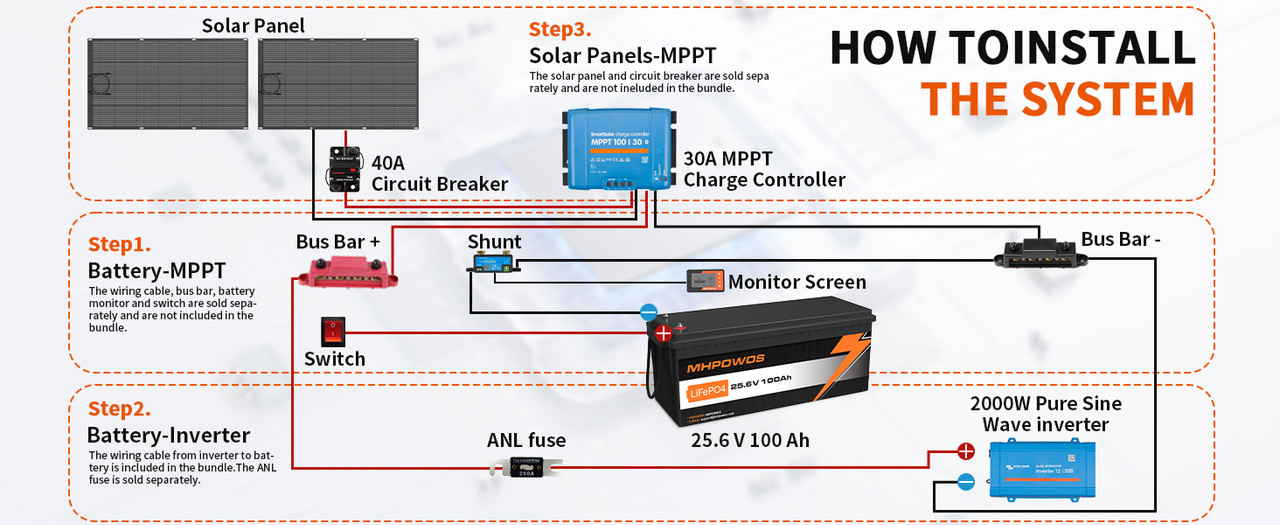

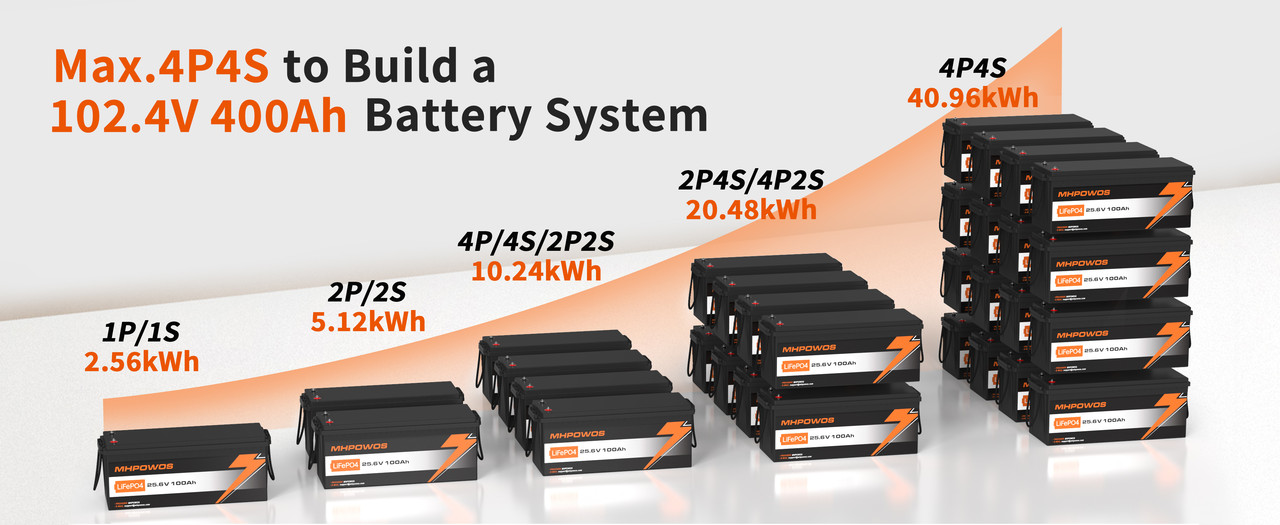

- A sophisticated built-in 100A Battery Management System (BMS) provides comprehensive, multi-level protection. This includes safeguards against over-charge, over-discharge, short circuits, high and low temperatures for both charging and discharging, FET high-temperature protection and automatic cell voltage balancing. For larger energy requirements, the battery fully supports system expansion, allowing you to connect up to 4 units in series and 4 in parallel (4S4P).
Versatile Application Scenarios
- Home Energy Storage: Store renewable energy from solar panels or wind systems.
- Off-Grid Power: Provide electricity for cabins, worksites, and farms without grid access.
- UPS Systems: Ensure uninterrupted backup power for servers, communication hubs, and medical equipment.
- RVs & Camping: Power refrigerators, lighting, TVs, coffee makers, and other appliances on the road.
- Marine & Yachting: Serve as a primary or auxiliary power source for navigation, lighting, small electric thrusters, and trolling motors.
- Outdoor & Portable Power Stations: Pair with an inverter to drive laptops, fans, lights, and cooking equipment for work or recreation.
- ...

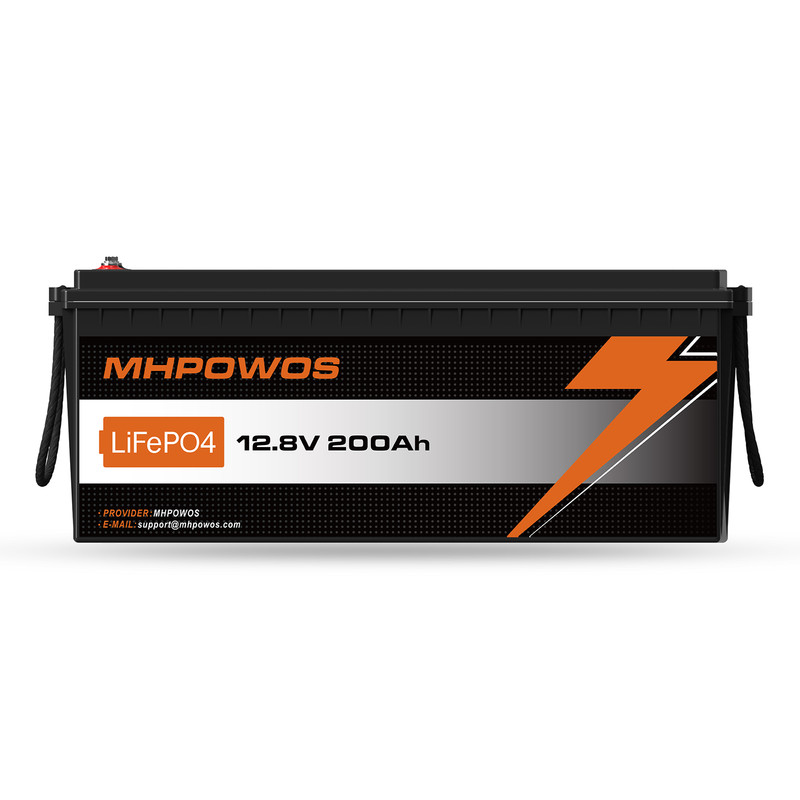

12V 200Ah LiFePO4 Battery
| Specification | Value |
|---|
| Cell | Brand New Grade A LiFePO4 Cells |
| Capacity | 2560 Wh |
| Nominal Voltage | 12.8 V |
| Sustained Charge / Discharge Current | 200 A |
| Maximum Charge Voltage | 14.6 V |
| Minimum Discharge Voltage | 9.6 V |
| Peak Discharge Current | 600A / 5S |
| Number of Cycles | 6000+ (80% DOD) |
| Charge Ambient Temperature | 32℉ ~ 122℉ |
| Discharge Ambient Temperature | -4°F ~ 158°F |
| BMS Protection Functions | Over / Under Voltage, Charge / Discharge Overcurrent, Short Circuit, High / Low Temp (Charge / Discharge), FET Overheat, Voltage Balance |
| Series / Parallel Configuration | up to 4S4P |
| Dimensions | 20.9(L) x 8.2(W) x 8.4(H) inch |
| Weight | 46.3 lb |
| Waterproof | IP65 |
| Warranty | 5 Years |
Core Specifications & Physical Design

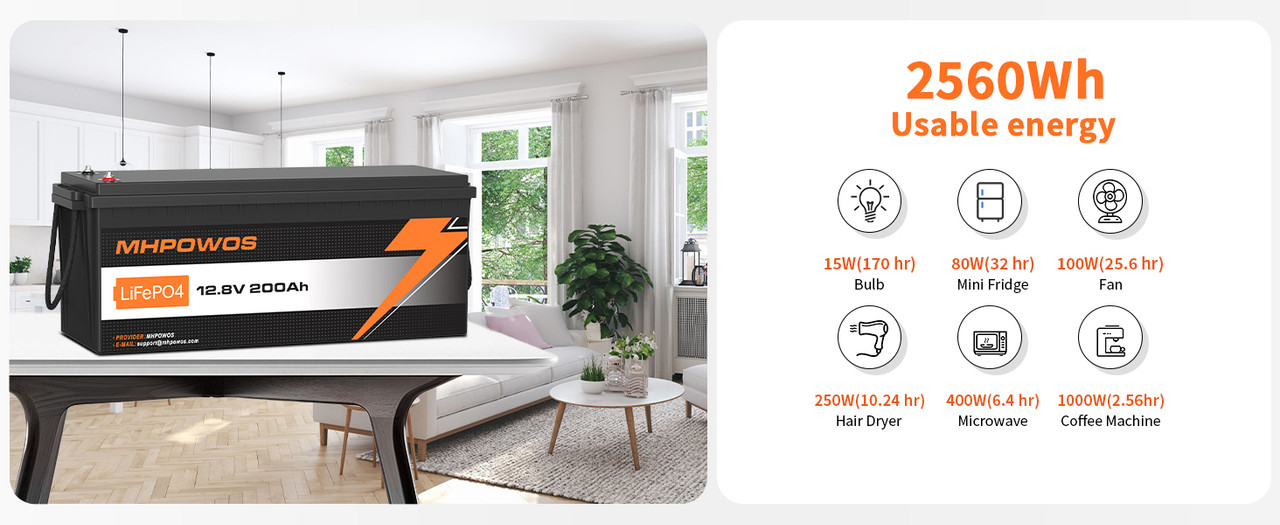

- The MHPOWOS 12V 200Ah is a LiFePO4 battery measuring 20.9(L) x 8.2(W) x 8.4(H) inches and weighing 46.3 lbs (21.0 kg). It delivers a nominal voltage of 12.8V and a full 200Ah capacity (2560Wh energy). The unit is housed in a durable IP65-rated dustproof and waterproof casing and is equipped with standard M8 terminals for secure and efficient power connection.
Premium Grade-A Cells for Unmatched Longevity & Warranty

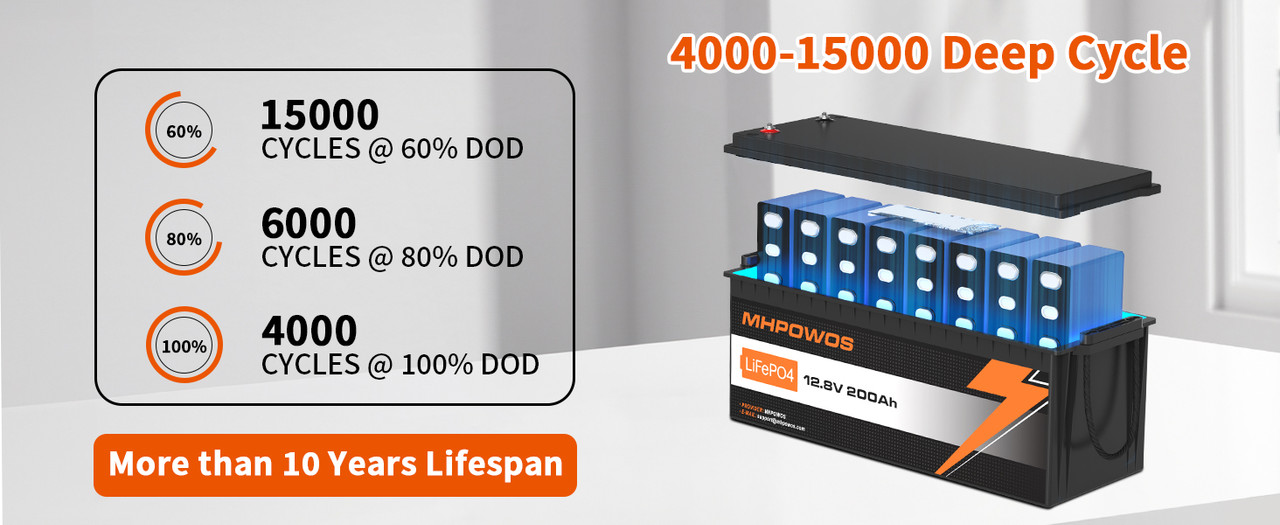

- At its core, this battery utilizes 100% Brand New, Grade-A LiFePO4 cells, a critical feature ensuring superior performance, safety, and a remarkably long service life. This premium construction guarantees an extensive lifespan of over 6000 deep cycles at 80% DOD. Its durability is further supported by a wide operating temperature range (Charging: 32°F ~ 122°F / Discharging: -4°F ~ 158°F) and is backed by a solid 5-year manufacturer's warranty.
High-Output Deep Cycle Performance (Not for Engine Starting)
- This battery is specifically engineered for deep cycle use and is explicitly not a starting battery. It excels at providing sustained power, supporting a powerful maximum continuous charge and discharge current of 200A. For demanding loads, it can handle high-power surges, delivering peak currents of 600A for 5 seconds. The battery's health is maintained within a precise voltage window, with a maximum charge voltage of 14.6V and a discharge cut-off at 9.6V.
Advanced 100A BMS Protection & System Scalability

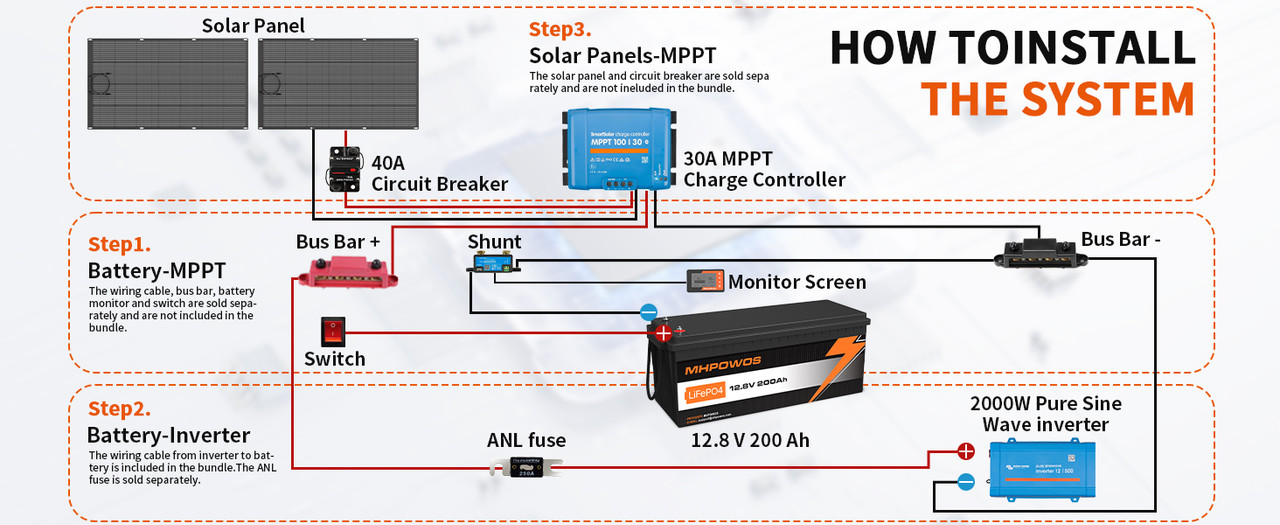

- A sophisticated built-in 200A Battery Management System (BMS) provides comprehensive, multi-level protection. This includes safeguards against over-charge, over-discharge, short circuits, high and low temperatures for both charging and discharging, FET high-temperature protection and automatic cell voltage balancing. For larger energy requirements, the battery fully supports system expansion, allowing you to connect up to 4 units in series and 4 in parallel (4S4P).
Versatile Application Scenarios
- Home Energy Storage: Store renewable energy from solar panels or wind systems.
- Off-Grid Power: Provide electricity for cabins, worksites, and farms without grid access.
- UPS Systems: Ensure uninterrupted backup power for servers, communication hubs, and medical equipment.
- RVs & Camping: Power refrigerators, lighting, TVs, coffee makers, and other appliances on the road.
- Marine & Yachting: Serve as a primary or auxiliary power source for navigation, lighting, small electric thrusters, and trolling motors.
- Outdoor & Portable Power Stations: Pair with an inverter to drive laptops, fans, lights, and cooking equipment for work or recreation.
- ...
