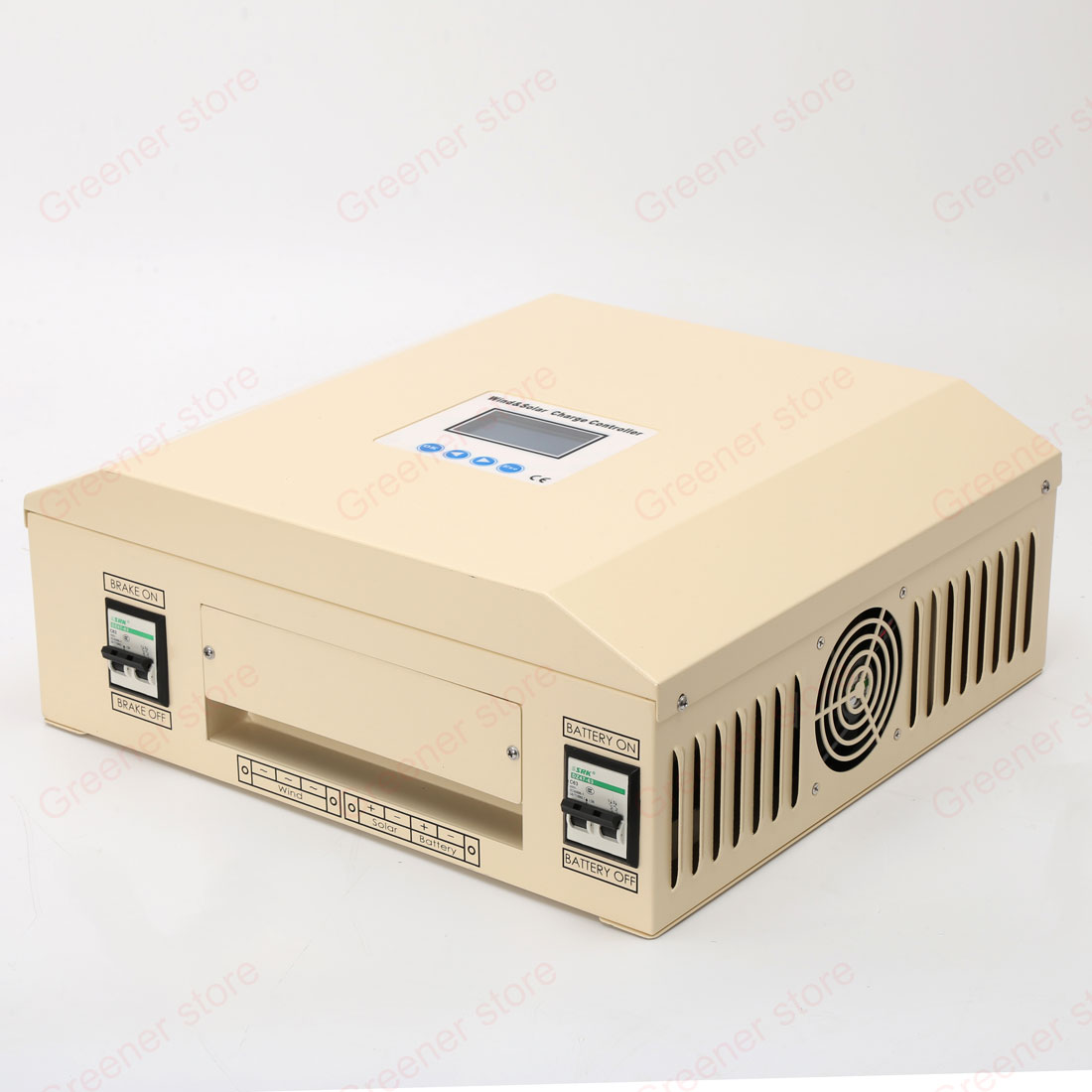

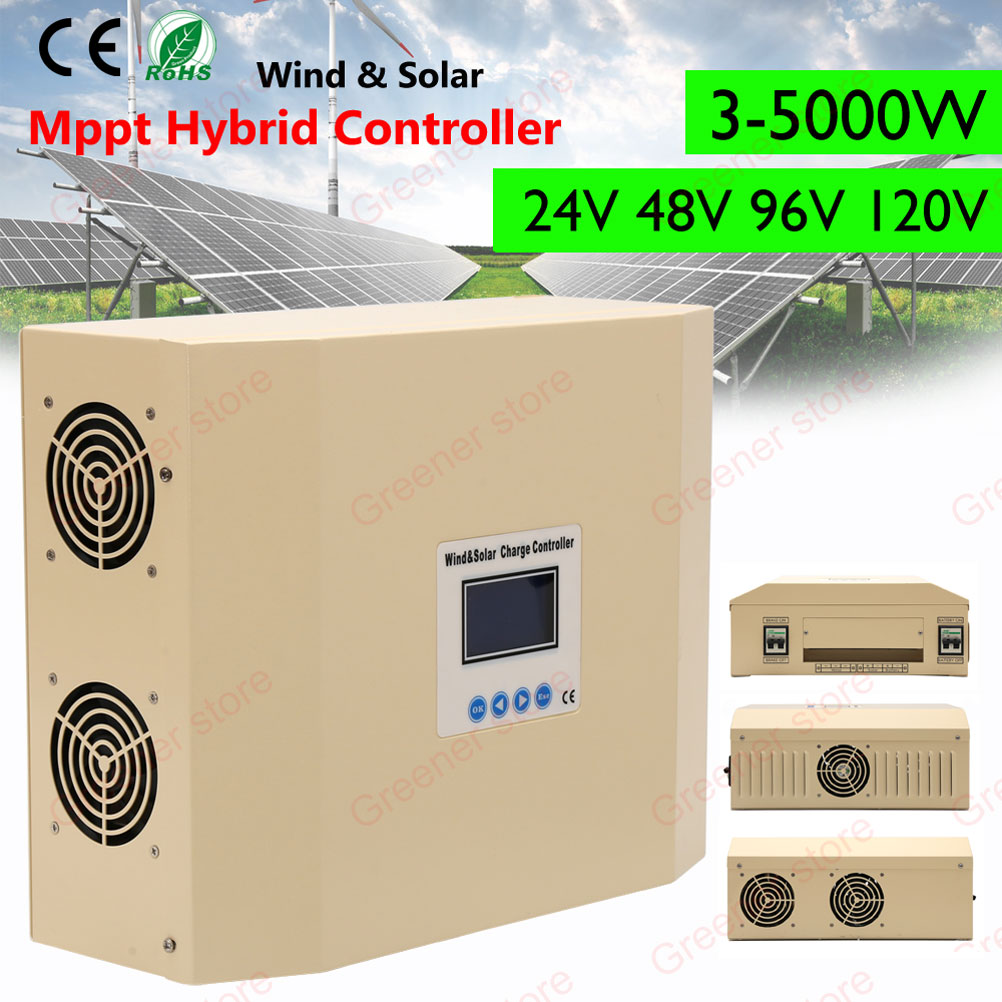

MPPT Wind PWM Solar Hybrid Charge Controller 24V/48V/96V/120V Hybrid Controller With Dump Load Resistor Inside

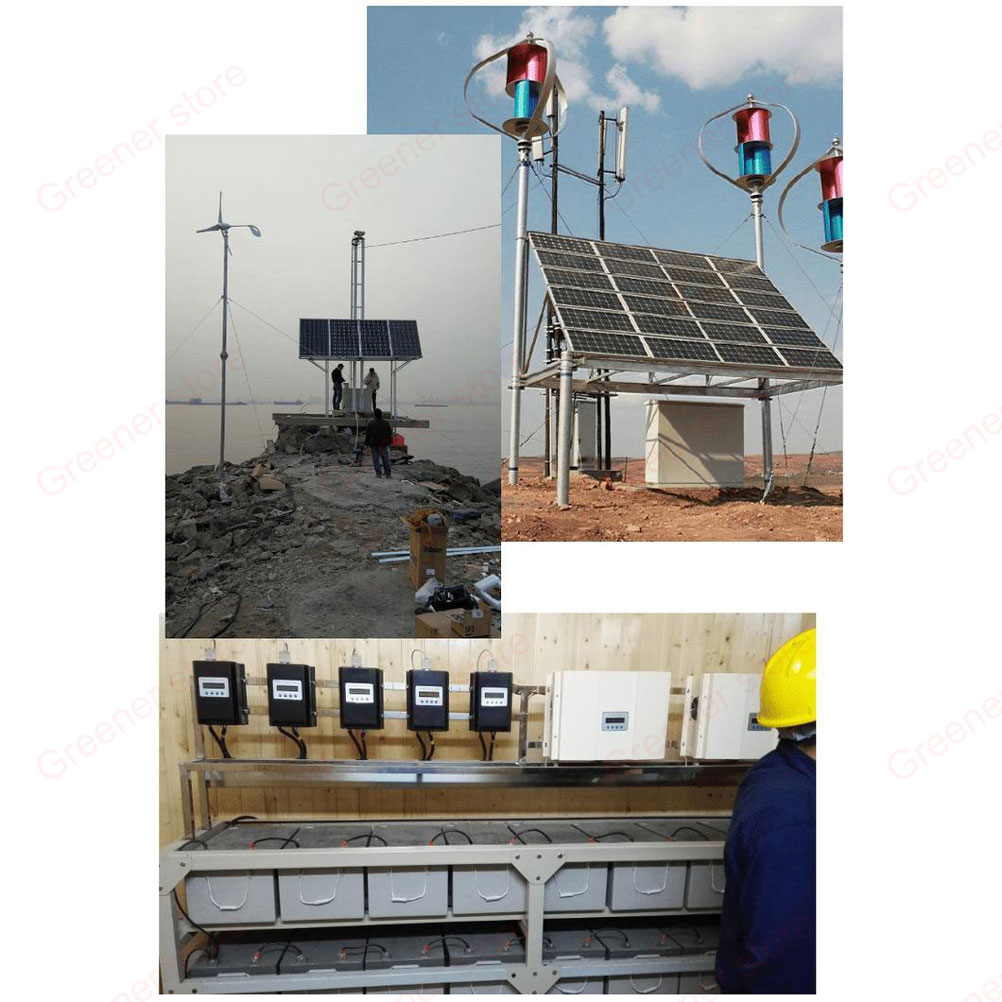

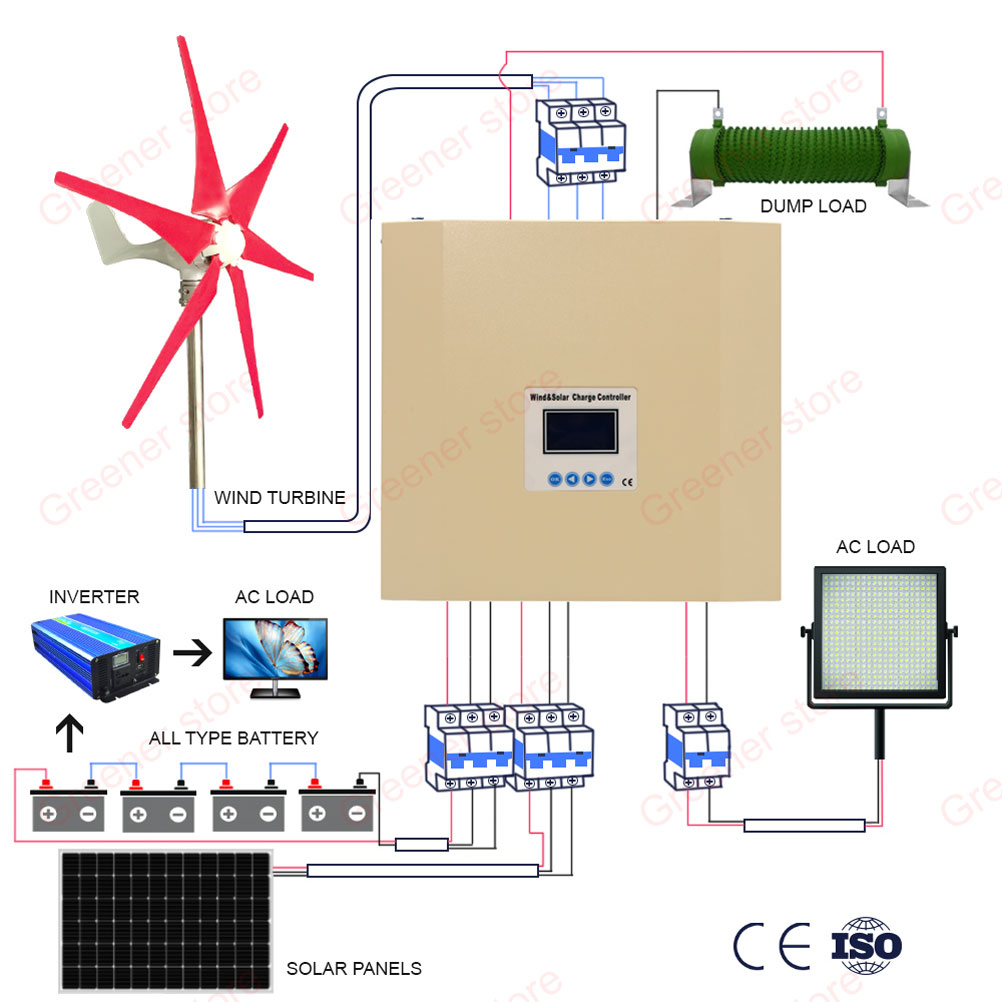

Features: This product is a smart controller that combined solar energy controlling and wind energy controlling. It is designed for small Wind Solar hybrid system, especially suitable for Wind Solar hybrid power generation system and Wind Solar hybrid monitoring system. It can control the wind turbines and solar panels simultaneously to charge the battery safely and efficiently. It has a nice appearance, clear instructions and convenient operation. It also has a comprehensive series of protective measures.

Performance: Reliability: Intelligent, modular design, simple structure, powerful functions; Industrial grade high-quality components and strict manufacturing techniques, which is suitable for relatively harsh working environments such as low temperature. It also has reliable performance and long service life.

Rated system Voltage: 24V/48V/96V/120V
Max input Voltage:Wind turbine≤180V
Static power consumption : ≤ 3W
Controller Power Mode : Battery or Solar
Control Mode : Wind generator MPPT boost charge, PV PWM Charge,PWM dump load, PWM Over current Limiting function
Dump load control mode: Over rotate speed limiting, Over voltage limiting, Over Current limiting, PWM.

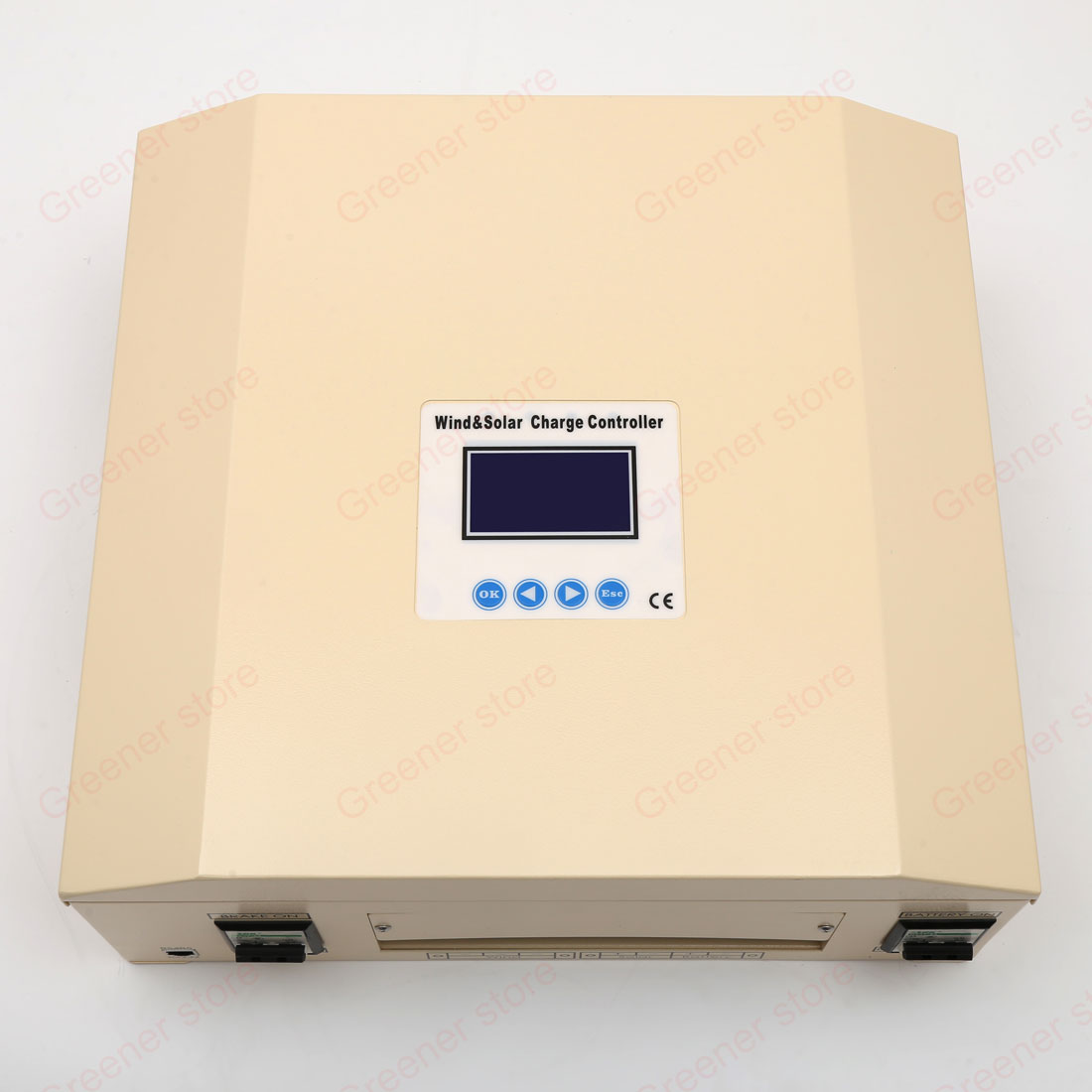

Display Parameter:
Battery: voltage;charging current; Percentage of battery power.
Wind: voltage; charging current; rotate speed; output current; output power.
System: state; generated energy; error code.

Protection Type:
Battery:over-discharge protection; over-charge protection; anti reverse connection.
Wind: Over rotate speed protection, over voltage protection, overcurrent protection.
Working temperature relative Humidity: -25℃~+80℃ /35~85%，non-condensing
Net Weight / Gross Weight : 15/16.5kg
