3L 220V/380V lubricating oil pump lubricating oil pump electric lubricating pump injection molding machine automatic grease pump
Specification:
Voltage: 380V
Power: 100W
Effective capacity: 3L

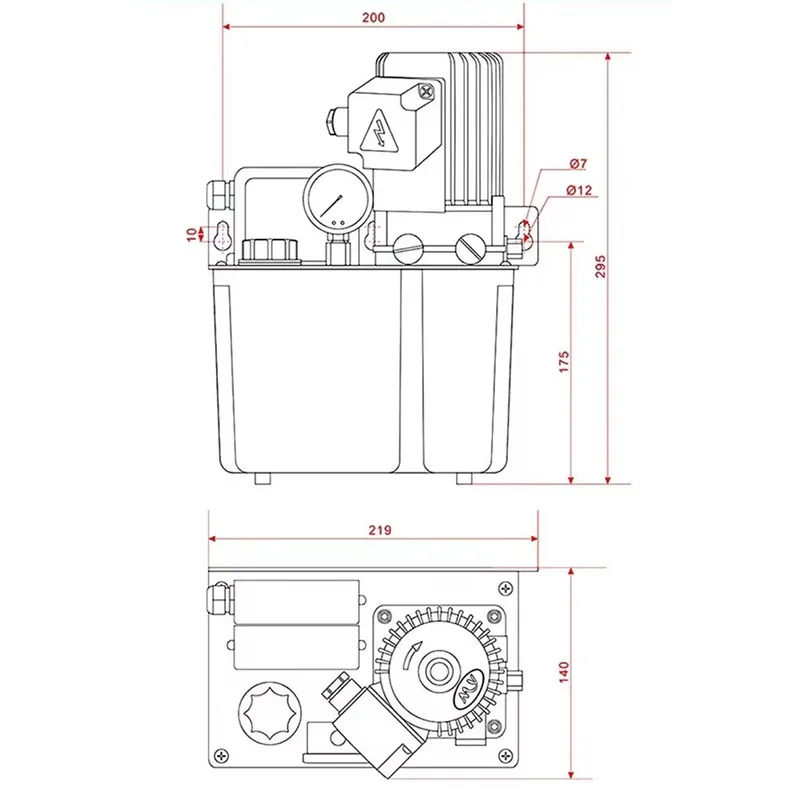

Appearance size: 295*219*140mm
Weight: 4.5kg
Oil outlet location: right
Installation size: 200mm
Port size: M10*1(6mm)
Use oil viscosity:
NIGL000/00
N30/1000
Rated speed: 2700/60HZ
Motor output power: 90W
Current: 0.55A
Rated pressure: 25Kgf/cm²
Maximum force: 50Kgf/cm²
Discharge volume: 600/630 ml/min
Instructions for use:
1. Connect to the rated power supply according to the requirements of the pump.
2. Please use the clean lubricating oil (grease) of the specified brand.
3. Before the formal work, the pre-lubrication method must be used to fill the lubricating system with lubricating oil.
4. Set the appropriate intermittent time and lubrication time according to the oil demand.
5. Clean the oil tank once every month, clean or replace the filter at the bottom of the pump.
