Details
Features:
1. Multi-functional 3-in-1: Oscilloscope + Multimeter + Signal Generator in one versatile unit.2. Equipped with a 2.8-inch TFT colour screen for clear, intuitive display.3. Incorporates a high-capacity rechargeable battery (3000mAh), supporting extended standby operation for up to 10 hours.4. Waveform storage: Enables screenshot saving and viewing for convenient data analysis.5. Signal generator function: Supports 13 waveform outputs with a frequency range of 0-50kHz. Adjustable output voltage up to 3V, with configurable output parameters including frequency, amplitude, and duty cycle for versatile adaptation to diverse requirements.6. Multimeter function: Features recording mode, auto-measurement, AC/DC voltage, AC/DC current, resistance, capacitance, diode/continuity, frequency, temperature, data hold, and LIVE neutral/live wire detection. Includes overload protection and low-battery indicator.Specifications:

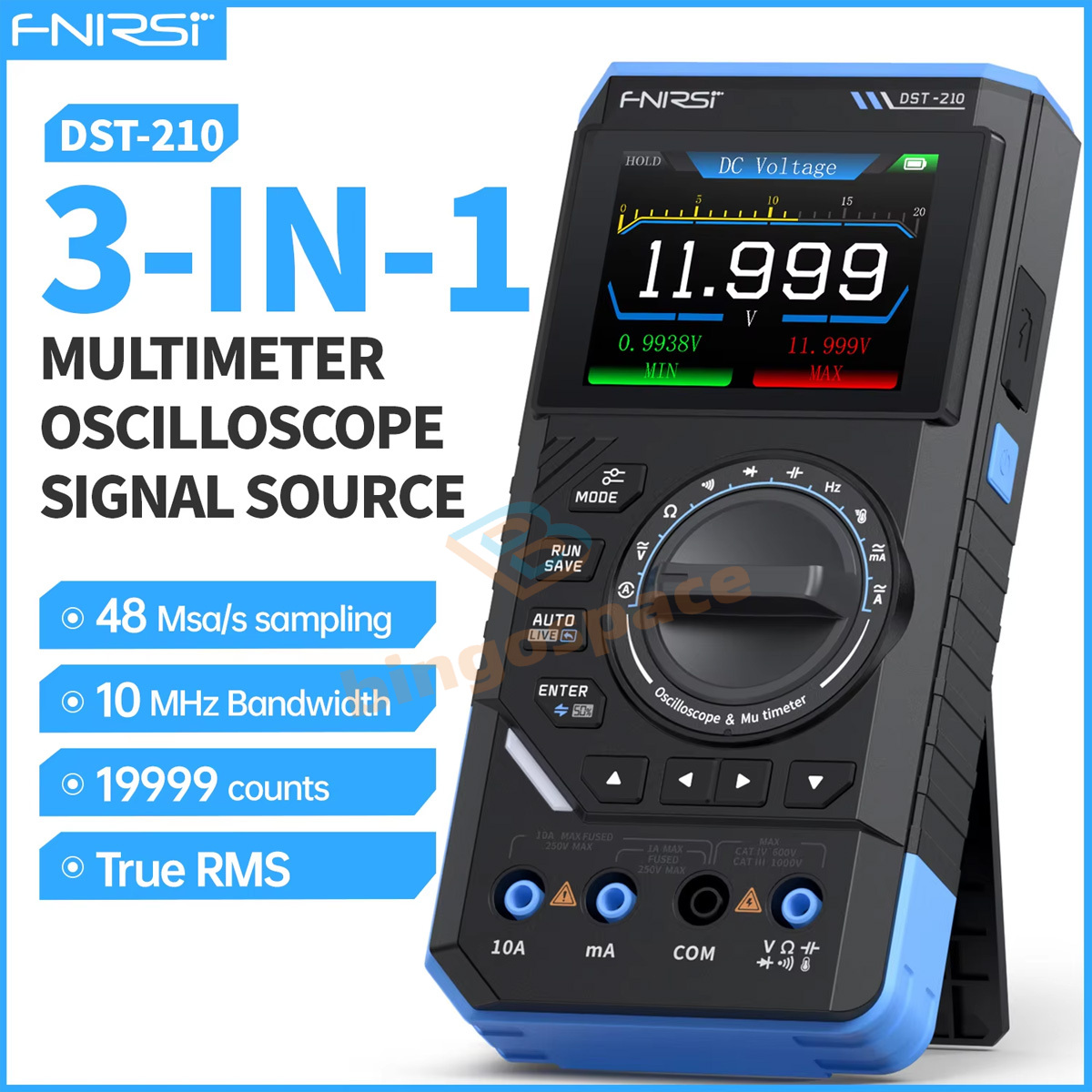

Product Model: DST-210

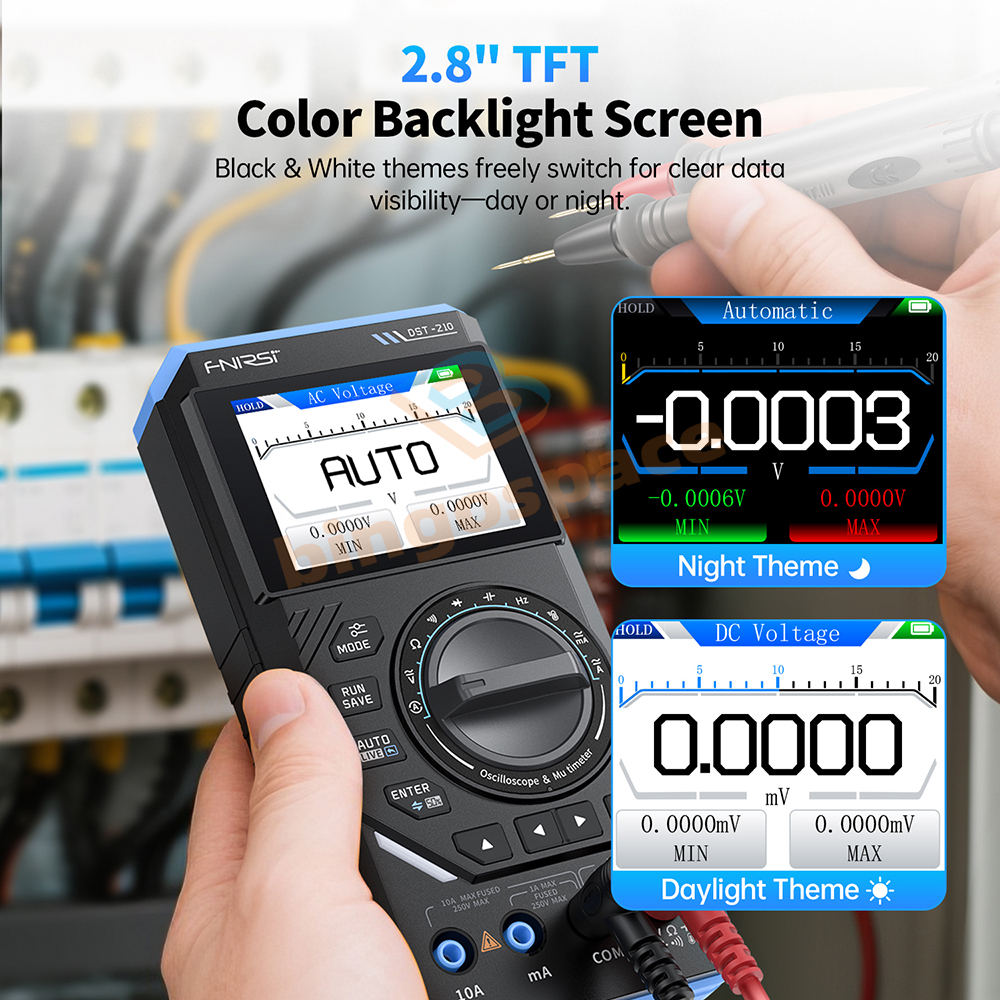

Screen Material: 2.8-inch TFT colour display
Backlight: Adjustable backlight brightness
Power Supply: Type-C (5V/1A)
Battery: 3000mAh
Selectable Languages: Chinese, English
Product Dimensions: 177.43 × 87.47 × 34.5mm
Multimeter Specifications:
DC Voltage: 1.9999V/19.999V/199.99V/1000V Accuracy: ±0.5%+3
AC Voltage: 1.9999V/19.999V/199.99V/750V Accuracy: ±1%+3
DC Current: 19.999mA/199.99mA/1.9999A/9.999A Accuracy: ±1.2%+3
AC Current: 19.999mA/199.99mA/1.9999A/9.999A Accuracy: ±1.5%+3
Resistance: 19.999MΩ/1.9999MΩ/199.99MΩ/19.999KΩ Accuracy: ±0.5%+3
Resistance: 1.9999KΩ/199.99Ω Accuracy: ±2.0%+3
Capacitance: 999.9μF/99.99μF/9.999μF/999.9nF/99.99nF/9.999nF Accuracy: ±2.0%+5
Capacitance: 9.999mF/99.99mF Accuracy: ±5.0%+20
Frequency: 9.999 MHz / 999.9 kHz / 99.99 kHz / 9.999 kHz / 999.99 Hz / 99.99 Hz / 9.999 Hz Accuracy: ±0.1% + 2
Temperature: -55 to +1300°C / -67 to 2372°F Accuracy: ±2.5% + 5
Oscilloscope Parameters:
Real-time sampling rate: 48 MSa/s (DST-210)
Analogue bandwidth: 10 MHz (DST-210)
Horizontal time base range: 50 ns to 20 s (DST-210)
Real-time sampling rate: 5 MSa/s (DST-201)
Analogue bandwidth: 1 MHz (DST-201)
Horizontal time base range: 500 ns to 20 s (DST-201)
Coupling mode: AC/DC
Test voltage range: 1:1 probe: 80 Vpp (+40 V), 10:1 probe: 800 Vpp (+400 V)
Vertical sensitivity: 10 mV/div to 10 V/div (x1 range)
Vertical displacement: Adjustable with indication
Trigger modes: Auto, Normal, Single
Trigger types: Rising edge, falling edge
Trigger level: Adjustable with indication
Waveform freeze: Yes (HOLD function)
Automatic measurements: Maximum, minimum, average, RMS, peak-to-peak, frequency, period, duty cycle
Signal generator parameters:
Output waveforms: Supports 13 waveform outputs
Waveform frequency: 0-50kHz
Square wave duty cycle: 0-100% (adjustable for square and sawtooth waves)
Waveform amplitude: 0.1V-3.0V
Product Model: DST-210
Screen Material: 2.8-inch TFT colour display
Backlight: Adjustable backlight brightness
Power Supply: Type-C (5V/1A)
Battery: 3000mAh
Selectable Languages: Chinese, English
Product Dimensions: 177.43 × 87.47 × 34.5mm
Multimeter Specifications:
DC Voltage: 1.9999V/19.999V/199.99V/1000V Accuracy: ±0.5%+3
AC Voltage: 1.9999V/19.999V/199.99V/750V Accuracy: ±1%+3
DC Current: 19.999mA/199.99mA/1.9999A/9.999A Accuracy: ±1.2%+3
AC Current: 19.999mA/199.99mA/1.9999A/9.999A Accuracy: ±1.5%+3
Resistance: 19.999MΩ/1.9999MΩ/199.99MΩ/19.999KΩ Accuracy: ±0.5%+3
Resistance: 1.9999KΩ/199.99Ω Accuracy: ±2.0%+3
Capacitance: 999.9μF/99.99μF/9.999μF/999.9nF/99.99nF/9.999nF Accuracy: ±2.0%+5
Capacitance: 9.999mF/99.99mF Accuracy: ±5.0%+20
Frequency: 9.999 MHz / 999.9 kHz / 99.99 kHz / 9.999 kHz / 999.99 Hz / 99.99 Hz / 9.999 Hz Accuracy: ±0.1% + 2
Temperature: -55 to +1300°C / -67 to 2372°F Accuracy: ±2.5% + 5
Oscilloscope Parameters:
Real-time sampling rate: 48 MSa/s (DST-210)
Analogue bandwidth: 10 MHz (DST-210)
Horizontal time base range: 50 ns to 20 s (DST-210)
Real-time sampling rate: 5 MSa/s (DST-201)
Analogue bandwidth: 1 MHz (DST-201)
Horizontal time base range: 500 ns to 20 s (DST-201)
Coupling mode: AC/DC
Test voltage range: 1:1 probe: 80 Vpp (+40 V), 10:1 probe: 800 Vpp (+400 V)
Vertical sensitivity: 10 mV/div to 10 V/div (x1 range)
Vertical displacement: Adjustable with indication
Trigger modes: Auto, Normal, Single
Trigger types: Rising edge, falling edge
Trigger level: Adjustable with indication
Waveform freeze: Yes (HOLD function)
Automatic measurements: Maximum, minimum, average, RMS, peak-to-peak, frequency, period, duty cycle
Signal generator parameters:
Output waveforms: Supports 13 waveform outputs
Waveform frequency: 0-50kHz
Square wave duty cycle: 0-100% (adjustable for square and sawtooth waves)
Waveform amplitude: 0.1V-3.0V
Package includes:

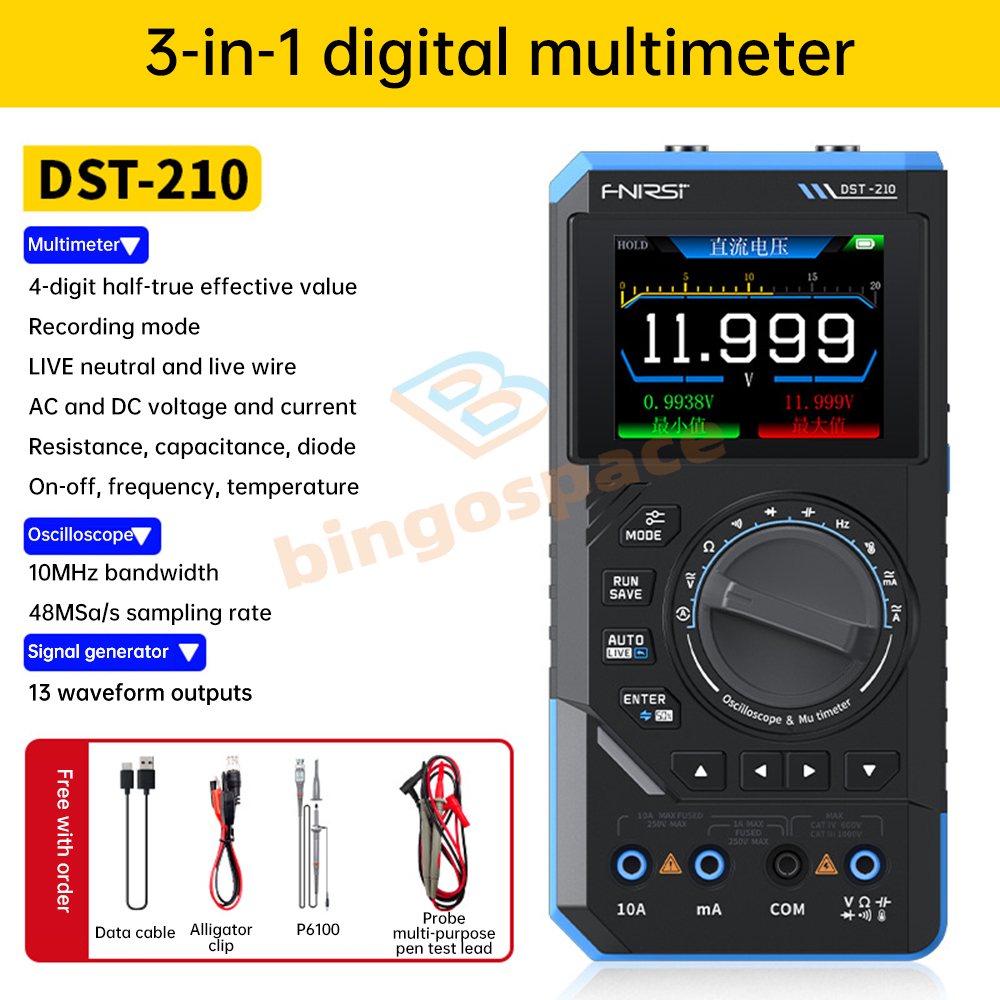

Main unit ×1
P1600 oscilloscope probe ×1
USB-C charging cable ×1
Test pen ×1
Alligator clip probe ×1
Main unit ×1
P1600 oscilloscope probe ×1
USB-C charging cable ×1
Test pen ×1
Alligator clip probe ×1
