Pressure Transmitter Hydraulic Digital Differential Pressure Sensor Gauge


Our Default:
Output Signal: 0~10V ,4-20mA,0-5V ，RS485   (other output pls contact us )
Power Supply: 24V DC
Connection: Thread G1/4''  (if you need M20*1.5,G1/2,G3/8,NPT1/4"  thread size, pls leave us a messagr or note it on your order)


Introduction:

<1>. This series precision pressure transducer has been specially designed to cover the majority of industrial applications which need high accuracy measurement.
<2>.The pressure transducer are made of stainless steel, the pressure sensing elements are selected from good suppliers. Special circuits are adopted to adjust zero and full range conveniently.
<3>.This pressure transmitter is suitable for all applications in process control, laboratory and materials testing equipments.

<4>.Customized structures and outputs formats can be designed according to special application requirement, in addition to standard products.

FEATURES:


◆ CE conformity

◆ Low cost and high quality

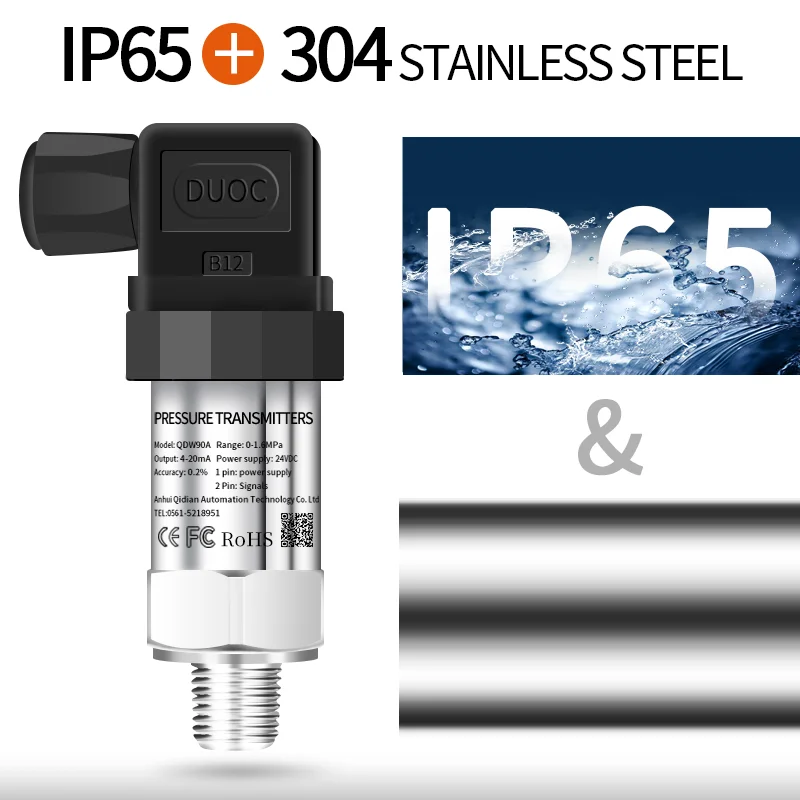

◆ All stainless steel integrated structure

◆ Small size, convenient to install and operate

◆ 4-20mA, 1-5V, 0-5V, 0-10V, various voltage output

◆ For applications such as air, water, oil

◆ Provide OEM, flexible customization

Application:


◆ Intelligent IoT constant pressure water supply

◆ Engineering machinery, industrial process control and monitoring

◆ Energy and water treatment systems

◆ Steel, light industry, environmental protection

◆ Medical, agricultural machinery, testing equipment

◆ Flow measurement equipment

◆ Hydraulic and pneumatic control systems

◆ Air-conditioning unit and refrigeration equipment

◆ Water pump, air compressor pressure monitoring

Technical parameters:

Model

QDX50A

Measuring range

0~100MPa; -1~0~1 Bar.....600 Bar

Pressure type

Gauge pressure, Absolute pressure

Overload

150%F.S.

Output signal

4~20mA, 0~5V, 0~10V, 1~5V,RS485

Power supply

12~36VDC (Default: DC24V)

Response time

<3ms

Accuracy

0.2%FS; 0.5%FS

Long-term stability

±0.1%F.S/year; ±0.2%F.S/year

Load resistance

RL=(U-12V)/0.02A (4~20mA current output) U—loop voltage(V)

Operating temperature

-30~80℃

Sorage temperature

-40~120℃

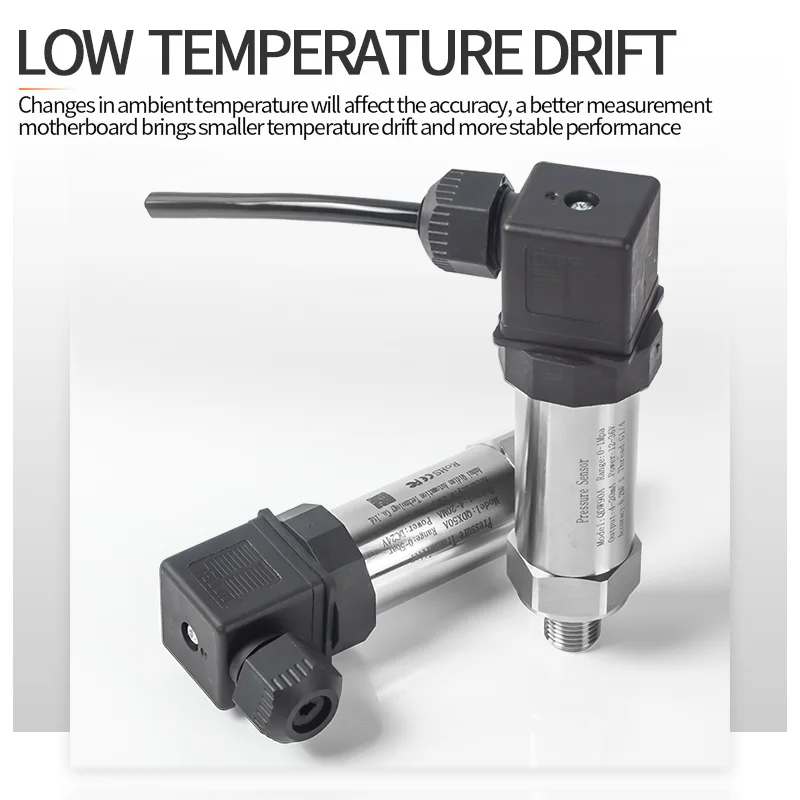

Zero Tempe Drift

0.2%FS/10℃

Pressure connection

G1/4 (Default),M20*1.5,G1/2,1/2NPT (Customized)

Material

Stainless steel shell; internal sensor 316L

Protection grade

IP65

Size:



Installation:
