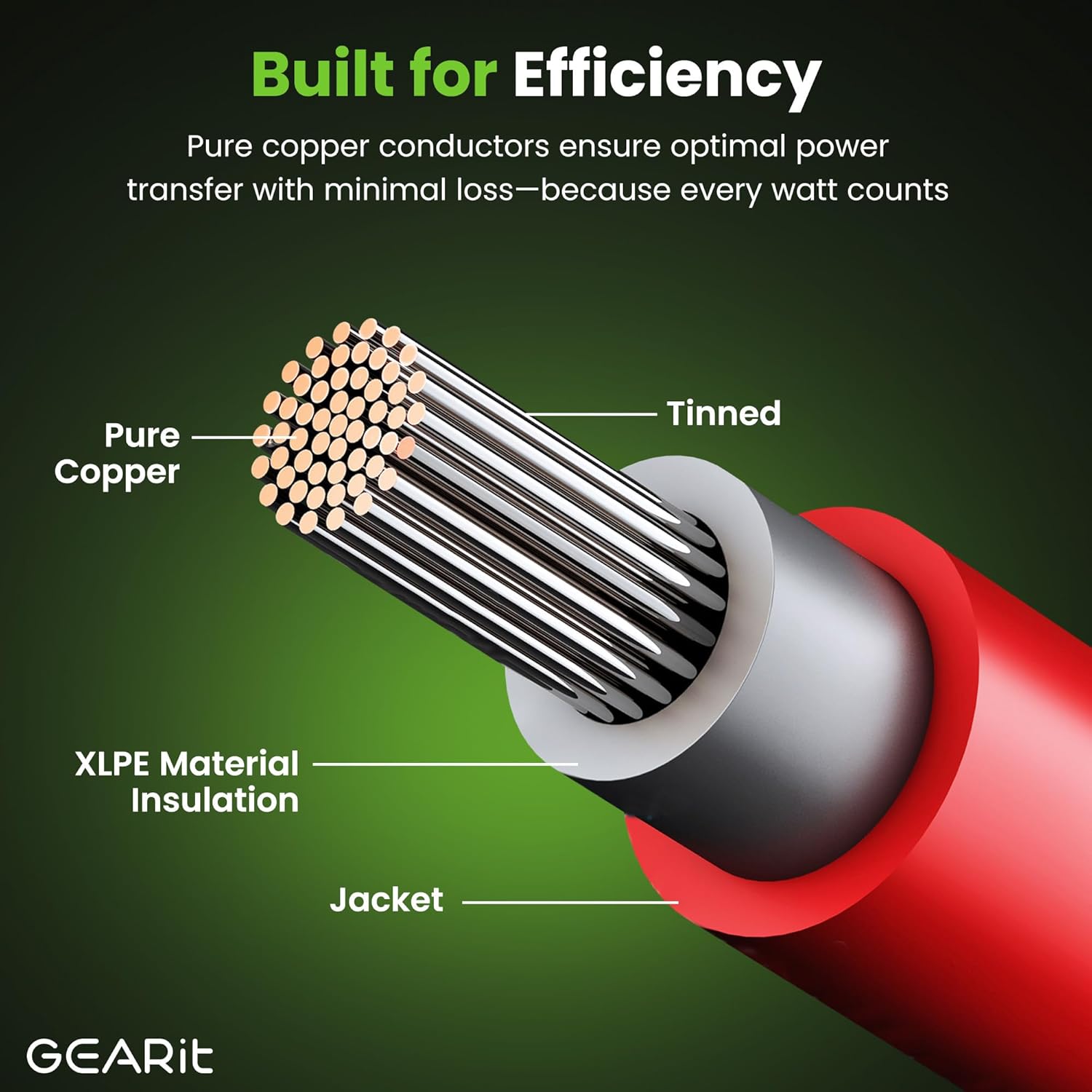

GearIT solar extension cables connect to your solar panel and controller without any worry and power loss is kept to a minimal. Our cable is tinned oxygen-free copper (OFC) giving you the best performance and can have the cable outdoors as its rated for IP67. Perfect for any installation from RV, Boat, to your installing itself on your home roof system.

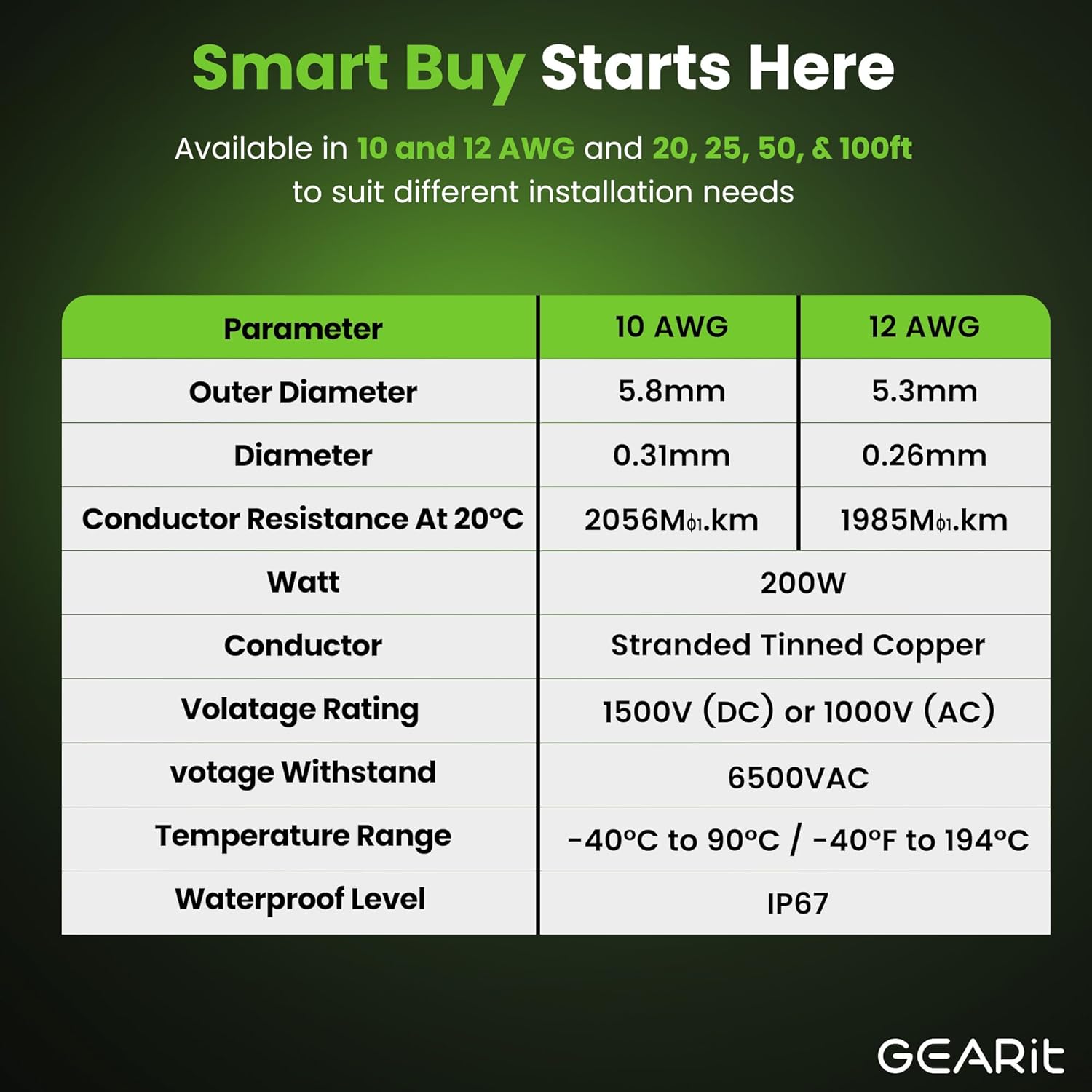

Specifications:
Watts = 200W
Volts = 1500V (Direct Current) or 1000V (Alternating Current)
Operating Temp = -40°C to 90°C
Protection: IP67
XLPE Material

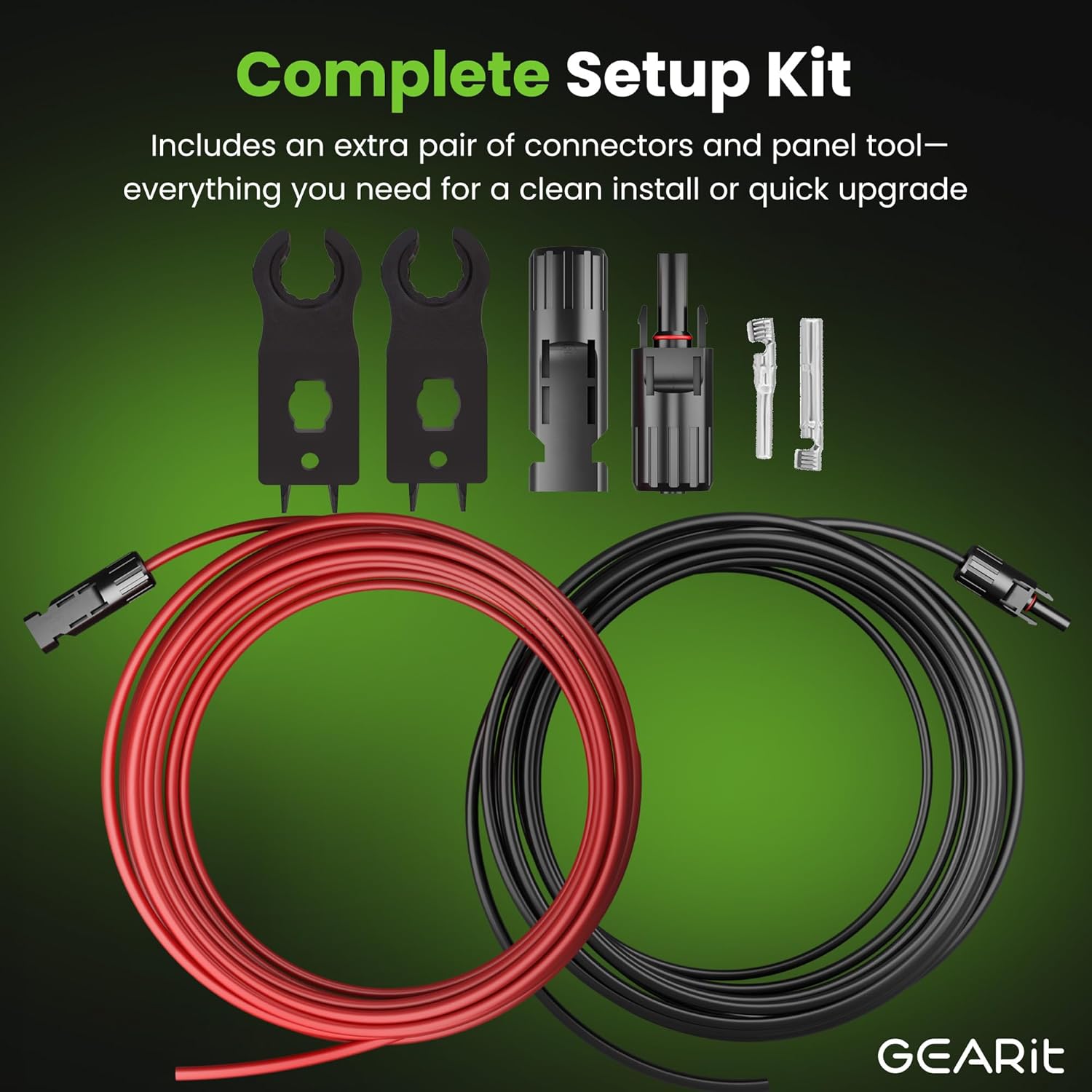

In the Box: 1 pair of Solar Extension Cables, 1 pair of extra Solar Connectors, 1 pair of Keys

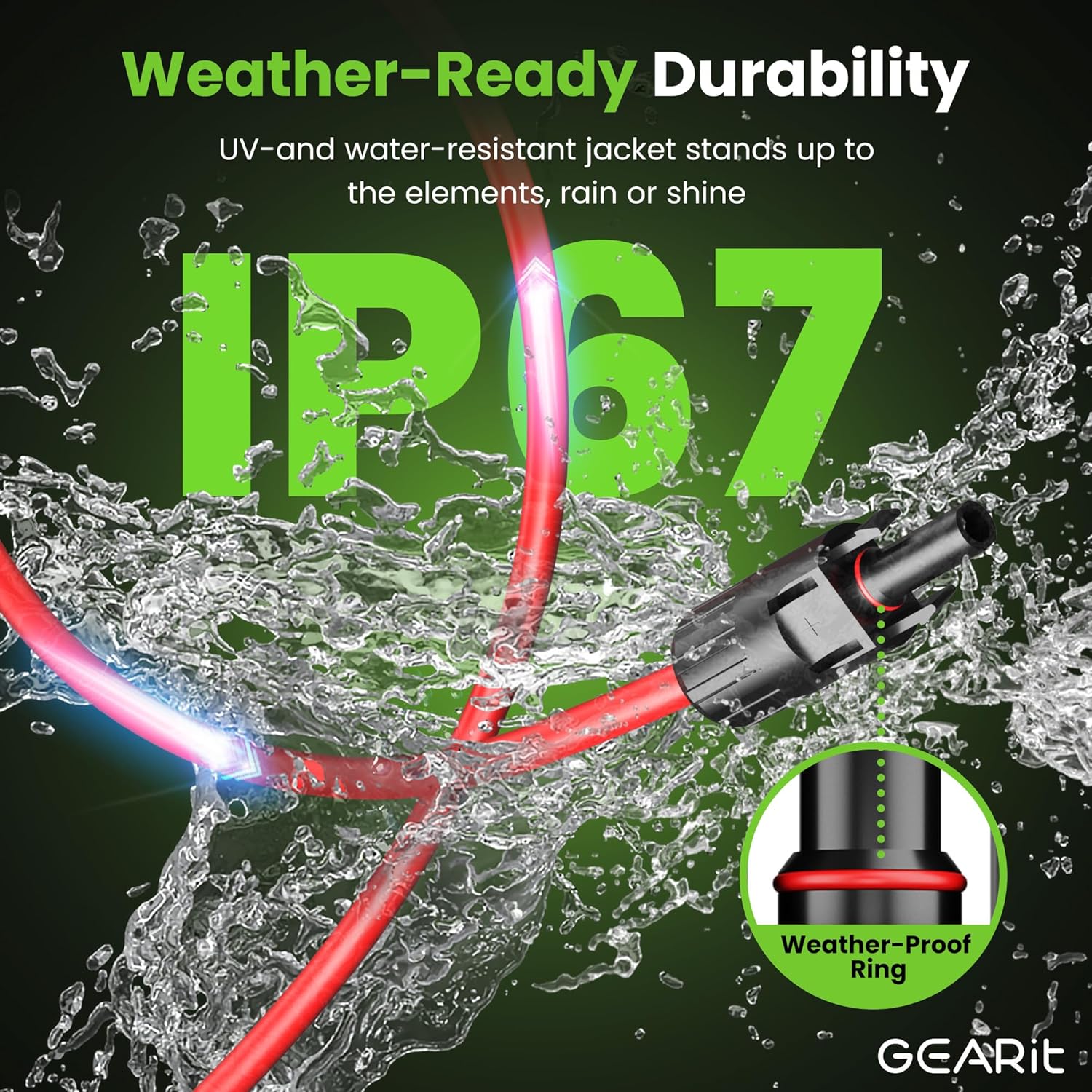

IP67 Rating
GearIT uses waterproof rings to prevent water and dust from entering the connection and keeps the inside clean and dry for optimal performance.

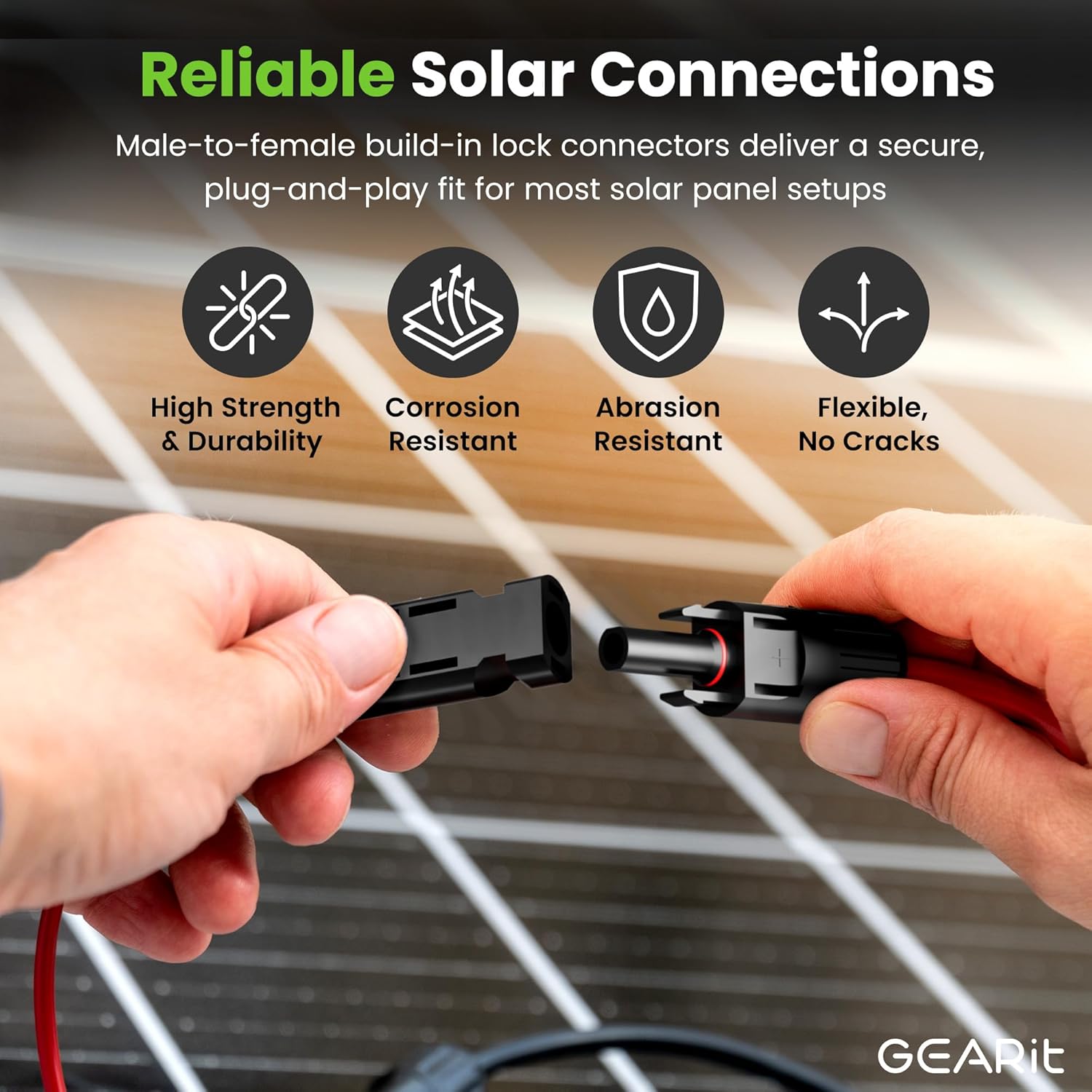

Easy Installation
Standard connectors ensure that the connectors are secure and easy to connect or remove with any other solar cable.
PPO Material
Our connectors are made from high grade PPO material which is a high strength and rigid plastic that is flame and electric resistant and hold well in high heat temps.
Product Name: Solar Cable
Product specification: Black + Red 12AWG
Conductor cross-section is 4.0mm² or 6.0mm²
Protection class: IP67
Short circuit resistance: up to 200°C / 5s
Thermal expansion test at 200°C
Rated voltage (Uo/U): AC 0.6/1.0 kV / DC 0.9/1.5 kV
AC voltage test: AC 6.5 kV
Maximum permissible voltage: 1.8 kV
Temperature range: -40°C to 90°C
Max. Conductor temperature: 120°C
Rated voltage: 0.6/1 kV AC
Operating voltage: 1.5 kV DC according to EN 50618
Test voltage 50 Hz: 3500 V
Insulation material: PPO (polypropylene)
Insulation resistance: 1000 MΩ/km
Minimum insulation resistance at 20°C: 580 MΩ.km
Minimum insulation resistance at 90°C: 0.58 MΩ.km
Permissible wire position in the conductor: 0.31 mm
Wall thickness of the insulation: 0.7 mm
Wall thickness of the housing: 0.8 mm
Operating temperature: -40°C to +90°C
Maximum core temperature during cable operation: + 120 °C / 20,000 h
Specifications:
【Quality Solar Panel Extension Cable】The solar panel extension cable is made of tinned conductive copper material
to ensure good electrical conductivity and the solar connector shell is made of PP insulating material with excellent
anti-ageing and UV resistance. The wiring not affected by weather and the solar cable can withstand heat or cold
environment.
【Technical Specifications】One set includes one red cable and one black solar extension cable. Cross sectional area:
approx 4/6.0mm². Insulation thickness 0.65mm. Temperature range:-40~120℃. Rated voltage: AC 0.6/1kV. Rated current:
30A. (Parameters may vary slightly depending on the environment or cable length)
【Easy to Install】Our solar panel cables come with connectors and can be used without the need to install the cables
and plugs yourself. Male and female connectors have a stable self-locking system and are easy to insert and withdraw.
No tools are required for installation or removal. Only one end needs to be connected to the solar panel and the other to
the solar charge controller.
【Widely used Solar Panel Connector】Designed for outdoor use, they are moisture resistant, high/low temperature resistant,
UV resistant, corrosion resistant and IP68 waterproof. The red and black PV extension cables are suitable for outdoor use on
solar panel roofs, boats, caravans, traffic lights, car park charging stations or cars powered by solar panels, and many other
applications.
【Reduced Power Loss】The more common solar extension cables are the 14AWG, 12AWG and 10 AWG sizes. The solar cables
we offerred are 10 AWG which are designed for on-grid and off-grid systems. The use of larger diameter cables minimises power
loss in solar panel system
Packing List:
