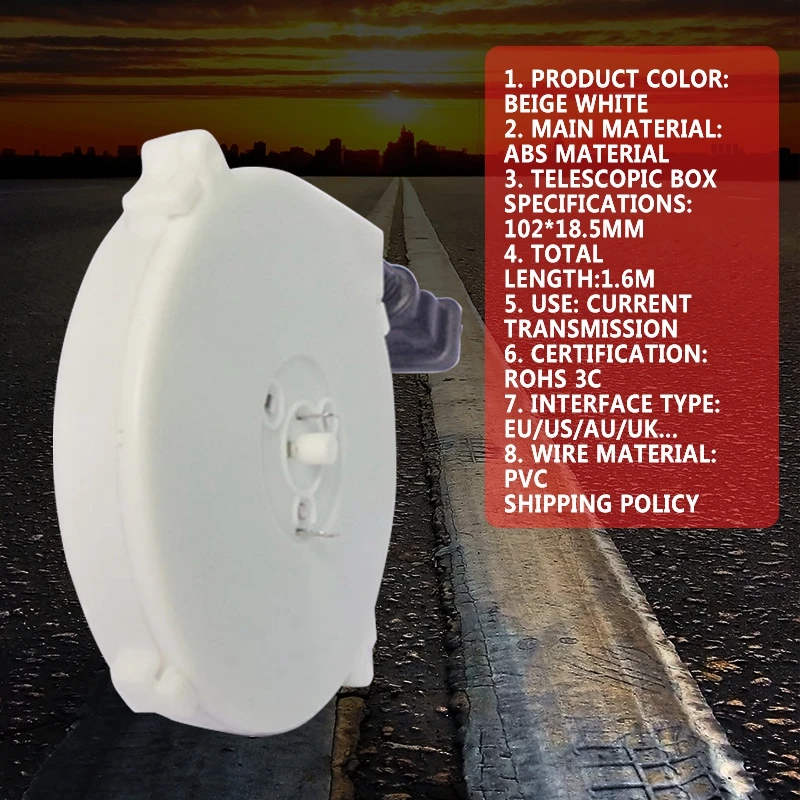

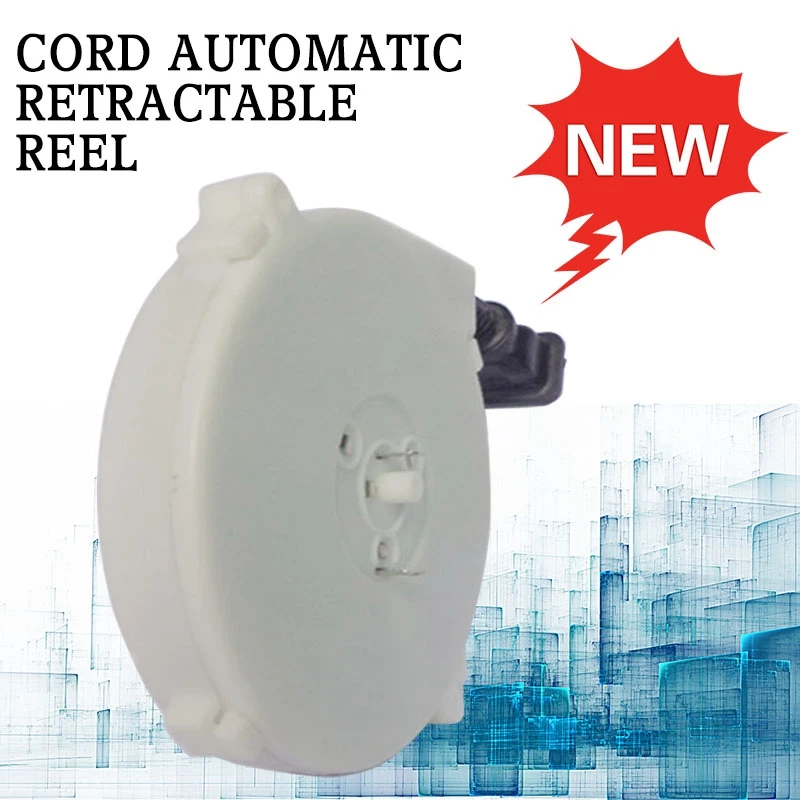

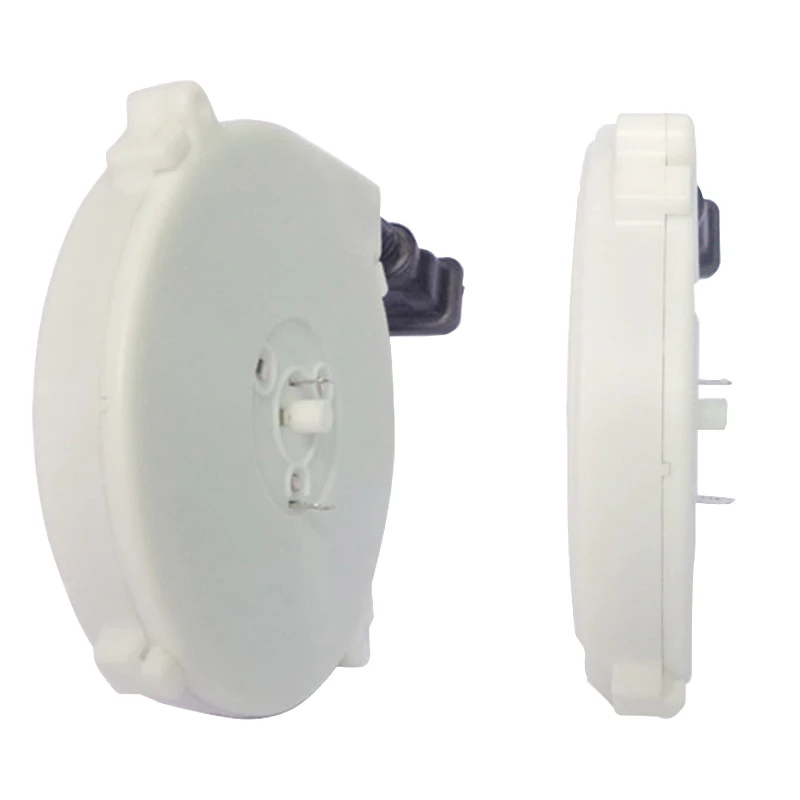

Automatic retractable power cord reel, white cord winder, retractable cord reel
2. Model: YSH-0702-2C
3. Product Name: Two-Core Cable Reel - 1.5M
4. Main Material: ABS Flame-Retardant Material
5. Flame-Retardant Rating: VO
6. Dimensions: Φ103 × 17 mm
7. Drum Diameter: 103 (mm)
8. Rated Load: 0.3-0.6 (kN)/100 (kN)
9. Drum Width: 18 (mm)
10. Shaft Hole Diameter: 430 x 370 (mm)
11. Cylinder diameter: 370 × 450 × 108 (mm)
12. Product certification: 3C, CE, UL
13. Product weight: 0.2 (kg)



II. Electrical Characteristics and Technical Specifications
1. Wire Specifications: European Standard, National Standard, US Standard 2C18AWG 125V10A & 250V6A, etc.
2. Wire Length: 1.1–1.5 m
3. Custom Power Rating: 600W–1500W;
4. Rated Voltage: 220/50Hz or 125V/60Hz
5. Rated Current & Contact Current: 10A
6. Product Pull-Out/Retraction Force (kgf): ≥0.3–0.6 kgf

III. Main Applications of the Product
       The YSH cable reel facilitates the storage of power cables and communication cables (such as network cables, telephone cables, etc.), effectively addressing the issue of tangled and disorganized cables. It provides an automatic winding function for the power cables of electrical equipment. Such as rice cookers, juicers, vacuum cleaners, water purifiers, portable air conditioners, portable advertising light boxes, portable display stands, scientific testing equipment, electric vehicle charging stations, car air pumps, massage chairs, fitness equipment, and all other electrical appliances that require cable storage.
