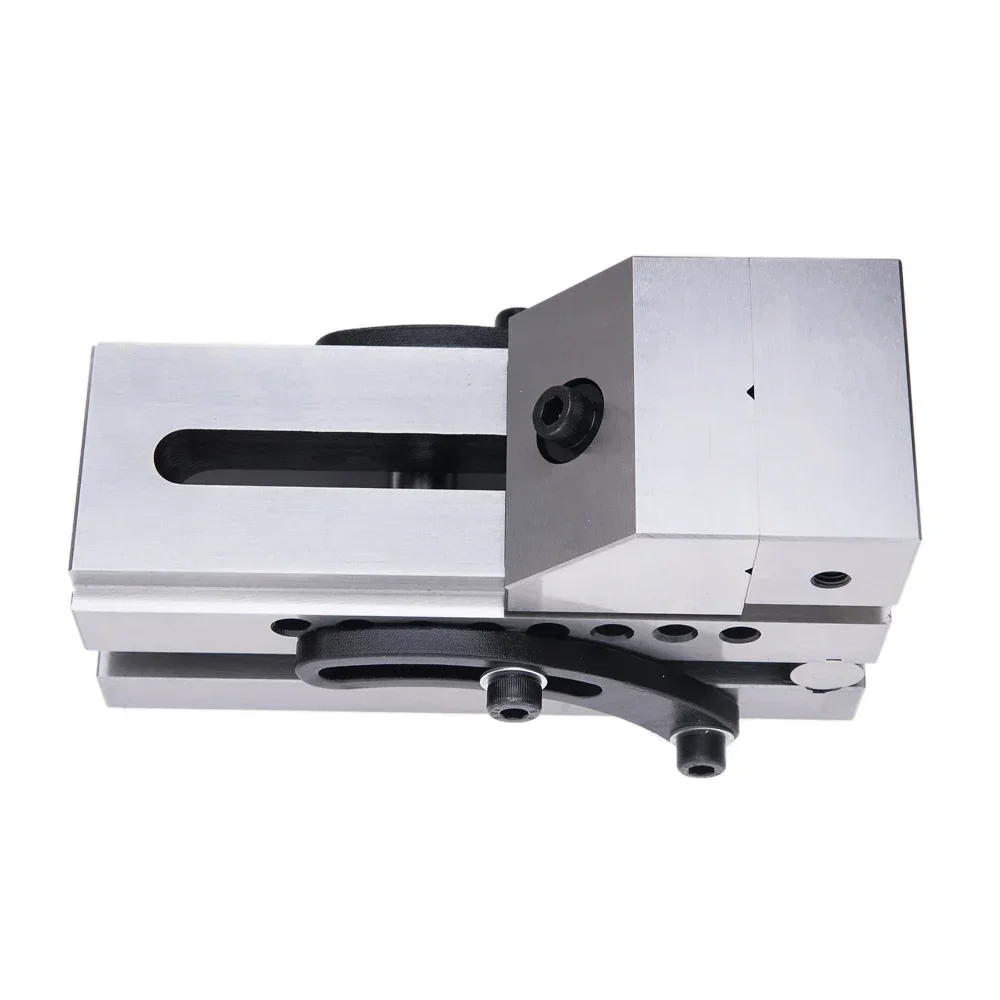

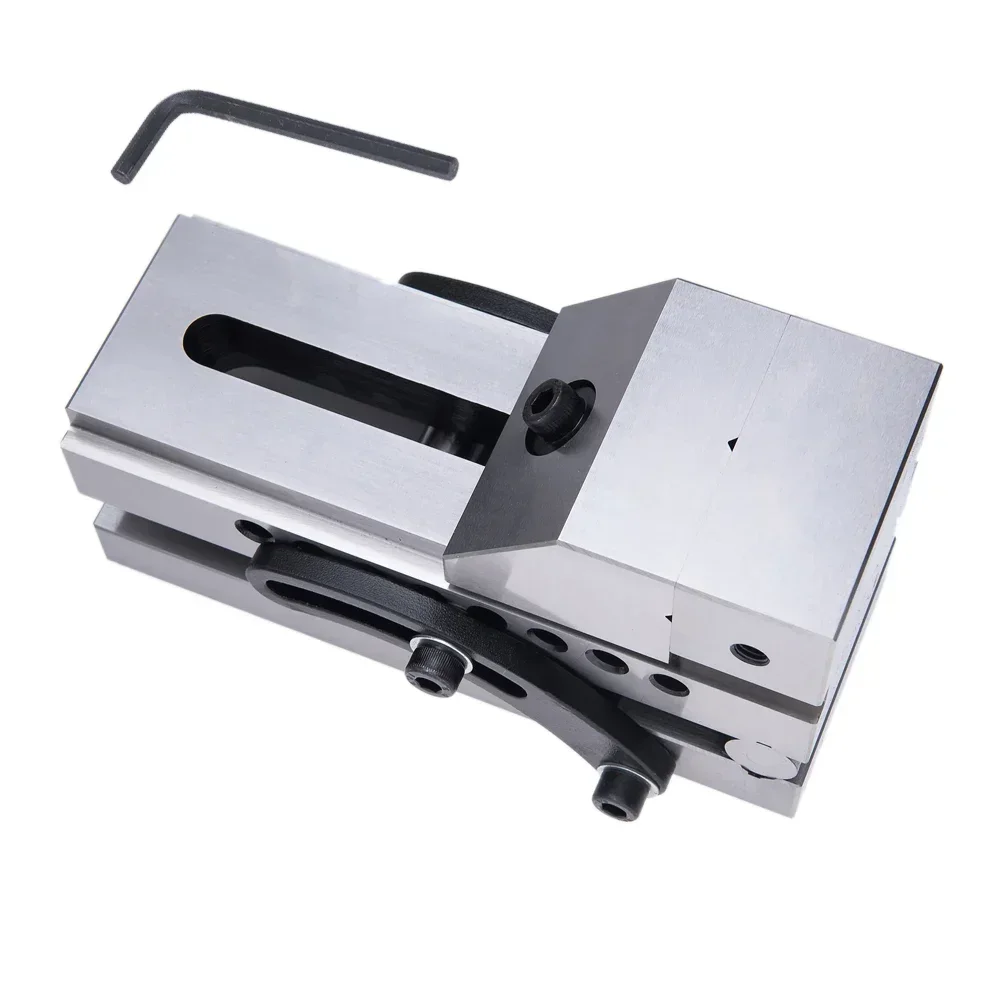

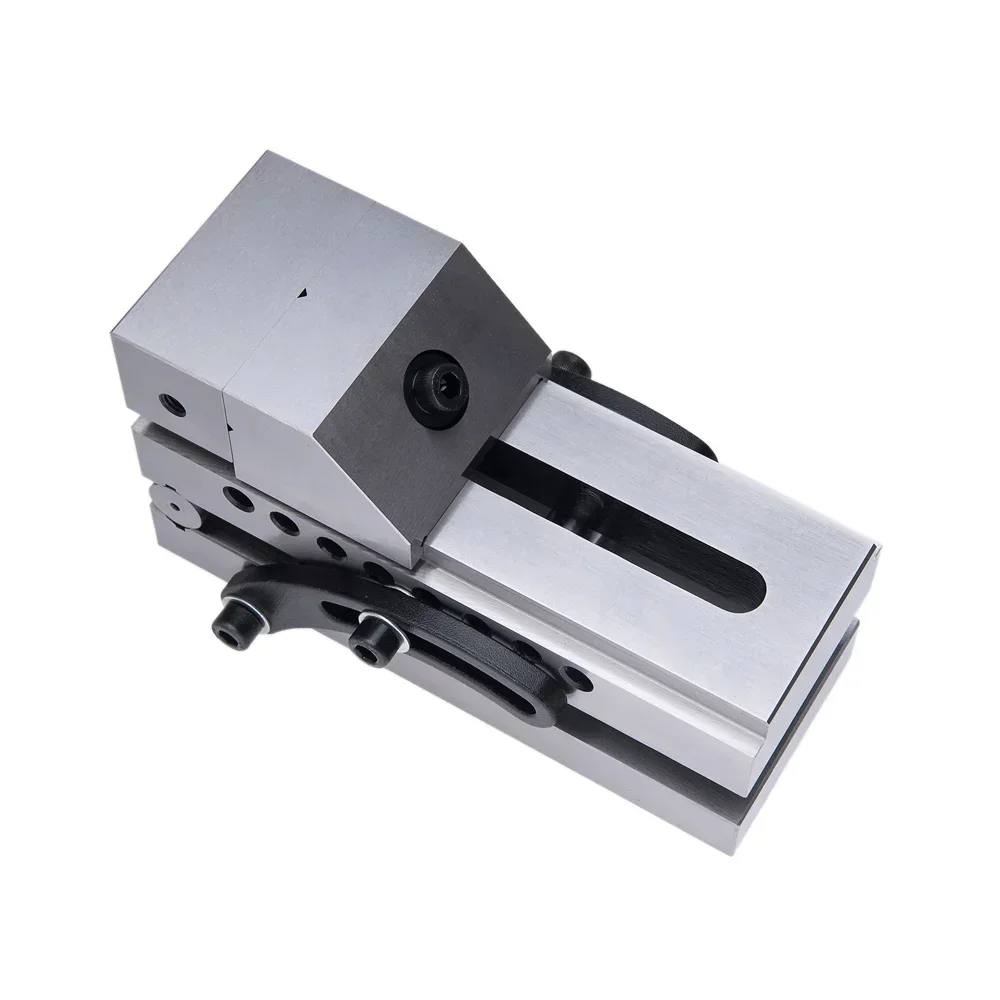

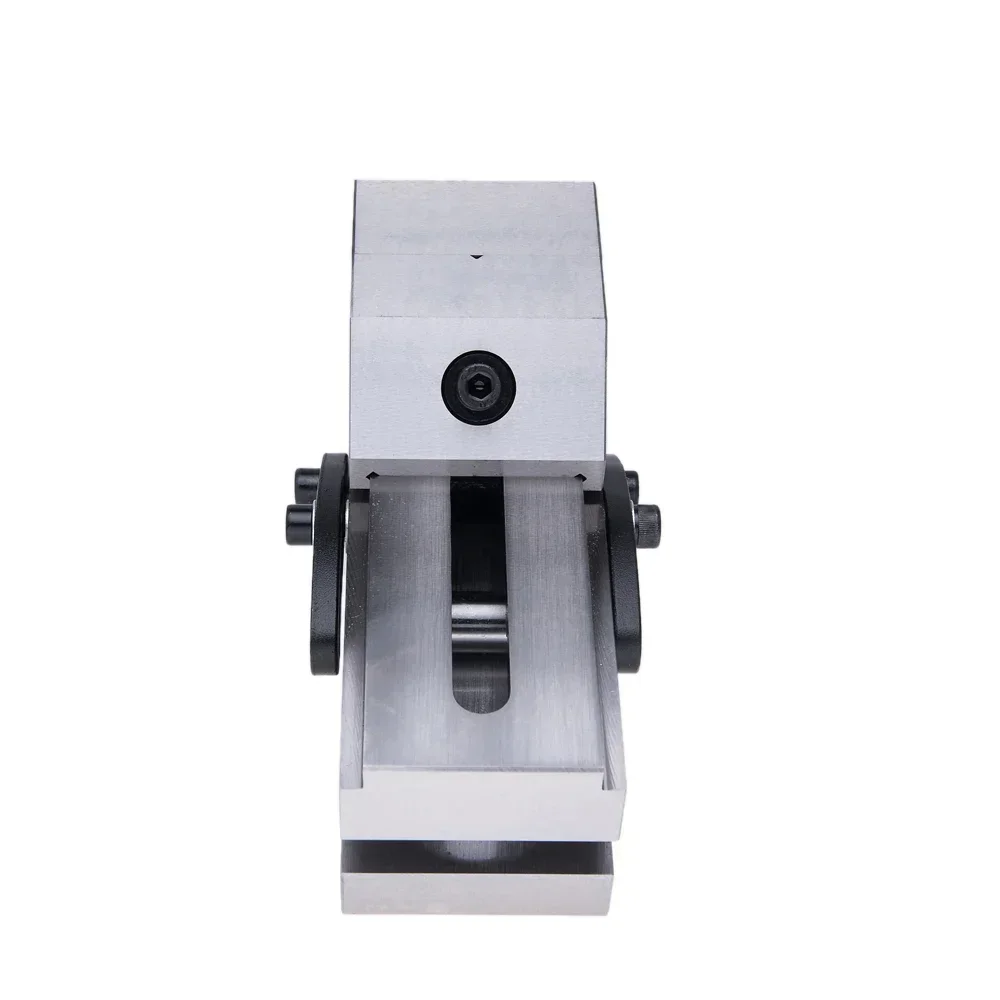

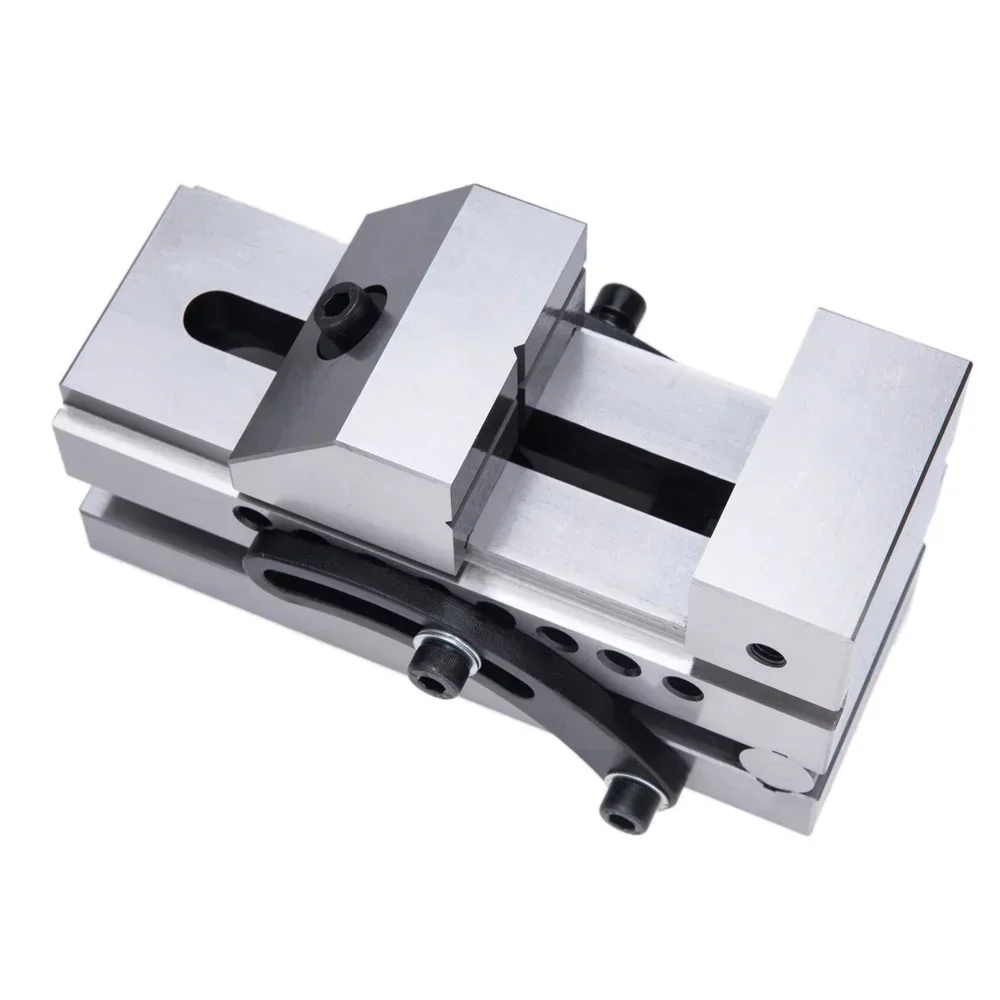

High-precision fast-moving flat-jaw vise grinding machine vise vise milling machine fixture clamping workbench 6 inches

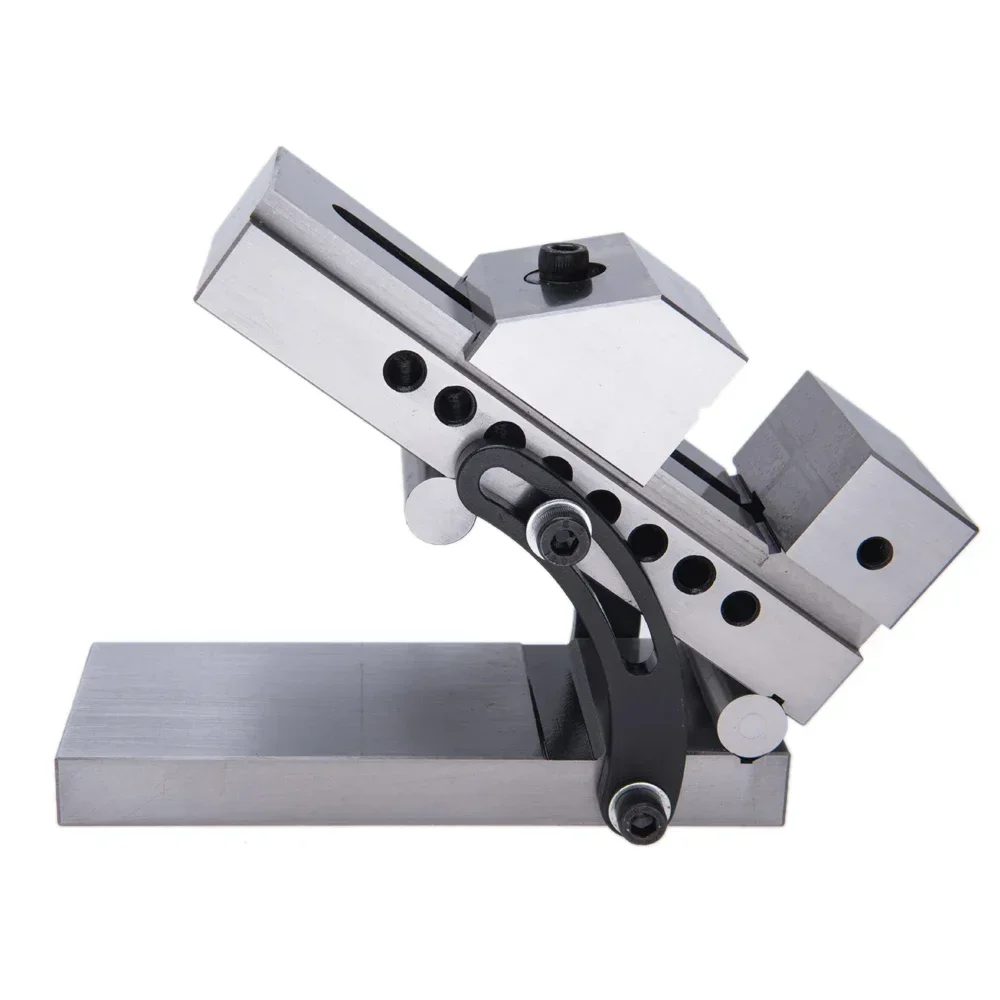

Utilizing versatile horizontal, vertical, and side applications
Used on planar grinding machines, milling machines, EDM machines, and wire cutting machines to process angular planes, grooves, and planar and inclined holes. Suitable for measuring various angular parts. During side and vertical processing, the sliding block cannot move, enabling precise surface grinding with high accuracy.
Each working surface has a precision of 0.003 mm, and all four sides can be used. The clamping plate is pressed to stabilize it, securely fixed to the workbench, with a surface roughness of 0.8 μm, ensuring stable clamping and flexible operation.
The screw-type clamping mechanism provides strong clamping force, allowing easy adjustment of the size of the workpiece being clamped, with a wide adjustment range, and can be used simultaneously on multiple machines. The process is exquisite, with hardening up to 58-62 HRC.
The unique structure enables strong clamping of the workpiece, ensuring verticality and parallelism
±0.005mm.
Utilizing versatile horizontal, vertical, and side applications
Used on planar grinding machines, milling machines, EDM machines, and wire cutting machines to process angular planes, grooves, and planar and inclined holes. Suitable for measuring various angular parts. During side and vertical processing, the sliding block cannot move, enabling precise surface grinding with high accuracy.
Each working surface has a precision of 0.003 mm, and all four sides can be used. The clamping plate is pressed to stabilize it, securely fixed to the workbench, with a surface roughness of 0.8 μm, ensuring stable clamping and flexible operation.
The screw-type clamping mechanism provides strong clamping force, allowing easy adjustment of the size of the workpiece being clamped, with a wide adjustment range, and can be used simultaneously on multiple machines. The process is exquisite, with hardening up to 58-62 HRC.
The unique structure enables strong clamping of the workpiece, ensuring verticality and parallelism
±0.005mm.
