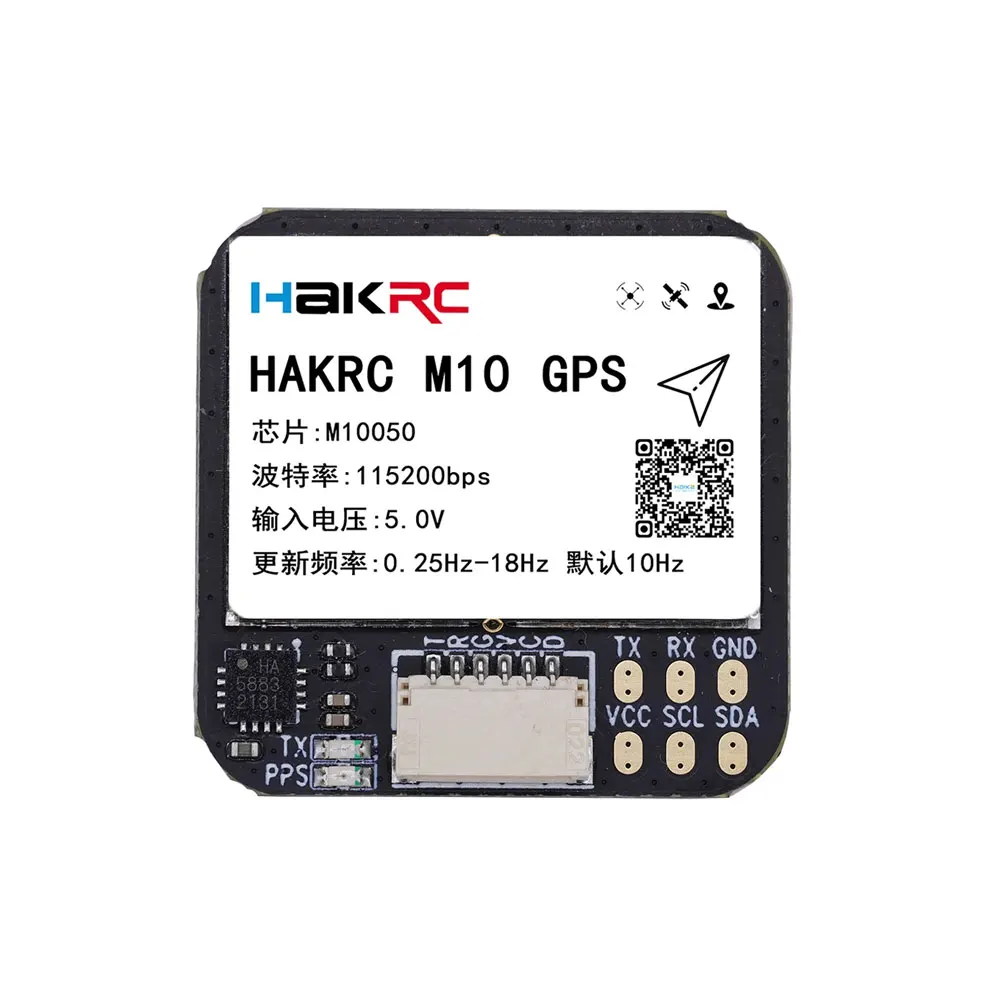

HAKRC M10 GPS module uses Ublox's latest generation chip M10 for strong performance and faster star search, up to 32 satellites can be used for accurate positioning and on-board high-performance geomagnetic compass sensor QMC5883.
Module size is only 25*25*8mm, small and easy to install using high-performance small size antenna, miniaturized design, performance does not shrink.  With a light weight of 12.35g, it is ideal for light fixed-wing use in small crossover aircraft.

Powerful search performance

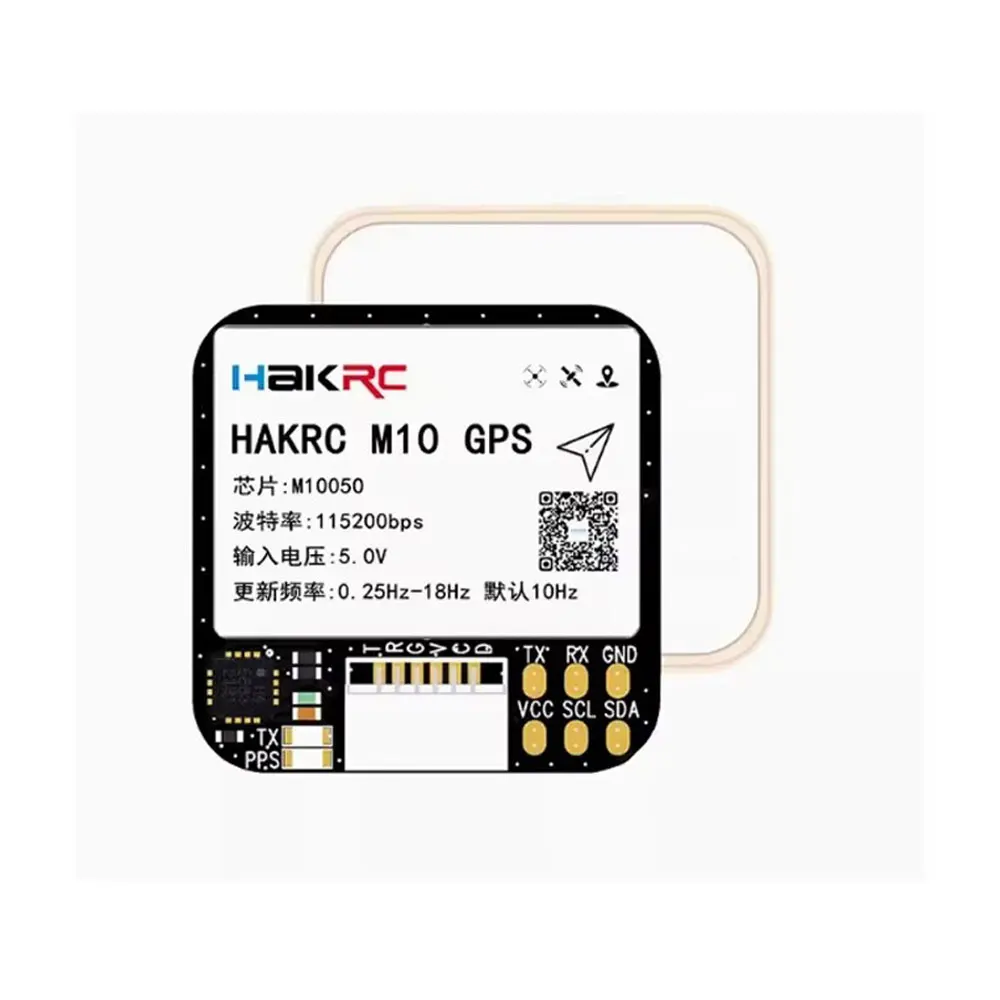

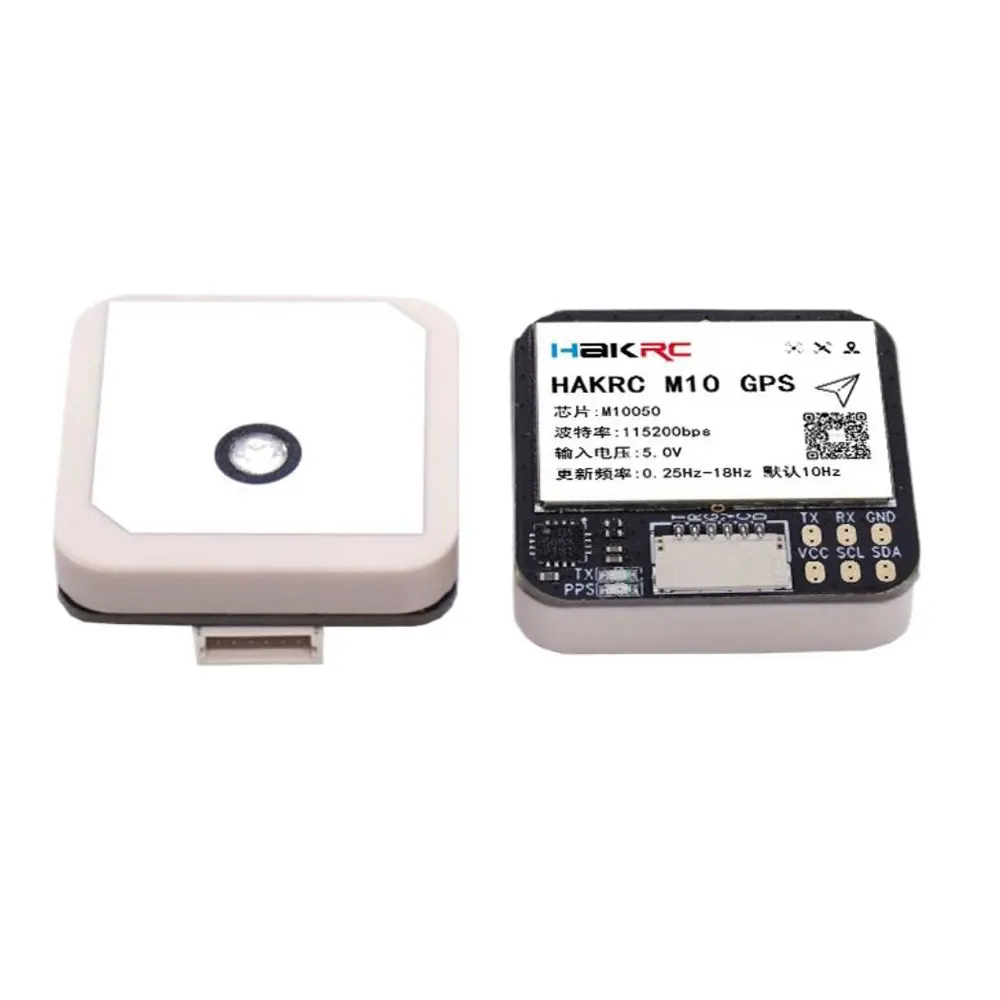

PI antenna network design, impedance matching (50Ω), antenna standing wave ratio less than 1.5, play the module receiving power advantage, so that the star search performance is strong, accurate positioning.  The module provides antenna detection and short circuit protection functions, so as to play a replacement protection in practical applications

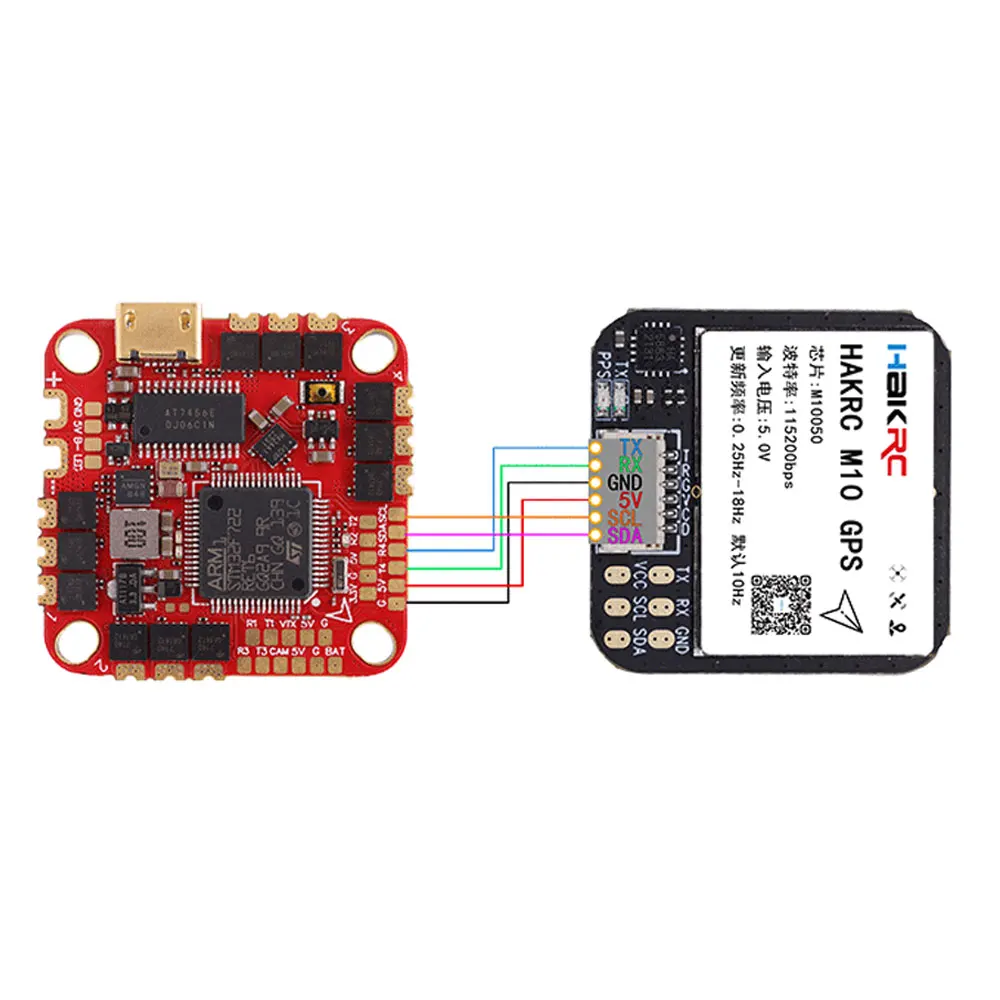

Supports UART peripherals
Realize the mutual communication between different equipment and different systems to expand the scope of use of products and enhance the market competitiveness of products

Specifications:
Model: HAKRC M10
Chip: M10050
Satellite systems: GPS, BDS, GALILEO
Baud rate: 4800bps- 921600bps, default: 115200bps
Output protocols: NMEA, UBX
Update frequency: 0.25Hz-18Hz, default 10Hz
Flash: With FLASH, the configuration can be changed, and the power is not lost when the power is off
Tracking sensitivity: -166dBm
Speed accuracy: 0.05m/s
Maximum speed: 500m/s
Acceleration due to gravity: <4G
Maximum height: 80,000m
Horizontal Accuracy: 2.0m CEP (Ideal Environment)
Cold start: 27s (ideal environment)
Hot start: 1s (ideal)
Input voltage: 5.0V
Input current: 15mA
Operating temperature: -40C~+85°C
Compass: QMC5883 with an electronic compass inside

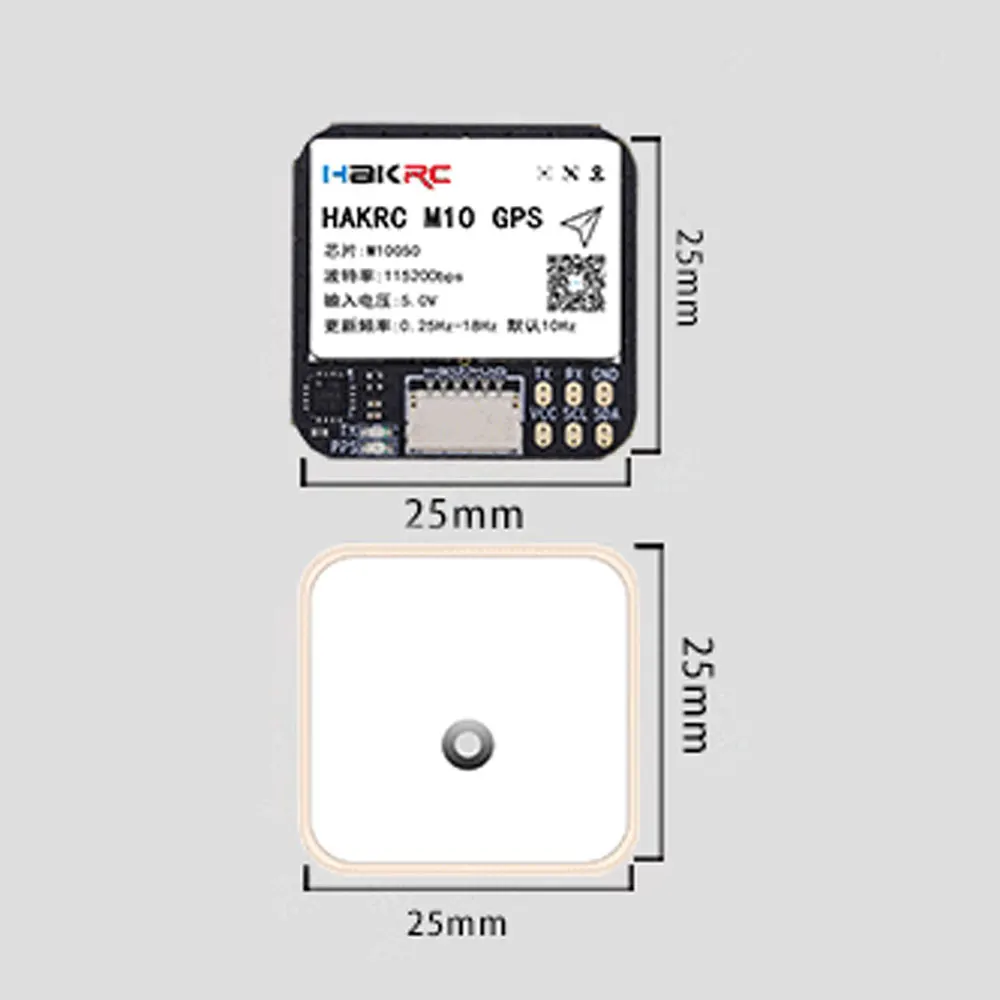

Size: 25x25x8mm
Weight: 12.35g
