Features:
LOCATING OPEN CIRCUIT: Open Wire Detector, powered by batteries (not included). It detects and alerts you immediately where a circuit is open. You can quickly and easily Locate short circuits, open connections, broken wires, current leaks and even trace wires. Transmitter and receiver LEDs show open or short circuit conditions.
CHECKING SHORT CIRCUIT: Short Circuit Finder Automotive, you can also find intermittent circuit problems by flexing wires or connectors and listening for a change in the receiver tone, 7 inch Flexible Probe Help Reaching Wires in Congested Places.
SUITABLE FOR DC 6~42 Volt CIRCUIT POWER: Electrical Circuit Tracer will work on all kinds of circuits with voltages between 6 and 42 volt DC. (such as those found in automobiles,trucks,tractors,boats,RVs,etc...With its wide working voltage range.).
QUICK AND EASY DIAGNOSTIC: Auto Electrical Short Finder, Judge continuity of the cables or wires, and diagnose the break point. Time saver, making your repairs quicker, makes things easier to find troubles, Tried to find a fault in auto electric circuit.
EXCELLENT AFTER-SALES: If you have any questions after purchasing the product, please contact us, and we will provide you with detailed solutions as soon as possible until you are satisfied.
How to use this probe:
The probe of the Receiver is built of coiled steel and may be bent as needed, in order to reach wires in ongested or difficult areas.
Depending on the circuit characteristic and sensitivity settings, the probe will pick up the signal from the wire in a range of positions.
However, for the best possible range the Receiver’s probe tip (black cap) should be positioned perpendicular (at 90o) to the wire being traced and either above or below it.
Caution:
1. Only for us on DC voltage, don't connect to a circuit exceeding 42 volts DC under any circumstances.
2. Do not use AC voltage.
3. Do not use on any circuit directly or indirectly connected to AC lines or any other AC power source.
4. Do not use with any component or circuits of the ignition system
5. Before using this device, check the vehicle's electrical wiring and disconnected any part or system sensitive to voltage and current pulses such as airbags, electronic control modules, etc.
6. After you finish checking the vehicle, make sure you have correctly restored all the connections which you disconnected.
7. Always follow the instructions and procedures indicated in the vehicle's service manual before attempting to disconnect any part of the subsystem of the electrical circuit.
This instrument is designed to identify and trace wires or cables without damaging the insulation.
You can also use it in checking for short circuit and loacting open circuit and so on.

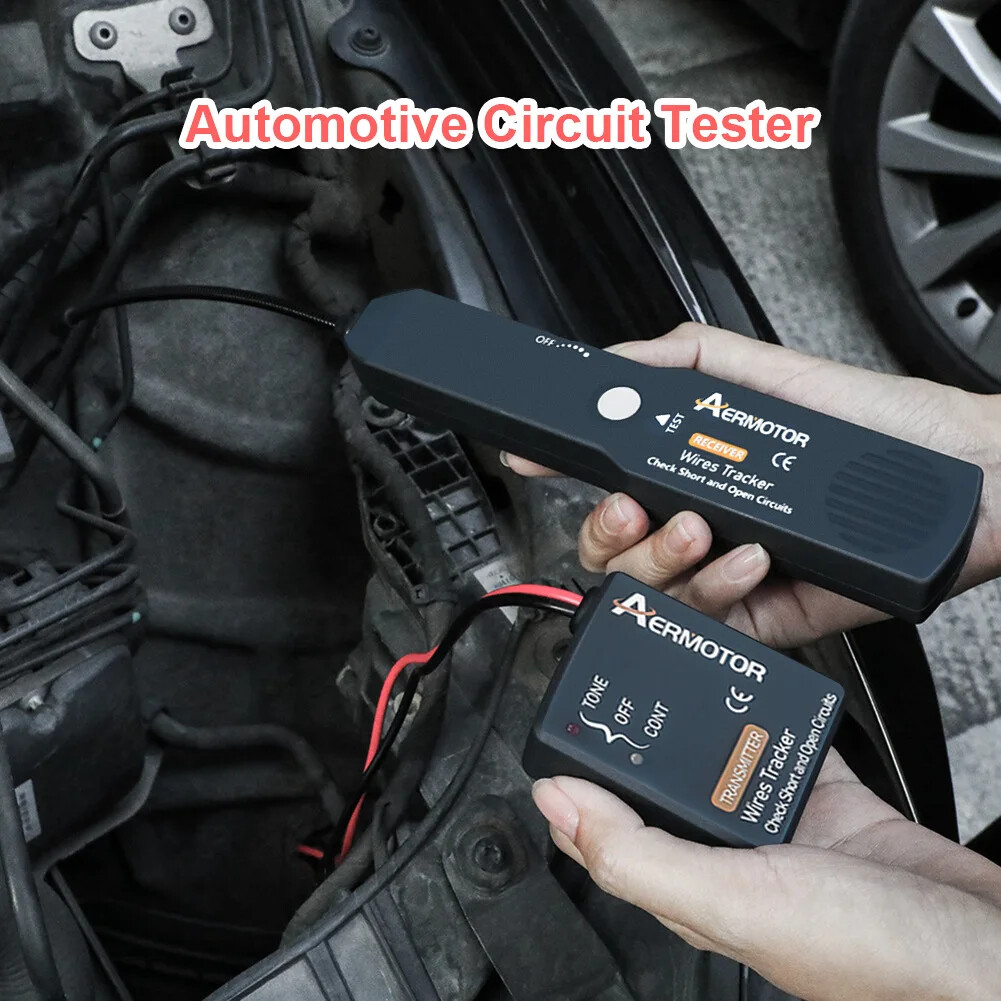

There are a Sender and a Receiver included in the instrument.
Please kindly note it:
the cable wire tracker needs to install 2 × 6F22, 9V batteries,
one is for the receiver, the other is for the sender.
Package Included:
1 x Automotive Short and Open Finder (battery not included)
1 x Instruction Manual
