Package include:

1 x No power spindle ER16 / ER20 / ER25 / ER32

Whether to carry a servo motor depends on your choice

Product Features：

The outer diameter of the spindle is 80mm, the core is 35mm, and the other installation dimensions are shown in the above figure,

The spindle is provided with ER16-ER20-ER25-ER32

There are a total of 4pcs of 7007 angular contact bearings on the main shaft, which can run at high speed for a long time at 8000 revolutions per minute. The DB pairing method is used to combine the front two and the back two,

The precision of the spindle cone is 0.003mm, and the tool jumping of about 0.01 is affected by the quality of the cylinder clamp,

Main spindle standard with installation flange and coupling 14-1919-19 16-19 19-22 specifications optional/compatible 60/80/90/100/110/130 servo

electrical machinery

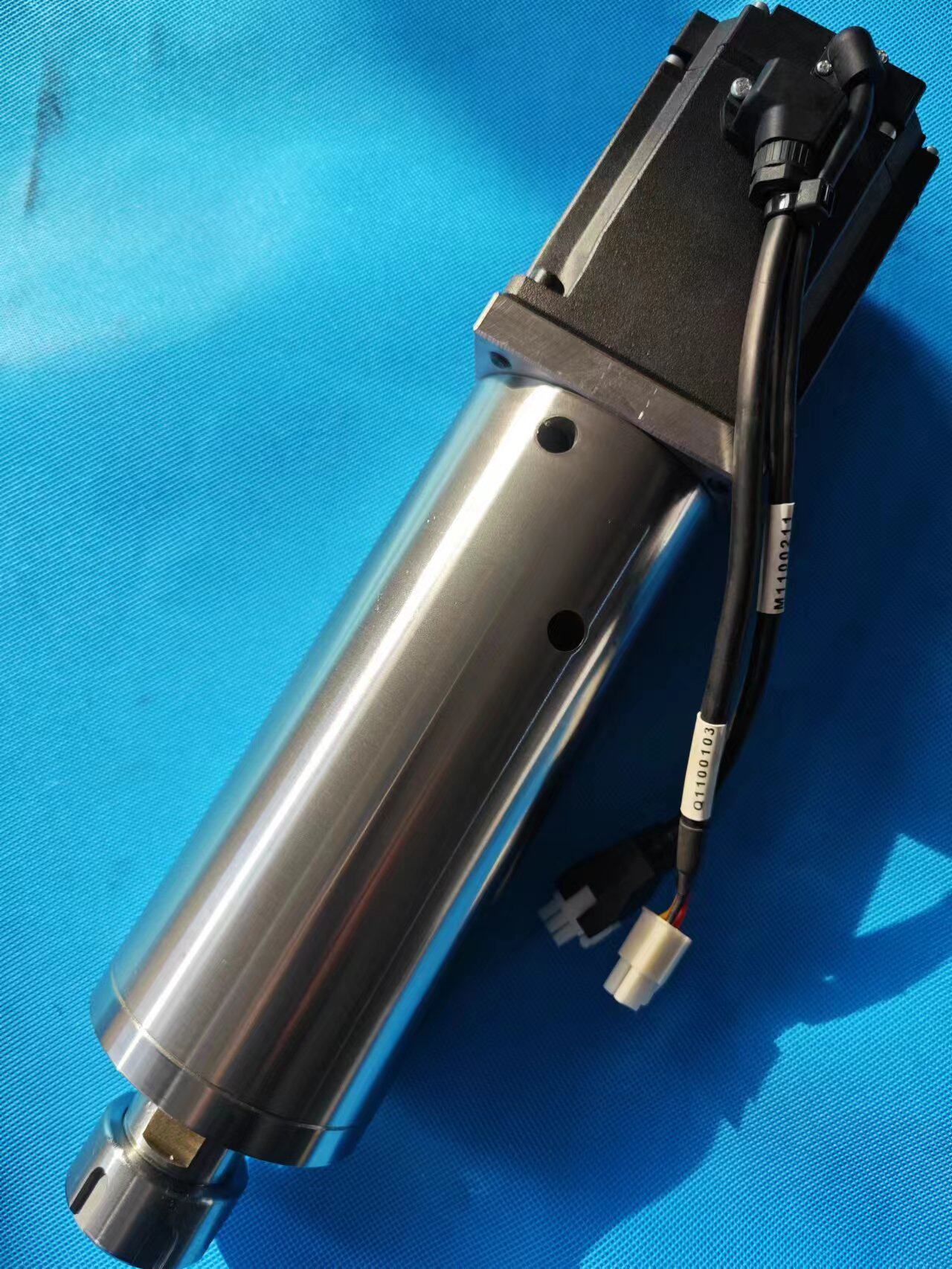

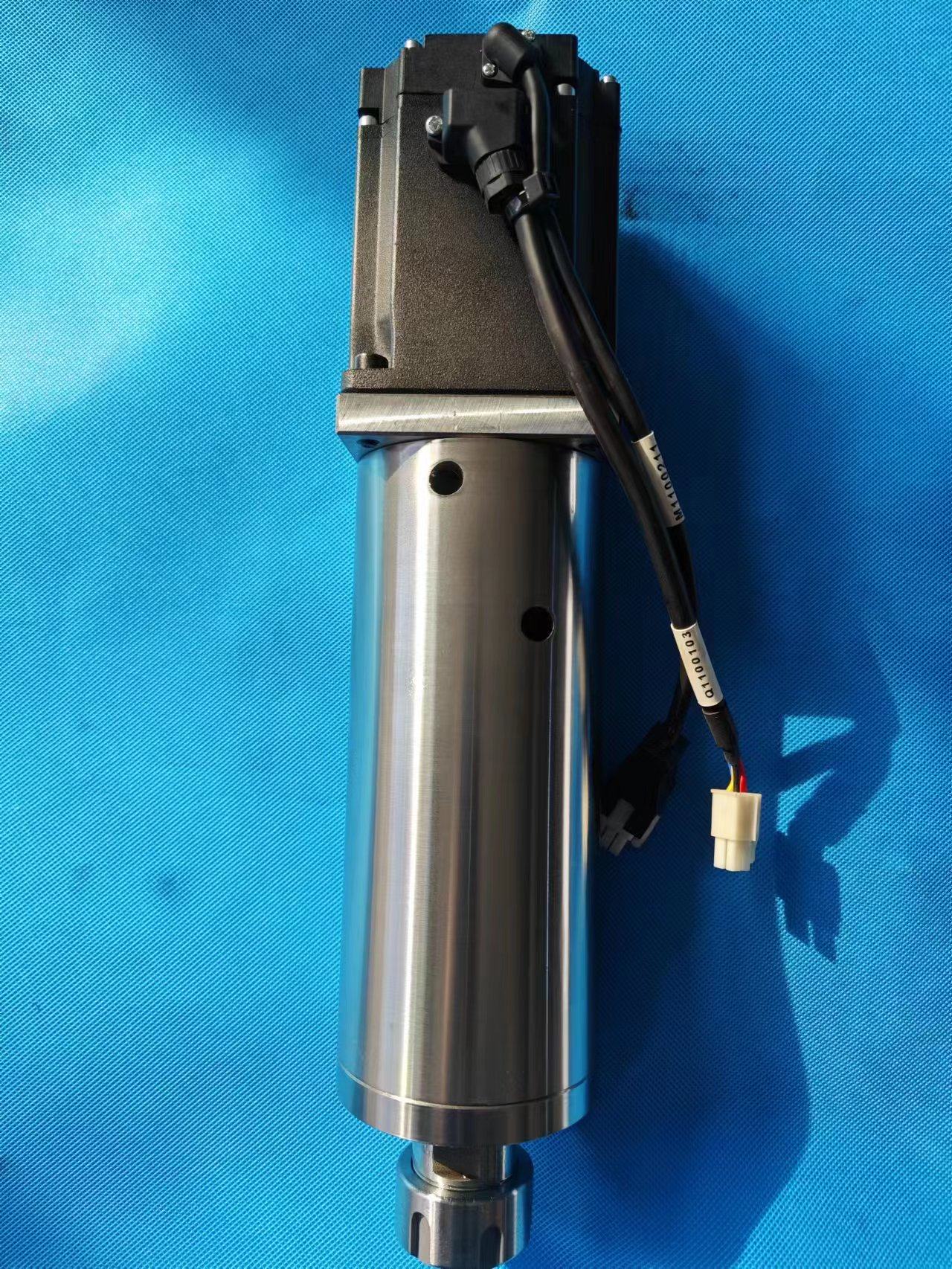

The whole set comes with a brand new servo motor (including driver) and spindle, CN1 plug welded switch and 0-10 analog speed regulation, and external speed has been changed

pattern. Knob speed regulation range of 0-6000 revolutions per minute, can be connected to upper computer systems such as Weihong/MACAH3USB/, and can be powered by hand (24V switch)

One power supply/0-10V analog voltage regulator, one by one

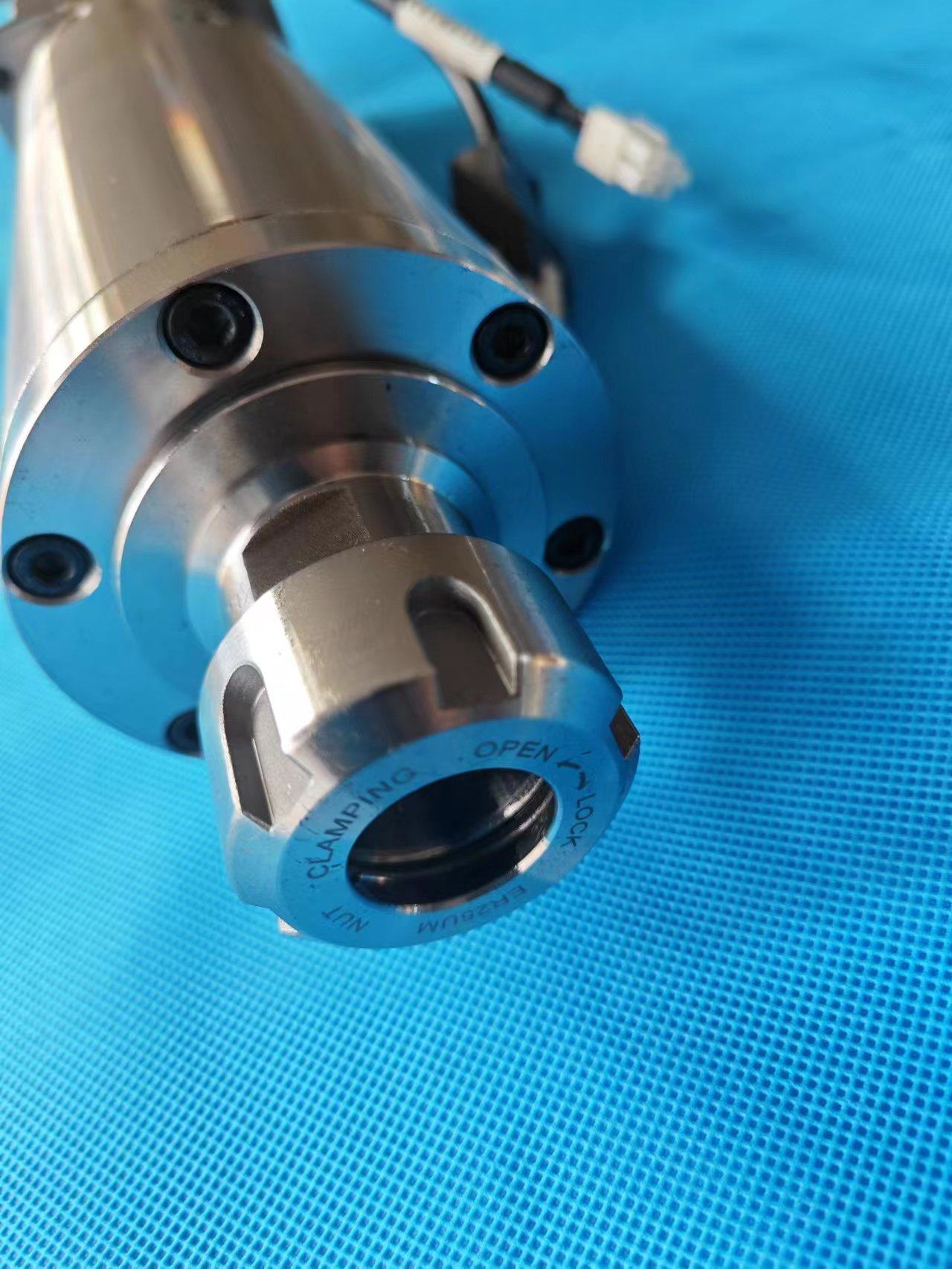

The spindle comes standard with a high-precision nut No other accessories

Regular spot ER25 and ER32 * ER20 and ER16
