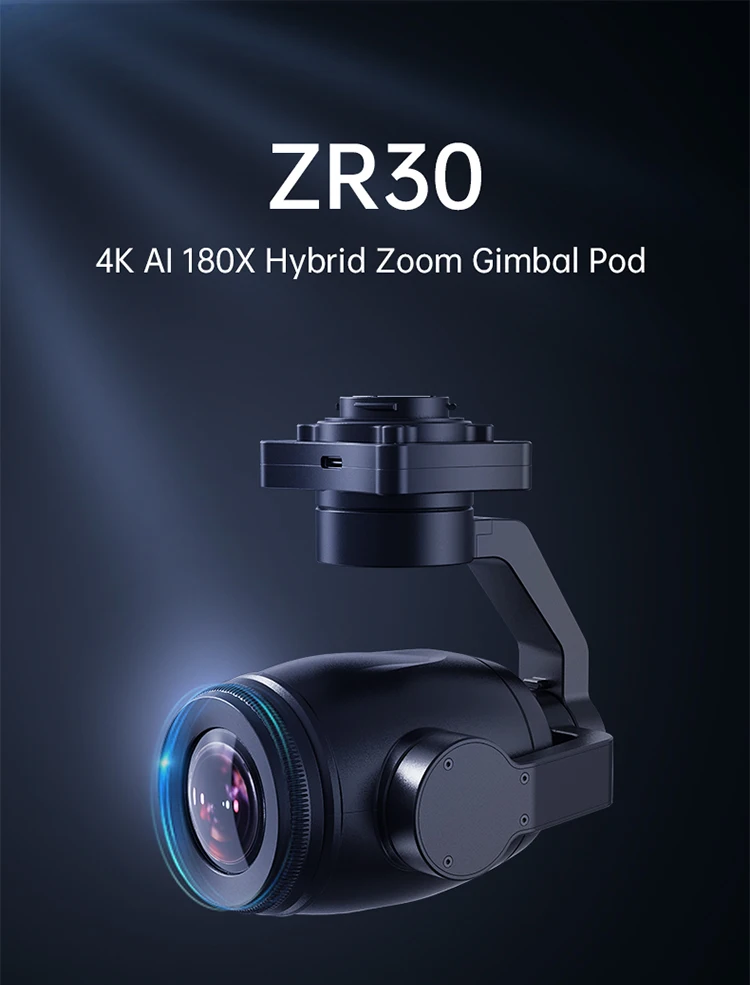

SIYI ZR30 Optical Pod Unboxing
Overall
Model: ZR30

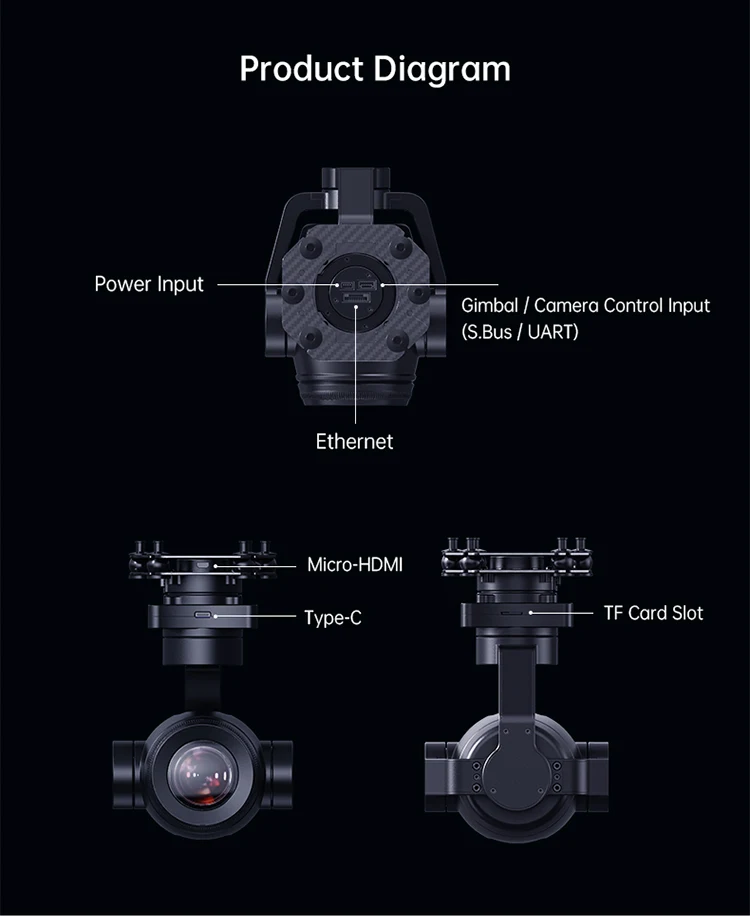

Video Output Port: Ethernet, Micro-HDMI
Control Signal Input Port:
- S.Bus, UART
- UDP (Ethernet)
Working Voltage: 11 to 25.2 V
Power Consumption: Summit 20 W
Working Temperature: -10 ~ 50 ℃
Dimension: 132*100*159 mm (including the quick release board)
Weight: 628 g (including the quick release board)

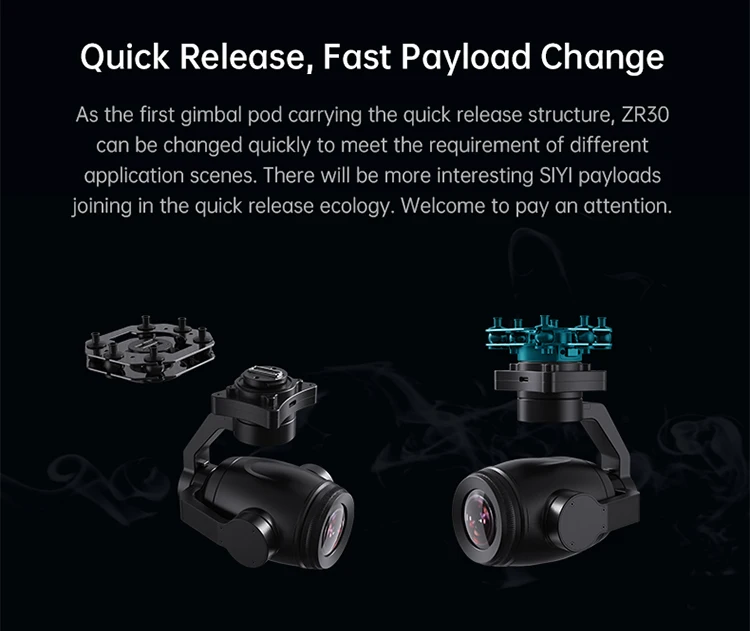

Quick Release Board
Dimension: 82*65*18 mm
Weight: 38 g

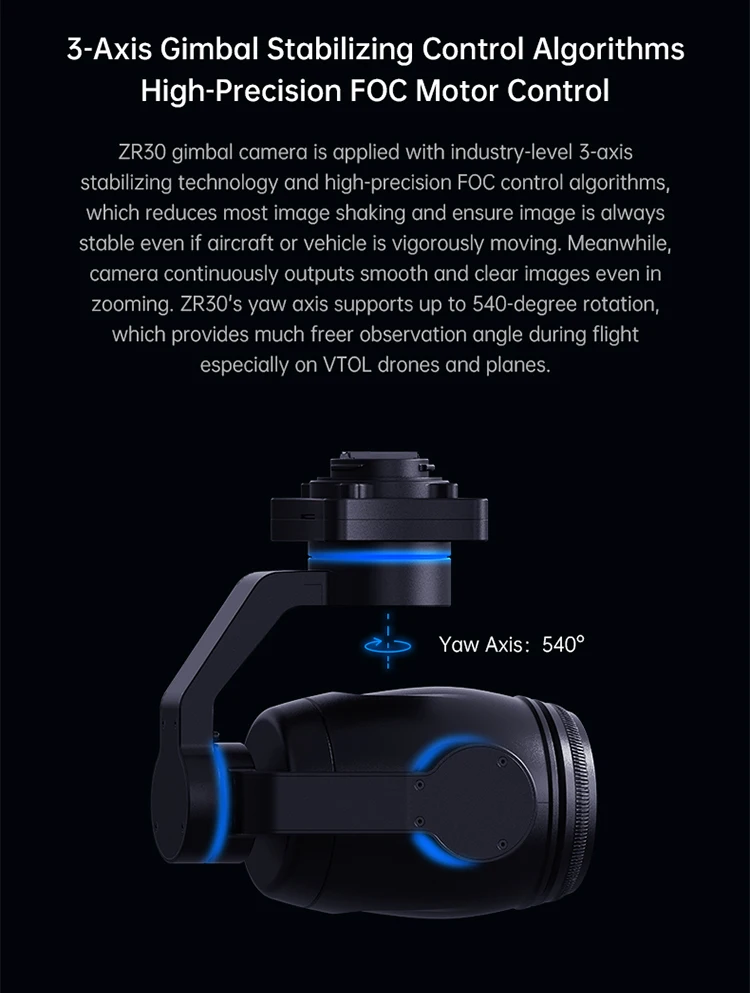

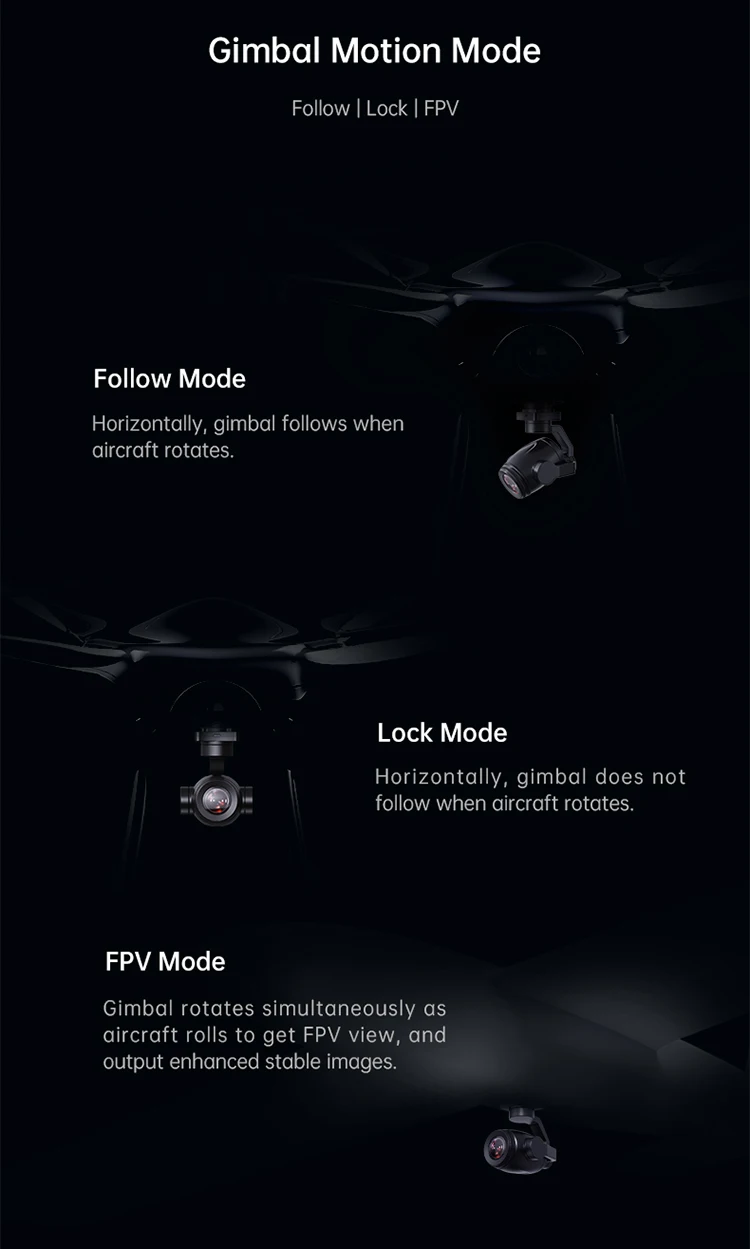

Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -90° to +25°
Controllable Yaw Angle: -270° to +270°
Roll Angle: -45° to +45°
Camera

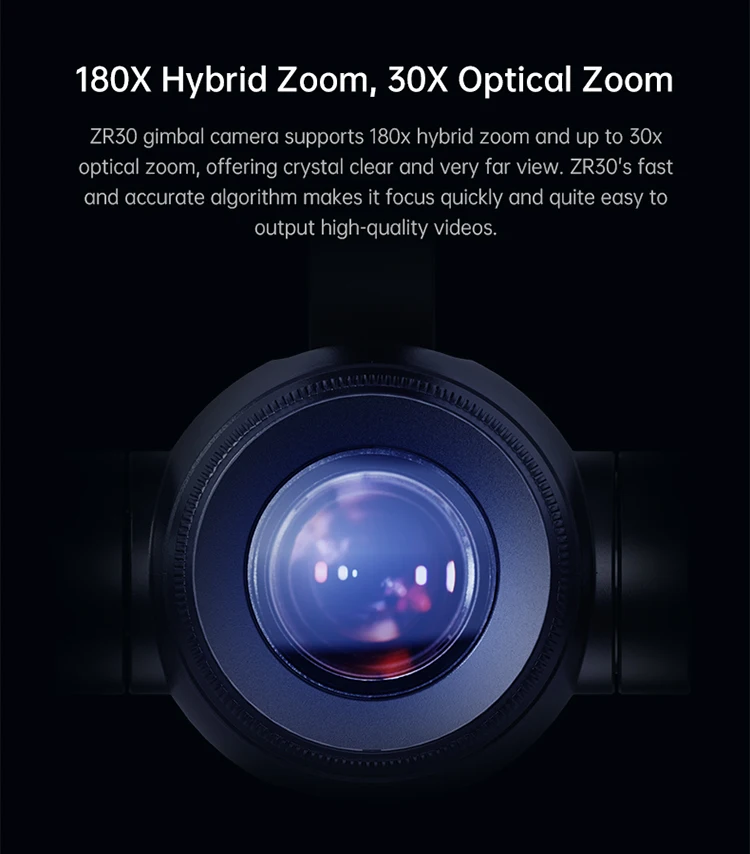

Lens: 30X Optical Zoom (180X Hybrid Zoom)
Focal Length: 4.5±5% to 148.4±5% mm
Image Sensor: 1/2.7 Inch, 8 MP effective resoultion
Aperture: F1.3±5% to F2.8±5%
FOV: Diagonal 65.4°, Horizontal 58.1°
TF Recording Resolution:
- 4K (4096 x 2160) 25 fps
- 2K (2560 x 1440) 30 fps
- 1080p (1920 x 1080) 30 fps
- 720p (1280 x 720) 30 fps
Video Storage Bitrate: 12 Mbps (H.265 codec)
File Storage Format: FAT32
Image Format: JPG
Video Format: MP4
Supported MicroSD Cards: MicroSD Class10, Max 128GB
Still Photography Mode: Single
Metering Mode: Evaluative metering
