MINI OBDII USB V1.5 Scanner for Multi-brands CAN-BUS as same as ELM327 USB. Supports All OBD2 Protocol works on Windows, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).

MINI OBDII USB Scanner for Multi-brands CAN-BUS as same as ELM327 USB



Top 4 Reasons To Get MINI OBDII USB V1.5 Scanner :
1. Software Version: V1.5 (depending on software)
2. Hardware Version: V1.5
3. Works with all OBD-II compliant vehicles
4. USB Cable

Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

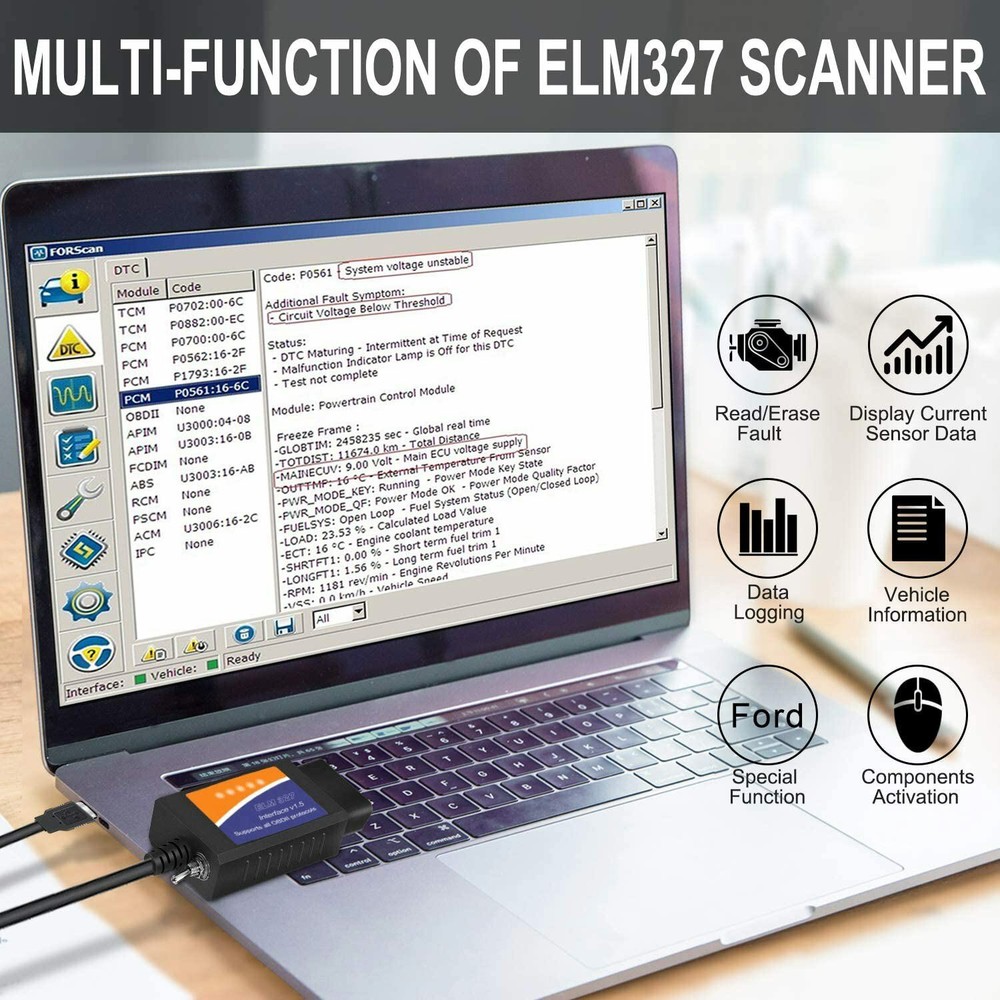

MINI OBDII USB Scanner Functions:

1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ("Check Engine" light)

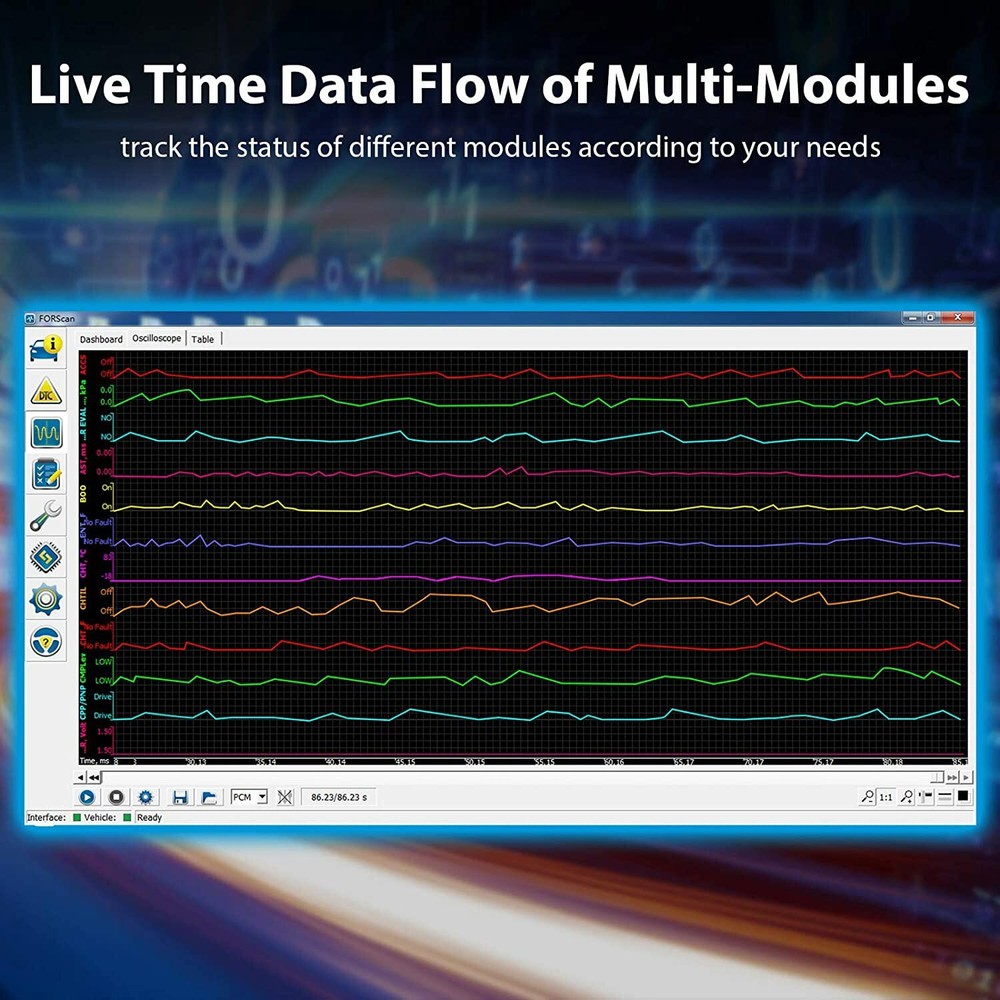

3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others



MINI OBDII USB Scanner Specifications:
Communication: USB Interface
Master Chip: ST
Driver IC: PL2303

Support System: Windows
Working Voltage: 9v ~ 16v
Working Current: 15mA
Standby Current: 0mA
Operating temperature: -40 ℃ ~ 85 ℃
Working Humidity: less than 60%
Size: 45mm * 25mm * 75mm（Cable Length 1.5M）



Compatible systems:

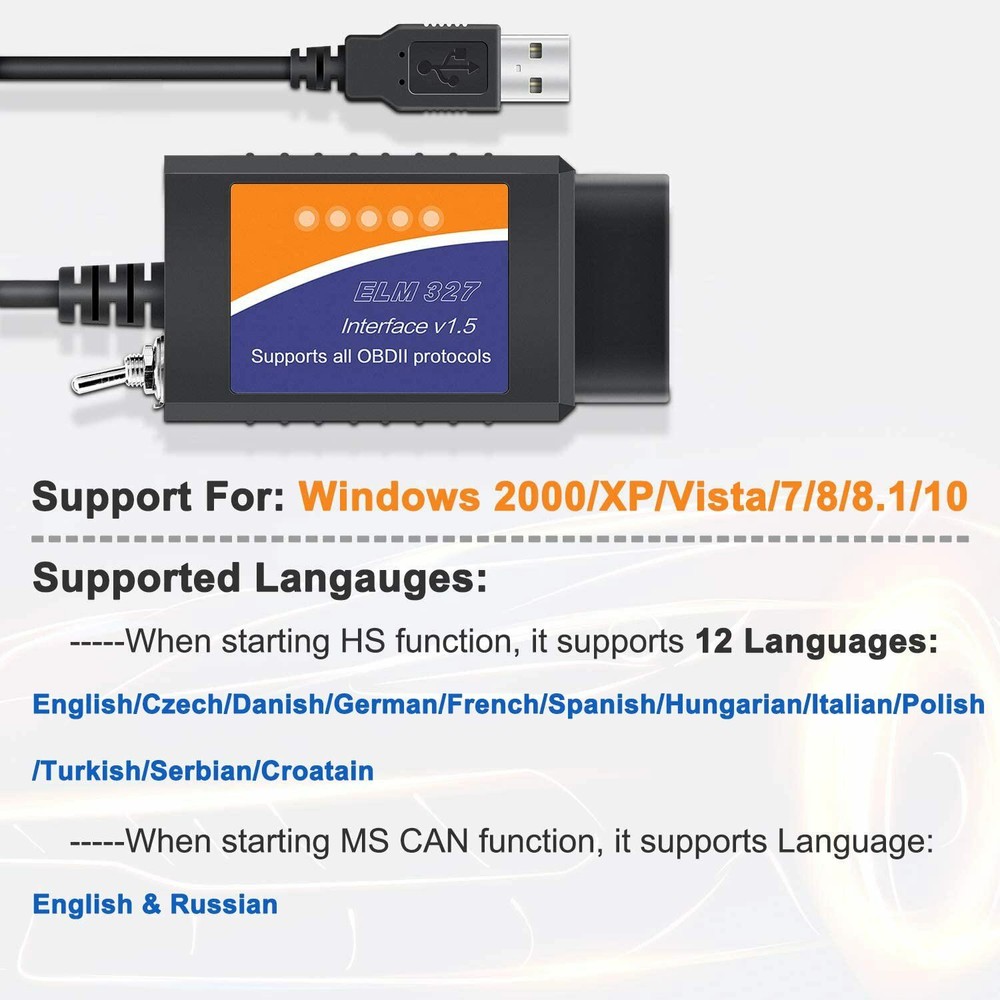

Software support platform: Windows XP, Windows 7/8.



Compatible software:
Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.



Package List:

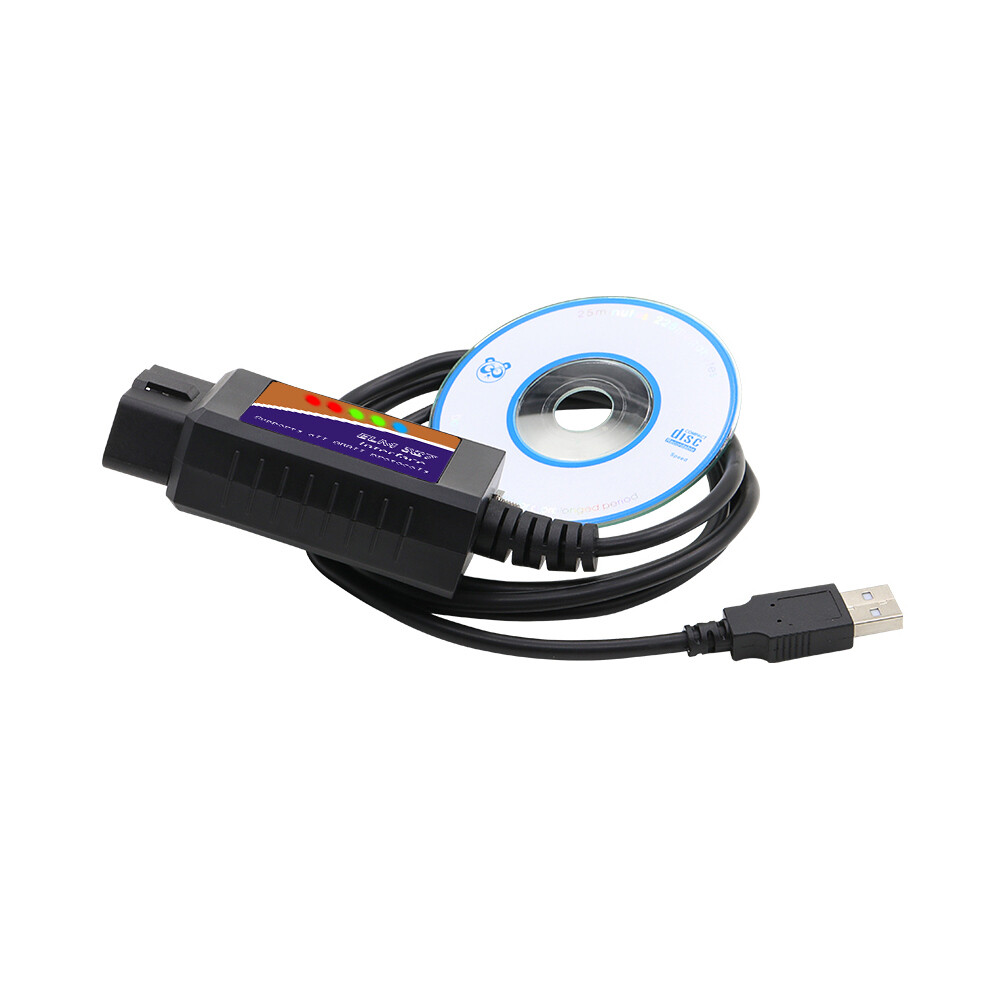

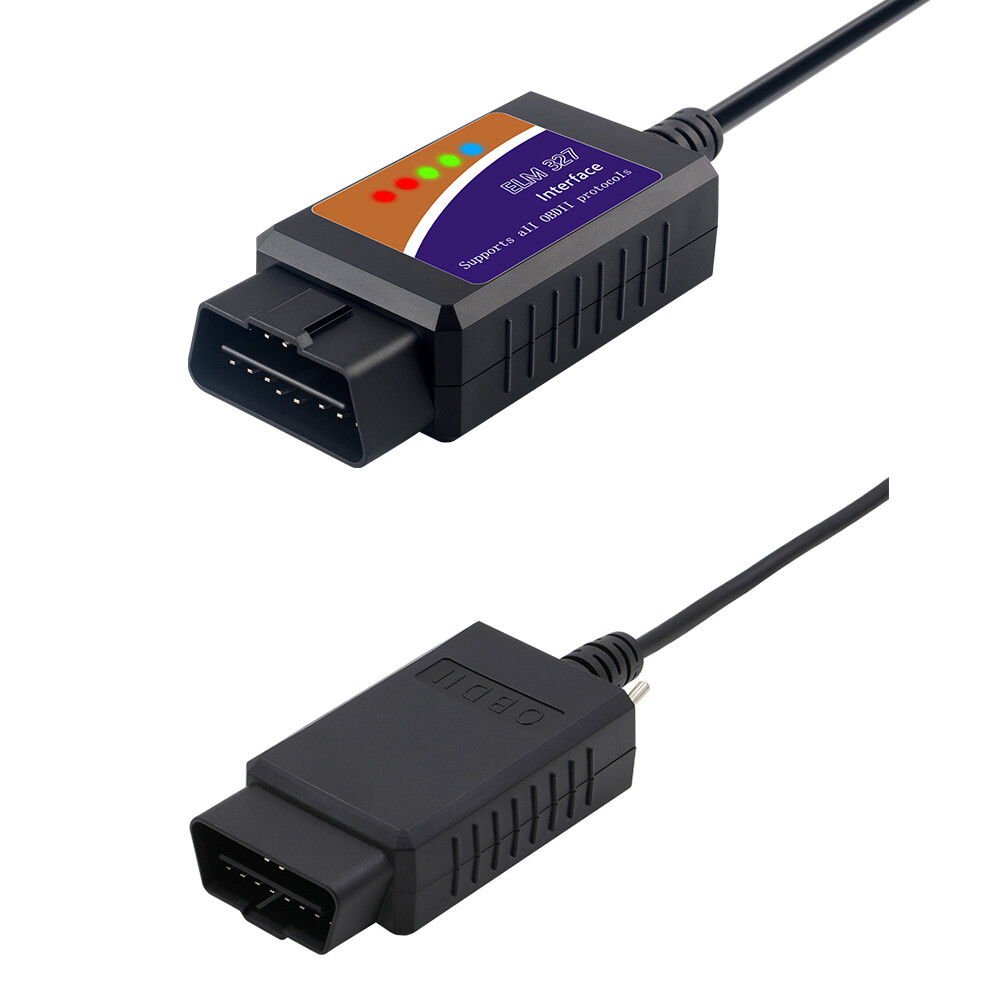

1pc x Mini OBD2 USB Diagnostic Cable
