Item specifics

Condition
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. See all condition definitionsopens in a new window or tab
Brand
Unbranded
Usage
Vacuum Pump
Type
Oil-free vacuum pump
Origin
China
Application
Metering
Structure
Piston Pump
Standard or Nonstandard
Standard
MPN
Does not apply
Power
Electric
Theory
Vacuum Pump
Pressure
High Pressure
Model Number
PP88AC.22DH

Item description from the seller

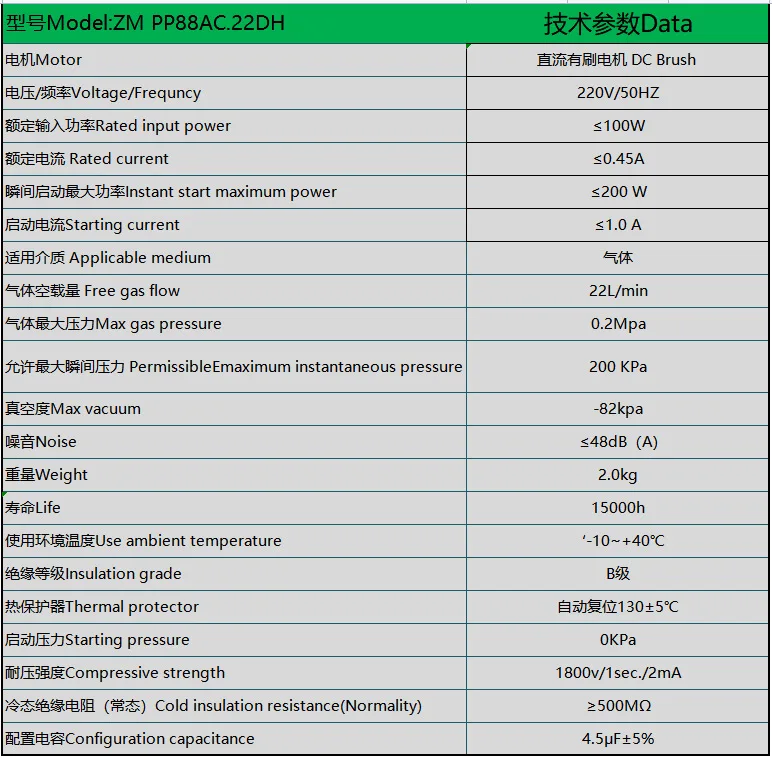

Specification

Model: PP88AC.22DH
Voltage (ACV): 220V
Gas flow (l / min): 22
Vacuum (kpa): 82
Pressure (MPa): 0.2
Weight (kg): 2
Life (h): 15000

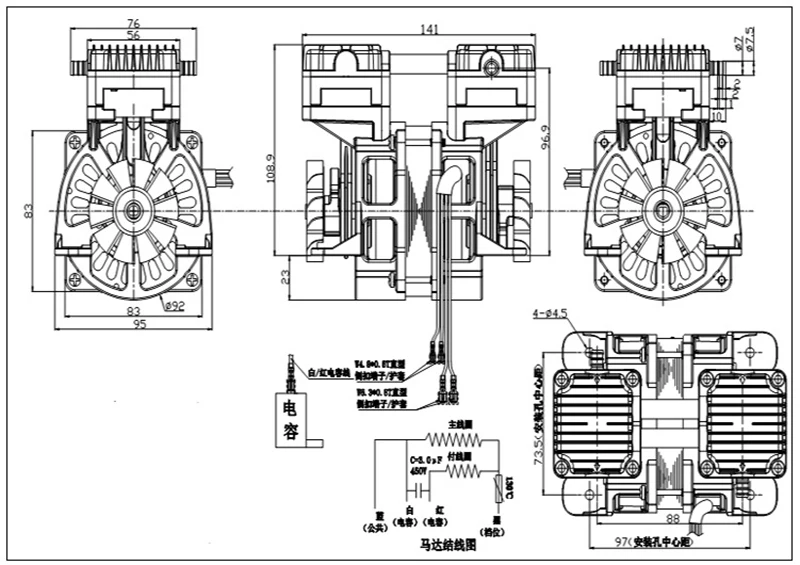

Wire description:
Public line: blue; stall: black; 1015 20AWG exposed 410 ± 25RPM
Capacitance line: white, red 1015 22AWG exposed 250 ± 10MM (Note: single wire withstand tensile force requirements 3. 0kg. F or more)
