Item specifics

Condition
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. See all condition definitionsopens in a new window or tab
Valve seat material
engineering plastic
Standard or Nonstandard
Standard
MPN
does not apply
Maximum lift
48
Pump body material
aluminum alloy
Gross weights
1.2kg
Power
Electric
Maximum flow rate
0.3
Ball material
EPDM
Brand
Unbranded
Diaphragm material
EPDM
Feed port size
16mm
Type
diaphragm pump

Item description from the seller

More features and benefits
-- Open flow up to 1.5GPM/5.6LPM
-- Dry operation without damage
- Maximum self-priming height of 5 feet /1.5 meters
-- Adjustable long life pressure switch
-- Configurable reflux function
-- Can adapt to any situation
-- Multi-connector selection
- Bypass switch reduces circulation
-- Ignition protection, CE, RoHSType: 2-chamber reciprocating diaphragm pump with self-priming function for short dry run.
Control mode: pressure switch and bypass switch control
Liquid temperature :60° C (140° F)
Suction:
1.9-2.6LPM has a suction range of 0.6 m (2 ft)
3.8-5.6LPM suction range is 1.5 m (5 ft)
Restart pressure (water hammer pressure) :
Stop pressure 35 PSI: 25 PSI ±5 PSI (±0.3 bar)
Stop pressure 40 PSI: 30 PSI ±5 PSI (±0.3 bar)
Stop pressure 70 PSI: 56 PSI ±5 PSI (±0.3 bar)
Inlet and outlet size :16 mm (5/8 ft) quick mounting connector
Weight :0.7 kg (1.54 lb)

Technical parameter list

Model number voltage

Open flow
（GPM/LPM）

Control mode

Rated current

Stopping pressure
（PSI/BAR)

Valve material Diaphragm material Interface mode

Connecting line

SFDP1-005-070-23C
12V
0.5/1.9 Pressure switch and bypass switch 1.8A 70/4.8 EPDM Santoprene 5/8 ''Pick it up 2 core wire/European plug
SFDP2-005-070-23C
24V
0.5/1.9 Pressure switch and bypass switch 1.0A 70/4.8 EPDM Santoprene 5/8 ''Pick it up 2 core wire/European plug
SFDP1-007-070-23C
12V
0.7/2.6 Pressure switch and bypass switch 2.5A 70/4.8 EPDM Santoprene 5/8 ''Pick it up 2 core wire/European plug
SFDP2-007-070-23C
24V
0.7/2.6 Pressure switch and bypass switch 1.2A 70/4.8 EPDM Santoprene 5/8 ''Pick it up 2 core wire/European plug
SFDP1-010-040-23C
12V
1.0/3.8 Pressure switch and bypass switch 3.8A 40/2.8 EPDM Santoprene 5/8 ''Pick it up 2 core wire/European plug
SFDP2-010-040-23C
24V
1.0/3.8 Pressure switch and bypass switch 2.0A 40/2.8 EPDM Santoprene 5/8 ''Pick it up 2 core wire/European plug
SFDP1-012-040-23C
12V
1.2/4.3 Pressure switch and bypass switch 4.2A 40/2.8 EPDM Santoprene 5/8 ''Pick it up 2 core wire/European plug
SFDP2-012-040-23C
24V
1.2/4.3 Pressure switch and bypass switch 2.2A 40/2.8 EPDM Santoprene 5/8 ''Pick it up 2 core wire/European plug
SFDP1-015-040-23C
12V
1.5/5.6 Pressure switch and bypass switch 4.5A 40/2.8 EPDM Santoprene 5/8 ''Pick it up 2 core wire/European plug
SFDP2-015-040-23C
24V
1.5/5.6 Pressure switch and bypass switch 2.5A 40/2.8 EPDM Santoprene 5/8 ''Pick it up 2 core wire/European plug

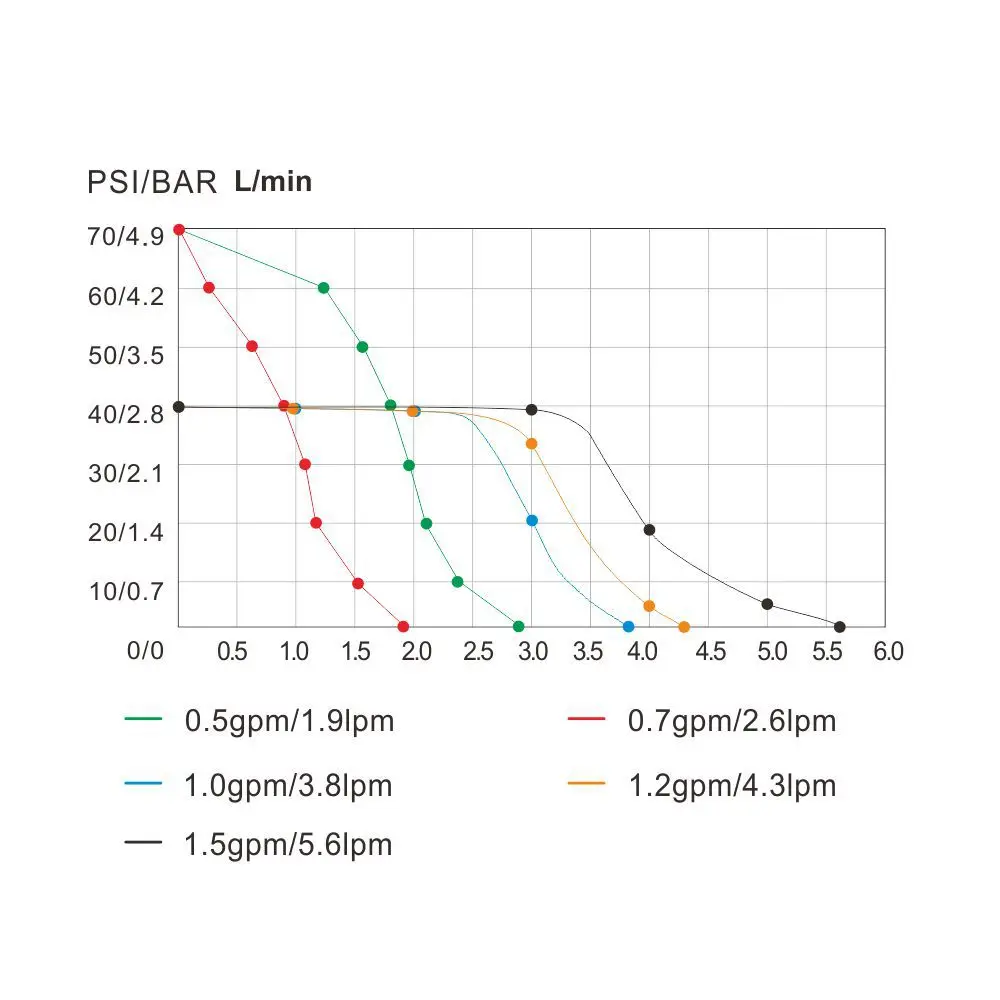

Working performance:

0.5 gallons per minute
Stress Flow rate Electric current
PSI BAR GPM

LPM

APMS

0

0

0.51

1.95

0.56

10

0.69

0.41

1.56

0.72

20

1.38

0.35

1.32

0.84

30

2.07

0.31

1.16

1.02

40

2.76

0.25

0.93

1.13

50

3.45

0.19

0.71

1.32

60

4.14

0.14

0.53

1.51

70

4.83

0

0

1.78

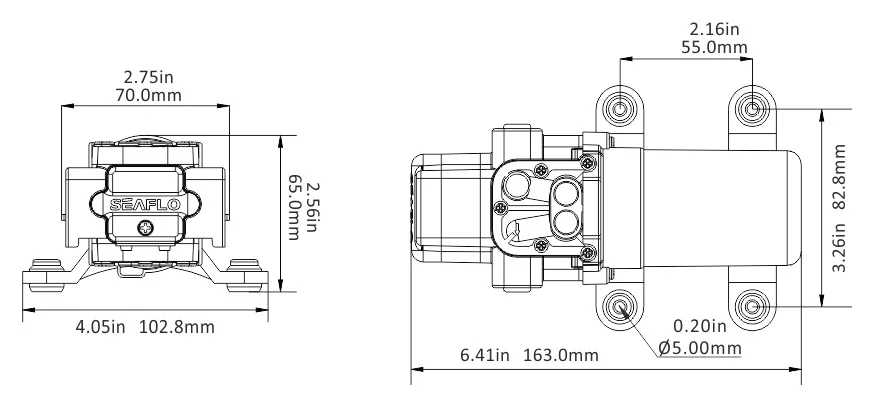

Installation dimensions:

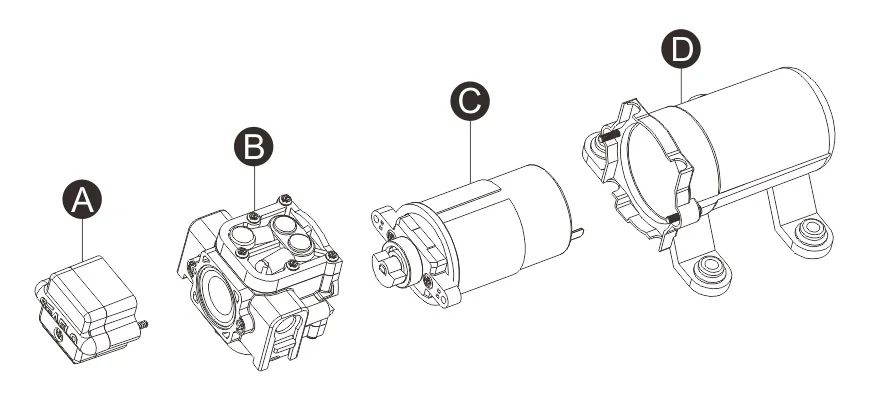

Product components:

Number of component names
A: Pressure switch x 1
B: Pump head assembly ×1
C: Motor components ×1
D: Motor cover assembly ×1
