105 FD-R7000

105 Front Derailleur (Brazed-On Mount) 2x11-speed

FD-R7000-F

SHIMANO 105 - Front Derailleur - Brazed-On Mount - Road - 2x11-speed



The new toggle construction on the SHIMANO 105 R7000 front derailleur incorporates an integrated cable tensioner and an optimized cage design that is compatible with disc brake road bikes. It is available in silver and black and braze-on and clamp mountings.



FEATURES

Lighter front shifting operation

Ergonomic power curve

New link (toggle) construction

Natural stroke feeling

Precise and easy front derailleur adjustment

More cable routing options

New link (toggle) construction

Integrated cable tension adjustment

Optimized cage design for disc brake road bikes

Shorter rear center (410 mm) with 135 mm O.L.D.

Color options: Silky Black, Spark Silver



PRODUCT SPECIFICATIONS

MODEL NO FD-R7000-F

SERIES SHIMANO 105 R7000 Series

Color Silky black | Spark silver

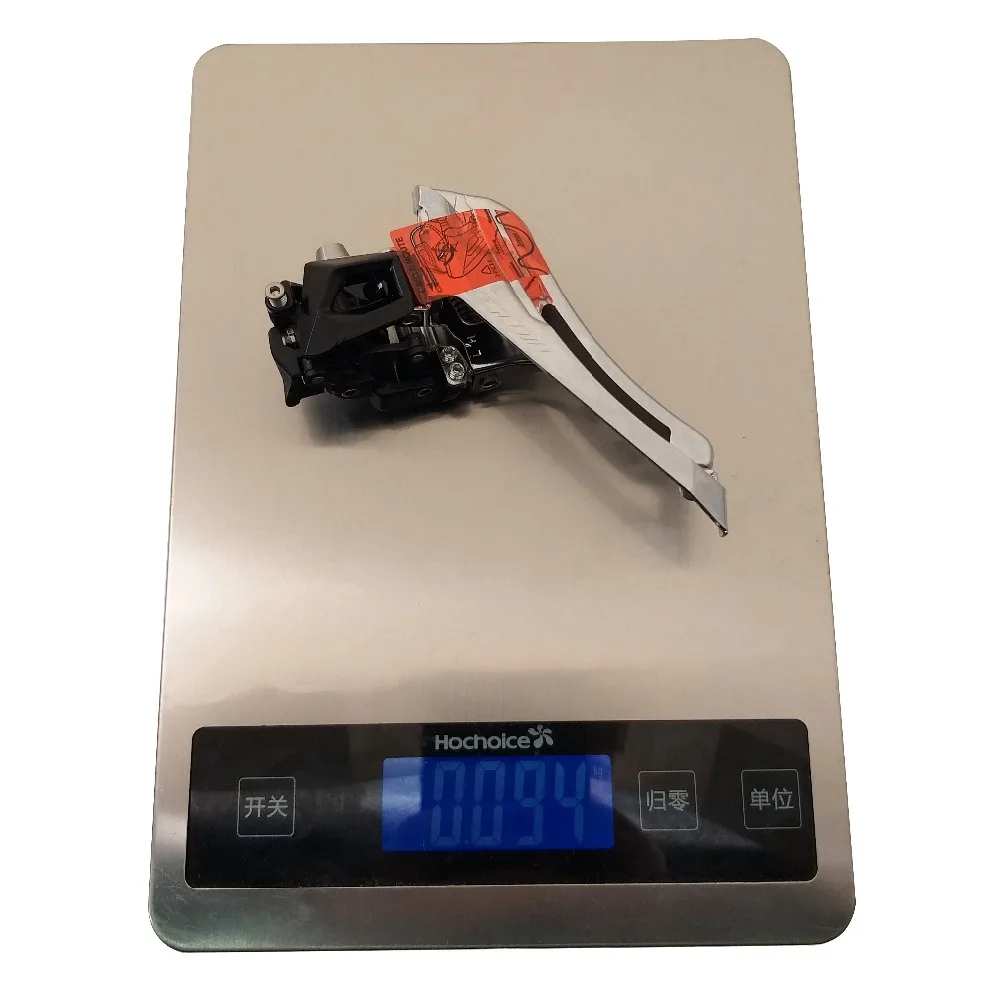

Average weight 96

Front speeds 2

Rear speeds 11

Compatible chain LINKGLIDE, HG 11-speed

Action|Down swing

Mount|Brazed-on

Cable adjust

Chain line (mm) 43.5

Chainstay angle (deg.) 61-66

Top gear teeth 46-53T

Total capacity 16T

Link bushings 7





SHIMANO 105 Front Derailleur (Clamp Band Mount) 2x11-speed

FD-R7000-B

SHIMANO 105 - Front Derailleur - Clamp Band Mount - Road - 2x11-speed



The new toggle construction on the SHIMANO 105 R7000 front derailleur incorporates an integrated cable tensioner and an optimized cage design that is compatible with disc brake road bikes. It is available in silver and black and braze-on and clamp mountings.



FEATURES

Lighter front shifting operation

Ergonomic power curve

New link (toggle) construction

Natural stroke feeling

Precise and easy front derailleur adjustment

More cable routing options

New link (toggle) construction

Integrated cable tension adjustment

Optimized cage design for disc brake road bikes

Shorter rear center (410 mm) with 135 mm O.L.D.

Color options: Silky Black, Spark Silver



PRODUCT SPECIFICATIONS

MODEL NO FD-R7000-B

SERIES SHIMANO 105 R7000 Series

Color Silky black | Spark silver

Average weight 111

Front speeds 2

Rear speeds 11

Compatible chain LINKGLIDE, HG 11-speed

Action|Down swing

Mount|Clamp band (mm)|28.6 X (w/ S size adapter)

Mount|Clamp band (mm)|31.8

Mount|Clamp band (mm)|34.9

Cable adjust

Chain line (mm) 43.5

Chainstay angle (deg.) 61-66

Top gear teeth 46-53T

Total capacity 16T

Angled clamp band design

Link bushings 7
